Edge 605/705 Owner’s Manual 1

GettinG Started

GeTTinG sTarTed

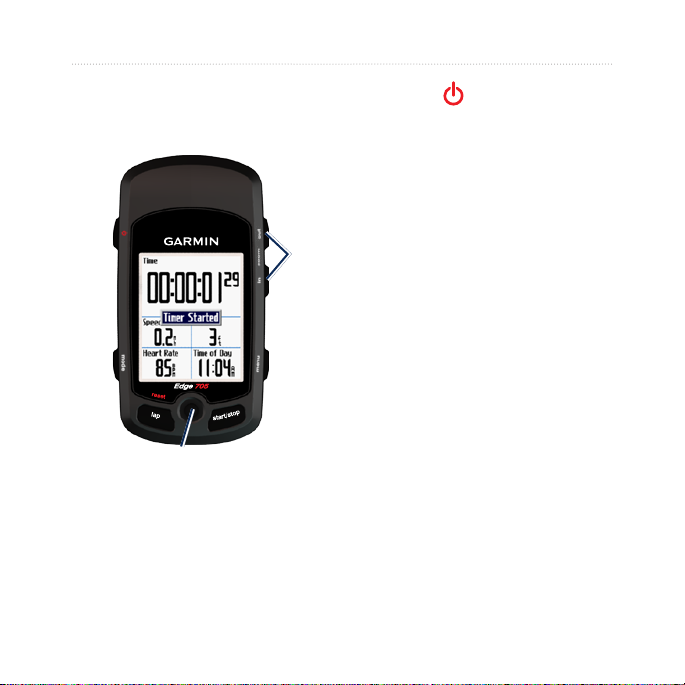

Buttons

➊

➋➏

➎➌

➍

➐

➊

power

Press and hold to turn the Edge

on/off.

Press to turn the backlight on/off.

➋

mode

Press to return to the previous

page.

Press and hold to switch bike

proles.

➌

reset/lap

Press and hold to reset the timer.

Press to create a new lap.

➍

thumb stick/enter

Move the thumb stick to scroll

through menus, options, and data

elds.

Press in the thumb stick to select

options and to acknowledge

messages.

•

2 Edge 605/705 Owner’s Manual

GettinG Started

➎

start/stop

Press to start/stop the timer.

➏

Press to open the menu page.

Press and hold to lock/unlock the

Edge buttons.

➐

in/out

Press to zoom in/out on the map

page and the altimeter page.

Resetting the Edge

If your Edge is locked up/frozen,

press mode and reset/lap

simultaneously to reset the Edge.

This does not erase any of your data

or settings.

•

Edge Backlight

Press to turn on the backlight.

Use the thumb stick to adjust the

backlight level.

Icons

Battery charge level

Battery charging

Satellite icon changes from

blank to 3D when receiving

satellite signals.

Heart rate sensor active

Cadence sensor active

Power sensor active

Keylock active

Edge 605/705 Owner’s Manual 3

GettinG Started

Step 1: Charge the

Battery

WARNING: This product

contains a lithium-ion battery. See

the Important Safety and Product

Information guide in the product

box for important battery safety

information.

The Edge is powered by a built-in

lithium-ion battery that you can

recharge using the AC charger

included in the product box. You can

also charge the Edge using the USB

cable and your computer. Charge the

Edge for at least three hours before

you begin using it.



NOTE: To prevent

corrosion, thoroughly

dry the mini-USB

port, weather cap, and

surrounding area before

charging or connecting to

a personal computer.



TIP: The Edge will not

charge when outside the

temperature range of

32°F–122°F (0°C–50°C).

To charge the Edge:

1. On the back of the Edge, pull

up the weather cap from the

mini-USB port.

2. Plug the mini-USB end of

the AC or USB cable into the

mini-USB port on the back of

the Edge.

4 Edge 605/705 Owner’s Manual

GettinG Started

Mini-USB port

under weather

cap

3. Plug the other end into a

standard wall outlet (AC) or

an available USB port on your

computer (USB).

A fully charged battery can run for

approximately 15 hours before it

must be recharged. For more battery

information, see page 60.

Step 2: Install the

Edge

For the best GPS reception, position

the bike mount so the front of the

Edge is oriented toward the sky. You

can install the bike mount on the

stem or the handlebars. The stem

installation (shown here) provides a

more sturdy location. The optional

wedge should be used under the

mount for a better viewing angle.

To install the Edge on your

bike stem:

1. Place the wedge on the bike

stem, and then place the bike

mount on the wedge. Make

sure the release lever is on

the left.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Garmin Fahrradzubehör Handbücher

Garmin

Garmin GPSMAP 800 Series Gebrauchsanweisung

Garmin

Garmin EDGE 540 Bedienungsanleitung

Garmin

Garmin Edge 800 Bedienungsanleitung

Garmin

Garmin EDGE 500 Bedienungsanleitung

Garmin

Garmin Edge 800 Bedienungsanleitung

Garmin

Garmin Edge 820 Bedienungsanleitung

Garmin

Garmin EDGE 520 PLUS Bedienungsanleitung

Garmin

Garmin Edge Explore Bedienungsanleitung

Garmin

Garmin Edge 510 Bedienungsanleitung

Garmin

Garmin Varia Bedienungsanleitung

Garmin

Garmin EDGE 130 PLUS Bedienungsanleitung

Garmin

Garmin Edge 810 Bedienungsanleitung

Garmin

Garmin Oregon 200 Bedienungsanleitung

Garmin

Garmin 605 Bedienungsanleitung

Garmin

Garmin TACX NEO 3M Bedienungsanleitung

Garmin

Garmin EDGE 530 Bedienungsanleitung

Garmin

Garmin Aerosensor Bedienungsanleitung

Garmin

Garmin EDGE 500 Bedienungsanleitung

Garmin

Garmin Varia HL Bedienungsanleitung

Garmin

Garmin EDGE EXPLORE 2 Gebrauchsanweisung

Garmin

Garmin Edge 200 Bedienungsanleitung

Garmin

Garmin VARIA RCT715 Bedienungsanleitung

Garmin

Garmin Edge 810 Gebrauchsanweisung

Garmin

Garmin Varia RTL515 Bedienungsanleitung

Beliebte Fahrradzubehör Handbücher anderer Marken

Sigma

Sigma BC 16.16 Bedienungsanleitung

Playcore

Playcore Dero Setbacks Bedienungsanleitung

VDO Cyclecomputing

VDO Cyclecomputing x3dw Bedienungsanleitung

Cateye

Cateye RAPID X2 Bedienungsanleitung

buratti meccanica

buratti meccanica Clorofilla Trail Bedienungsanleitung

Shimano

Shimano SG-8R20 Betriebsanleitung

BOB

BOB YAK Bedienungsanleitung

APLIC

APLIC 303303/20190717TW012 Bedienungsanleitung

SRAM

SRAM AXS BlipBox Bedienungsanleitung

Shimano

Shimano FD-RX810 Bedienungsanleitung

Cateye

Cateye V2C - Gebrauchsanweisung

KMART

KMART 43115907 Bedienungsanleitung

SIGMA SPORT

SIGMA SPORT Buster 2000 Bedienungsanleitung

NVO Components

NVO Components STEM Bedienungsanleitung

DAXYS

DAXYS BP188 Bedienungsanleitung

XLC

XLC BV-W17 Bedienungsanleitung

Deda Elementi

Deda Elementi SUPERBOX Bedienungsanleitung

Akku Vision

Akku Vision e-bike vision 10046 Kurzanleitung
