Garmin Vector 2S Gebrauchsanweisung
2
E
N
Introduction
WARNING
Read all instructions carefully before
installing and using the Vector™ system.
Improper use could result in serious
injury.
See the
Important Safety and Product
Information
guide in the product box for
product warnings and other important
information.
NOTICE
Go to www.garmin.com/vectorowner
for the latest information including bike
compatibility, software updates, and video
tutorials.
Tools Needed
• 15 mm pedal wrench
• Bike grease
• 3 mm hex key
• 4 mm hex key
Installing Vector Components
Preparing for the Installation
1 Conrmthecompatibilityofyourbike
at www.garmin.com/vectorowner.
2Find the sensor ID that is engraved
on the spindle, and write it down.
3Remove the existing pedals.
4Clean the threads, and remove old
grease.
3
E
N

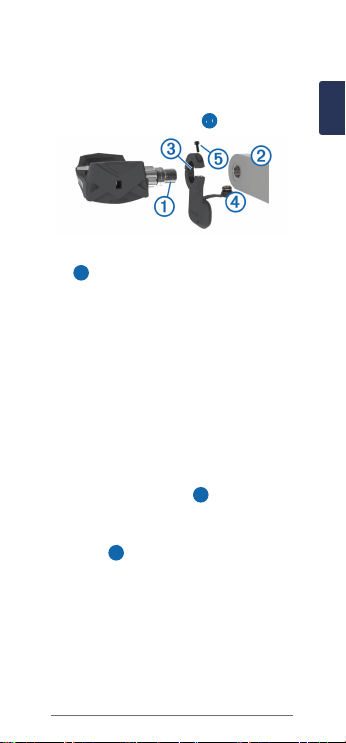

Installing the Left Pedal and Pedal
Pod
1Apply a thin layer of grease on the
pedal spindle threads ➊.
2Insert the spindle into the crank arm
➋.
3Hand tighten the spindle.
NOTE: The left pedal spindle has a
left- handed (reverse) thread.
4Use the pedal wrench to tighten the
spindle.
NOTE: Garmin®recommends torque
of 25 to 30 lbf-ft. (34 to 40 N-m).
5Clean all excess grease from the
spindle using a clean cloth and soapy
water or isopropyl alcohol.
6Place the pedal pod ➌on the
spindle.
NOTE: You must carefully bend the
cable ➍out of the way. The pedal
podshouldbeatagainstthecrank
arm.
TIP: Power and cadence calculations
are not impacted by the orientation of
the pedal pod. Garmin recommends
placing the pedal pod on the leading
edge of the crank. When the crank is
4
E
N
in the forward position, the pedal pod
should be pointing downward.
7Firmly plug the cable into the spindle.
8Insert the screw ➎into the pedal
pod, and use the 2.5 mm hex key to
tighten the screw.
9Rotate the crank arm to check for
clearance.
The pedal pod should not interfere
with any part of the bike.
Installing the Right Pedal
1Apply a thin layer of grease on the
pedal spindle threads.
2Insert the spindle into the crank arm.
3Hand tighten the spindle.
4Use the pedal wrench to tighten the
spindle.
NOTE: Garmin recommends torque
of 25 to 30 lbf-ft. (34 to 40 N-m).
Installing the Shoe Cleats
NOTE: The left and right cleats are the
same.
1Apply a thin layer of grease on the
cleat bolt threads.
2Align the cleat ➊, washers ➋, and
bolts ➌.
5
E
N
3Use a 4 mm hex key to loosely attach
each bolt to the sole of the shoe.
4Adjust the cleat to the shoe in your
preferred position.
This can be adjusted after a trial ride.
5 Tightenthecleatrmlytotheshoe.
NOTE: Garmin recommends torque
of 4 to 6 lbf-ft. (5 to 8 N-m).
Adjusting the Release Tension
NOTICE
Do not overtighten the release tension
screw on the bottom of the pedal. The
release tension should be adjusted
equally for both pedals.
Use a 3 mm hex key to adjust the
release tension of each pedal.
There is a window on the back of
the pedal binding that shows the
allowable range.
Paring Vector with Your Edge®
1000
Before you can view Vector data on the
Edge device, you must pair the devices.
Pairing is the connecting of ANT+®
wireless sensors. This procedure
contains instructions for the Edge 1000.
If you have another compatible device,
see your owner’s manual, or go to www.
garmin.com/vectorowner.
1Bring the Edge device within range
(3 m) of the sensor.
6
E
N
NOTE: Stay 10 m away from other
ANT+ sensors while pairing.
2Turn on the Edge device.
3From the home screen, select >
Sensors > Add Sensor > Power.
4Rotate the crank arm a few times.
5Select your sensor.
When the sensor is paired with your
Edge device, a message appears, and
the sensor status is Connected. You can
customizeadataeldtodisplayVector
data.
Pedal Pod Status LED
MultiplegreenLEDashesindicatea
system issue that requires your attention.
NOTE: When the pedal pod battery is
low,thestatusLEDashesred,instead
of green.
LED Activity Status
1greenash
every 10 seconds.
The Vector system is
working properly.
2ashesevery10
seconds.
The pedal is not
connected.
3ashesevery10
seconds.
The pedal pod is
connected, but it
cannot communicate
with the Edge device.
7
E
N
4ashesevery10
seconds.
The pedal pod is
searching for the
other pedal pod.
NOTE: For
information about
upgrading the Vector
S, see the owner’s
manual.
5ashesevery10
seconds.
The installation angle
is not set or cannot
be detected.
6ashesevery10
seconds.
There is a hardware
installation error.
7ashesevery10
seconds.
There is a software
update in progress.
1redashevery
10 seconds.
The pedal pod battery
is low.
Your First Ride
BeforeyouridewithVectorfortherst
time, you must enter the crank length and
set the installation angle of the sensors
inside the pedals. The Vector system
automatically calibrates after each ride.
You must also enter the crank length
when you move Vector to another bike.
This procedure contains instructions
for the Edge 1000 device. If you have
another compatible device, see your
owner’s manual or go to www.garmin.
com/vectorowner.
8
E
N
Entering the Crank Length
The crank length is often printed on the
crank arm.
1Rotate the pedals a few times in
order to activate Vector.
2From the home screen, select >
Sensors > > Sensor Details >
Crank Length.
3Enter the crank length, and select .
Setting the Installation Angle
Before you set the installation angles, you
mustsettheEdgedataeldstodisplay
power and cadence.
1Go for a short ride on a trainer or on
the road.
2Ride until the cadence is nearly 70
rpm.
3Accelerate smoothly to approximately
90 rpm.
When the installation angles are
successfully set, a message appears
anddataeldsdisplaypowerdataon
the Edge device.
Troubleshooting
Getting the Owner’s Manual
You can get the most recent owner’s
manual from the web.
1Go to www.garmin.com/vectorowner.
2View or download the full owner’s
manual in your preferred format.
9
E
N
Vector Storage
If you are transporting your bicycle or
not using Vector for an extended period
of time, Garmin recommends removing
Vector and storing it in the product box.
10
E
N
Important Safety and
Product Information
WARNING
Failure to avoid the following potentially hazardous
situations could result in death or serious injury.
Always consult your physician before beginning
or modifying any exercise program. If you have a
pacemaker or other implanted electronic device, consult
your physician before using a heart rate monitor.
The maximum weight limit of the cyclist using the Vector
system is 90 kg (200 lb.). Cyclists over this weight limit
risk personal injury and property damage.
Battery Warnings
Your device uses user-replaceable batteries. If
these guidelines are not followed, the batteries may
experience a shortened life span or may present a risk
ofdamagetothedevice,re,chemicalburn,electrolyte
leak, and/or injury.
• Do not leave the device exposed to a heat source or
in a high temperature location, such as in the sun in
an unattended vehicle. To prevent the possibility of
damage, remove the device from the vehicle or store
it out of direct sunlight.
• Do not use a sharp object to remove the batteries.
• Do not incinerate the batteries or device.
• Keep the batteries away from children.
• Never put batteries in mouth. If swallowed, contact a
physician or poison control center.
• Do not disassemble, puncture, or damage the
batteries.
• Only replace the batteries with the correct
replacement batteries. Using other batteries presents
ariskofreorexplosion.
• Contact your local waste disposal department to
dispose of the device/battery in accordance with
applicable local laws and regulations.
• Replaceable coin cell batteries may contain
perchlorate material. Special handling may apply.
See www.dtsc
.ca.gov/hazardouswaste/perchlorate.
