Geeetech PrusaI3 X Bedienungsanleitung

Geeetech PrusaI3 X

User Manual

Safety Instructions

Building the printer will require a certain amount of physical dexterity, common sense and a

thorough understanding of what you are doing. We have provided this detailed instruction to help

you assemble it easily.

However ultimately we cannot be responsible for your health and safety whilst building or

operating the printer, with that in mind be sure you are confident with what you are doing prior to

commencing with building or buying. Read the entire manual to enable you to make an informed

decision.

Building and operating involves electricity, so all necessary precautions should be taken and

adhered to, the printer runs on 12V supplied by a certified power supply, so you shouldn’t ever have

to get involved with anything over 12V but bear in mind there can still be high currents involved

and even at 12V they shouldn’t be taken lightly.

High temperatures are involved with 3D Printing, the Extrusion nozzle of the hot end can run about

230°C, the heated bed runs 110°C and the molten plastic extruded will initially be at around 200°C,

so special care and attention should be made when handling these parts of the printer during

operation.

We wouldn’t recommend leaving your printer running unattended, or at least until you are confident

to do so. We cannot be held responsible for any loss, damage, threat, hurt or other negligent result

from either building or using the printer.

Check the power input

This step is very important. If you didn’t choose the wright power input, the power supply unit will be burned out.

Check the power input of the power supply unit. You can choose either 110V or 220V according to the Power

regulation in your country.

Tear off the yellow sticky note to check it. You can use a hard stick to reach into the power box and switch it.

www.geeetech.com

ShenZhen GETECH CO.,LTD

1 Software Resources

1.1 Repetier-Host

We use the latest Repetier host 1.6.0 as the printer control software, here is the link for download:

http://www.geeetech.com/wiki/index.php/Repetier-Host#Download

After downloading and installation, it can be used.

1.2 Driver

Connect the printer to computer with USB cable, the motherboard driver installer will automatically

appear. If not, you can download FT232RQ here, which is the driver of GT2560:

http://www.geeetech.com/wiki/index.php/Prusa_I3_X#Install_the_drivers

www.geeetech.com

ShenZhen GETECH CO.,LTD

Download and install, you can find the corresponding serial port in the Windows "Device

Manager":

1.3 Arduino IDE

In the process of using the printer you may need to re-upload the firmware, and the software you

need to use is Arduino.

About how to upload firmware, please refer to FAQ.

2 Connect the Printer

After the above software is installed, we can connect the printer to the computer. Plug the USB into

the computer, open Repetier host, click the icon in the top right corner, and the dialog

www.geeetech.com

ShenZhen GETECH CO.,LTD

box of printer settings will appear.

www.geeetech.com

ShenZhen GETECH CO.,LTD

Select corresponding COM port of the printer and baud rate as 250,000 in the drop-down menu.

Click Apply after the setting. Shown as below.

www.geeetech.com

ShenZhen GETECH CO.,LTD

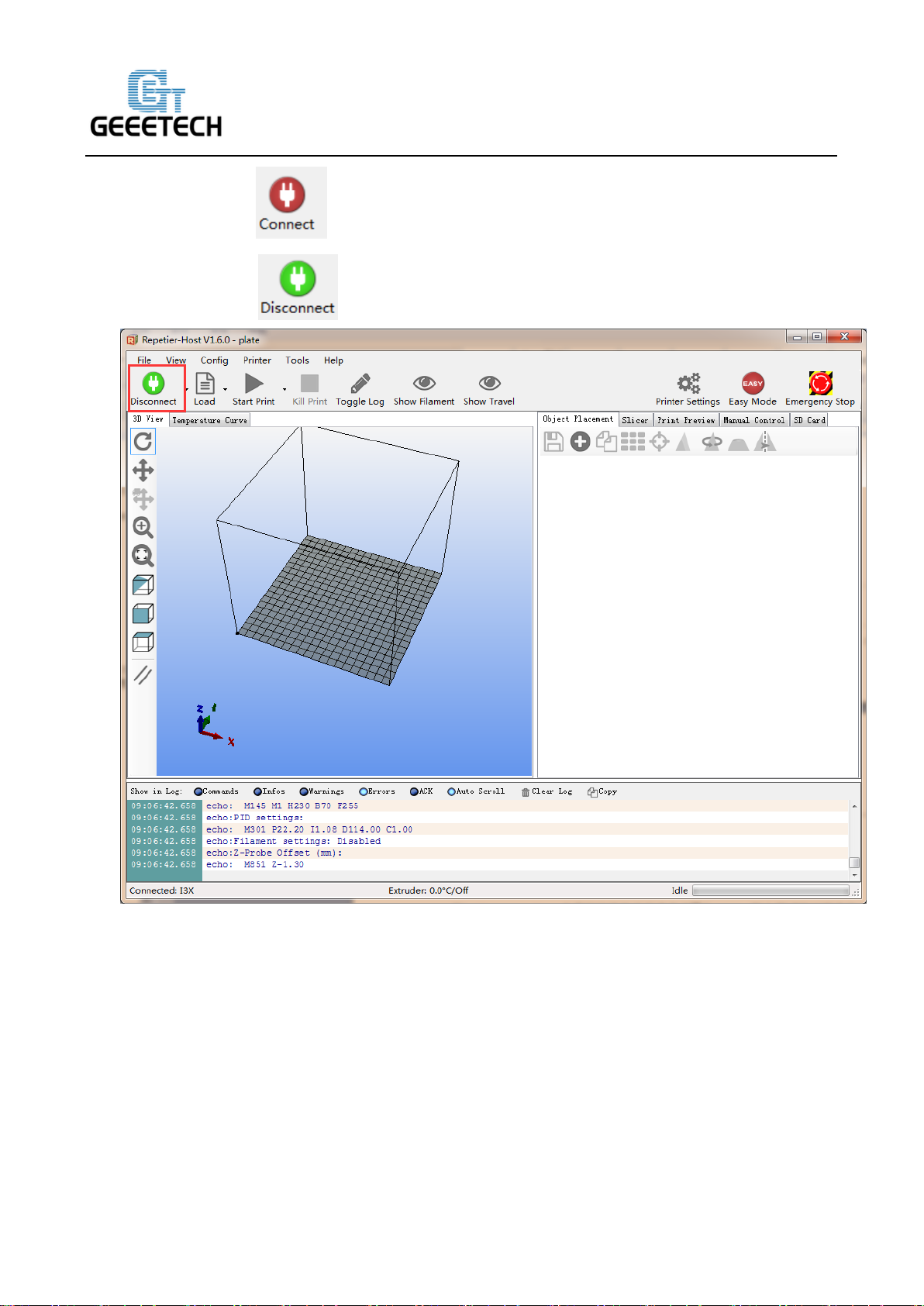

After setting, click the button in the top left corner of Home Page. When the button turns

green and changes into , the printer connection is successful.

www.geeetech.com

ShenZhen GETECH CO.,LTD

3 Printer Setting

3.1 Printer Speed

Set the running speed of printer as 1000 in the printer settings in order to avoid collision because of

high speed during the test. After follow-up tests are completed it can be changed back to the original

value. (Recommend speed of Z-axis should not be too high, 1000 is OK)

Travel feed rate: 1000mm/min

Z-Axis feed rate: 1000mm/min

3.2 Number of Extruder and Nozzle Diameter

The number of extruder is set as 1. The diameter of print head is set according to the actual

www.geeetech.com

ShenZhen GETECH CO.,LTD

size, here is 0.4mm.

3.3 Printer Shape

Here the printer shape of I3X is Classic Printer;

For home position, choose Min;
