Gefen EXT-DVI-CP-FM10 Bedienungsanleitung
®
www.gefen.com
DVI
Extender 1FO
EXT-DVI-CP-FM10
User Manual
ASKING FOR ASSISTANCE
Rev A4
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday, Pacic Time
Write To:
Gefen LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen LLC reserves the right to make changes in the hardware, packaging, and
any accompanying documentation without prior written notice.
DVI Extender 1FO is a trademark of Gefen LLC
© 2012 Gefen, LLC. All rights reserved.
All trademarks are the property of their respective owners.
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Cable Layout
5 Cable Descriptions
6 Connecting the DVI Extender 1FO
6 Wiring Diagram
7 Operating the DVI Extender 1FO
8 Specications
9 Warranty
1
Congratulations on your purchase of the Gefen DVI Extender 1FO.
Your complete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to install and simple to operate.
The Gefen DVI Extender 1FO
The DVI ber optic pigtail module extender with HDCP support extends DVI up to
3300 feet (1000 meters) using single-strand 50/125µm multimode (OM2/OM3.)
SC-terminated ber optic cable to a supporting display at 1920 x1200 WUXGA
resolution. Optical signal transmission provides galvanic isolation and immunity
to electromagnetic interference compared to similar copper based extension
modules.
The pigtail design of the Sender and Receiver modules relieves stress and clutter
on the source and display connector panels. Their compact design makes them
ideal for tting neatly behind equipment for a clean installation, making it a great
way to easily extend DVI.
How It Works
The Sender pigtail end plugs into the DVI source. The Receiver pigtail end
plugs into the display. Connect a single-strand 50/125µm multimode (OM2/OM3)
SC-terminated ber optic cable from the Sender module to the Receiver module
and a vibrant Hi-Def picture will appear on your display.
INTRODUCTION
2
OPERATION NOTES
PLEASE READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE DVI EXTENDER 1FO
• The Sender module does not need to be powered unless the source does
not supply enough power through the DVI connector.
• 62.5/125µm (OM1) ber may also be used at reduced maximum range of up
to 1000 feet (300 meters).
3
FEATURES
Features
• Extends DVI up to 3300 feet (1000 meters) using a single-strand 50/125µm
multimode (OM2) SC-terminated ber optic cable
• Supports resolutions up to 1920 x 1200 (WUXGA)
• Fiber optic transmission eliminates electromagnetic interference (EMI)
• Pigtail design relieves stress and clutter on the source and display connector
panels
• DDC bidirectional support
• HDCP pass-through
• Compact Sender and Receiver modules provide a clean, easy installation
• FCC and CE compliant for EMI/RFI emission
Package Includes
(1) DVI Fiber Optic Modular Extender with HDCP - Sender Pigtail
(1) DVI Fiber Optic Modular Extender with HDCP - Receiver Pigtail
(1) 5V DC power supply
(1) Quick-Start Guide
CABLE LAYOUT
1
3
4
2
Sender
Module
4
5
6
Receiver
Module
5
1 Fiber Optic Connector (Sender module)
Connect an SC-terminated ber optic cable from the Sender pigtail module to
the SC ber connector on the Receiver pigtail module.
2 Power Indicator (Sender module)
This LED will glow bright green when the DVI source is supplying sufcient
power to the Sender module. If the LED ashes green, then the source is
unable to power the Sender module. See page 7 for more information.
3 DVI Connector, male (Sender module)
Connect this end of the Sender pigtail module to the computer or other DVI
source.
4 Fiber Optic Connector (Receiver module)
Connect the SC-terminated ber optic cable from the Sender pigtail module to
the SC ber connector on the Receiver pigtail module.
5 Power Receptacle
Connect the included 5V DC power supply to this power receptacle on the
Receiver pigtail module. Both the Sender and Receiver module have power
receptacles. However, the Sender module does not need to be externally
powered unless the source does not supply enough power through the DVI
connector.
6 DVI Connector, male (Receiver module)
Connect this end of the Receiver pigtail module to the display
CABLE DESCRIPTIONS
6
How to Connect the DVI Extender 1FO
1. Connect the Sender pigtail module to the computer or other DVI source.
2. Connect the Receiver pigtail module to the display.
3. Connect a single strand of SC-terminated ber optic cable between the ber
optic connectors on the Sender and Receiver pigtail module.
4. Connect the included 5V DC power supply to the Receiver unit.
5. Power-on the display and DVI source.

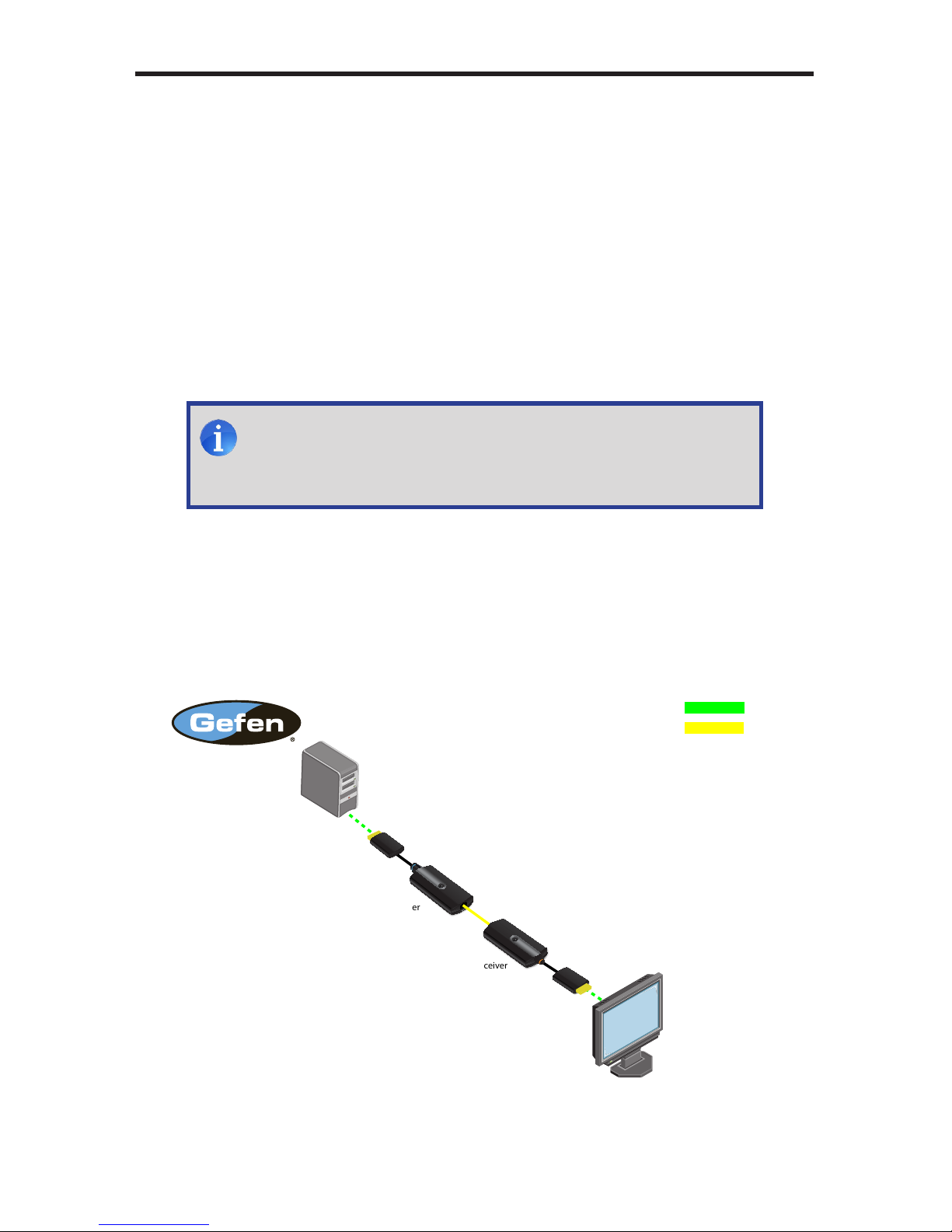

Wiring Diagram for the DVI Extender 1FO
CONNECTING THE DVI EXTENDER 1FO
NOTE: The Sender module does not need to be externally powered
unless the source does not supply enough power through the DVI
connector. The Receiver module must always be powered using one
of the include 5V DC power supplies.
DVI
EXT-DVI-CP-FM10
SC FIBER OPTIC CABLE
Computer
DVI
Display
Sender
Receiver
