Gefen EXT-VGA-141SRN Bedienungsanleitung
®
VGA Extender SRN
EXT-VGA-141SRN
User Manual
www.gefen.com
ASKING FOR ASSISTANCE
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday PST.
Write To:
Gefen, LLC.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
VGA Extender SRN is a trademark of Gefen, LLC.
© 2011 Gefen, LLC. All rights reserved.
All trademarks are the property of their respective companies
Rev A2
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Unit Layout
5 Sender Unit Descriptions
6 Receiver Unit Layout
7 Receiver Unit Descriptions
8 Connecting the VGA Extender SRN
8 Wiring Diagram
9 Operating The VGA Extender SRN
9 Adjusting the Signal Quality
10 Network Cable Wiring Diagram
11 Specications
12 Warranty
1
Congratulations on your purchase of the VGA Extender SRN. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen VGA Extender SRN
The VGA Extender SRN allows users to extend video signals far beyond the A/V
rack. The VGA Extender SRN can be used to extend an analog VGA signal to
cover distances up to 150 feet (45 meters). Industry standard Category 5e (CAT-
5e) cable is used for the extension.
How It Works
The VGA extender SRN sender unit connects to your computer using the
supplied VGA cable. The SRN receiver connects to your monitor - up to 150 feet
(45 meters) away. One CAT-5 cable connects the sender and the receiver to
each other, extending your video. The video transmitter and receiver boxes are
small and unobtrusive, allowing installation in small spaces.
INTRODUCTION
2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE VGA EXTENDER SRN
• Display information (EDID) is not sent back to the source. Standard VESA
resolutions should be output by most computers without the need of an
EDID. If using a non-VESA standard resolution or if EDID is needed, an
EDID storage and relay device is necessary. Gefen recommends the use of
a DVI Detective (part# EXT-DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP)
with two VGA to DVI adapters.
• Use industry standard Category-5 (CAT-5) cable to operate the VGA
Extender SRN system. CAT-5e cable is preferred.
• Please connect all the cables between the computer and the VGA Extender
SRN before powering up the VGA Extender SRN unit.
• The VGA Extender SRN units are housed in a metal box for better RF
shielding.
OPERATION NOTES
3
Features
• Extends any VGA or high denition component display up to 150 feet (45
meters)
• Supports resolutions up to 1080p, 1920 x 1200, and 2K
• Equalization trim pot for brightness adjustment
• Uses only one CAT-5e cable for extension
Package Includes
(1) VGA Extender SRN - Sender Unit
(1) VGA Extender SRN - Receiver Unit
(1) 6 ft. VGA cable (M - F)
(1) 5V DC Power Supply
(1) Quick-Start Guide
FEATURES
4

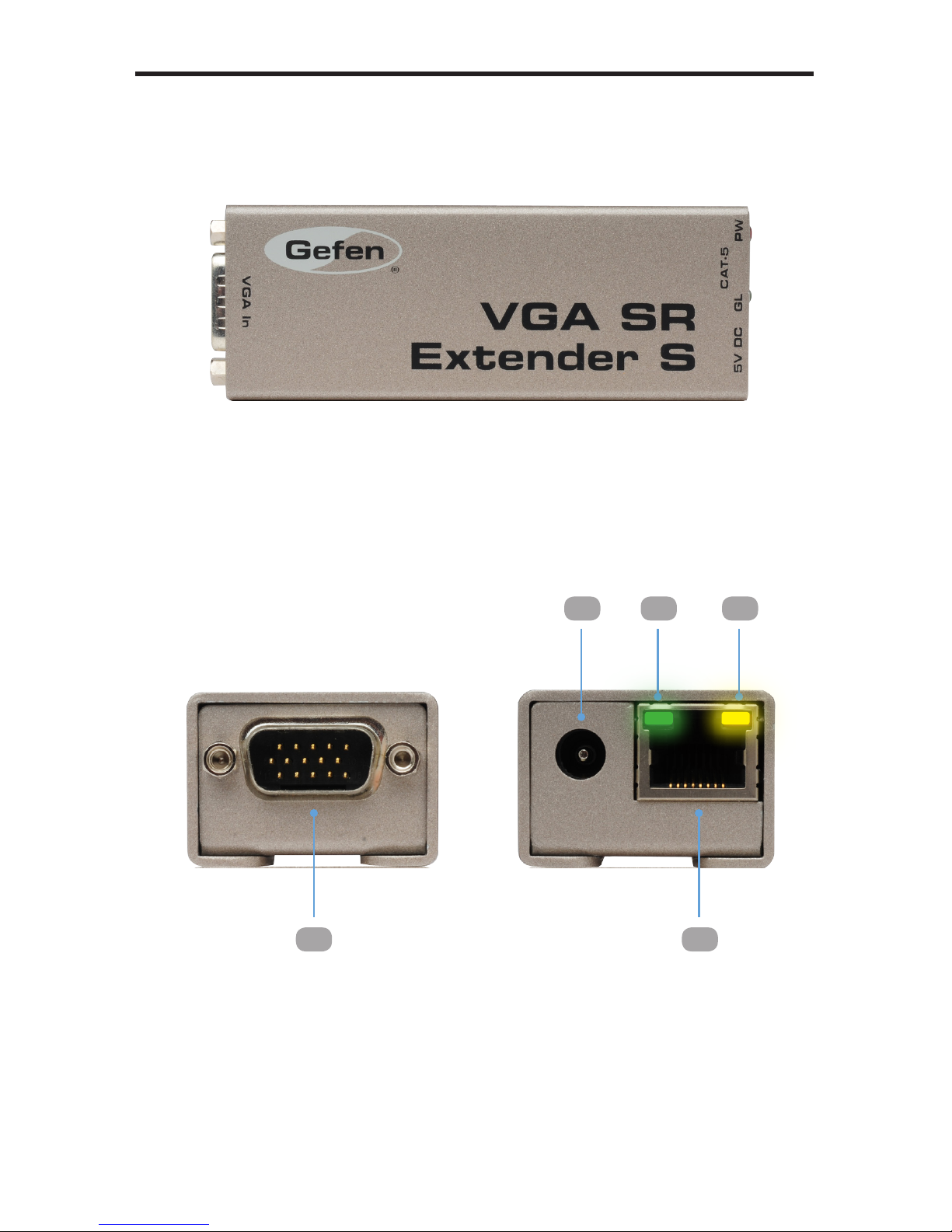

SENDER UNIT LAYOUT
Top View
Front View Back View
1
5 4
2
3
5
SENDER UNIT DESCRIPTIONS
1 VGA In
Connect a VGA cable from the computer to this port.
2 CAT-5
Connect a CAT-5e cable from this connector to the CAT-5e connector on the
Receiver Unit.
3 PW
This LED indicator will glow bright yellow-orange once the included 5 V DC
power supply is connected between the Sender Unit and an available
electrical outlet.
4 GL
This LED indicator will glow bright green, indicating a solid link, once the
VGA source is connected to the Sender Unit.
5 5V
Connect the included 5 V DC power supply to this power receptacle.
6
RECEIVER UNIT LAYOUT
Top View
Front View Back View
21
5
3
4
