Gefen EXT-HDMI-EDIDP Bedienungsanleitung

HDMI Detective

Plus

EXT-HDMI-EDIDP

User Manual

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday, Pacic Time

Write To:

Gefen LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

HDMI Detective Plus is a trademark of Gefen LLC

All trademarks are the property of their respective owners.

ASKING FOR ASSISTANCE

Rev A9

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting the HDMI Detective Plus

7 Wiring Diagram

8 EDID Programming

8 Using a built-in EDID

9 Writing an EDID using a source device

10 Specications

11 Warranty

INTRODUCTION

Congratulations on your purchase of the HDMI Detective Plus. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen HDMI Detective Plus

Computers and HDTV video source devices can sometimes lose the EDID --

(which is basically the electronic identication of a display) which lists its possible

resolutions and frequencies. When displays are switched away or disconnected

and then reconnected, the EDID can be lost and the computer or HD video

source device can lose the ability to display the image properly. The HDMI

Detective Plus product allows you to switch or relocate HDTV or Computer video

displays while “tricking” the source devices into thinking that the display is still

present -- maintaining smooth video operations throughout the process.

How It Works

The Gefen HDMI Detective Plus attaches to the HDTV display’s HDMI input

connector for initial programming. Power is applied and the HDMI Detective Plus

reads and stores the attached displays EDID to the internal memory. Then the

HDMI Detective Plus is attached to your source HDMI output and it will never

lose EDID again.

The HDMI Detective Plus includes 4 built-in selectable generic EDIDs that can be

used for meeting standard home theater setups. They can be selected by moving

the dip switches between the different settings.

OPERATION NOTES

THIS PAGE LEFT INTENTIONALLY BLANK

FEATURES

Features

• Quick and easy recording of EDID information from HDTV displays

• Write custom EDID information using an external source

(e.g. signal generator, etc)

• Selection of preset EDIDs

• Maintains 1920 x 1200, 1080p Full HD, and 2k resolution video

• No power required after initial programming

• HDCP Compliant

• Compact unit hides well behind equipment

Package Includes

(1) HDMI Detective Plus

(1) 1 ft. HDMI cable (M-M)

(1) 5V DC power supply

(1) Quick Start Guide

PANEL LAYOUT

Front

Back

4 5

1 Programming Button

Press and hold this button to program an EDID. See page 8 for more

information on recording an EDID.

2 HDMI In

Connect the included HDMI cable from this HDMI port to the source device.

3 DIP Switches

Use these DIP switches to use one of the pre-programmed EDIDs.

4 HDMI Out

Connect an HDMI cable from this HDMI port to the display (or other sink

device).

5 WR

Enables / disables the EDID write status. Set the WR switch to the “E” position

to allow the HDMI Detective Plus to be programmed with an EDID. Set the WR

switch to the “D” position to disable programming and prevent an accidental

erasure.

PANEL DESCRIPTIONS

CONNECTING THE HDMI DETECTIVE PLUS

How to Connect the HDMI Detective Plus

1. Power-on the display (or other sink device) containing the EDID to be

recorded.

2. Use an HDMI cable to connect the sink device to the HDMI Out port on the

HDMI Detective Plus.

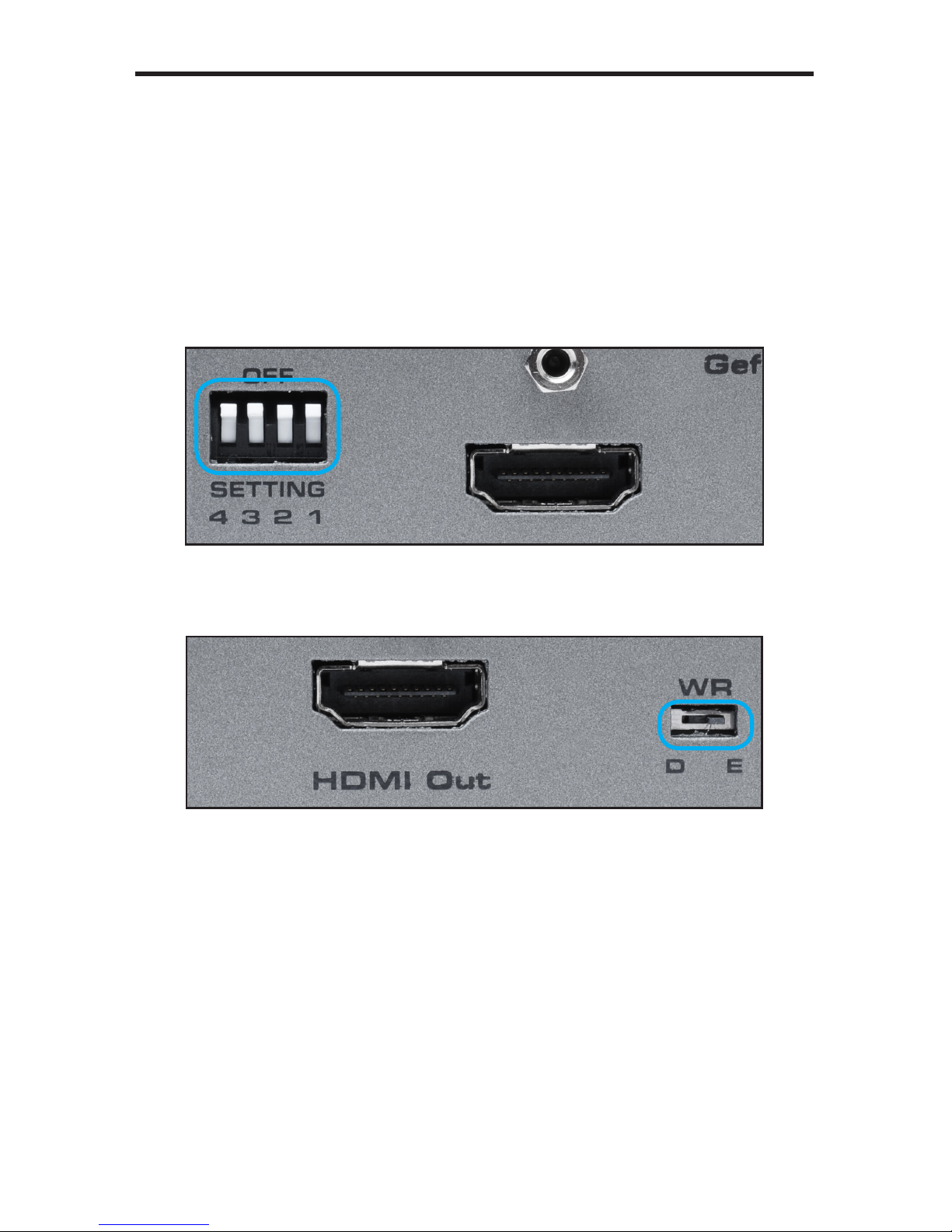

3. Set all four DIP switches in the OFF (up) position, as shown in the illustration

below.

4. Set the WR (Write) switch to the “E” (enable) position to allow the HDMI

Detective Plus to be programmed.

5. Connect the included 5V DC power supply to the HDMI Detective Plus. The

power LED will glow bright green if the sink device contains a valid EDID.

If the sink’s EDID is corrupt or invalid, then the power LED will glow bright

red.

6. Press and hold the Program button on the front panel of the HDMI Detective

Plus until the power indicator begins to rapidly ash bright green, then

release the Program button. The power LED will continue to ash as the

EDID is written to the HDMI Detective Plus.

A successful recording will be indicated with a solid green LED. If the

recording process was unsuccessful, the LED will glow bright red.
