www.gefen.com

3x1 Switcher For

x 1.3

EXT-HDMI1.3-341

User Manual

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST (Paciﬁc Standard Time)

Write To:

Gefen LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen LLC reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

3x1 Switcher for HDMI 1.3 is a trademark of Gefen LLC

HDMI is a trademark of HDMI.org

Rev X3

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting The 3x1 Switcher for HDMI 1.3

7 Speciﬁcations

8 Warranty

INTRODUCTION

Congratulations on your purchase of the 3x1 Switcher for HDMI 1.3 . Your com-

plete satisfaction is very important to us.

Gefen

Gefen is a unique product line catering to the growing needs for innovative home

theater solutions. We specialize in total integration for your home theater, while

also focusing on going above and beyond customer expectations to ensure you

get the most from your hardware. We invite you to explore our distinct product

line and hope you ﬁnd your solutions. Don’t see what you are looking for here?

Please call us so we can better assist you with your particular needs.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included

in that price is a lifetime support from a team of outstanding engineers.

Gefen’s line of HDTV switches, extenders, and splitters are designed to make your

A/V equipment use more comfortable, more productive and less expensive. Gefen

offers solutions for home theater, A/V installation, data center, information distribu-

tion, conference room presentation, school and corporate training environments.

The Gefen 3x1 Switcher for HDMI 1.3

Gefen’s 3x1 HDMI Switcher routes high deﬁnition video in multiple resolutions up

to 1080p plus multichannel digital audio from any of three sources. Three inputs

accommodate the simultaneous connection of up to three high deﬁnition video

sources, such as satellite systems and Blu-Ray players. The output sends the

high deﬁnition audio/video signals to a high deﬁnition display. Switching is done

via the IR remote that is provided with the unit.

How It Works

Simply connect all sources to the Switcher’s inputs. Then connect the display on

the output port. Once the sources, the Switcher and the display(s) are powered

and connected, simply select the source to view using the I/R remote.

FEATURES

Features

• Switches easily between any three HDMI 1.3 sources

• Maintains 480i/p, 576i/p, 720p, 1080i, and 1080p resolutions

• Maintains highest HDMI single link video resolution

• Supports HDCP compliant devices

• HDMI or DVI to HDMI cables are used to connect the inputs and switcher output

• Inputs can be switched with the IR remote control or by using the select button on

the front panel

• Installs in seconds

• Fully HDMI 1.3 compliant

HDMI 1.3 Features:

* Lip Sync Pass Through

* 225 MHz (up to 12 bit YUV 444 supported @ 1080p)

* Deep Color Supported (XV Color Supported)

* Dolby TrueHD & DTS Master Supported

* CEC Source Switching Enabled

Package Includes

(1) 3x1 Switcher for HDMI 1.3

(3) 6 Foot HDMI Cables (M-M)

(1) 5VDC Power Supply

(1) RMT3-IR Remote Control

(1) User's Manual

CONNECTING THE 3X1 SWITCHER FOR HDMI 1.3

How to Connect the 3x1 Switcher for HDMI 1.3 to your devices

Connect the supplied cables from the HDMI-compliant sources into the 3x1 Switcher for

HDMI 1.3.

Connect the cable from your display (monitor or projector) into the HDMI output of the 3x1

Switcher for HDMI 1.3.

Plug the 5VDC power supply into the 3x1 Switcher for HDMI 1.3.

How to Control the 3x1 Switcher for HDMI 1.3

Use the RMT3-IR remote control to toggle between sources on the 3x1 Switcher for HDMI

1.3. You can also use the Select Button on the front panel to cycle between the inputs.

EXT-HDMI1.3-341

HDMI 1.3 Source

HDTV

HDMI CABLE

Switcher

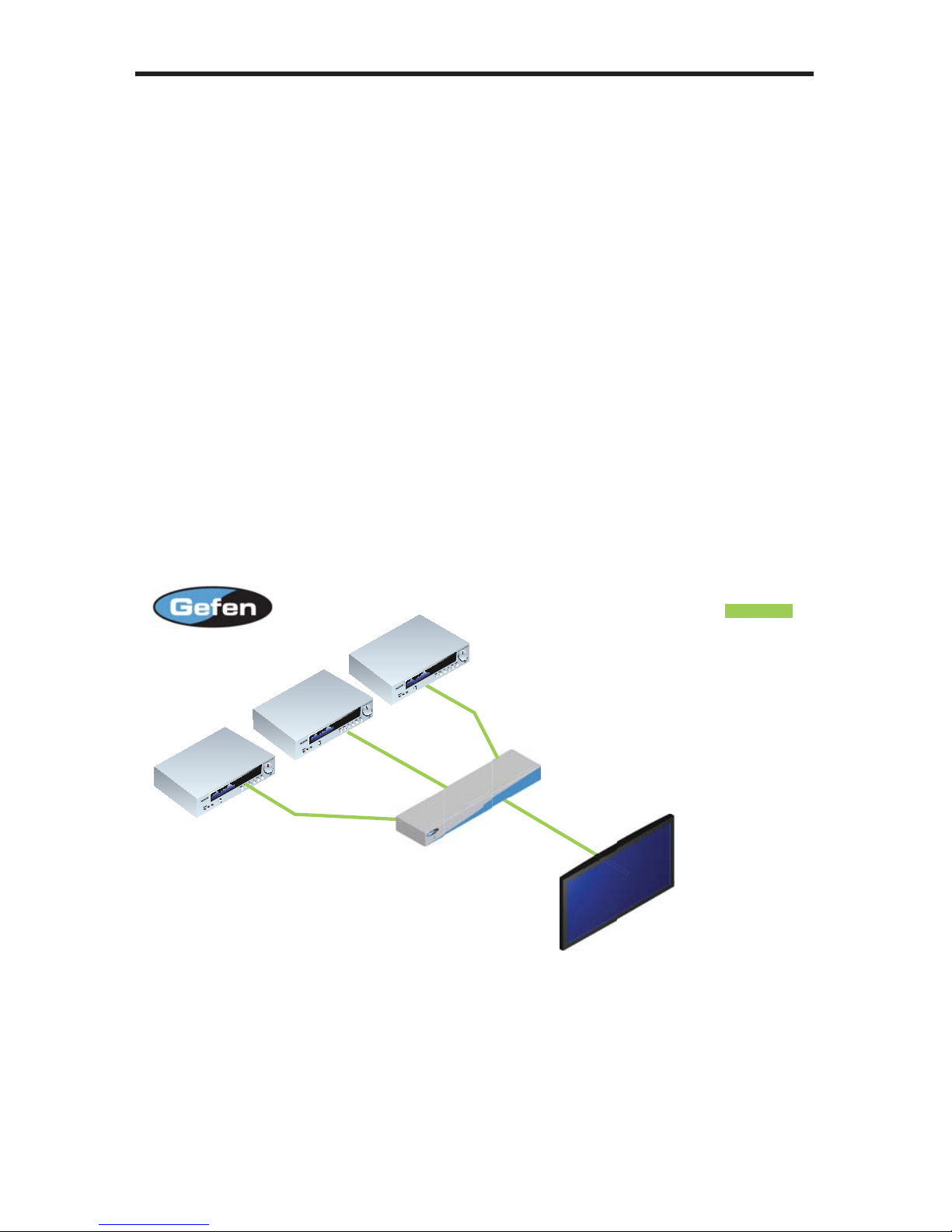

Wiring Diagram for the 3x1 Switcher for HDMI 1.3

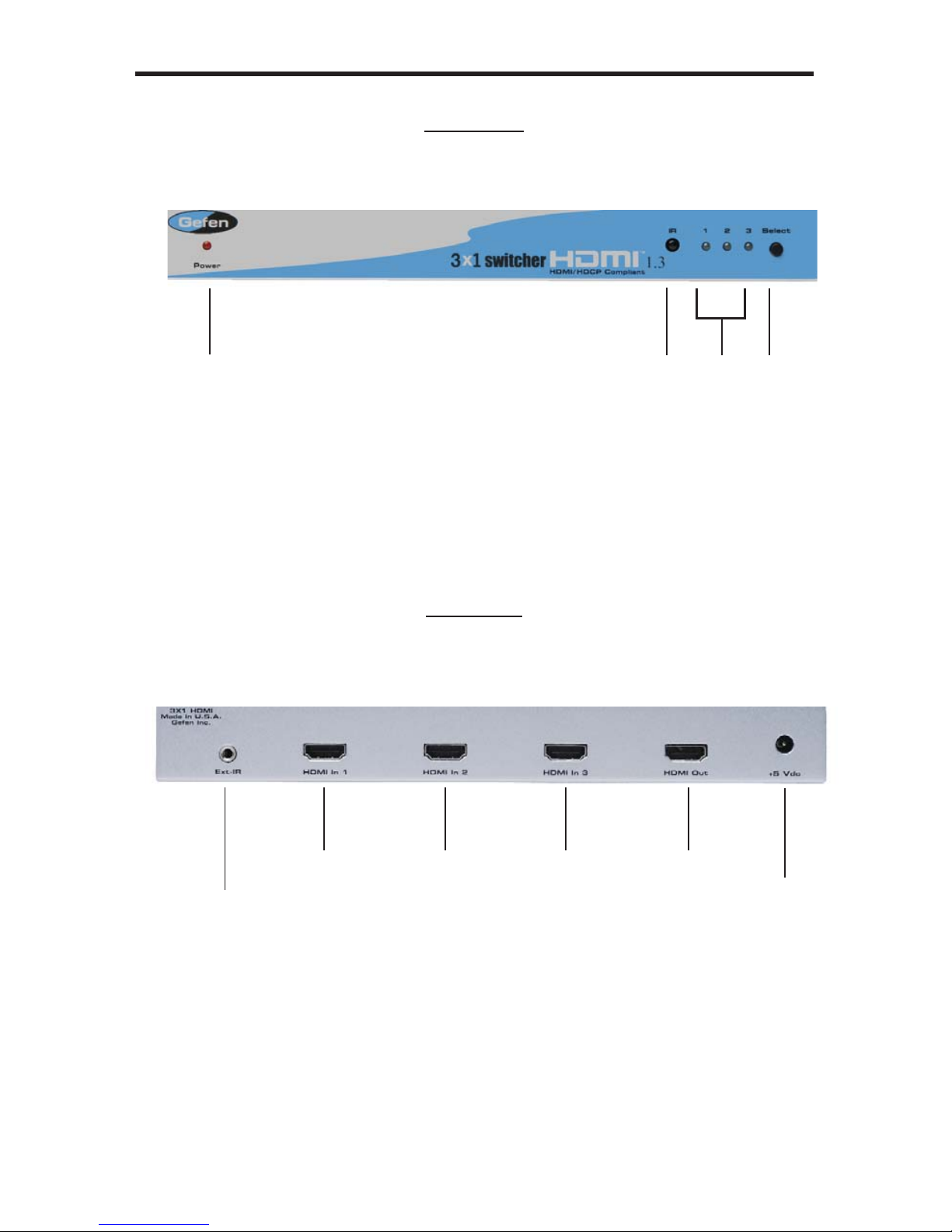

PANEL LAYOUT

Front Panel

Back Panel

876 10

PANEL DESCRIPTIONS

1 Power LED Indicator

This LED will become active once the included 5V DC power supply is properly

connected between the unit and an open wall power socket.

2 I/R (Infrared) Receiver

This receiver will accept command for switching between input devices using

the included RMT3-IR remote control. Line of sight must be preserved between

the remote and unit for proper operation

3 Selected Input LED Indicator

There is a 3 LED array to indicate which source is currently selected on the 3x1

Switcher. The currently selected input will be indicated by an active LED.

4 Input Source Selector Button

Pressing this button will manually switch between as many as three HDMI

sources connected on the rear of the Switcher. The inputs ports (items 6, 7,

and 8 below) can accept (up to three) HDMI-compliant devices. The selected

input source is sent to the single output. Selection of input sources may also

be accomplished using the included RMT-3IR remote control or via the RS-232

serial communication port.

5 I/R Extension Port

This port is used to control input source switching on the 3x1 HDMI Switcher.

6 HDMI Input 1

This port can accept HDMI connections from any HDMI-compliant source

device.

7 HDMI Input 2

This port can accept HDMI connections from any HDMI-compliant source

device.

8 HDMI Input 3

This port can accept HDMI connections from any HDMI-compliant source

device.

9 HDMI Output

This port provides the Switcher’s HDMI output signal to a single HDMI-compliant

output device/display.

10 5V DC Power Supply Input

This receptacle accepts power from the included 5VAC/DC power supply.

Connect the included power supply to an open wall power socket, then connect

the 5V DC power tip to this receptacle.

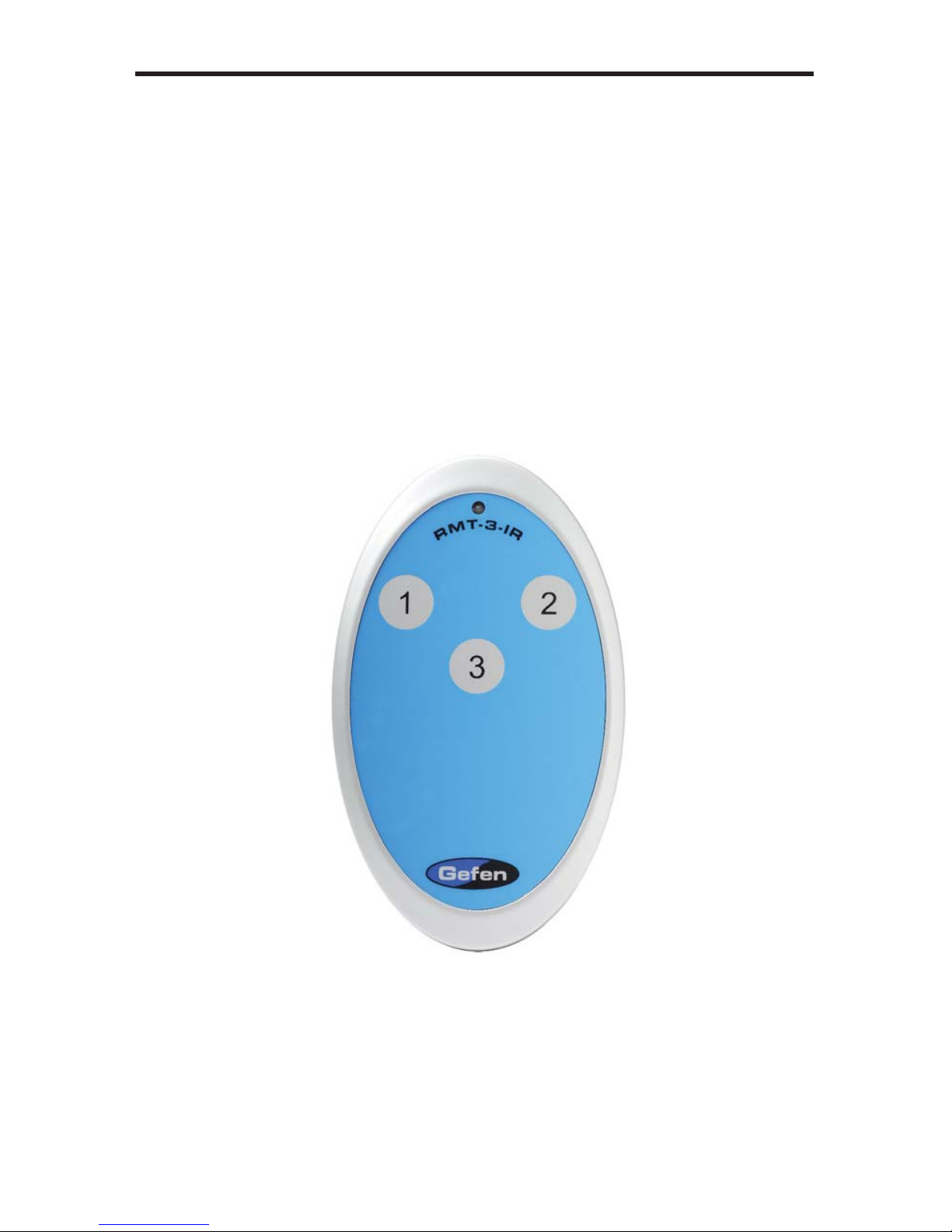

RMT3-IR INSTALLATION

1. Remove battery cover from the back of the RMT3-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up.

The side that is not marked must be facing down.

4. Test the RMT3-IR remote by pressing ONLY one button at a time. The indicator

light on the remote will ﬂash once each time you press a button. WARNING: Do

not press multiple buttons simultaneously and do NOT press buttons rapidly.

These actions will cause the remote to reset and steps 1-4 will have to be

repeated.

Note: The RMT3-IR ships with two batteries.

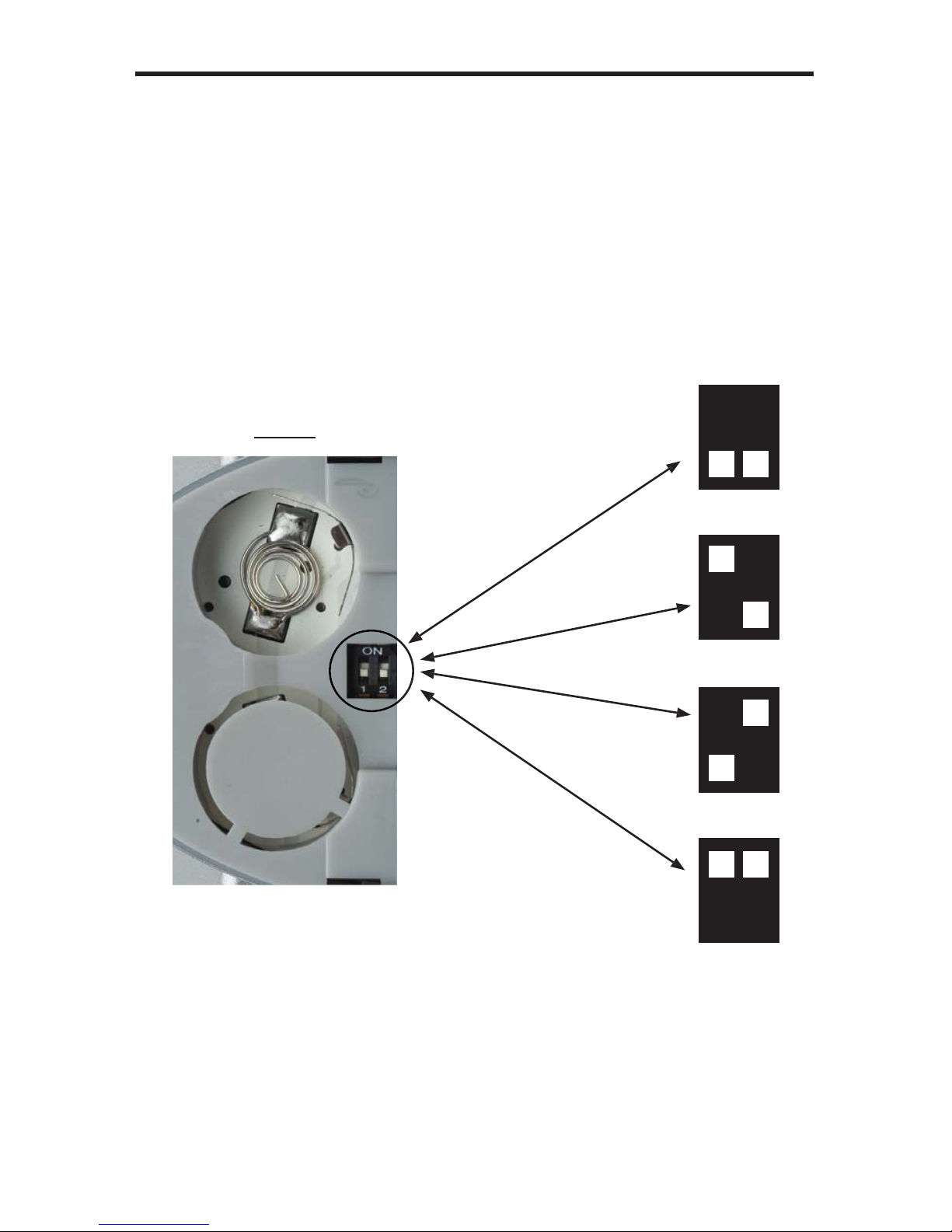

IR CODE CONFLICTS

Remote Remote Channel 1:

Remote Channel 2:

Remote Channel 3:

Remote Channel 4:

1 2

How to Resolve IR Code Conﬂicts

There are matching pairs of dip switches underneath the Switcher unit and under the

remote battery cover. Switch 1 & 2 on the Remote and Switch 1 & 2 (switches 3 and 4

are not used) on the dip switch bank located underneath the unit. These switches need

to be matched for the remote to communicate with the switcher. Switch 1 on the remote

is linked to switch 1 on the unit, and switch 2 on the remote is linked to switch 2 on the

unit. There are 4 possible sets of IR codes and at least one of these sets should be able

to resolve any IR conﬂicts with other home theater devices.
