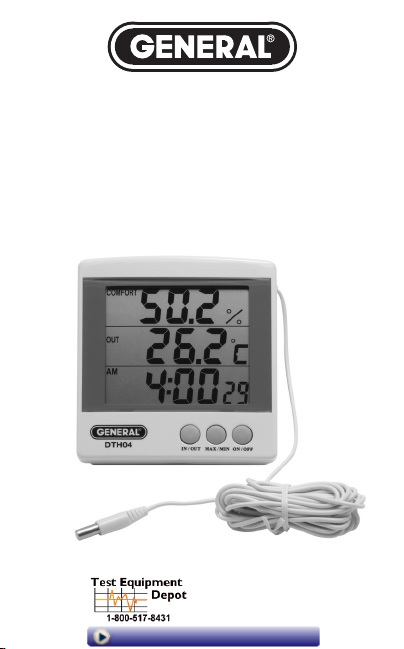

General DTH04 Bedienungsanleitung

Jumbo Displa

In/Out

Temperature-Humidit

Meter with Clock

USER’S MANUAL

DTH04

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

KEY FEATURES

• riple readout shows time, inside or outside

temperature, and inside or outside relative humidity

(RH)

• Stores and recalls Min and Max temp and RH

readings

• Warm, Comfortable and Cool indications

• °C/°F switch on back

• 12/24 hour alarm clock with 10 minute snooze

option

• Includes flip-out stand, 9.8 ft. (3m) probe and

batteries

SETUP INSTRUCTIONS

Insta Batteries:

1. Slide off cover of battery compartment on back of unit.

2. Install (2) included “AAA” batteries in compartment

in correct position.

3. Replace battery compartment cover.

OPERATING INSTRUCTIONS

ON/OFF:

1. Press

ON/OFF

button once to power on the meter

and press again to power it off. “

WARM

”,

“

COMFORT

” or “

COOL

” appears at specific

combination of temperature and humidity.

°C/°F:

1. Press

°C/°F

button to select desired temperature

unit.

Max/Min:

1. Press

MAX/MIN

button once to recall maximum

temperature and humidity readings.

MAX

will appear

on the display.

2. Press button again to recall minimum temperature

and humidity readings.

MIN

will appear on the

display.

3. Unit reverts to real time mode automatically after

5 seconds.

Time Set:

1. Press and hold

TIME SET

button for 3 seconds.

Blinking digits on bottom readout means clock is in

set mode.

2. Press

and

MIN

buttons until the display shows

the current time.

3. Press

12/24

button to select time format.

4. Press

TIME SET

button to save setting and return

to real time mode. If button is not pressed within

5 seconds, unit will not save new setting and will

return to real time mode using previous setting.

In/Out:

1. Press

IN/OUT

button once to display outdoor

measurements.

OUT

will appear on the display.

2. Press button again to display indoor measurements.

will will appear on the display.

A arm Set:

1. Press and hold

AL/SNZ

button for 3 seconds to enter

alarm set mode.

will appear on the display.

2. Press

and

MIN

buttons until display shows

desired alarm time.

3. Press

TIME SET

button again to save alarm setting

and return to real time mode. If button is not

pressed within 3 seconds, unit will not save new

alarm setting and will return to real time mode.

Snooze Set:

1. After setting alarm time, press

AL/SNZ

button to

activate the alarm and snooze function. and

SNZ

signs will appear on the

display

2. After alarm/snooze function is activated, the unit will

automatically return to real time mode in 3 seconds.

3. When the set alarm time is reached, will flash

and alarm will sound for 1 minute. Press any key to

silence the alarm.

4. 10 minutes after the alarm sounds,

SNZ

will flash

and the alarm will sound 5 times. Press any key to

silence the alarm.

5. o clear the snooze function, press and hold the

AL/SNZ

button for 3 seconds to enter alarm set

mode. hen press the

AL/SNZ

button again.

he and

SNZ

indications will disappear.

SPECIFICATIONS

•emperature Measurement Range:

-32° to 122°F (0° to 50°C)

•emperature Measurement Accuracy:

±1.8°F (±1°C)

•RH Measurement Range: 20 to 100%

•RH Measurement Accuracy: ±6% of reading

•emperature & RH Resolutions:

0.1° (F or C), 0.1% RH

•Digit Height: 0.67 in.

•Display Window Size: 2.8 x 2.4 in. (71 x 61mm)

•Dimensions: 3.9 x 4.1 x 0.9 in. (99 x 104 x 23mm)

•Power Source: 2 “AAA” batteries (included)

DTH04 User’s Manual

Speciﬁcations subject to change without notice

NOTICE - E ARE NOT RESPONSIBLE FOR

TYPOGRAPHICAL ERRORS.

MAN#DTH04 11/6/12

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com
