1.EB-X5 Packing List

The Glare Wheel EB-X5 electric bicycle (hereinafter referred to as the EB-X5

electric bicycle) delivered includes the following parts. Please check them after

unpacking. If any part is missing, consult the dealer or the after-sales department of

Glare Wheel

•The use of non-approved parts or improper installation of parts may lead to damage

to the EB-X5 electric bicycle and even personal injuries. To ensure the quality and

safety, all parts and accessories need to be approved by EB-X5 Technology LLC ,and

installed properly on the EB-X5 electric bicycle.

•Do not ride a Glare Wheel electric bicycle that is not assembled properly.

•Do not disassemble or modify the EB-X5 electric bicycle without permission; other

wise, irreparable damage to the EB-X5 electric bicycle and even personal injuries

may be caused.

Model

S/N

EB-X5

Name

Bicycle

Charger

User Manual

Quantity

2.1 About the Manual

For your safety, please carefully read this manual before riding the EB-X5 electric bicycle, and follow the instructions

while riding the EB-X5 electric bicycle.

● Be familiar with all safety warnings and precautions listed in this manual, which is helpful to ride the EB-X5 electric

bicycle.

● This manual applies to EB-X5 electric bicycles produced by Glare Technology USA Inc

● If you have any doubt or cannot obtain the desired information from this manual, please contact the authorized agent or

after-sales department of Glare Wheel in a timely manner.

2. Manual Overview

2.2 Relevant Instructions

The following instructions apply to the User Manual. Pay special attention of “Warning” and “Tips”

Warn that your action or behavior may cause personal injury.

Indicate the precautions, function prompt, etc.

3. Product Overview

EB-X5 electric bicycle is a small, efﬁcient and economical personal transport tool. It fashionable and high-tech style,

light structure and powerful lithium battery can provide you with a pleasant riding experience.

3.1 Product S/N

The product S/N, which is the unique identiﬁer, is used for quality tracking and after-sales services

of the product. Please keep the product S/N properly. You can obtain it on the packing box, warranty

card and bicycle body (on the side face of the controller box).

3.2 EB-X5 Product Dimensions

L:44.09 inch

W:20.87 inch

H:41.34 inch

Unit：inch

3.3 EB-X5 Product Parameters

Parameter Value

Body size

EB-X5

Folding size

Net weight

Tire type

Maximum load

Brake type

Drive mode

Electric endurance

Power-assisted endurance

Maximum speed

Motor power

Motor type

Battery type

Model

Battery capacity

Charging time

Accelerator type

1. The endurance mileage is associated

with the rider ’s weight, weather,

pavement, etc.

2. Maximum speed: 15.53 mile/h for a

165.35 lb rider, as speciﬁed in the

national standards. The maximum speed

may vary from the weight.

Remarks

L44.09×H26.78×W11.81 inch

L44.09×H41.34×W20.87 inch

37.92 lb (low-level conﬁguration)

Inﬂatable tire: 12-inch respectively

220.46 lb

Front and rear disc brakes

6AH: 15.53-18.64mi;

Electric/power-assisted

6AH: 21.75-27.96mi;

15.53 mile/h

36V/250W

Brushless energy-saving motor

18650 lithium ion battery

6.0Ah

3-4H

Handle

Folding method Half-folding

3.4 EB-X5 Product Structure

Display

Brake lever

Controller

Front light

Front disc brake

Front wheel

Battery

Pedal

Rear motor wheel

Rear modguard

Rear shock absorber

Rear brake light

Cushion

Throttle lock

Throttle lever

Charging port

Differences between High- and Low-level Conﬁgurations:

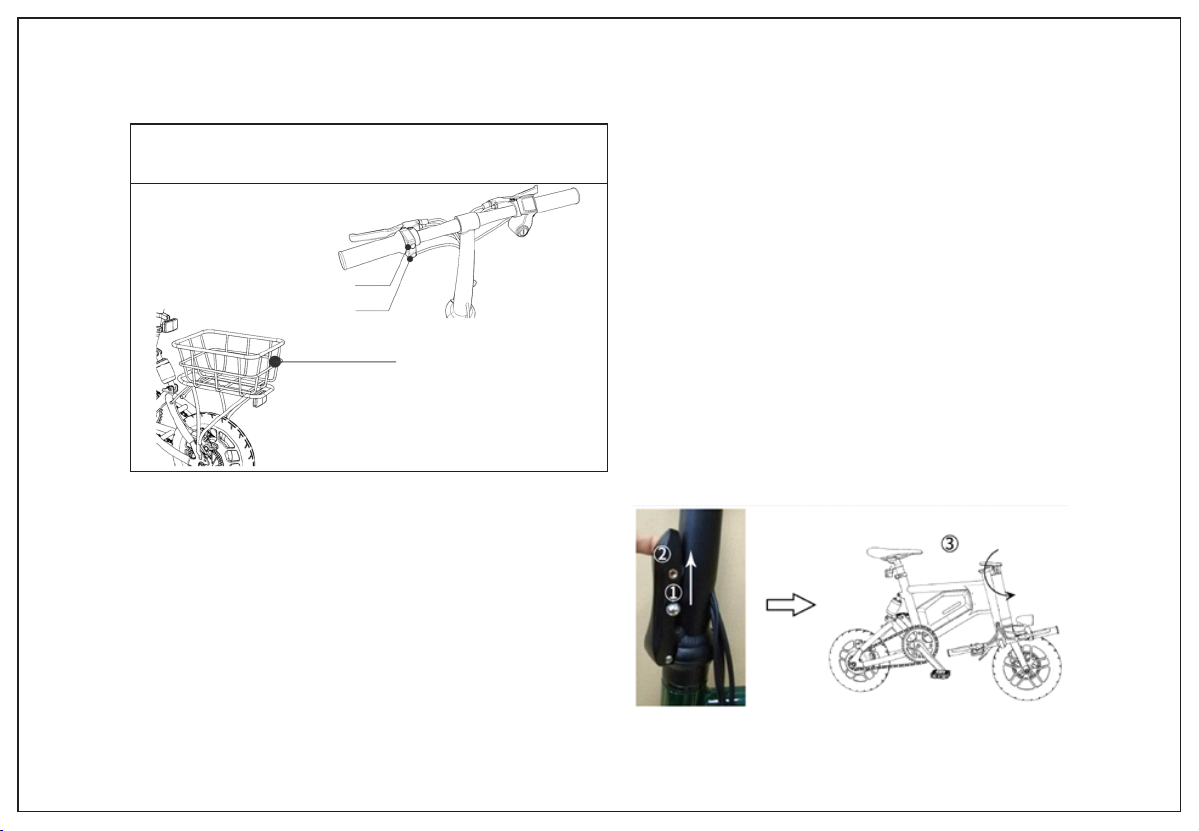

(I) Push up the lock;

(ii) Hold the inner groove by hand, and pull the lock outward;

(iii) Fold the handlebar and stem as a whole down to the right.

professional conduct about product maintenance and service.

Low-level conﬁguration: no meter or gear shifting,

but with power display

The shelf is optional

Front switch

Horn switch

3.5 EB-X5 Folding Demonstration

4. Safe Operation Instructions

Step 1: Find the charging port on the side face of the battery, as shown below.

Step 2: Insert the charging terminal of the charger into the charging port (make sure that the

charging port is dry).

Step 3: The battery is being charged when the charger indicator turns red and fully charged

when the indicator turns green.

Stop charging when the battery is fully charged. Otherwise, the battery life may be affected.

Step 4: After charging, cover the charging port to avoid water.

The battery holder shown below may slightly shake after riding of about half a month. Please tighten corresponding

screws according to the following instructions.

Step 1: Remove the screw cover with a tool such as a small screwdriver, as indicated by the arrow.

Step 2: Tighten two hex screws with the hex wrench.

Step 3: Install the screw cover and slowly press it in place.

(i) Screw cover (it is not ﬁxed by screws but can be directly pushed and pulled.)

(ii) Hexagon socket screw

4.1 Charging

Charging port

Solution to Shaking of Battery Holder
