Global Sat GB-580 Bedienungsanleitung

GPS Cycle Computer Device

GB-580

Quick Start Guide

http://www.gs-sport.com

Power / Light/ Esc

Page/ Enter Down/Lap/Save

Up/ Start/ Stop

What is GPS?

GPS stands for Global Positioning System. For 3D fix, we need at least four satellites.

Normally the accuracy of GPS under open sky which means no tall building and clear sky is

within 10 meters per second. Therefore, if the device shift 10 meter at that second, the device

may shows 36 kilometer per hour instant speed. Nowadays, the GPS consumer product has

built in adjust algorithm and assisted method to extend capability of GPS.

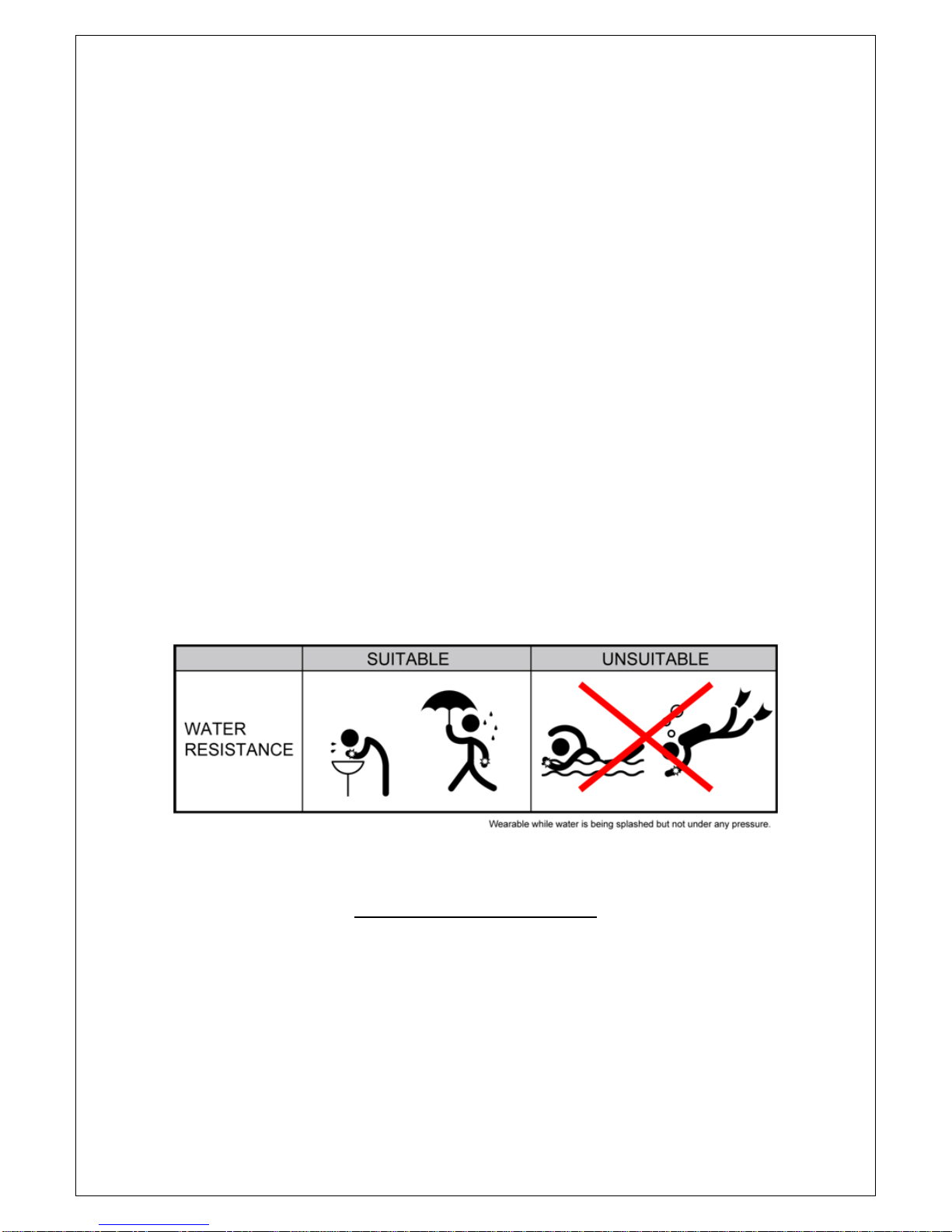

What is Water Resistant IPX7?

Protected against the effects of temporary immersion in water. Under specific conditions of

pressure and duration, water must not enter a temporarily submerged headlamp in quantities

that would cause adverse operational effects.

The IPX7 waterproof standard is for device one meter under water within 30 minutes

protection. Waterproof standards usually measure by the pressure of water. IPX7 standard

provides device protection to be exposed the rain and sprayed over water. However, the

pressure of swimming or diving should exceed IPX7 standard.

Note for Upgrading Firmware

zDo not interrupt during upgrading the firmware

zChoose the right firmware file carefully

zPress UP+PG+PW to enter Boot Loader mode if device dead from fail of firmware

update and then process updating process again to recover device.

CAUTION !

zBefore first time using device, please fully charge the device.

zPlease dry the USB cavity before connection of charging or data transfer.

zBefore start training, please let antenna face to sky to get 3D fix

Symbol Explanations

GPS status indicator

zNone: No signal

zSolid: 3D fix

zSolid with 1 bar: 3D fix with poor signal

zSolid with 2 bar: 3D fix with good signal

zSolid with 3 bar: 3D fix with strong signal

Timer icon

Cadence sensor

Clock alert

Heart rate monitor indication

Battery capacity indication

Button Description

Power/ESC Press 2 seconds to turn on/off GB-580.

When GB-580 is on, quickly press this button will turn

on/off the backlight.

Press and hold this button for 14 seconds to do

hardware reset if the system is halted.

In Menu mode, press ESC button shortly to escape

from the current page and go back to the previous

page.

PG /ENTER Switch between the screens of Speedometer mode.

Press 2 seconds to enter between Main Menu page

Speedometer Page alternatively.

In Main Menu page, press this button shortly as

ENTER function.

Switch between the screens of “Menu mode”,

“Location mode”, “Speedometer mode” and “Map

mode”.

Up /Start/Stop

To press UP to up scrolling as highlighting an item in

Main Menu page.

In Speedometer mode, press START button to start

timer to get training.

In Speedometer mode, press STOP button to stop

timer in training.

In Map mode, press for zoom in.

Down/Lap/Save To press Down to down scrolling as highlighting an

item in Main Menu page.

In Speedometer mode, when timer is counting for

training, press Lap button to create a lap.

If timer is stop while in training, press SAVE button to

save training.

The GPS antenna is located in the

lower part of the device. Let it face

to the sky for a better reception.

How to Set Up Custom Page

Set up the custom page and function list before your training.

[MAIN MENU] > [CONFIGURATION] > [SET CUSTOM PAGE ]

1. Press ‘’Page button’’ 2s to enter MAIN

2. Choose ‘’ CONFIGURATION’’ then

press ‘’Enter button’’.

3. Chose ‘’ PAGE SETTINGE’’ then press

‘’Enter button’’

4. Modify the screen field number.

5. There have four types of screen field

could be choose for every page.

6. Select the function coefficient you want

then press ’Enter button’’ to save

setting.

Press ‘’ESC button’’ to exit

How to configure your device

Before getting training, you may configure your device in the best condition to get more

accurate performance.

a. User Profile Setting

1. Please press Page button 2s to enter

Main MENU and then chose USER

PROFILE.

2. To press UP and Down button to select

each item for definition.

3. Press ESC button to exit if finished.

b. Bike setting (GB-580P only)

1. Please press Page button 2s to enter

Main MENU and then chose

ACCESSORIES.

2. To press UP and Down button to select

BIKE SETTING.

3. There are five bicycles for configuration.

Press ESC button to exit if finished.

c. Heart Rate Zone setting (GB-580P only)

1. Please press Page button 2s to enter

Main MENU and then chose

ACCESSORIES.

2. To press UP and Down button to select

BIKE SETTING.

3. You may configure Heart Rate Zone

parameters and press ESC button if

finished.

d. Calories Setting

1. Please press Page button 2s to enter

Main MENU and then chose ACTIVITY.

2. Chose SETTING and then press ENTER

button.

3. Chose CALORIES and press ENTER

button to configure.

4. To define the appropriated parameters

and then press ESC button if finished.

E. Barometer Setting (GB-580P only)

1. Please press Page button 2s to enter

Main MENU and then chose

ACCESSORIES.

2. And then press ENTER button.

3. Chose BARO SETTING and press

ENTER button to configure.

4. To define the appropriated parameters

and then press ESC button if finished.

5. There are some ways to get well

calibration:

A. Go to website to find the local

SEA LEVEL PRESSURE and

then put in;

B. Try to put in the OFFSET base on

current altitude from information

or GPS.

NOTE: The default data recording setting is

upon BAROMETER, it is important to get

calibration to come out accuracy

performance.

F. Power setting (GB-580P only)

1. Please press Page button 2s to enter

Main MENU and then chose

ACCESSORIES

2. And then press ENTER button.

3. Chose POWER SETTING and press

ENTER button to configure.

4. To describe the power scale as W or %

by setting VIEW.

5. To set POWER ZONE by MAX or

custom.

G. E-compass Setting (GB-580P only)

Electronics compass can assist GPS and improve the unreliable problem from stationary. You

have to calibrate before use that. You may follow instruction to calibrate.

1. Please press Page button 2s to enter

Main MENU and then chose ACTIVITY.

2. Chose SETTING and then press ENTER

button.

3. Chose SET COMPASS and press

ENTER button to configure.

4. And then press CALIBRATION button.

5. Follow instruction to calibrate

E-compass.

6. The direction will be getting more reliable

After well calibrated.

How to make device reading easily

GB-580 provides vertical and horizontal setting at display for easier reading while in activity.

There are two ways to set that:

1. Press OK +DOWN key to rotate

2. Go to MENU mode and go for [MAIN MENU] > [CONFIGURATION] > [SET SYSTEM] >

[DISPLAY]> [ORIENTATION]

Vertical Horizontal
