Grandview CB-Mxx Bedienungsanleitung

Model CB-Mxx

GRANDVIEW REPRODUCING GENUINE COLORS

ISO9001:2000

International Certification

Grandview Crystal Screen Canada Ltd.

#11- 3751 North Fraser Way,

Marine Way Business Centre,

Burnaby, BC, Canada V5J 5G4

Tel: 1-604-412-9777 Fax: 1-604-412-9796

Website: www.grandviewscreen.ca

Guangzhou Grandview Crystal Screen Co., Ltd.

P.O. 511400 Federal Ind. Zone No. 363, Yushan West Road,

Shiqiao, Panyu District, Guangzhou, Guangdong, China

Tel: +8620-8489-9499 Fax: +8620-8480-3343

Website: www.grandviewscreen.com

GRANDVIEW REPRODUCING GENUINE COLORS

Cyber Motorized Screen User s Manual

Thank you for purchasing a Grandview projection screen.

Before use, please read this manual carefully. After installation, keep this manual for future reference.

Description

Accessaries

Alluninium casing

Screen fabric

Bottom rod

Allen key (1pc)

230V/120V/100V 50Hz/60Hz 90W/80W

Motorized Screen Power Specifications

Voltage Frequency Watts Application

Ignoring the safety warnings may

lead to injuries and/or damaging

the product.

Refrain from hanging anything on t he

screen as it may cause the scree n to

fall.

Do not connect any electrical

attachments or remote controls.

Fixtures should be installed in a secure

place to avoid accidents or the screen

falling.

Roll up the screen after every use.

Leaving it hanging for a long period

of time may cause the fabric to loosen.

Please contact your local dealer for

repair s or maintenance. Please contact

ourcompany if you have any further

questions. Avoid taking apart the

fixtures yourself. Loose parts may

cause the screen to fall.

Warnings

Do not take apart and replace with unknown parts. If there are any problems, please contact your local dealer.

Product specifications are subject to change.

The warranty will only be valid if you follow the instructions below carefully! Improper use and care may cause

serious injury and/or damage!.

Make sure the Fixing screw be fastened when using the wall bracket, to avoid any damage.

Make sure the surface you have chosen for installing the screen is flat and secure.

While installing motorized screen, please hire professionals or your local dealer to ensure safety. Awrong

connection may lead to fire or leaks.

If you choose an IR remote control: Ensure that the receiving eye is not pointed directly at a light. This could

result in damage and/or malfunction of the receiver; when installing the screen behind a valance, or in the ceiling,

make sure to plug in the external IR receiver, and place the receiver outside of the valance or ceiling.

Please read the following as any damage to the screen surface will affect the quality of the picture:

1.Avoid contact or touching the screen surface as it may cause scratches or tears.

2.Do not write or draw on the surface.

3.Clean the screen with a soft cloth and lukewarm water. Do not use any detergent or cleaning products.

Roll up the screen after every use. Ensure that the screen is level when installing; do not pull on the sides or fold

the screen.

To prevent unnecessary damage, the operating and maintenance of the screen should be done by adults.

Floating wall bracket

Applies up to 120" motorized screens

Floating wall bracket(2pcs)

5 40mm Tapping screw & cap (8sets)

M5x10 Screw (6pcs)

Instruction manual (1pc)

Hanging bracket (2pcs)

Locking screw

Top panel

Upper hook

Baffle

Lower hook

Motor adjusting slot

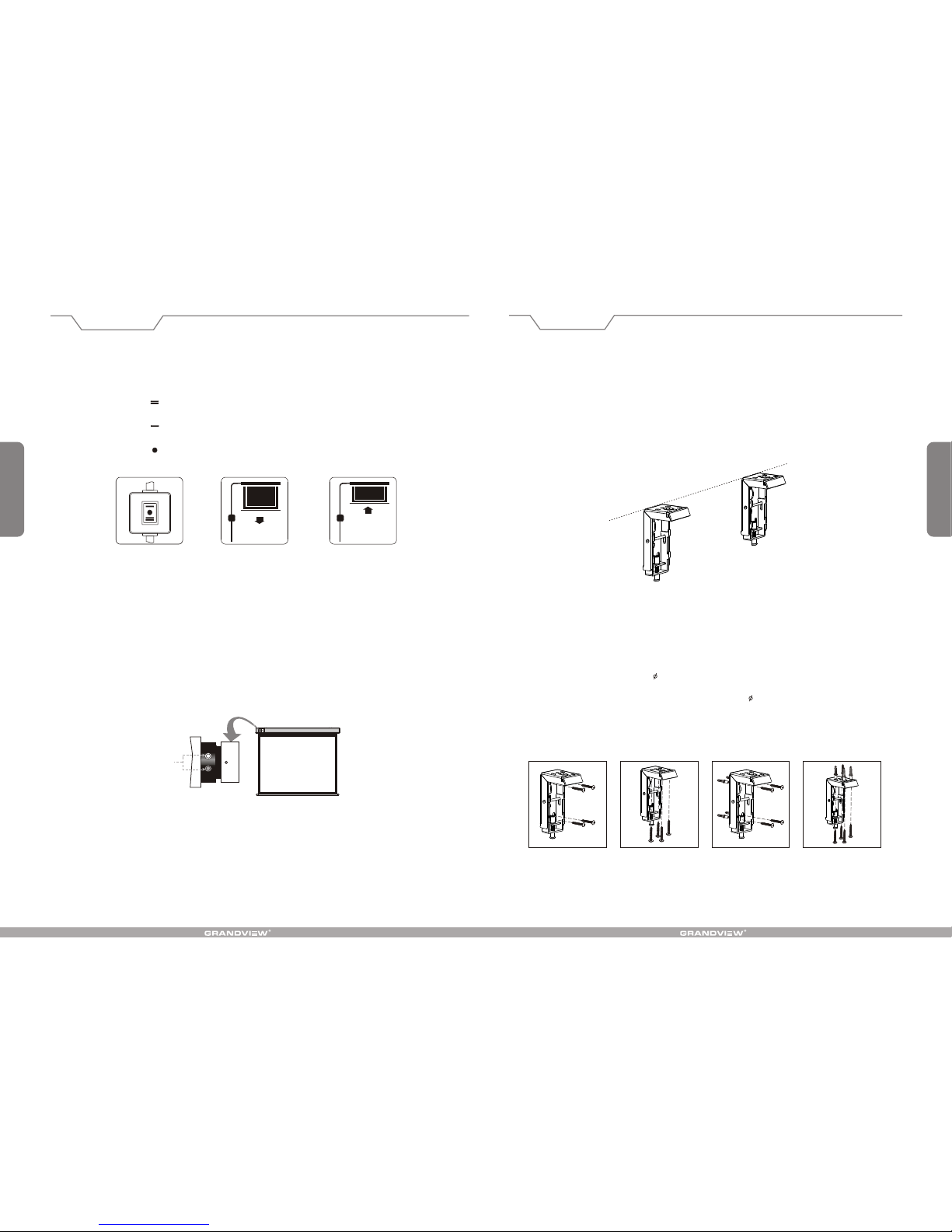

Picture 1 Picture 2 Picture 3

2. Remote control (Please see section on Remote Control)

Grandview projection screensare controlled bya manual switch or an remotecontrol.

1.Manual switch

a.T

b.Connect to a power source (Please make sure it is the right voltage)

c. ; it will come down slowly. When it is all the way down, it

will stop automatically.

d. ; it will go up into the meta l casing. When it is all the way up,

it will stop automatically.

e.Turn the switch to position to stop any time the screen.

ear off the glue cloth fixed on the bottom rod, ensure the bottom rod is not stuck by the casing.

Turn the switch to position to lower the screen

Turn the switch to position to retract the screen

Take out all the parts from the packaging to ensure you have all necessary components.

There are three installation measures for this product, namely wall mount, ceiling mount and ceiling hang. The

installed distance can be changeable up to your needs via adjusting the slipper block, while the ideal position is the

mounting bracket is at its nearest point to the end cap, which can reduce unnecessary vibration or noise.

Installation

1. Mount the wall/ceiling brackets using the appropriate screws for your supporting material.

2. Ensure the brackets are horizontal and near the ends of the casing. Fasten to the wall or ceiling, not both.

( Figure 1) .

Figure 1

Wood wall installation Wood ceiling installation Concrete wall installation Concrete ceiling installation

Figure 2 Figure 3 Figure 4 Figure 5

Wall and ceiling installation:

Installation Steps

a) Wood supportin g materials: Dri ll in the 5 x 40 screws through the appropriate holes in thebracket

( Figure 2-3 ).

b) Concrete supporting materials: Install theanchors and drill in the 5 x 40

( Figure 4-5).

screws into the appropriate

bracket holes.

Operation

Attention:

> Please make sure there isno dust or dirt on thefabric surface before rolling it back to the casing

> The recommened working time is less than 50 seconds. The motor will enter overheating protection

status and stop working for everycontinuous 4 minuters operation, user wouldneed to wait for a

while until the motor cool downbefore operating again.

> There is no lube needed for the motor. Please be noticed that the appropriate setting is optimized

which requires no further adjustment, pleaseconsult the after sales team beforeadjusting the limits.

Ceiling hang installation

Up groove

Down groove

Figure 8 Figure 9

4. Mount the projection screen by sliding the casing grooves over thebracket hooks. ( Figure 8-9 )

5. Tighten the lockingscrew to clamp the screen securelyin place. ( Figure 10-11 )

Figure 10 Figure 11

3 ( Figure 6-7). Loosen thelocking screw tolower the bracketclamp all theway down.

Figure 6 Figure 7

Baffle

Fixing screw

Each end of the screen casing needs to be supported by a hook (not provided). Ensure that the suspension system

(cable and/or hook) can support the weight of the screen.

1. To drill two same holes with an electric drill horizontally with wall, then fasten hangers (unprovided) onto the

ceiling. ( Figure 12 )

Figure 12

2. Use three M5x10mm screws to fasten the hanging brackets, to the wall and ceiling brackets as shown.

( Figure 13-14)

3. Attach the wall and ceiling brackets to the casing as shown in figures 15 and 16.

4. Place hooks through the hanging brackets to suspend the projection screen as shown. See figure 17.

Figure 13 Figure 14

Figure 15 Figure 16

Figure 17
