Grandview EL-Pxx Bedienungsanleitung

GRANDVIEW REPRODUCING GENUINE COLORS

Model EL-Pxx

GRANDVIEW REPRODUCING GENUINE COLORSGRANDVIEW REPRODUCING GENUINE COLORS

Thank you for purchasing a Grandview projection screen.

Before use, please read instructions carefully. After installation, store instructions for future reference.

Instruction Manual for

Elegant Series Manual Pull-Down Screen

ISO9001:2000

International Certification

Grandview Crystal Screen Canada Ltd.

#11- 3751 North Fraser Way,

Marine Way Business Centre,

Burnaby, BC, Canada V5J 5G4

Tel: 1-604-412-9777 Fax: 1-604-412-9796

Website: www.grandviewscreen.ca

Guangzhou Grandview Crystal Screen Co., Ltd.

P.O. 511400 Federal Ind. Zone No. 363, Yushan West Road,

Shiqiao, Panyu District, Guangzhou, Guangdong, China

Tel: +8620-8489-9499 Fax: +8620-8480-3343

Website: www.grandviewscreen.com

Instruction Manual (1pc)

Accessories

Metal Casing

End Cap

Screen Fabric

Rod

Pull Down Handle

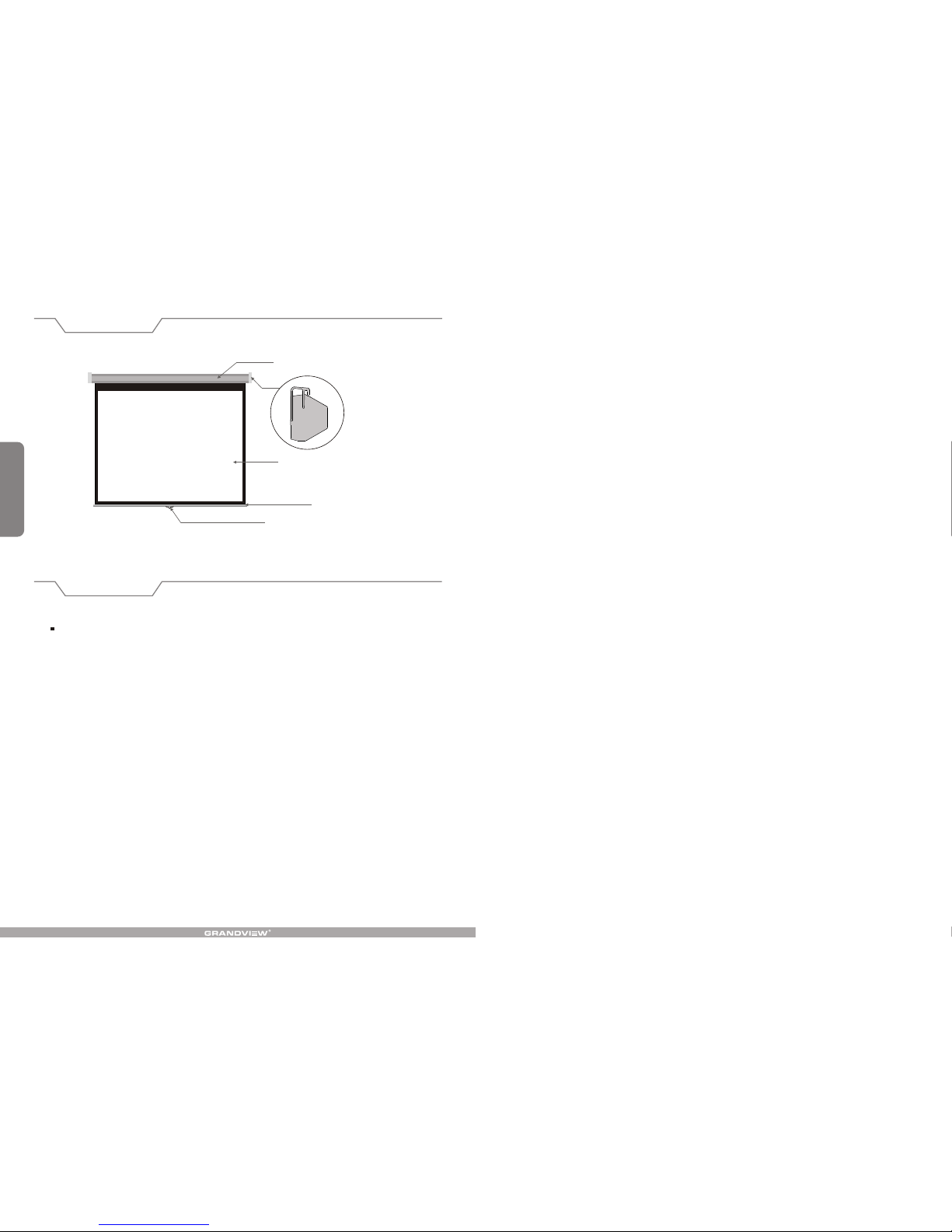

Description

345

Installation

This projection screen should be installed at the best possible viewing position for the audience. Take out

all the parts from the packaging and follow the accessories guideline to ensure you have all parts. The parts

needed will vary depending on which installation you choose to use. For installation on a wood wall or ceiling,

use the 5 x 40 screws. For installation on a drywall, use the 5 x 40 screws with anchors.

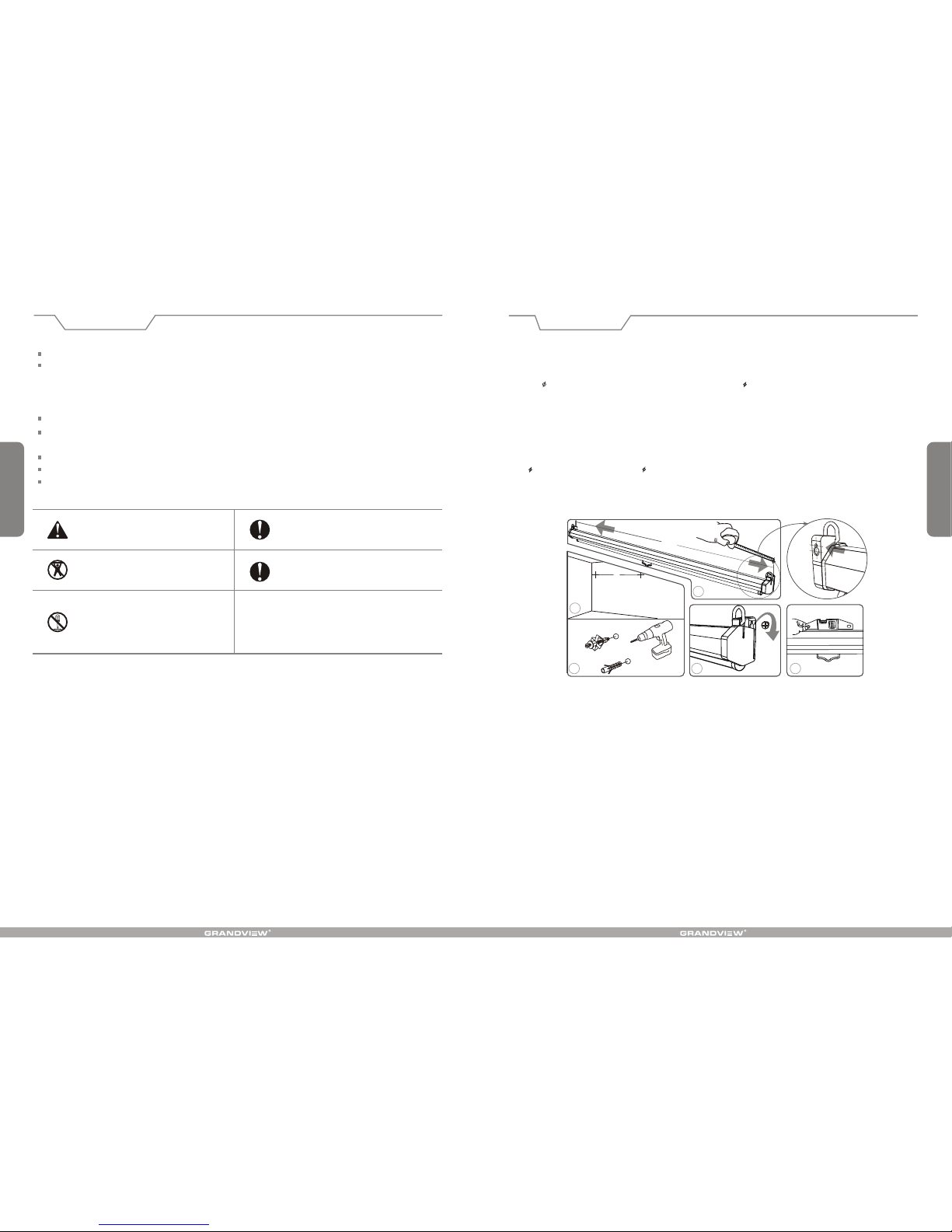

Wall Mount

Using a tape measure, measure the distance between the two keyholes on the casing ( Figure 1). According

to the measurement, use the drill to drill identical holes of the appropriate size (use a smaller drill bit than the

actual screws) on the wall and ensure that it is level ( Figure 2 and 3 ). screw in the appropriate screws, either

the 5 x 40 for wood walls or the 5 x 40 plus anchors for drywalls, leaving enough space at the end to

hang the casing (Figure 4). To ensure that the screen is level, use a leveler to check ( Figure 5 ).

The ceiling or wall used for fixture installation must be secure to prevent the screens from falling.

Please read the following as any damage to the screen surface will affect the quality of the picture:

1.Avoid contact or touching the screen surface as itmay cause scratches or tears.

2.Do not write or draw on the surface

3.Clean the screen with a soft cloth and lukewarm water. Do not use any detergent or cleaning products.

Roll up the screen after every use.

While the screen is retracting, hold on to the pull loop on the bottom of the screen to prevent it from going

too fast, which may result in damaging both the screen and casing.

It may also cause the screen the fall.

Ensure that the screen is level when installing; do not pull on the sides or fold the screen.

To prevent unnecessary damage, the operation and maintenance of the screen should be done by adults.

Do not take apart and replace with unknown parts. Ifthere are any problems, please contact your local dealer.

Product specifications are subject to change.

Ignoring the safety warnings may

lead to injuries and/or damaging

the product.

Fixtures should be installed in asecure

place to avoid accidents or thescreen

falling.

Please contact your local dealer for

repair s or maintenance. Please contact

our company if you have any further

questions. Avoid taking apart the

fixtures yourself. Loose parts may

cause the screen to fall.

Warnings

Roll up the screen after every use.

Leaving it hanging for a longperiod

of time may cause the fabricto loosen.

Refrain from hanging anything on the

screen as it may cause the screen to

fall.

345

Installation

Hanger

Wall mount Ceiling mount

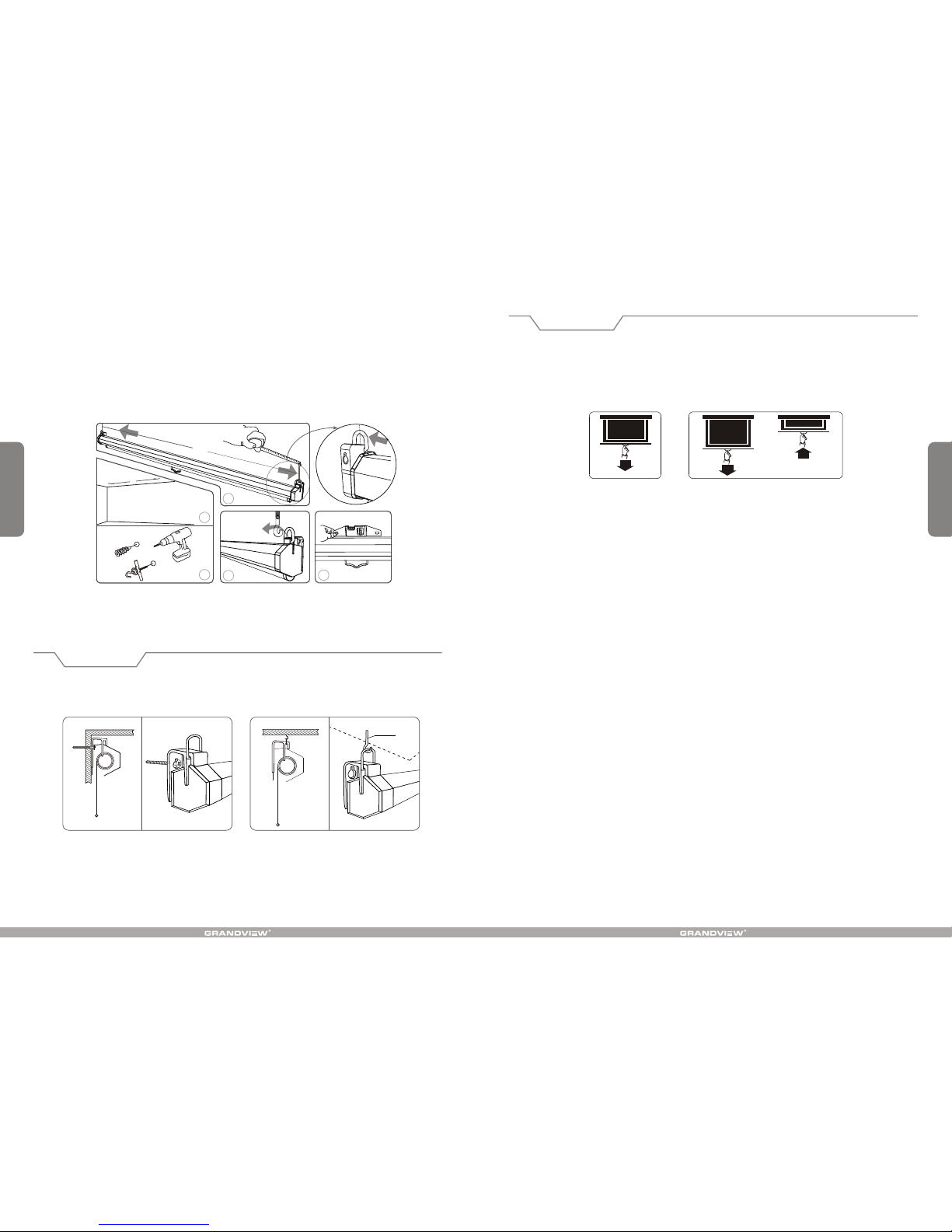

Using a tape measure, measure the distance between the two keyholes on the casing ( Figure 1 ). According

to the measurement, use the drill to drill identical holes of the appropriate size on the ceiling ( use a smaller

drill bit than the actual screws) and ensure that it is level ( Figure 2 & 3 ). screw in the hook screws (not

provided ), and lift the screen into the hook screws to hang ( Figure 4 ). To ensure that the screen is level,

use a leveler to check ( Figure 5 ).

Ceiling Mount Instructions

Picture 1 Picture 2

1. .

2. When retracting the screen, simplypull down screen slightly to release

. Guide the screen up withthe handle, and release when the screen is fully retracted.

Pull the screen handle down andensure it locks in position

pull down the screen handle

slightly to release
