Grandway FHP1A Bedienungsanleitung

User's Guide to the FHP1A/B02

Mini Optical Power Meter

English Version

FHP1A/B02

User's Guide to the FHP1A/B02

Mini Optical Power Meter

FHP1A/B02 / Introduction

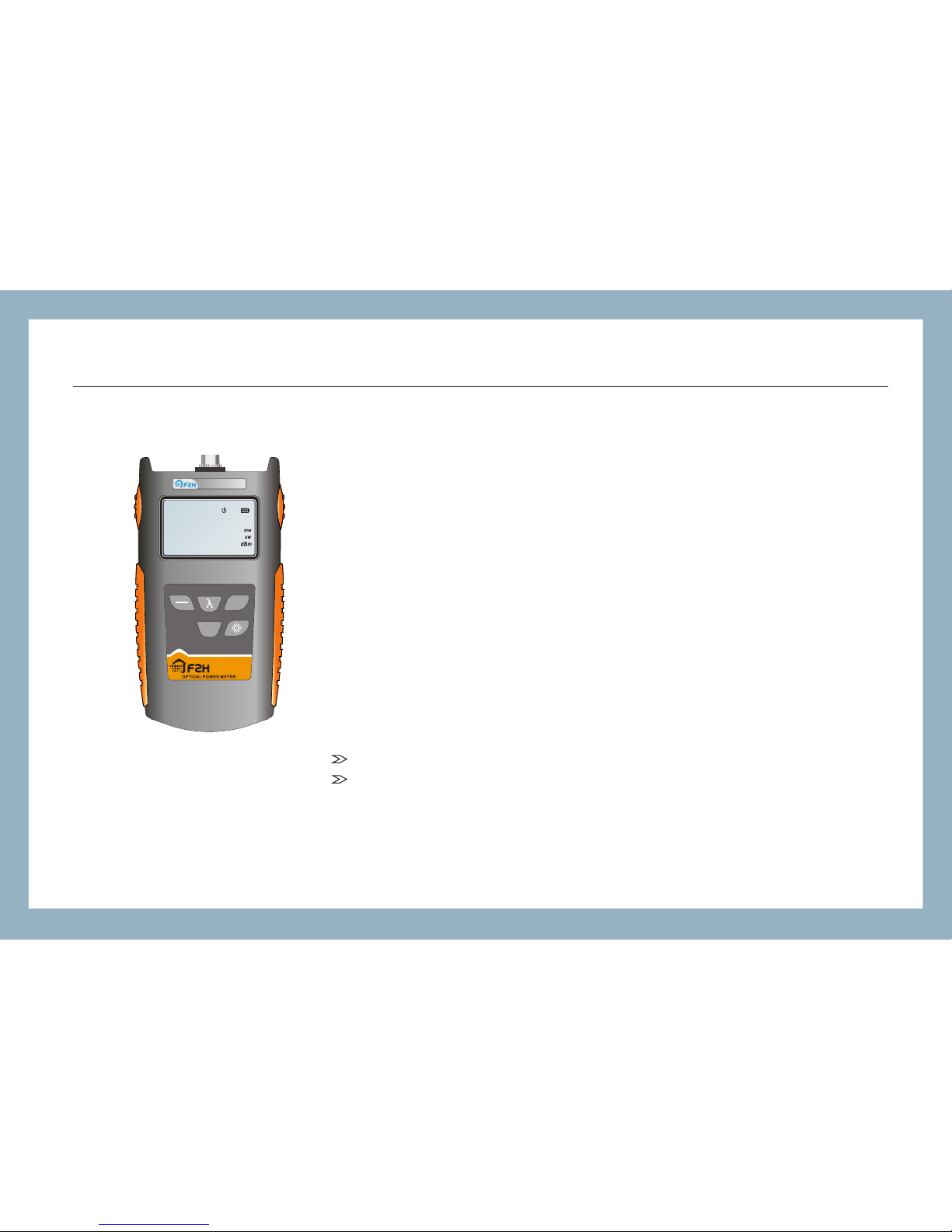

1 Introduction

The FHP1 series are full featured mini sized optical power meters

designed for use with an optical laser source to perform optical loss

measurements on optical fiber cables.

Utilizing state-of-the-art SMT in its manufacture, optical connections to

the FHP1 are made via the universal adapter interface on the top of the

unit. The instrument has 7 working wavelengths to totally satisfy your

needs. It can be extensively used in telecommunication projects and

other situations where optical power of wavelengths close to infrared

ray needs to be measured.

Small size with light weight, saving power and easy to carry

Supply with linear and logarithmic optical power display

Main Features:

FHP1A 02

.8.8.8.8

REF

18 8 8

FHP1 series

ON d Bm/

REF

dB/mw

OFF

>2s PERM

>2s SET

FHP1A/B02 / Warranty

2 Warranty

Three Years Limited Warranty

Grandway products are warranted against the defective components and workmanship for a period

of three years from the date of delivery to the original customer. Any product found to be defective

within the warranty period would be returned to Grandway authorized service center for repair,

replacement and calibration.

Exclusions

The warranty on your equipment shall not apply to defects resulting from the following:

Unauthorized repair or modification

Misuse, negligence, or accident

Returning Product

To return product, you may contact Grandway to obtain additional information if necessary.

To serve you better, please specify the reasons for the return.

All delivery and mails should be sent to the following address:

Grandway Customer Service

6F, Xin'an building No. 99 Tianzhou Road

Shanghai, 200233 P.R. China

Tel: 0086-21-54451260/61/62/63

Fax: 0086-21-54451266

E-mail: heyong@grandway.com.cn

overseas@grandway.com.cn

Website: www.grandway.com.cn

FHP1A/B02 / Warranty

FHP1A/B02 / Safety Information

3 Safety Information

Never look directly into optical outputs or a fiber while the equipment is on.Invisible laser beam

may damage your eyes.

Do not short-circuit the terminal of charger and the batteries.Excessive electrical current may

cause personal injury due to fumes,electric shock or equipment damage.

Do not operate the equipment near hot objects, in hot environments, in dusty/ humid atmosphere

or when condensation is present on the equipment. This may result in electric shock , product

malfunction or poor performance.

Warnings!

FHP1A/B02/ Preparing for Operation

4 Preparing for Operation

4.1 Unpacking the instrument

Packing material

We suggest that you keep the original packing material. Using the original packing material is your

guarantee of protecting the instrument during transit.

Checking the package contents

The standard accessories of FHP1 are as follows:

Main Unit User's Guide

Carrying Case 3pcs of AAA Battery

Quality Check Report

FC/PC, SC/PC,ST/PC Interchangeable Connectors

Checking for damage in transit

After unpacking the instrument, check to see whether it was damaged in transit. This is particularly likely

if the outer casing is clearly damaged. If there is damage, do not attempt to operate the instrument or to

repair it without authorization. Doing so can cause further damage and you may lose your warranty

qualification.

4.2 Discharged batteries

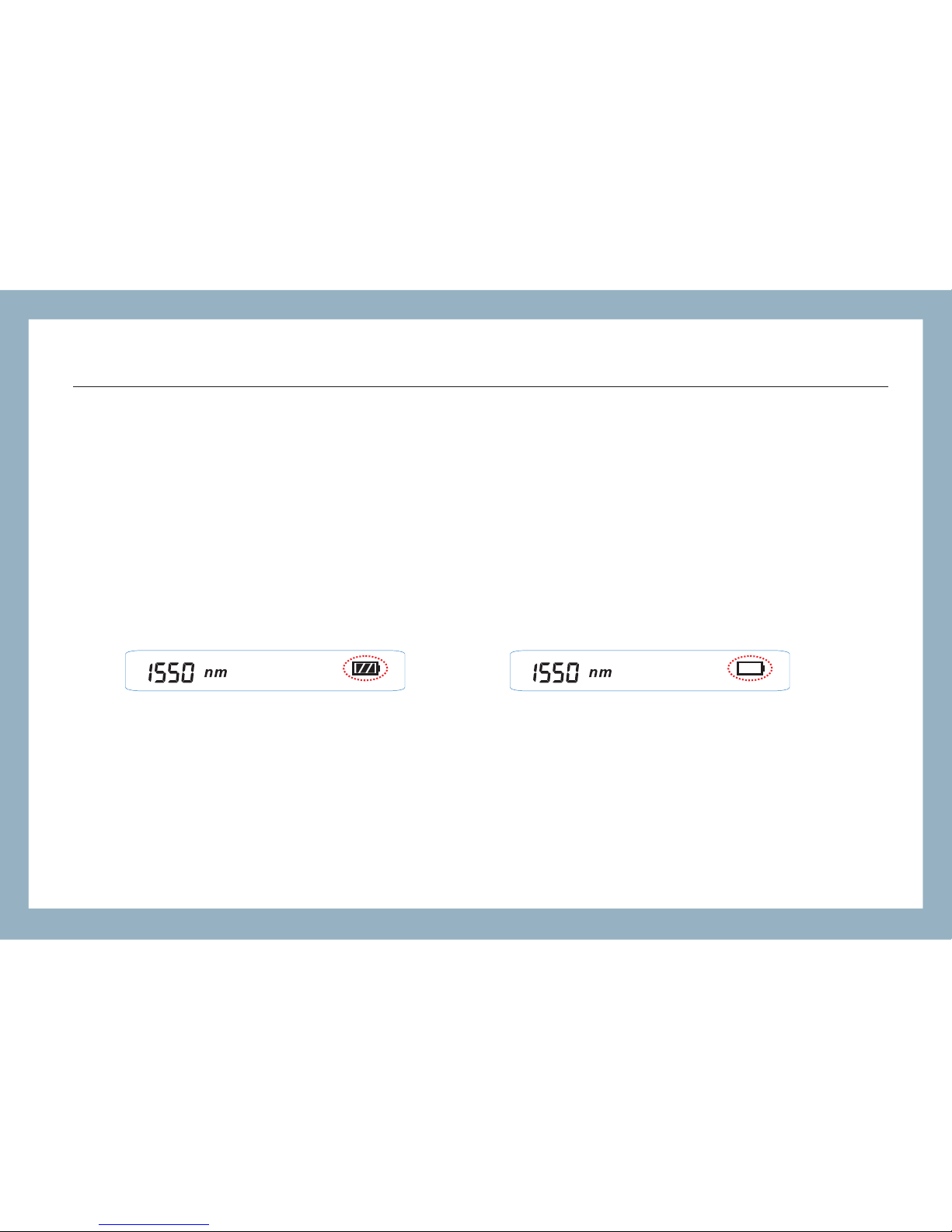

There is a battery indicator on the screen to show the remaining charge. There are four status the

indicator may show, full, with 2 blacks, with 1 black and empty. If an empty battery indicator flashes it

means the power is almost out. If the discharged batteries get to their limitations after long-time use,

please replace it with a new one. To replace the batteries, please remove the battery plate on the back

of instrument with a screwdriver.

When the battery charge is extremely low to supply the necessary power, the instrument will

automatically switch off.

Note: To eliminate the possibility of acid leakage, please take out the battery if the unit is not used for

a long time.

FHP1A/B02 / Preparing for Operation

FHP1A/B02 / Operation

5 Specifications

Optical Specifications

Note: Valid at 1550nm, CW,23±3℃, Relative Humidity ≤70%, with an FC connector.

Calibrated Wavelength (nm)

Detector Type

Connector

Accuracy

Resolution

Linearity

Auto Power Off

Back Light

Reference Value

Measuring Range(dBm)

USB Interface

Data Storage

Wavelength Recognize

Tone Detection (dBm)

850/1300/1310 /1490/1550/1625/1650

FHP1A02 FHP1B02

InGaAs

FC/PC SC/PC ST/PC Universal

0.01dB

±5%

Yes

-60 to +10@1550nm

N/A

-20

-40

≥ ≥

≥

± 0.35dB±1nW ± 0.35dB±10nW

-40 to +26@1550nm

FHP1A/B02 / Operation

General Specifications

Operating Temperature

Storage Temperature

Power Supply

Dimension (mm)

Net Weight

o o

-10 C to +50 C

o o

-20 C to +70 C

3pcs*AAA Battery;

115L*62W*30H

140g
