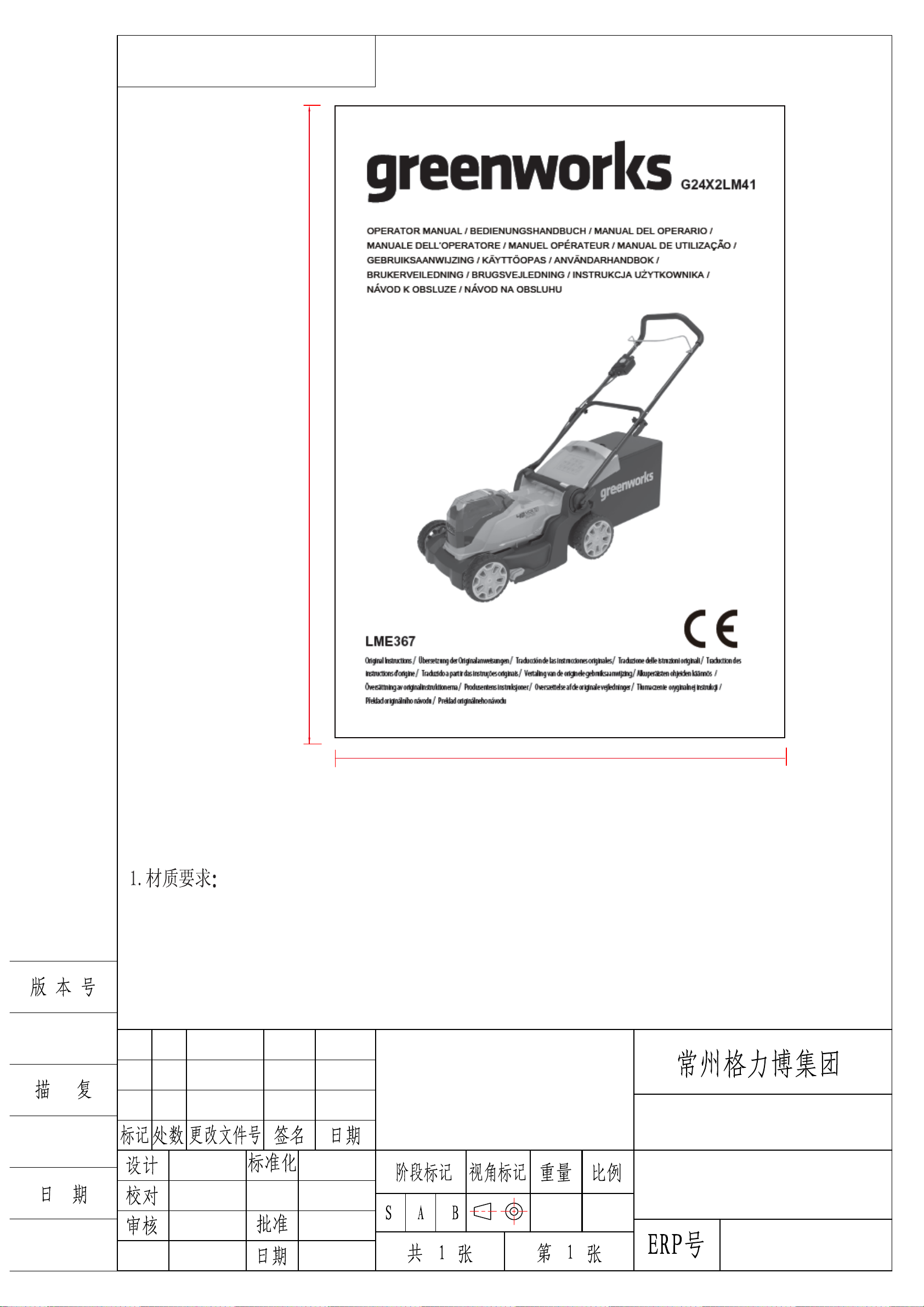

GreenWorks LME367 Bedienungsanleitung

说明书

210

145

P0802889-00

GW 48V Mower

2512607UD

P0802889-00

许乃鑫

陈丽

SCALE:A5

李海平

周艳

王小妮

20.09.18

说明书技术要求：

2.说明书为单色印刷；

3.骑马钉，裁切均匀、无连页。

4.说明书可封样、要求无色差、无污点。

5.料件需符合格力博HSF文件(编号：GLB-CGR-146) 里关于环保和有害物质的具体要求。

60g双胶纸，88P;

LME367

G24X2LM41

OPERATOR MANUAL / BEDIENUNGSHANDBUCH / MANUAL DEL OPERARIO /

MANUALE DELL’OPERATORE / MANUEL OPÉRATEUR / MANUAL DE UTILIZAÇÃO /

GEBRUIKSAANWIJZING / KÄYTTÖOPAS / ANVÄNDARHANDBOK /

BRUKERVEILEDNING / BRUGSVEJLEDNING / INSTRUKCJA UŻYTKOWNIKA /

NÁVOD K OBSLUZE / NÁVOD NA OBSLUHU

OriginalInstructions / ÜbersetzungderOriginalanweisungen/ Traduccióndelasinstruccionesoriginales/ Traduzione delle istruzionioriginali/ Traductiondes

instructionsd'origine/ Traduzidoapartir dasinstruçõesoriginais/ Vertalingvandeoriginele gebruiksaanwijzing/Alkuperäistenohjeidenkäännös /

Översättningav originalinstruktionerna/ Produsentensinstruksjoner/ Oversættelseafdeoriginale vejledninger/ Tłumaczenie oryginalnejinstrukcji /

Překladoriginálníhonávodu/ Prekladoriginálnehonávodu

1 Description.........................................5

1.1 Purpose.............................................................. 5

1.2 Overview........................................................... 5

2 Safety.................................................. 5

3 Installation......................................... 5

3.1 Unpack the machine.......................................... 5

3.2 Unfold and adjust the lower handle...................5

3.3 Install the upper handle .....................................5

3.4 Install the grass catcher......................................5

3.5 Install the mulch plug........................................ 6

3.6 Set the blade/cutting height............................... 6

3.7 Install the battery pack.......................................6

3.8 Remove the battery pack................................... 6

4 Operation........................................... 6

4.1 Start the machine............................................... 6

4.2 Stop the machine............................................... 6

4.3 Empty the grass catcher.....................................6

4.4 Operate on slopes...............................................6

4.5 Operation tips.................................................... 7

5 Maintenance.......................................7

5.1 General maintenance......................................... 7

5.2 Replace the blade...............................................7

5.3 Store the machine.............................................. 7

6 Troubleshooting.................................7

7 Technical data....................................8

8 Warranty............................................8

9 EC Declaration of conformity..........8

English

1 DESCRIPTION

1.1 PURPOSE

This machine is used for domestic lawn mowing. The cutting

blade must be approximately parallel to the ground. All four

wheels must touch the ground while you mow.

1.2 OVERVIEW

Figure 1~9

1Bail switch

2Start button

3Upper handle

4Lower handle

5Rear discharge flap

6Battery compartment flap

7Grass catcher

8Mulch plug

9Quick-release lever

10 Cam lock

11 Knob

12 Hook

13 Slot

14 Battery pack

15 Safety key

16 Battery release button

17 Height adjustment button

18 Nut

19 Spacer

20 Blade

2 SAFETY

WARNING

Make sure that you follow all safety instructions.

Refer to Safety Manual.

3 INSTALLATION

WARNING

Do not use accessories that are not recommended by the

manufacturer.

WARNING

Do not put in the safety key or the battery pack until you

finalised the assembly of all the parts.

3.1 UNPACK THE MACHINE

WARNING

Make sure that you correctly assemble the machine before

use.

WARNING

• If parts of the machine are damaged, do not use the

machine.

• If you do not have all the parts, do not operate the

machine.

• If the parts are damaged or missing, contact the service

center.

1. Open the package.

2. Read the documentation provided in the box.

3. Remove all the unassembled parts from the box.

4. Remove the machine from the box.

5. Discard the box and packing material in compliance with

local regulations.

3.2 UNFOLD AND ADJUST THE

LOWER HANDLE

Figure 2.

1. Pull up and back the upper handle to lift the handle into

operation position. Make sure that the handles click into

position correctly.

2. Tighten the lower handle with the quick-release levers on

the two sides.

NOTE

Make sure that the two handles are in the same position.

WARNING

Do not make damage to the cables when you fold or unfold

the handle.

3.3 INSTALL THE UPPER HANDLE

Figure 3

1. Align the holes in the upper handle and the lower handle.

2. Put the cam locks through the holes.

3. Tighten the knobs onto the cam locks.

4. Do the same operation on the other side.

3.4 INSTALL THE GRASS CATCHER

Figure 4

1. Remove the mulch plug.

2. Open the rear discharge flap and hold it.

3. Hold the the grass catcher by its handle and put the hooks

over the slots.

English EN

4. Close the rear discharge flap.

3.5 INSTALL THE MULCH PLUG

Figure 5.

1. Remove the grass catcher.

2. Open the rear discharge flap and hold it.

3. Hold the mulch plug by its handle and fit it in the

discharge chute.

4. Close the rear discharge flap.

3.6 SET THE BLADE/CUTTING

HEIGHT

The machine can be set to different blade/cutting heights.

Figure 6.

1. Push the height adjustment button, move the height adjust

gear to a higher position to increase the blade/cutting

height.

2. Push the height adjustment button, move the height adjust

gear to a lower position to decrease the blade/cutting

height.

3.7 INSTALL THE BATTERY PACK

Figure 7

WARNING

• If the battery pack or charger is damaged, replace the

battery pack or the charger.

• Stop the machine and wait until the engine stops before

you install or remove the battery pack.

• Read, know, and follow the instructions in the battery

and charger manual.

WARNING

USE ONLY 24V BATTERY. DO NOT USE DUAL-

VOLTAGE 24/48V BATTERY.

NOTE

Both batteries should be installed into the compartments in

order to start the machine.

1. Open the battery flap.

2. Align the lift ribs on the battery pack with the grooves in

the battery compartment.

3. Push the battery pack into the battery compartment until

the battery pack locks into place.

4. When you hear a click, the battery pack is installed.

5. Do the same operation with the other battery.

6. Close the battery flap.

NOTE

The motor starts only when you put in the safety key.

3.8 REMOVE THE BATTERY PACK

Figure 7

1. Open the battery compartment flap

2. Remove the safety key.

3. Push and hold the battery release button.

4. Remove the battery pack from the machine.

4 OPERATION

WARNING

Wear eye protection during operation.

4.1 START THE MACHINE

Figure 8

1. Put in the safety key and battery.

2. Push and hold the start button.

3. While you hold the start button, pull the bail switch in the

direction of the handle bar.

4. Release the start button to start the machine.

4.2 STOP THE MACHINE

Figure 8

1. Release the bail switch to stop the machine.

WARNING

Wait until the blades fully stop before you start the machine

again. Do not quickly turn the machine off and on.

WARNING

Always remove the safety key and battery pack after you

complete the work.

4.3 EMPTY THE GRASS CATCHER

1. Stop the machine.

2. Remove the safety key.

3. Remove the battery pack.

4. Open the rear discharge flap and hold it.

5. Hold the grass catcher by its handle and unhook it from

the slots.

6. Close the rear discharge flap.

7. Empty the grass catcher.

4.4 OPERATE ON SLOPES

WARNING

Do not mow on slopes with incline more than 15°. If you

are not comfortable, do not mow on a slope.

English

• Do not go up and down on a slope, mow across the face

of the slope. Be careful when you change the direction on

a slope.

• Monitor holes, ruts, rocks, and other hidden objects that

can cause you to fall. Remove all obstacles such as rocks

and tree limbs.

• Make sure that your footing is stable. If you are out of

balance, release the handle switch immediately.

• Do not mow near drop-offs, ditches, or embankments.

4.5 OPERATION TIPS

• Do not try to override the operation of the start button or

bail switch.

• Do not tilt the machine when you start it.

• Do not put hands or feet near or below the turning parts.

• Keep the discharge chute clean.

• Do not cut wet grass.

• Higher blade height is necessary for new or thick grass.

• Clean the bottom of the mower deck after each use.

Remove grass clippings, leaves, dirt, and other debris.

5 MAINTENANCE

WARNING

Remove the safety key and battery pack(s) from the

machine before maintenance.

WARNING

Keep the motor and battery pack(s) free from grass, leaves

or too much grease.

CAUTION

Use only approved replacement parts.

CAUTION

Do not let brake fluids, gasoline, petroleum-based materials

touch the plastic parts. Chemicals can cause damage to the

plastic, and make the plastic unserviceable.

CAUTION

Do not use strong solvents or detergents on the plastic

housing or components.

NOTE

Recommended tightening torque (blade): 33-37 Nm.

5.1 GENERAL MAINTENANCE

• Before each use, examine the machine for damaged,

missing, or loose parts such as screws, nuts, bolts and

caps.

• Tighten correctly all the fasteners and caps.

• Clean the machine with a dry cloth. Do not use water.

5.2 REPLACE THE BLADE

Figure 9.

WARNING

Use only approved replacement blades.

WARNING

Wear heavy gloves or wind cloth around the blade when

you touch the blade.

1. Stop the machine.

2. Make sure that the blade fully stops.

3. Remove the safety key and battery pack.

4. Turn the machine to its side.

5. Use a piece of wood to prevent the movement of the

blade.

6. Remove the mounting nut and spacer with a wrench or

socket.

7. Remove the blade.

8. Install the new blade. Make sure that the raised points

engage the hole(s) in the blade.

9. Put in the mounting nut and spacer and tighten them.

5.3 STORE THE MACHINE

• Remove the safety key.

• Remove the battery pack(s).

• Clean the machine before storage.

• Make sure the motor is not hot when you store the

machine.

• Make sure that the machine does not have loose or

damaged parts. If it is necessary, follow these

instructions:

• Replace the damaged parts.

• Tighten the bolts.

• Speak to a person at an approved service center.

• Store the machine in a dry area.

• Make sure that children cannot come near the machine.

6 TROUBLESHOOTING

Problem Possible cause Solution

The handle is not

in position.

The bolts are not

engaged correctly.

Adjust the height

of the handle and

make sure that the

knobs and bolts

are aligned cor-

rectly.

English EN

Problem Possible cause Solution

The machine does

not start.

The battery ca-

pacity is low.

Charge the battery

pack.

The bail switch is

defective.

Replace the bail

switch.

The safety key is

not put in.

Put in the safety

key.

The machine cuts

grass unevenly.

The lawn is rough. Examine the mow-

ing area.

The blade height is

not set correctly.

Adjust the blade/

cutting height to a

higher position.

The machine does

not mulch correct-

ly.

Wet grass clip-

pings attach to the

deck.

Wait until the

grass dries before

mowing.

The mulch plug is

missing.

Install the mulch

plug.

The machine is

hard to push.

The grass is too

tall, or the blade

height is too low.

Increase the blade/

cutting height.

The grass catcher

and the blade

drags in thick

grass.

Empty the grass

clippings from the

grass catcher.

There is a high vi-

bration in the ma-

chine.

The blade is un-

balanced and

worn.

Replace the blade.

The motor shaft is

bent.

1. Stop the mo-

tor.

2. Remove the

safety key and

battery pack.

3. Inspect for

damage.

4. Repair the ma-

chine before

you start it

again.

The machine stops

during mowing.

The blade height is

too low.

Increase the blade/

cutting height.

The battery pack is

out of power.

Charge the battery

pack.

The grass clip-

pings attach to the

deck or the blade.

Remove the bat-

tery pack and

check the deck.

Operation temper-

ature of the ma-

chine is too high.

Cool the machine.

* If you cannot find the solution to these problems, go to the

service center.

7 TECHNICAL DATA

Voltage 48 V

No load speed 3600 / min

Cutting width 410 mm

Cutting height 25-80 mm

Grass catcher capacity 50 L

Weight (without battery

pack)

39.7 lbs 18 kg

Measured sound pressure

level

LPA = 83 dB(A) , K = 3

dB(A)

Guaranteed sound power lev-

LWA.d = 96 dB(A)

Vibration ＜2.5 m/s2 , K = 1.5 m/s2

Battery model G24B2/G24B4 and other

BAG series

Charger model G24X2C/ G24X2UC2/

G24X2UC4 and other CAG

series

Double-insulated construc-

tion

IPX IPX4

8 WARRANTY

(The full warranty terms and conditions can be found on

Greenworks webpage)

The Greenworks warranty is 3 years on the product, and 2

years on batteries (consumer/private usage) from the date of

purchase. This warranty covers manufacturing faults. A faulty

product under warranty might be either repaired or replaced.

A unit that has been misused or used in other ways then

described in the owner’s manual might be rejected for

warranty. Normal wear, and wear parts are not considered as

warranty. The original manufacturer warranty is not affected

by any additional warranty offered by a dealer or retailer.

A faulty product must be returned to the point of purchase in

order to claim for warranty, together with the proof of

purchase (receipt).

9 EC DECLARATION OF

CONFORMITY

Name and address of the manufacturer:

Name: GLOBGRO AB

Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö, Sweden

English

Name and address of the person authorised to compile the

technical file:

Name: Peter Söderström

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Herewith we declare that the product

Category: Lawn Mower

Model: 2512607 (LME367)

Serial number: See product rating label

Year of Construction: See product rating label

• is in conformity with the relevant provisions of the

Machinery Directive 2006/42/EC.

• is in conformity with the provisions of the following

other EC-Directives:

• 2014/30/EU

• 2000/14/EC & 2005/88/EC

• 2011/65/EU & (EU)2015/863

Furthermore, we declare that the following parts, clauses of

harmonised standards have been used:

• EN 60335-1, EN 60335-2-77, EN 62233, EN ISO 3744,

EN 55014-1, EN 55014-2, ISO 11094, IEC 62321-3-1,

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC

62321-7-1, IEC 62321-7-2, IEC 62321-8

Conformity assessment method to Annex VI Directive

2000/14/EC.

Measured sound power level LWA: 94.1 dB(A)

Guaranteed sound power level LWA.d : 96 dB(A)

Place, date: Mal-

mö,Malmö,

03.03.2020

Signature: Ted Qu, Quality Director

English EN

1 Beschreibung....................................11

1.1 Verwendungszweck......................................... 11

1.2 Übersicht..........................................................11

2 Sicherheit..........................................11

3 Montage............................................11

3.1 Maschine auspacken........................................ 11

3.2 Unteren Griff ausklappen und einstellen......... 11

3.3 Oberen Griff montieren .................................. 11

3.4 Grasfangvorrichtung montieren.......................11

3.5 Mulcher montieren.......................................... 12

3.6 Messer-/Schnitthöhe einstellen........................12

3.7 Akkupack einsetzen.........................................12

3.8 Akkupack entfernen.........................................12

4 Bedienung.........................................12

4.1 Maschine starten..............................................12

4.2 Maschine anhalten........................................... 12

4.3 Grasfangvorrichtung entleeren........................ 12

4.4 Betrieb an Hängen........................................... 13

4.5 Tipps zur Bedienung........................................13

5 Wartung und Instandhaltung.........13

5.1 Allgemeine Wartung........................................13

5.2 Messer ersetzen................................................13

5.3 Maschine lagern...............................................14

6 Fehlerbehebung...............................14

7 Technische Daten.............................14

8 Garantie........................................... 15

9 EG-Konformitätserklärung........... 15

Deutsch

1 BESCHREIBUNG

1.1 VERWENDUNGSZWECK

Diese Maschine wird für das Rasenmähen im Haushalt

eingesetzt. Das Schneidmesser muss sich etwa parallel zum

Boden befinden. Alle vier Räder müssen beim Mähen den

Boden berühren.

1.2 ÜBERSICHT

Abbildung 1~9

1Bügelschalter

2Start-Taste

3Oberer Griff

4Unterer Griff

5Heckauswurfklappe

6Akkufachklappe

7Grasfangvorrichtung

8Mulcher

9Schnellspannhebel

10 Nockenverriegelung

11 Handgriff

12 Haken

13 Aussparung

14 Akkupack

15 Sicherheitsschlüssel

16 Akkuentriegelungstaste

17 Höhenverstellungstaste

18 Mutter

19 Abstandhalter

20 Messer

2 SICHERHEIT

WARNUNG

Stellen Sie sicher, dass Sie alle Sicherheitshinweise

befolgen.

Siehe Sicherheitshandbuch.

3 MONTAGE

WARNUNG

Nur Zubehör verwenden, das vom Hersteller empfohlen

wird.

WARNUNG

Stecken Sie den Sicherheitsschlüssel oder den Akkupack

erst dann ein, wenn Sie alle Teile zusammengebaut haben.

3.1 MASCHINE AUSPACKEN

WARNUNG

Vergewissern Sie sich, dass Sie die Maschine vor dem

Gebrauch richtig montiert haben.

WARNUNG

• Bei beschädigten Maschinenteilen dürfen Sie die

Maschine nicht verwenden.

• Wenn Sie nicht alle Teile haben, dürfen Sie die

Maschine nicht in Betrieb nehmen.

• Wenn Teile beschädigt sind oder fehlen, wenden Sie

sich an die Servicestelle.

1. Öffnen Sie die Verpackung.

2. Lesen Sie die beiliegende Dokumentation.

3. Entnehmen Sie alle unmontierten Teile aus dem Karton.

4. Nehmen Sie die Maschine aus dem Karton.

5. Entsorgen Sie den Karton und das Verpackungsmaterial

gemäß den örtlichen Vorschriften.

3.2 UNTEREN GRIFF AUSKLAPPEN

UND EINSTELLEN

Abbildung 2.

1. Ziehen Sie den oberen Griff hoch und zurück, um den

Griff in die Betriebsposition zu bringen. Achten Sie

darauf, dass die Griffe richtig einrasten.

2. Ziehen Sie den unteren Griff mit den Schnellspannhebeln

auf beiden Seiten fest.

HINWEIS

Achten Sie darauf, dass sich die beiden Griffe in der

gleichen Position befinden.

WARNUNG

Beschädigen Sie die Kabel nicht, wenn Sie den Griff aus-

oder zusammenklappen.

3.3 OBEREN GRIFF MONTIEREN

Abbildung 3

1. Richten Sie die Löcher im oberen und unteren Griff aus.

2. Stecken Sie die Nockenverriegelungen durch die Löcher.

3. Ziehen Sie die Handgriffe an den Nockenverriegelungen

fest.

4. Wiederholen Sie den Vorgang auf der anderen Seite.

3.4 GRASFANGVORRICHTUNG

MONTIEREN

Abbildung 4

1. Entfernen Sie den Mulcher.

Deutsch

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere GreenWorks Rasenmäher Handbücher

GreenWorks

GreenWorks 2544302 Bedienungsanleitung

GreenWorks

GreenWorks LME455 Bedienungsanleitung

GreenWorks

GreenWorks MO48L4213 Bedienungsanleitung

GreenWorks

GreenWorks 2507902BT Bedienungsanleitung

GreenWorks

GreenWorks LMF465 Bedienungsanleitung

GreenWorks

GreenWorks MO10B00 Bedienungsanleitung

GreenWorks

GreenWorks Optimow 10 Bedienungsanleitung

GreenWorks

GreenWorks GM 210 Bedienungsanleitung

GreenWorks

GreenWorks 25012 Bedienungsanleitung

GreenWorks

GreenWorks GLM801600 Bedienungsanleitung

GreenWorks

GreenWorks LME456 Bedienungsanleitung

GreenWorks

GreenWorks LMC420 Bedienungsanleitung

GreenWorks

GreenWorks MO40B00 Bedienungsanleitung

GreenWorks

GreenWorks LME366 Bedienungsanleitung

GreenWorks

GreenWorks LMG301 Bedienungsanleitung

GreenWorks

GreenWorks GD40SC38II Bedienungsanleitung

GreenWorks

GreenWorks G40LM35K2X Bedienungsanleitung

GreenWorks

GreenWorks 25052 Bedienungsanleitung

GreenWorks

GreenWorks LMF320 Bedienungsanleitung

GreenWorks

GreenWorks LMF413 Bedienungsanleitung

GreenWorks

GreenWorks LMC410 Bedienungsanleitung

GreenWorks

GreenWorks MO40L02 Bedienungsanleitung

GreenWorks

GreenWorks LMA123 Bedienungsanleitung

GreenWorks

GreenWorks GD48LM46 Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
