15/16 GAUGE NAILER

MODEL G6048

INSTRUCTION MANUAL

For Your Own Safety Read Instruction Manual

Before Operating This Equipment

Indicates an imminently hazardous situation which, if

not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if

not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if

not avoided, MAY result in minor or moderate injury.

It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information

about proper operation of the equipment.

The purpose of safety symbols is to attract your attention to possible hazardous

conditions. This manual uses a series of symbols and signal words which are

intended to convey the level of importance of the safety messages. The progres-

sion of symbols is described below. Remember that safety messages by them-

selves do not eliminate danger and are not a substitute for proper accident pre-

vention measures.

NOTICE

Safety Instructions For Pneumatic Power Tools

1. KEEP ALL SAFETY DEVICES IN

PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND

WRENCHES. Form habit of check-

ing to see that keys and adjusting

wrenches are removed from tool

before operation.

3. KEEP WORK AREA CLEAN.

Cluttered areas and benches invite

accidents.

4. DO NOT USE IN DANGEROUS

ENVIRONMENT. Do not use pneu-

matic tools in damp or wet loca-

tions, or where any flammable or

noxious fumes may exist. Keep

work area well lighted.

SAFETY

5. KEEP CHILDREN AND VISITORS

AWAY. All children and visitors

should be kept at a safe distance

from work area.

6. MAKE WORKSHOP CHILD

PROOF with padlocks, master

switches, or by removing air hoses

from tools.

7. DO NOT FORCE TOOL. It will do

the job better and safer at the rate

for which it was designed.

8. USE THE RIGHT TOOL. Do not

force tool or attachment to do a job

for which it was not designed.

9. DO NOT USE UNDER THE INFLU-

ENCE OF DRUGS OR ALCOHOL.

-1-G6048 15/16 Gauge Nailer

G6048 15/16 Gauge Nailer

-2-

10. USE PROPER AIR HOSE for the

tool. Make sure your air hose is in

good condition and is long enough to

reach your work without stretching.

11. WEAR PROPER APPAREL. Do not

wear loose clothing, gloves, neck-

ties, rings, bracelets, or other jewel-

ry which may get caught in moving

parts. Non-slip footwear is recom-

mended. Wear a protective hair cov-

ering to contain long hair.

12. ALWAYS USE SAFETY GLASSES.

Also use a face or dust mask if cut-

ting operation is dusty. Everyday

eyeglasses only have impact resis-

tant lenses, they are NOT safety

glasses.

13. WEAR APPROVED HEARING

PROTECTION.

14. SECURE WORK. Use clamps or a

vise to hold work when practical. It is

safer than using your hand and frees

both hands to operate tool.

15. DO NOT OVERREACH. Keep prop-

er footing and balance at all times.

16. MAINTAIN TOOLS WITH CARE.

Keep tools lubricated and clean for

best and safest performance. Follow

instructions for lubricating and

changing accessories.

17. REDUCE THE RISK OF UNINTEN-

TIONAL STARTING. Do not carry

tool with hand on trigger and always

disconnect from air when not in use.

Safety Instructions For Pneumatic Tools

18. DISCONNECT TOOLS before ser-

vicing and changing accessories.

19. USE THE RECOMMENDED

ACCESSORIES. Consult the

owner’s manual for recommended

accessories. The use of improper

accessories may cause risk of

injury.

20. CHECK DAMAGED PARTS.

Before further use of the tool, a

guard or other part that is damaged

should be carefully checked to

determine that it will operate prop-

erly and perform its intended func-

tion. Check for alignment of moving

parts, binding of moving parts,

breakage of parts, mounting, and

any other conditions that may affect

its operation. A guard or other part

that is damaged should be properly

repaired or replaced.

21. NEVER LEAVE UNATTENDED

TOOL CONNECTED TO AIR.

Disconnect the air hose and do not

leave tool until it is relieved of any

built up pressure.

22. NEVER ALLOW UNTRAINED

USERS TO USE THIS TOOL

WHILE UNSUPERVISED.

23. IF YOU ARE UNSURE OF THE

INTENDED OPERATION, STOP

USING THE TOOL. Seek formal

training or research books or maga-

zines that specialize in pneumatic

tools.

-3-

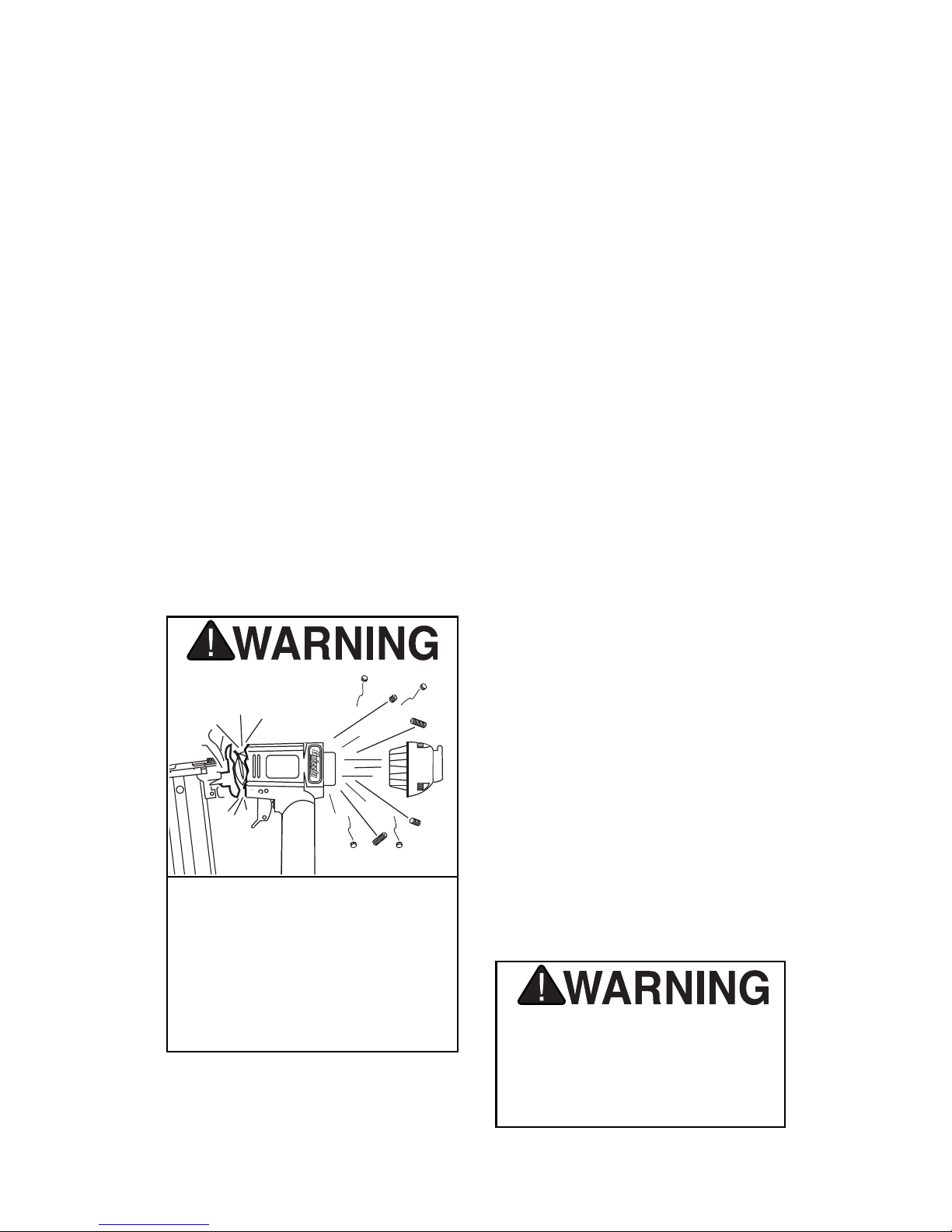

Operating this nailer can propel

objects into the air, causing immedi-

ate eye damage. To protect yourself,

always wear American National

Standards Institute (ANSI) approved

safety glasses or goggles when oper-

ating this equipment. In addition, this

nailer discharges at 85-90 decibels.

To protect your hearing, always wear

ANSI approved ear protection when

operating this nailer.

Basic Nailer Safety

In addition to the rules stated in the previ-

ous section, and those in the warning

boxes throughout this manual, please

observe the following safety tips for your

new nailer:

1. READ THIS ENTIRE MANUAL

BEFORE OPERATING THE NAIL-

ER.

2. ALWAYS DISCONNECT AIR FROM

THE NAILER whenever servicing or

installing nails. During maintenance,

a nailer connected to air may fire acci-

dentally, causing serious personal

injury.

3. DO NOT PLACE HANDS NEAR

NAIL POINT OF ENTRY. Nail can

deflect and be driven through the sur-

face of the workpiece, puncturing

your hand or fingers.

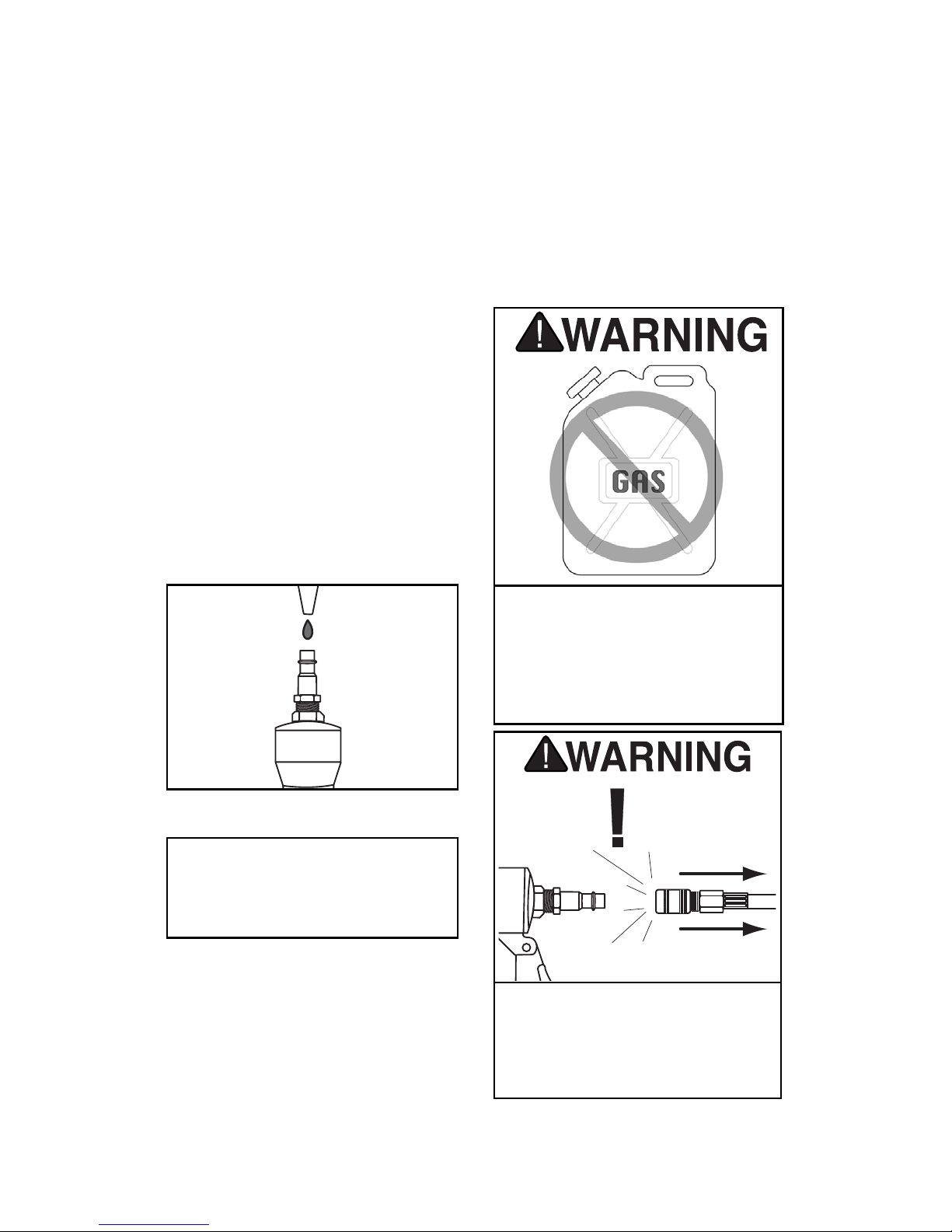

4. NEVER CONNECT THE NAILER TO

PRESSURIZED OXYGEN OR

OTHER COMBUSTIBLE GASES as

a power source. Only use filtered,

lubricated, and regulated compressed

air.

5. ALWAYS KEEP ANY

BYSTANDERS BEHIND NAILER

OR AWAY FROM AREA DURING

USE. Nails may be driven completely

though wood and could become dan-

gerous projectiles.

6. DO NOT CARRY THE NAILER BY

ANY OTHER PART THAN THE

HANDLE, and do not carry the nailer

by the air hose.

7. DO NOT KEEP THE TRIGGER

PULLED ON THE SAFETY YOKE

MECHANISM WHEN CARRYING

OR HOLDING THE TOOL.

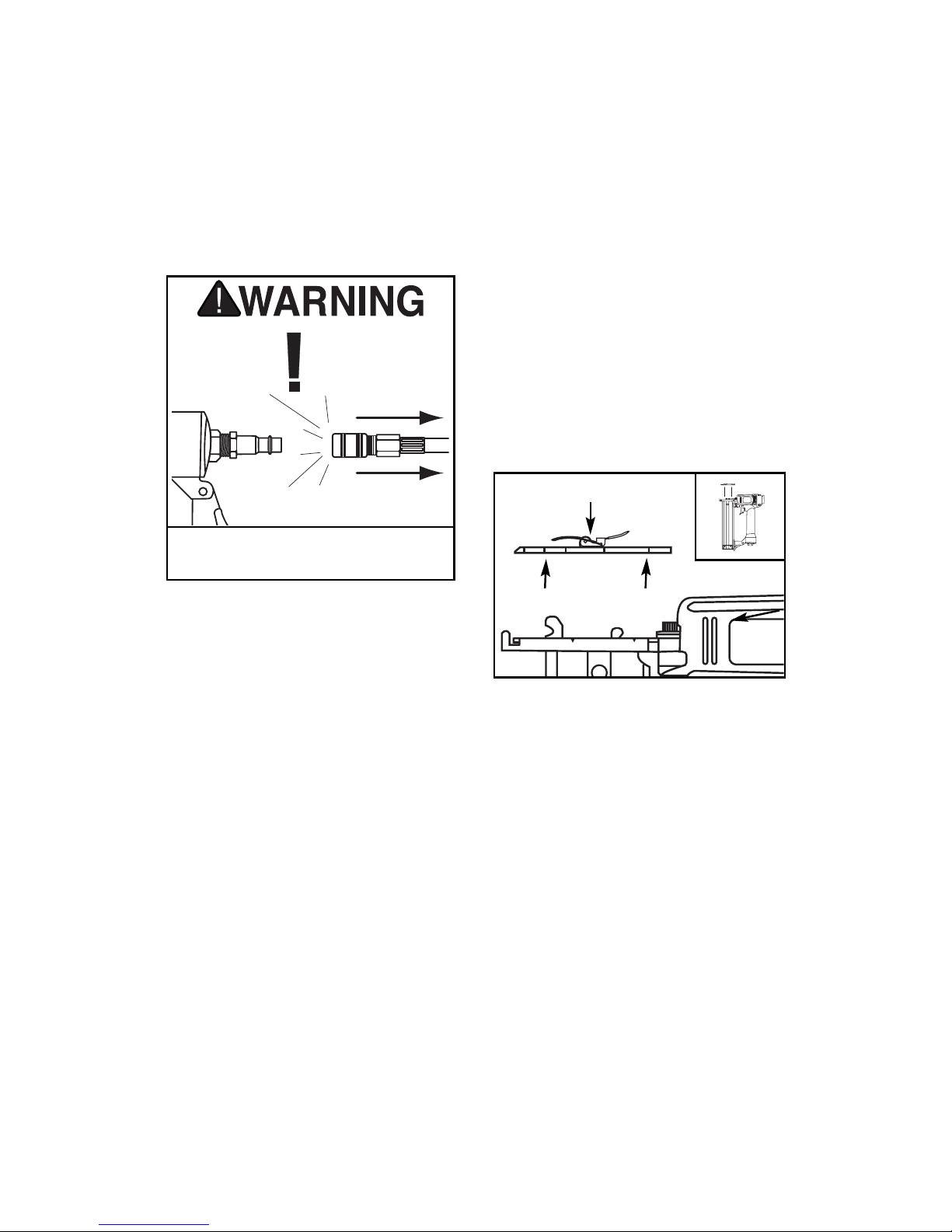

8. DO NOT USE A CHECK VALVE OR

ANY OTHER FITTING that allows air

to remain in the tool.

Never point this nailer at yourself or

another person! Always pay attention

to the direction this nailer is pointed.

Use this tool with respect and caution

to lessen the possibility of operator or

bystander injury. Ignoring this warn-

ing may result in serious personal

injury.

G6048 15/16 Gauge Nailer

-4-

INTRODUCTION

Commentary Most importantly, we stand behind our

tools. If you have any service questions or

parts requests, please call or write us at

the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901

E-Mail: [email protected]

Web Site: http://www.grizzly.com

We are proud to offer the Grizzly Model

G6048 15/16 Gauge Nailer. This model is

part of a growing Grizzly family of fine

power tools. When used according to the

guidelines set forth in this manual, you can

expect years of trouble-free, enjoyable

operation and proof of Grizzly’s commit-

ment to customer satisfaction.

This Model G6048 features 360˚

adjustable exhaust, a quick release nose

clamp, a convenient side-loading maga-

zine, a safety trigger and a durable plastic

carrying case. The Model G6048 shoots

15/16 gauge brad nails 3⁄4"-21⁄2" in length

and accepts up to 100 nails at a time. At

4.8 lbs., this model is also easy to carry

around for hours.

We are pleased to provide this manual

with the Model G6048. It was written to

encourage safety considerations and

guide you through general operating pro-

cedures and maintenance. This manual

represents our effort to produce the best

documentation possible.

The specifications, details, and pho-

tographs in this manual represent the

Model G6048 as supplied when the man-

ual was prepared. However, owing to

Grizzly’s policy of continuous improve-

ment, changes may be made at any time

with no obligation on the part of Grizzly. If

you have any comments regarding this

manual, please write to us at the address

below:

Grizzly Industrial, Inc.

C/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

Read the manual before assembly

and operation. Become familiar with

this tool, its safety instructions, and

its operation before beginning any

work. Serious personal injury may

result if safety or operational infor-

mation is not understood or followed.

G6048 15/16 Gauge Nailer -5-

Compressed Air System Safety Yoke Mechanism

The safety yoke is a mechanical

device that can fail. Never rely on the

safety yoke mechanism as an excuse

to point the nailer at yourself or any

bystanders. Serious injury may occur.

Exceeding the maximum permissible

operating pressure may cause the

nailer to explode, blowing metal frag-

ments in all directions. To protect

yourself from serious personal injury,

DO NOT allow your air compressor to

exceed the recommended pressure

when connected to this nailer!

The Model G6048 is designed to be oper-

ated at 75-110 psi. Do not exceed the

maximum operating pressure!

Before you use your new nailer, regulate

the air pressure on your air compressor to

barely over the minimum psi for your nail-

er. Increase air pressure only if needed.

Many pneumatic tools benefit from an in-

line filter/lubricator/regulator unit. This

attachment is connected by hoses

between the air compressor and the nailer.

Using this unit protects your tool from dam-

aging water build-up, allows you to adjust

and maintain constant air pressure to your

tool, and saves you the inconvenience of

having to manually lubricate your tool

every time you use it. Check the current

Grizzly catalog for availability of this unit. If

you plan on installing a filter/lubricator/reg-

ulator unit in your compressed air system,

always follow the connection instructions

that come with the unit.

A safety yoke mechanism (bump fire) on

the nose of the nailer acts as a secondary

safety device. When the trigger is pressed,

the nailer will not fire until the safety yoke

mechanism is depressed.

Before you use your nailer for the first time,

check the safety yoke mechanism to

ensure proper function. To do this:

1. Make sure the nailer is disconnect-

ed from the air supply!

2.Make sure the magazine is empty and

contains no nails.

3. Make sure the trigger and the safety

yoke mechanism move up and down

without sticking.

4. Connect the nailer to the air supply.

5. Without pressing the trigger,

depress the safety yoke mechanism

against a scrap piece of wood that is

clean and free of any knots, nails, or

other foreign objects. If the nailer

does not fire, then the safety yoke

mechanism is working correctly. If the

nailer does fire when you do this,

immediately disconnect the nailer

from the air supply and call our cus-

tomer service for help.

Similarly if the nailer fires when the trigger

is pulled, without the safety yoke mech-

anism being depressed, then the nailer is

not working properly.

If either of these two conditions develop

after you have used your nailer for a peri-

od of time, check the lubrication of these

mechanisms.

G6048 15/16 Gauge Nailer

-6-

OPERATION

Loading Nailer

To load your nailer:

1. Disconnect the air supply from the

nailer!

2. Flip the magazine latch in the direc-

tion shown in Figure 1.

3. Pull back the magazine cover until it

stops.

4. Point the nailer down and insert a

stick of nails into the magazine as

shown in Figure 2. Make sure the

pointed ends of the nails rest in the

slot at the bottom of the magazine.

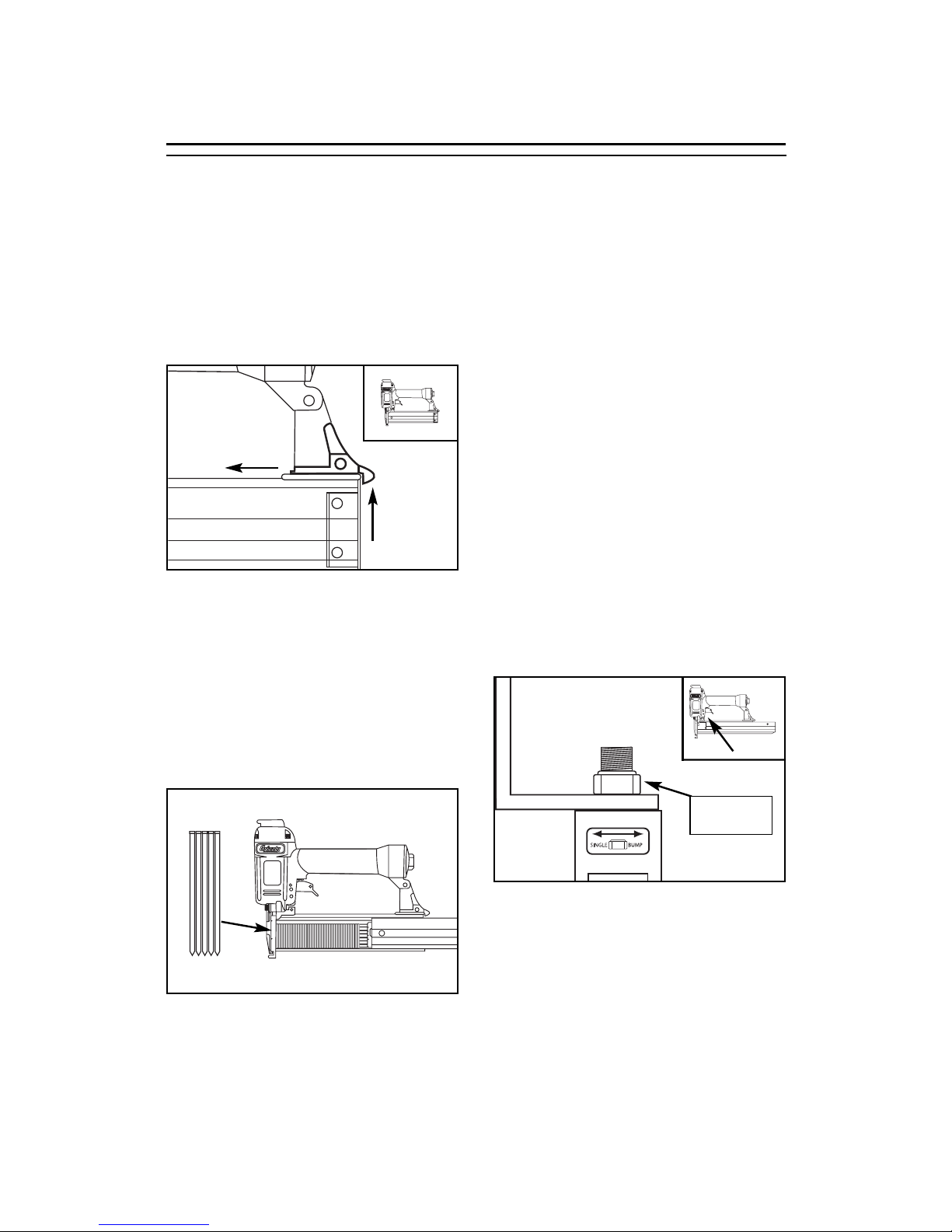

Figure 1. Releasing magazine latch.

Figure 2. Loading brad nails into nailer.

5. Push the magazine cover forward

until the magazine latch locks in

place.

Single/Bump Fire Mode

The Model G6048 is equipped with a sin-

gle/bump fire trigger.

To select single or bump fire operation:

1. Disconnect the air supply from the

nailer!

2. Locate the hex nut that secures the

safety yoke mechanism to the trigger

housing. See Figure 3.

3. To select Single Fire mode, tighten

the hex nut completely.

4. To select Bump Fire mode, unthread

the hex nut at least two full turns.

Figure 3. Single/bump fire adjustment.

When replacing nails for your Model

G6048, follow these guidelines:

Gauge: 15/16

Length: 3⁄4"-21⁄2"

Capacity: 100 Nails

Adjustment

Hex Nut

G6048 15/16 Gauge Nailer -7-

Operating Nailer Besides damaging your workpiece,

deflection can cause injury if your free

hand is securing the workpiece in the

location that the nail deflects.

4. Press the trigger. If the nail drove into

the wood far enough, continue with

your intended operations. If the nail

either went too far or not far enough,

then adjust the air pressure. More air

pressure will make the nail go deeper

and less air pressure will decrease

the nail penetration.

Figure 4. Example of nail deflection.

If you have not read the safety instruc-

tions in this manual, do not operate the

nailer.

Periodically, place one drop of the included

oil into the quick connect fitting where the

nailer connects to the air supply. After oil-

ing, wipe off any excess oil near the nailer

exhaust to avoid dust build-up.

To operate your nailer:

1. Connect the air supply to the quick

connect fitting.

2. Test the loaded nailer for proper pen-

etration. Hold the nailer perpendicular

to the surface of a piece of clean

scrap wood that is thick enough for

the length of nails you have loaded.

Depress the safety yoke mechanism

on your workpiece.

3. Before pressing the trigger, make

sure your free hand is positioned out

of the way of a potential path of a nail

in case of deflection. (Deflection is

caused when the nail changes its

path, resulting in the nail puncturing

the surface of the workpiece as

shown in Figure 4.)

G6048 15/16 Gauge Nailer

-8-

Always disconnect air from nailer

whenever clearing a jammed nail!

Clearing Jammed Nails

The most frequent situation with any type

of nailer is a nail jam. A jammed nail must

be cleared before using the nailer again.

The two places where a nail can get

jammed are the magazine and the dis-

charge area.

Figure 5. Removing guide cover.

Quick Release Latch

To clear a jammed nail from the magazine:

1. Disconnect the nailer from the air

supply!

2.Open the magazine cover and pull the

magazine all the way back.

3. Locate and remove the jammed brad

nail with a pair of needle nose pliers.

Close the magazine cover so it latch-

es.

Driver Guide Cover

To clear a jammed nail from the discharge

area with the Model G6048:

1. Disconnect the nailer from the air

supply!

2. Remove all of the brad nails from the

magazine.

3. Flip up the quick release latch that is

located on top of the nailer nose

assembly as shown in Figure 5.

4. Remove the driver guide cover.

5. The jammed nail should now be visi-

ble; remove it from the discharge area

with needle nose pliers.

6. Replace the driver guide cover and

snap the quick release latch back into

operating position.

G6048 15/16 Gauge Nailer -9-

Cleaning Nailer

Use a good solvent to clean the nailer

nose assembly. Always be sure that the

nailer is dry before using it again.

Do not allow dust, chips, sand, etc. into the

air connectors or into the body of the nail-

er; this may result in leaks and damage to

the nailer and the air fittings.

Never use gasoline or other flamma-

ble liquids to clean this tool. Vapors

in the tool may ignite, causing the

tool to explode. Ignoring this warning

may lead to serious personal injury or

even death!

Always disconnect air from nailer

whenever servicing! During mainte-

nance, a nailer connected to air may

fire accidentally, causing serious

personal injury!

Oiling Nailer

Special oil has been included with you new

Grizzly Nailer. Periodically place one drop

of oil in the nailer air inlet (as shown in

Figure 6). After oiling, wipe off any excess

oil near the nailer exhaust to avoid dust

build-up. When the oil that was included

with the nailer has been completely used,

replace with Grizzly Model G2820

Pneumatic Tool Oil.

Another option to manual oiling would be

to install a lubricator in your air compressor

line. If your air compressor line already has

a lubricator, then regular lubrication of your

nailer will not be necessary. Just make

sure there is always oil in the lubricator.

As mentioned before, the best option is to

install a filter/lubricator/regulator unit such

as the Grizzly Model H2333 in your air line.

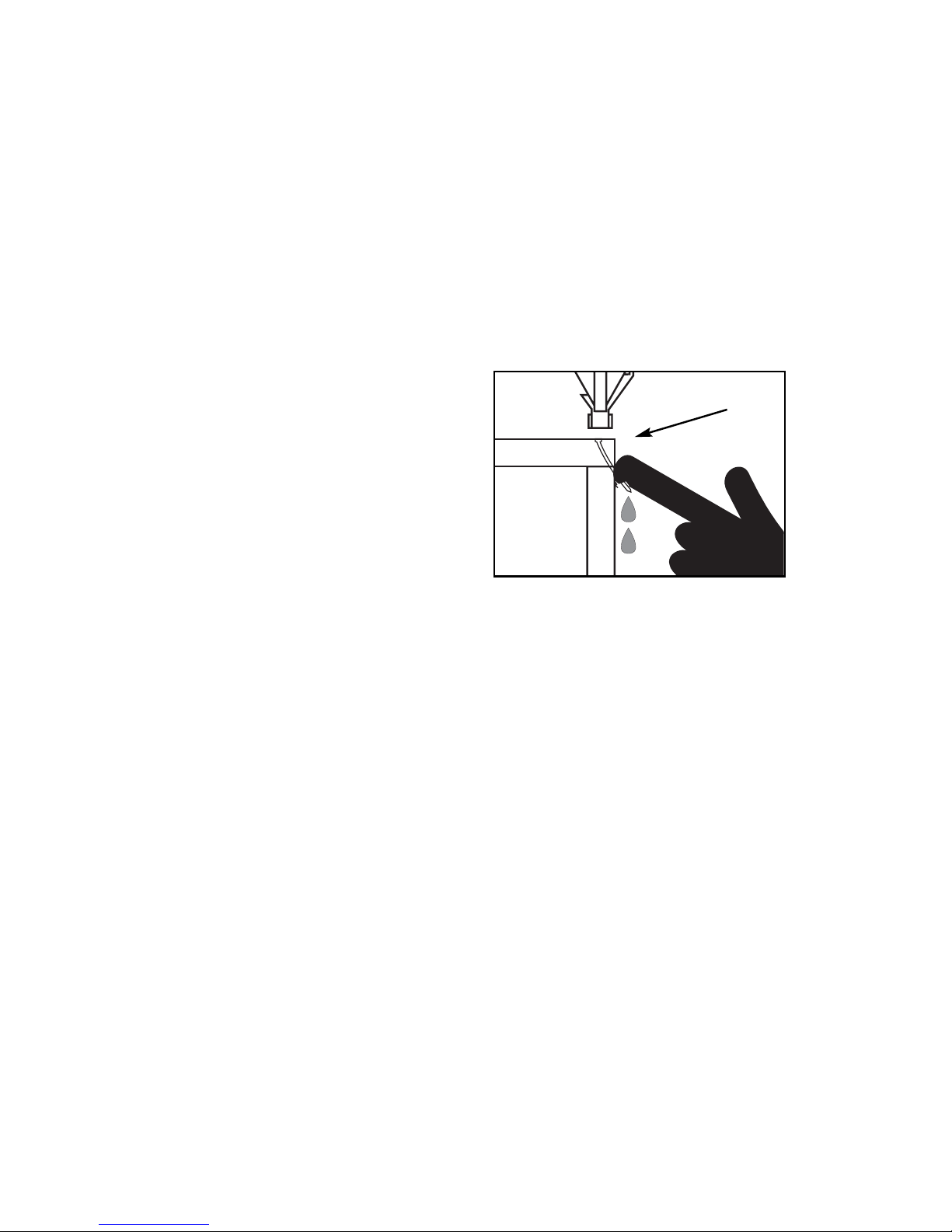

Figure 6. Lubricating nailer via air inlet.

NOTICE

Too much oil in the nailer will ruin

the O-rings!

Andere Handbücher für G6048

Inhaltsverzeichnis

Andere Grizzly Nagelpistole Handbücher

Grizzly

Grizzly H5527 Bedienungsanleitung

Grizzly

Grizzly H8235 Bedienungsanleitung

Grizzly

Grizzly H6144 Kurzanleitung

Grizzly

Grizzly H6143 Bedienungsanleitung

Grizzly

Grizzly G6049 Bedienungsanleitung

Grizzly

Grizzly H2911 Bedienungsanleitung

Grizzly

Grizzly H7943/H7944 Bedienungsanleitung

Grizzly

Grizzly H5570 Bedienungsanleitung

Grizzly

Grizzly H2912 Bedienungsanleitung

Grizzly

Grizzly H6146 Kurzanleitung

Grizzly

Grizzly H5527 Bedienungsanleitung

Grizzly

Grizzly H5570 Bedienungsanleitung

Grizzly

Grizzly 1 1/4" Brad Nailer T20568 Bedienungsanleitung

Grizzly

Grizzly H2911 Bedienungsanleitung

Grizzly

Grizzly G6050 Bedienungsanleitung

Grizzly

Grizzly H5571 Bedienungsanleitung

Grizzly

Grizzly H7664 Bedienungsanleitung

Grizzly

Grizzly G6050 Bedienungsanleitung

Grizzly

Grizzly G6049 Bedienungsanleitung

Grizzly

Grizzly G3690 Bedienungsanleitung

Grizzly

Grizzly H6146 Bedienungsanleitung

Grizzly

Grizzly H6141 Bedienungsanleitung

Grizzly

Grizzly H8232 Bedienungsanleitung

Grizzly

Grizzly G6045 Bedienungsanleitung

Beliebte Nagelpistole Handbücher anderer Marken

Performance Tool

Performance Tool M643 Bedienungsanleitung

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco Fusion Technology F-35XP Bedienungsanleitung

Ryobi

Ryobi R18N18G Bedienungsanleitung

Black & Decker

Black & Decker 492848-00 Bedienungsanleitung

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Bedienungsanleitung

Metabo HPT

Metabo HPT NR 3690DC Bedienungsanleitung

Surtek

Surtek CN650 Abmessungen und Installationsanleitung

Makita

Makita GF600 Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco AirFree 25 Bedienungsanleitung

Freeman

Freeman P50LSLW Bedienungsanleitung

Aicon PRO

Aicon PRO DAC4507 Bedienungsanleitung

DAJ

DAJ XR150A Bedienungsanleitung

Makita

Makita AN923 Bedienungsanleitung

Black & Decker

Black & Decker 90514937 Bedienungsanleitung

Alfamacchine

Alfamacchine Minigraf 4 Handbuch
