2-IN-1 COMBINATION

NAILER/STAPLER

MODEL H7664

INSTRUCTION MANUAL

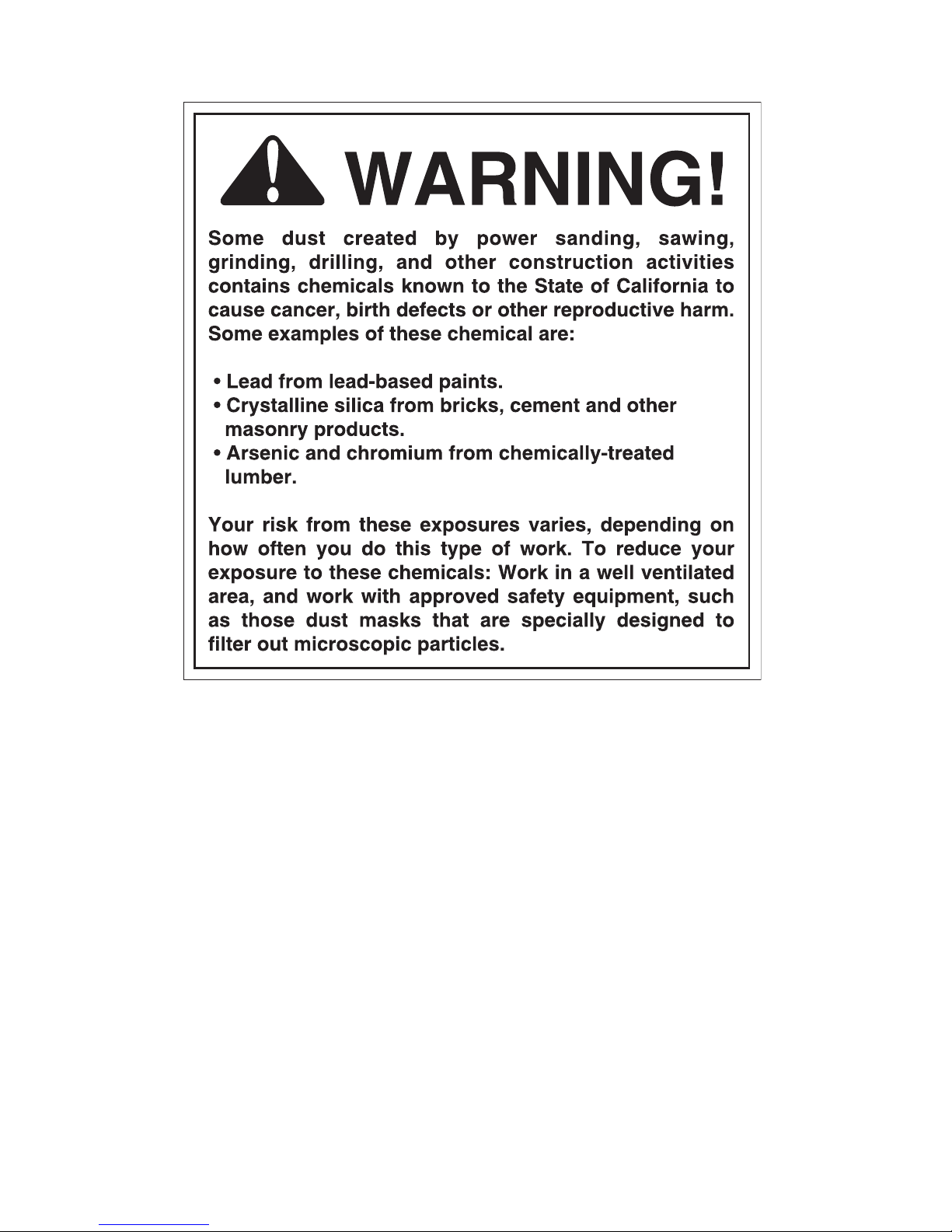

Table of Contents

SECTION 1: SAFETY .......................................................................................................4

Safety Instructions For Pneumatic Tools ....................................................................4

Additional Safety Instructions for Nailers and Staplers ..............................................6

SECTION 2: INTRODUCTION .........................................................................................8

Foreword .....................................................................................................................8

Tool Data ....................................................................................................................8

Contact Info ................................................................................................................8

SECTION 3: SET UP ........................................................................................................9

Unpacking ...................................................................................................................9

Inventory .....................................................................................................................9

Compressed Air System ...........................................................................................10

Safety Yoke .............................................................................................................11

SECTION 4: OPERATIONS ...........................................................................................12

Loading ....................................................................................................................12

Operating ..................................................................................................................12

Adjusting Depth ........................................................................................................13

Single/Bump Fire Operation .....................................................................................14

Clearing Jammed Nails/Staples ...............................................................................14

Replacing Pistons/O-Rings .......................................................................................15

SECTION 5: MAINTENANCE ........................................................................................17

Cleaning ....................................................................................................................17

Lubricating ................................................................................................................17

Troubleshooting ........................................................................................................18

H7664 Parts Breakdown ..........................................................................................19

H7664 Parts List ......................................................................................................20

WARRANTY AND RETURNS ........................................................................................21

H7664 2-in-1 Combination Nailer/Stapler

-4-

Safety Instructions For Pneumatic Tools

1. KEEP ALL SAFETY DEVICES IN

PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND

WRENCHES. Form habit of check-

ing to see that keys and adjusting

wrenches are removed from tool

before operation.

3. KEEP WORK AREA CLEAN.

Cluttered areas and benches invite

accidents.

4. DO NOT USE IN DANGEROUS

ENVIRONMENT. Do not use pneu-

matic tools in damp or wet loca-

tions, or where any flammable or

noxious fumes may exist. Keep

work area well lighted.

5. KEEP CHILDREN AND VISITORS

AWAY. All children and visitors

should be kept at a safe distance

from work area.

6. MAKE WORKSHOP CHILD

PROOF by locking your shop and

shutting off air valves.

7. DO NOT FORCE TOOL. It will do

the job better and safer at the rate

for which it was designed.

8. USE THE RIGHT TOOL. Do not

force tool or attachment to do a job

for which it was not designed.

9. DO NOT USE UNDER THE

INFLUENCE OF DRUGS OR

ALCOHOL.

For Your Own Safety Read Instruction Manual

Before Operating This Equipment

The purpose of safety symbols is to attract your attention to possible hazard-

ous conditions. This manual uses a series of symbols and signal words which

are intended to convey the level of importance of the safety messages. The

progression of symbols is described below. Remember that safety messages by

themselves do not eliminate danger and are not a substitute for proper accident

prevention measures.

Indicates a potentially hazardous situation which, if

not avoided, MAY result in minor or moderate injury.

It may also be used to alert against unsafe practices.

Indicates a potentially hazardous situation which, if

not avoided, COULD result in death or serious injury.

Indicates an imminently hazardous situation which, if

not avoided, WILL result in death or serious injury.

This symbol is used to alert the user to useful infor-

mation about proper operation of the equipment.

SECTION 1: SAFETY

NOTICE

H7664 2-in-1 Combination Nailer/Stapler -5-

10. USE PROPER AIR HOSE for the

tool. Make sure your air hose is in

good condition and is long enough to

reach your work without stretching.

11. WEAR PROPER APPAREL. Do not

wear loose clothing, gloves, neck-

ties, rings, bracelets, or other jew-

elry which may get caught in moving

parts. Non-slip footwear is recom-

mended. Wear a protective hair cov-

ering to contain long hair.

12. ALWAYS USE SAFETY GLASSES.

Also use a face or dust mask if cut-

ting operation is dusty. Everyday

eyeglasses only have impact resis-

tant lenses, they are NOT safety

glasses.

13. WEAR APPROVED HEARING

PROTECTION.

14. SECURE WORK. Use clamps or a

vise to hold work when practical. It is

safer than using your hand and frees

both hands to operate tool.

15. DO NOT OVERREACH. Keep prop-

er footing and balance at all times.

16. MAINTAIN TOOLS WITH CARE.

Keep tools lubricated and clean

for best and safest performance.

Follow instructions for lubricating

and changing accessories.

17. REDUCE THE RISK OF

UNINTENTIONAL STARTING. Do

not carry tool with hand on trig-

ger and always disconnect from air

when not in use.

18. DISCONNECT TOOLS before ser-

vicing and changing accessories.

19. USE THE RECOMMENDED

ACCESSORIES. Consult the

owner’s manual for recommended

accessories. The use of improper

accessories may cause risk of inju-

ry.

20. CHECK DAMAGED PARTS.

Before further use of the tool, a

guard or other part that is dam-

aged should be carefully checked

to determine that it will operate

properly and perform its intended

function. Check for alignment of

moving parts, binding of moving

parts, breakage of parts, mount-

ing, and any other conditions that

may affect its operation. A guard or

other part that is damaged should

be properly repaired or replaced.

21. NEVER LEAVE UNATTENDED

TOOL CONNECTED TO AIR.

Disconnect the air hose and do not

leave tool until it is relieved of any

built up pressure.

22. NEVER ALLOW UNTRAINED

USERS TO USE THIS TOOL

WHILE UNSUPERVISED.

23. IF YOU ARE UNSURE OF THE

INTENDED OPERATION, STOP

USING THE TOOL. Seek formal

training or research books or maga-

zines that specialize in pneumatic

tools.

Safety Instructions For Pneumatic Tools

H7664 2-in-1 Combination Nailer/Stapler

-6-

1. HAND INJURIES: Do not place

your hands near the nail/staple point

of entry. A nail/staple can deflect

and tear through the surface of the

workpiece, puncturing your hand or

fingers.

2. COMBUSTIBLE GASES: Never

connect the nailer/stapler to pres-

surized oxygen or other combustible

gases as a power source. Only use

filtered, lubricated, and regulated

compressed air.

3. SAFE HANDLING: Never point

the nailer/stapler at others! Do not

keep the trigger pulled when loading

fasteners, carrying, or holding tool.

Carry the nailer/stapler only by the

handle, never by any other part. Do

not carry the nailer/stapler by the air

hose. Disconnect the nailer/stapler

from the air hose when going up and

down ladders.

4. CLEANING: Never use gasoline or

other flammable liquids to clean the

nailer/stapler; vapors in the nailer/

stapler will ignite by a spark and

cause it to explode.

Additional Safety Instructions for Nailers and

Staplers

5. HOSE USAGE: Make sure your

air hose is designed for the tool

in use, is in good condition, and

is long enough to reach your work

without stretching. However, an

overly long air hose in the work

area may be a tripping hazard.

6. OPERATING QUESTIONS: If you

are not sure about the intended

operation, stop using the nailer/

stapler. Seek formal training or

research books or magazines that

specialize in pneumatic tools.

7. MAINTENANCE: Always discon-

nect air from the nailer/stapler

when servicing or installing nails

or staples. During maintenance, a

nailer/stapler connected to air may

fire accidentally, causing serious

personal injury.

8. COMPRESSED AIR RATING: Do

not connect the nailer/stapler to

compressed air that exceeds 120

PSI.

9. CHECK VALVE: Do not use a

check valve or any other fitting that

allows air to remain in the tool.

H7664 2-in-1 Combination Nailer/Stapler -7-

Operating this nailer/stapler can

propel objects into the air, caus-

ing immediate eye damage. To pro-

tect yourself, always wear American

National Standards Institute (ANSI)

approved safety glasses or goggles

when operating this equipment. In

addition, this nailer/stapler discharg-

es at 82 decibels. To protect your

hearing, always wear ANSI approved

ear protection when operating this

nailer/stapler.

No list of safety guidelines can be

complete. Every shop environment

is different. Always consider safety

first, as it applies to your individual

working conditions. Use this and

other tools with caution and respect.

Failure to do so could result in seri-

ous personal injury, damage to

equipment or poor work results.

Never point this nailer/stapler at your-

self or another person! Always pay

attention to the direction this nailer/

stapler is pointed. Use this tool with

respect and caution to lessen the pos-

sibility of operator or bystander injury.

Ignoring this warning may result in

serious personal injury.

H7664 2-in-1 Combination Nailer/Stapler

-8-

SECTION 2: INTRODUCTION

If you have any comments regarding this

manual, please write to us at the following

address:

Grizzly Industrial, Inc.

C/O Technical Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Most importantly, we stand behind our

tools. If you have any service questions or

parts requests, please call or write us at

the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901

E-Mail: [email protected]

Web Site: http://www.grizzly.com

We are proud to offer the Grizzly Model

H7664 2-in-1 Combination Nailer/Stapler.

This model is part of a growing Grizzly

family of fine pneumatic tools. When used

according to the guidelines set forth in this

manual, you can expect years of trouble-

free, enjoyable operation and proof of

Grizzly’s commitment to customer satis-

faction.

The Model H7664 features a 360° exhaust

port, comfort grip rubber handle, and eco-

nomical air consumption with low noise.

The Model H7664 can shoot 5⁄8"-2", 18

Gauge brad nails and 18 Gauge 5⁄8"-15⁄8",

1⁄4" crown staples.

The specifications, details, and photo-

graphs in this manual represent the Model

H7664 as supplied when the manual was

prepared. However, owing to Grizzly’s pol-

icy of continuous improvement, changes

may be made at any time with no obliga-

tion on the part of Grizzly.

Foreword Contact Info

Tool Data

Brad Length .................... 5⁄8"-2" (18 Gauge)

Staple Length ..................................5⁄8"-15⁄8"

Staple Crown .......................1⁄4" (18 Gauge)

Magazine Capacity ....................100 pieces

Air Inlet ...........................................¼" NPT

Weight .............................................3.3 lbs.

Operating Pressure .................. 60-100 PSI

Read the manual before operation.

Become familiar with this nailer/sta-

pler, its safety instructions, and its

operation before beginning any work.

Serious personal injury may result if

safety or operational information is

not understood or followed.

H7664 2-in-1 Combination Nailer/Stapler -9-

SECTION 3: SET UP

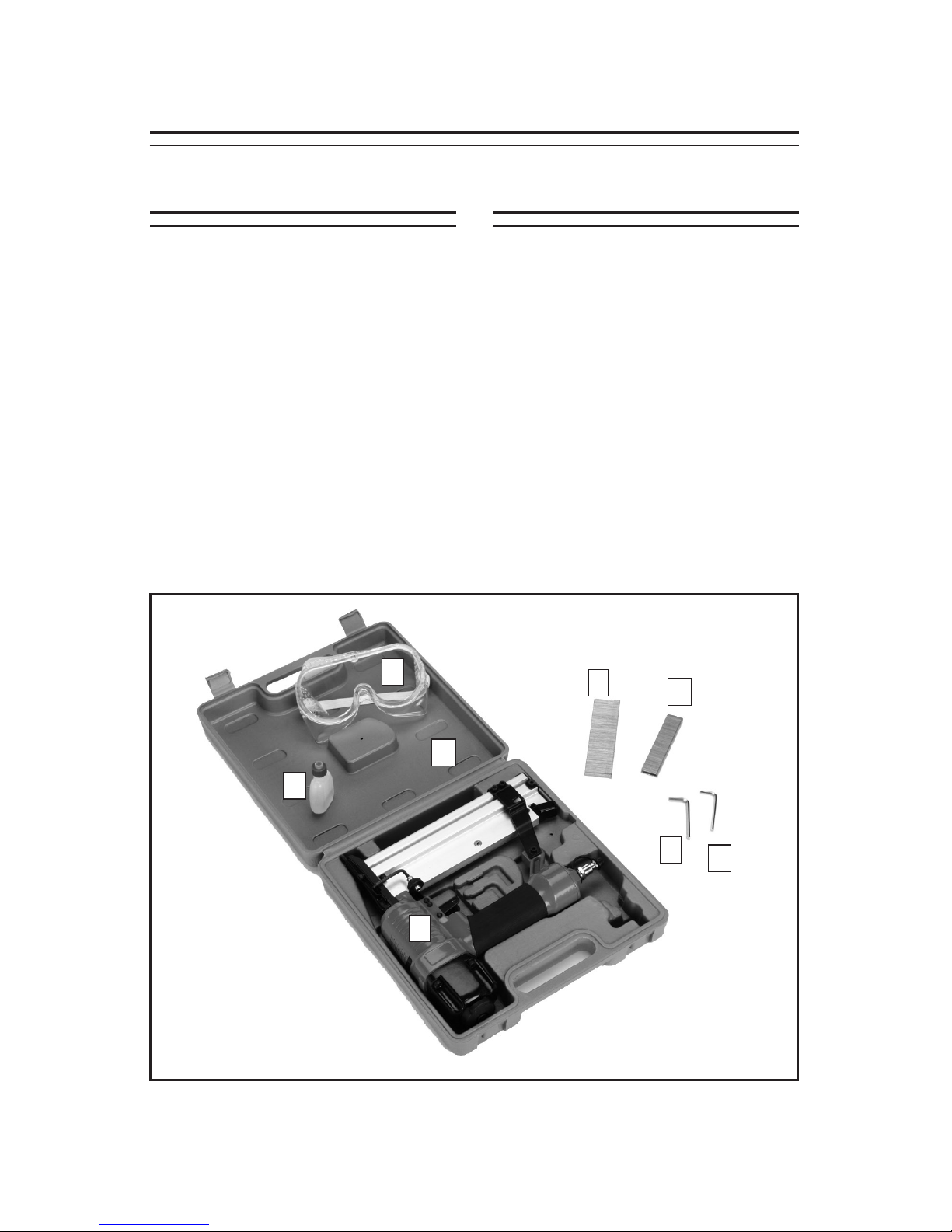

Figure 1. Model H7664 inventory.

Unpacking

Your Model H7664 left our warehouse in

a carefully packed box. If you discover the

nailer/stapler is damaged after you have

signed for delivery, please immediately

call Customer Service at (570) 546-9663

for advice.

Save the containers and all packing mate-

rials for possible inspection by the car-

rier or its agent. Otherwise, filing a freight

claim can be difficult.

When you are completely satisfied with

the condition of the shipment, you should

inventory the equipment.

Inventory

After you open the nailer/stapler box, you

should find the following.

Model H7664 Inventory (Figure 1)

A. 2-in-1 Nailer/Stapler ........................... 1

B. Safety Goggles ................................. 1

C. Pneumatic Tool Oil ............................ 1

D. Hex Wrench 3mm .............................. 1

E. Hex Wrench 4mm .............................. 1

F. 11⁄4" Brad Nail Sticks .......................... 2

G. 3⁄4" Staple Sticks ................................ 2

H. Carrying Case .................................... 1

H7664 2-in-1 Combination Nailer/Stapler

-10-

Compressed Air

System

The Model H7664 is designed to be oper-

ated at 60-100 PSI using clean, dry, regu-

lated, compressed air. DO NOT exceed

the 120 PSI maximum operating pres-

sure for your model.

Before using your new nailer/stapler, reg-

ulate the air pressure on your air compres-

sor to the minimum PSI for your model.

An in-line filter/lubricator/regulator unit,

depicted in Figure 2, can be installed and

should be located as close to the nailer/

stapler as possible.

This filter/lubricator/regulator unit will

protect your tool from damaging water

build-up, allow you to adjust and maintain

constant air pressure to your tool, and

save you the inconvenience of having to

manually lubricate your tool every time

you use it.

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector Oiler Filter

Regulator

Air

Compressor

Your

Tool

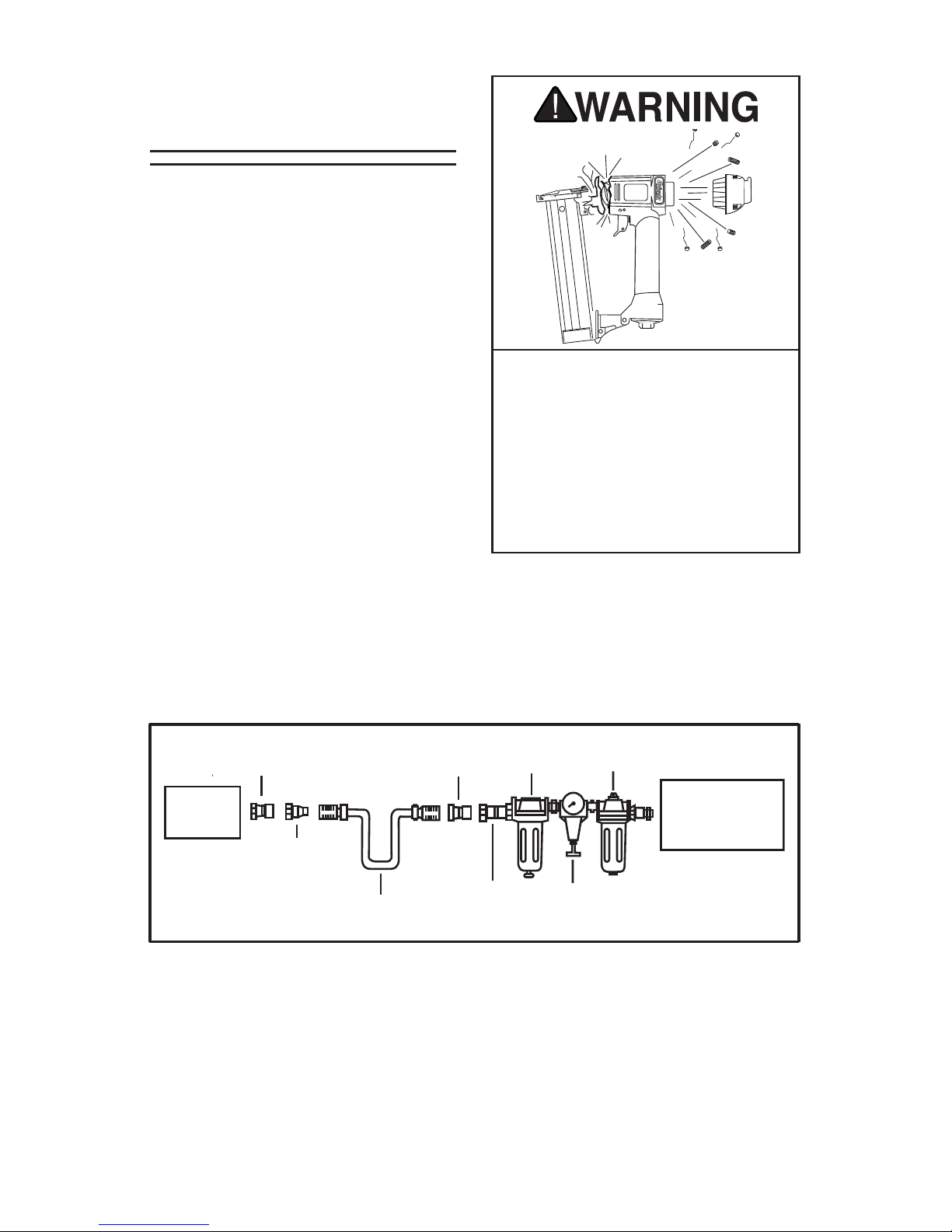

Figure 2. Typical filter/lubricator/regulator installation order.

Check the current Grizzly catalog for avail-

ability of this unit. If you plan on install-

ing a filter/lubricator/regulator unit in your

compressed air system, always follow the

connection instructions that come with

the unit.

Exceeding the maximum permissible

operating pressure may cause the

nailer/stapler to explode, blowing

metal fragments in all directions. To

protect yourself from serious per-

sonal injury, DO NOT allow your air

compressor to exceed the recom-

mended pressure when connected to

this nailer/stapler!

Andere Handbücher für H7664

Inhaltsverzeichnis

Andere Grizzly Nagelpistole Handbücher

Grizzly

Grizzly T27338 Bedienungsanleitung

Grizzly

Grizzly H5570 Bedienungsanleitung

Grizzly

Grizzly G6050 Bedienungsanleitung

Grizzly

Grizzly H6146 Kurzanleitung

Grizzly

Grizzly H7826 Bedienungsanleitung

Grizzly

Grizzly H2911 Bedienungsanleitung

Grizzly

Grizzly H8232 Bedienungsanleitung

Grizzly

Grizzly T20644 Bedienungsanleitung

Grizzly

Grizzly H7943/H7944 Bedienungsanleitung

Grizzly

Grizzly H7665 Bedienungsanleitung

Grizzly

Grizzly G6048 Bedienungsanleitung

Grizzly

Grizzly G1847 Bedienungsanleitung

Grizzly

Grizzly G3690 Bedienungsanleitung

Grizzly

Grizzly G2420 Bedienungsanleitung

Grizzly

Grizzly H7679 Bedienungsanleitung

Grizzly

Grizzly G2420 Bedienungsanleitung

Grizzly

Grizzly G1847 Bedienungsanleitung

Grizzly

Grizzly G6050 Bedienungsanleitung

Grizzly

Grizzly G6049 Bedienungsanleitung

Grizzly

Grizzly G9248 Bedienungsanleitung

Grizzly

Grizzly H6143 Kurzanleitung

Grizzly

Grizzly H7665 Betriebsanleitung

Grizzly

Grizzly H2912 Bedienungsanleitung

Grizzly

Grizzly H7945 Bedienungsanleitung

Beliebte Nagelpistole Handbücher anderer Marken

Performance Tool

Performance Tool M643 Bedienungsanleitung

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco Fusion Technology F-35XP Bedienungsanleitung

Ryobi

Ryobi R18N18G Bedienungsanleitung

Black & Decker

Black & Decker 492848-00 Bedienungsanleitung

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Bedienungsanleitung

Metabo HPT

Metabo HPT NR 3690DC Bedienungsanleitung

Surtek

Surtek CN650 Abmessungen und Installationsanleitung

Makita

Makita GF600 Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco AirFree 25 Bedienungsanleitung

Freeman

Freeman P50LSLW Bedienungsanleitung

Aicon PRO

Aicon PRO DAC4507 Bedienungsanleitung

DAJ

DAJ XR150A Bedienungsanleitung

Makita

Makita AN923 Bedienungsanleitung

Black & Decker

Black & Decker 90514937 Bedienungsanleitung

Alfamacchine

Alfamacchine Minigraf 4 Handbuch
