Grundig VCH 7630 Bedienungsanleitung

HAND

VACUUM CLEANER

VCH 7630

________________________________________________________________________________

N M L

________________________________________________________________________________

DEUTSCH 6 - 10

ENGLISH 11 - 19

ENGLISH 13

Please note the following when starting up the

appliance:

7This appliance is intended for domestic use

only. All guarantee claims expire if it is used

for industrial or commercial purposes.

7To avoid damage and risks due to improper

use, please read the instructions for use and

store in a safe place.

7Do not use it to clean wet surfaces.

7Do not use the appliance in a wet environment.

7Never hold the appliance in water or other

liquids.

7Keep the appliance and accessories away from

your eyes and ears while the appliance is in

use.

7The appliance is intended to be used

for vacuuming dirt and dust particles.

Do not use it to vacuum large objects which

block the appliance and can damage it as a

result.

7Do not sweep up cigarette butts, fireplace

ashes or matchsticks. This could cause a fire.

7Never use the appliance without the dust

container and filter.

7Do not use the appliance if the air inlet and

ventilation slits are blocked. Keep the air inlet

and ventilation slits free at all times of dust,

hairs and other elements which could block or

prevent the air flow.

7If using with the motorised brush, ensure you

constantly move the brush backwards and

forwards and do not allow it to rotate too long

on a stain.

7The motorised brush may only be cleaned if it

is not connected to the appliance.

7Never start up the appliance if it shows signs of

visible damage. This also applies to an

accidentally wettened appliance. In such cases,

contact your local specialist store.

7Use the mains adapter supplied only to charge

the appliance.

7Keep the appliance out of reach of children.

7Store the appliance in a dry and safe

environment only.

7Never open up the appliance. All rights to

claim under the guarantee are invalidated for

damage caused by improper interventions.

SAFETY___________________________________________________________________

14 ENGLISH

Controls und component parts

Fold out page 2 to clearly see the diagram at all

times.

Dust container.

Filter (inside the dust container).

Vacuum intake.

Pushbutton for opening

the dust container.

Charging indicator (LED).

Switch for switching on and off.

Handle.

Motor housing.

Compartment for the rechargeable

battery (underside of the appliance).

Accessories

Charging station for mounting on the wall

with mains adapter (see page 9).

Universal vacuum brush.

Motorised brush.

Narrow vacuum tube.

Upholstery brush.

3 Extension tubes.

AT A GLANCE ______________________________________________________

ENGLISH 15

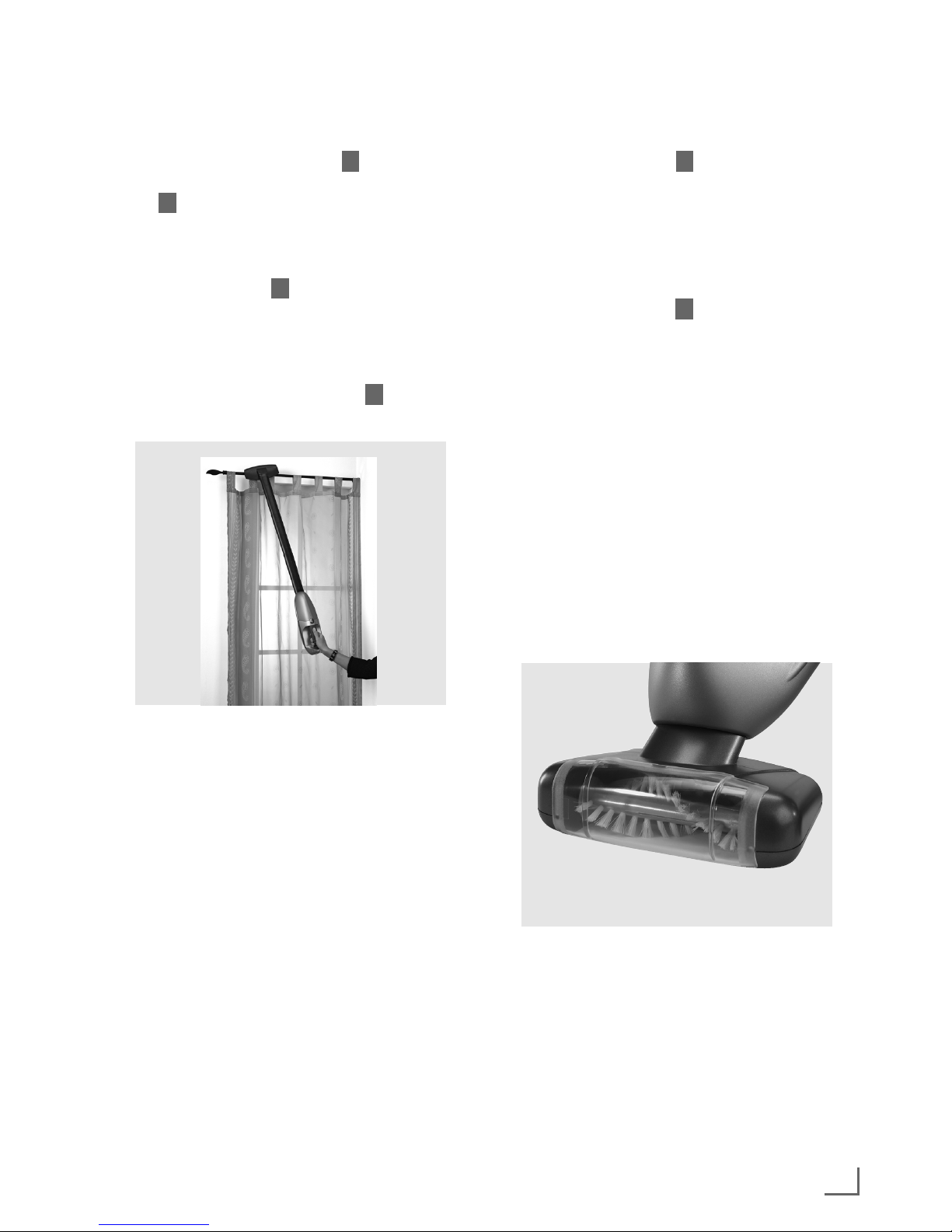

Floor brush

Use the universal vacuum brush together with

the three extension

tubes to clean small floor areas or curtains.

1Switch off the appliance.

2Firmly push an extension tube into the applian-

ce's vacuum intake .

3Depending on your requirements, insert one or

two extension tubes into the first extension

tube.

4Push the universal vacuum brush onto the

bottom extension tube.

Motorised brush

Use the motorised brush to clean short pile

carpets or carpeting. It is particularly suitable for

removing animal hairs. Never use the motorised

brush on long hair/deep pile carpets.

1Switch off the appliance.

2Firmly push the motorised brush into the appli-

ance's vacuum intake .

Note

7When you install the motorised brush ensure

the contacts of the brush touch the contacts in

the appliance's vacuum intake.

Important

7Do not use the motorised brush to vacuum up

hair or long fibres.

7Do not touch the motorised brush during use.

Risk of injuries.

7If using with the motorised brush,

ensure you constantly move the brush

backwards and forwards and do not allow it to

rotate too long on a stain.

INDIVIDUAL PARTS ____________________________________________

16 ENGLISH

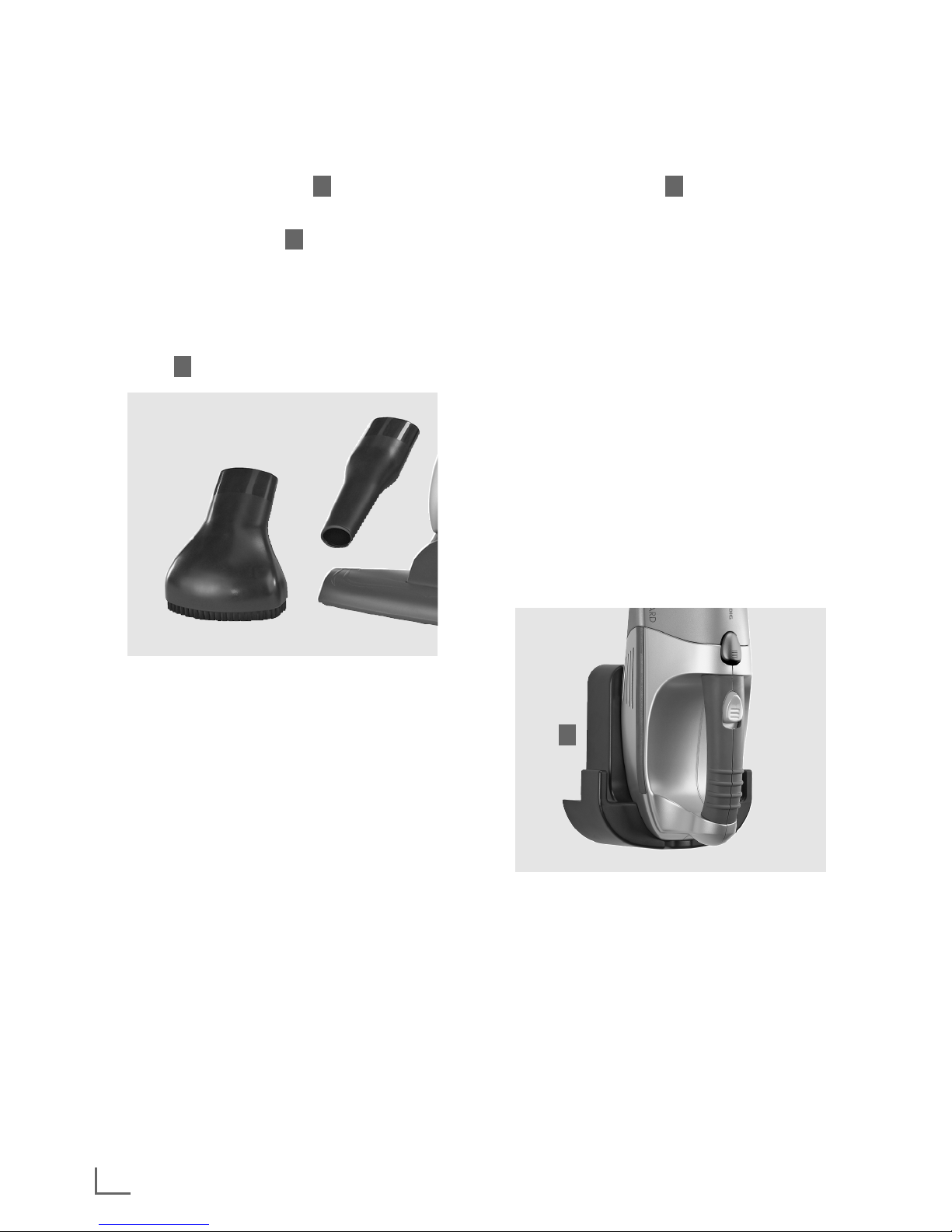

Narrow vacuum tube and

upholstery brush

Use the narrow vacuum tube to clean places

difficult to reach, e.g. crevices and corners.

Use the upholstery brush to clean small areas

of upholstery.

1Switch off the appliance.

2Firmly push the narrow vacuum tube or the

upholstery brush into the appliance's vacuum

intake .

Charging station for mounting

on a wall

Fix the charging station to a wall.

1Ensure the place you have chosen to install the

charger is free of concealed electric cables,

water or gas pipes.

2Choose an installation location near

a wall socket (230 V, 50 Hz) for connecting the

mains adapter.

Important

7Do not install the charging station anywhere

where it is exposed to direct sunlight or near a

heater/radiator.

Do not install the charger outdoors.

3Choose a suitable drill bit for the screws and

wall plugs supplied.

4Drill two holes approx 30 cm above the floor,

push in a wall plug and screw in the screws,

then hang up the charging station.

INDIVIDUAL PARTS ____________________________________________

ENGLISH 17

If run with the installed rechargeable nickel

cadmium batteries, use the charging station with

the mains adapter as a charger.

Charging

If run with the installed rechargeable nickel cad-

mium batteries, use the charging station with the

mains adapter as a charger.

1Remove the accessory used.

2Insert the appliance in the charging station

so that it precisely fits.

– The charging contacts of the appliance and

the charging station touch each other.

3Plug the mains adapter into the wall socket.

– The charging process begins, the charging

indicator lights up red.

– The charging indicator remains lit until the

appliance is removed from the charging stati-

on or the mains adapter plug is disconnec-

ted.

– If charging has finished the red charging

indicator goes out.

Note

7Fully charge the batteries before using for the

first time or if the batteries have not been used

for a long time.

(20 hours).

7Charge the appliance at room temperature.

Lower or higher temperatures have a negative

effect

on the life of the batteries.

7The ambient temperature should be between

5˚C and 40˚C.

7After charging the running time is

8 minutes.

Switching on and off

1Remove the appliance from the charging stati-

on .

2Depending on the requirements, insert one of

the accessories into the appliance's vacuum

intake .

3Switch on the appliance by pushing forward

switch .

4Switch off the appliance by pushing back

switch .

5Remove the accessory used.

6Insert the appliance in the charging station

so that it precisely fits.

Empty dust container and clean

1Hold the appliance vertically with the vacuum

intake facing downward.

2Press pushbutton and remove the dust con-

tainer from underneath.

3Remove the holder and filter from the dust

container.

Note

7You can wash the filter from time

to time with hot soapy water.

After washing, allow the filter to completely

dry.

4Empty the dust container , wash out and

dry.

Note

7Allow the dust container to completely dry

before you replace it in the appliance.

5Hold the appliance vertically facing upwards.

6Press button .

7Replace the dust container , ensure that

both plug-in contacts of the dust container are

precisely inserted in the correct position.

8Release button . Ensure the latch clicks into

place.

USE ________________________________________________________________________
