Hakko Electronics 926 Bedienungsanleitung

HAK(O

HANKT_ATIOON 9 2G

Please read this instruction manual thoroughly before operating

th_ HAKKO 9P+6

1 Specification

•Station

Power Consumption 60W

Output Voltage AC24V

Temperature 200~480°C/392-896°F

Temperature Control Control accuracy of setting at idling temperature.

:/-0.5°C (+0.9°F)

125(W) x 120(H) x 200(D) mm

Outer Dimensions (without Cord & Holder Part)

4.9(W) x 4.7(H) x 8.1(D) in.

Approx 1.5 kg (3.3 lb)

Weight (without Cord & Holder Part)

•Iron

HAKKO 900M-type HAKKO 900 L-type

Part No. 900M 900M-ESD 900L 900L-ESD

Power Consumption AC24V 50W

Insulation Resistance Over 300M ohm at 400°C/750°F by DC500V insulation

tester. [50M ohm at 480cC (896°F)]

Leak Voltage under 0.6mV (between Tip and Ground)

Heating Element Ceramic Heater

Cord Asse'y 5 wire burn-proof silicone cord, 1.2m (4ft.)with Connecting Plug

Connecting Plug 5pin inter-lock system

Length (w/o cord) 190ram (7.4 in) 210ram (8.2 in)

Weight 45g (0.09 lb) 55g (0.12 lb)

4r The specifications writtenhere may be subject to change withoutnotice.

Accessories

$Holder Part (consists of :Iron receptacle, Iron Holder Body, Holder Mounting

Base, Thumb Screw)

•Cleaning Sponge

•Tip& Sponge Tray

Part Name

Nut Handle Cover Temperature Control Knob

Nipple Handle L.E,D. Heater Lamp

Power Switch

Tip

Cord Asse'y

Tip Enclosure Connecting Plug .CleaningSponge

Tip &SpongeTray

Holder Part

Holder Body

Thumb Screw

tonReceptacle

Base

Precautions

Ceramic Heating Element cannot stand excessive force. Never strike Soldering

Iron against work-bench or solid surface.

Make sure the Nut securing the Tip Enclosure is properly tightened.

Use exclusive Tips for 900 only.

Operate in lower tip temperature.

Exceptionally high thermal recovery allows a lower temperature

setting thereby protecting sensitive components and extending tip life.

Power off when replace the tip. Or Heating Element or Tip may be damaged.

Never file the specially plated tip.

Operating Instruction

•Set Up the Holder Part.

Attach the Holder Part to Station with Thumb Screw.

Holder Mounting Base is located on right

side of Station. Re-position to left side if

necessary refer to the drawing.

Angle of the Holder Part may be adjusted

by loosing Thumb Screw.

•Connection

Insert 5 - pin Connecting Plug into the Receptacle

on the Station,and lock it by turning

the outside ring of plug clockwise.

Warning : Connect or disconnect Cord Asse'y after power off. Or Control PWB

inside of the Station may be damaged.

Then, plug into properly grounded A.C. Outlet.

•Cleaning Sponge

Dampen Cleaning Sponge with water.

Special coted Tip may be damaged if cleaned in dry condition.

• Set the Temperature Control Knob to your desired temperature and turn

on the Power Switch. L.E.D. Heater Lamp comes on and off when Tip

temperature reaches to the figure you set. Now you can start the

soldering work.

Replacement Tip

Temp, compansion with the standard tip.

(At 480°C, 896°F)

_9M

900M-T-1,6D _.=_

M-T-2.4O

.... _ ,,_.o%.,,

900M-T-B

1450"C, 896_F)

900M-T-LB '_

14 ?'O'C. 878"FI

900M-T-1CF* io

H80_C P_96"F)

900M-T-2C 0 !_-_

900M-T-2CF* o

(4_0,C, 896"_)

900M-T-3C 0 L: .".......

900M-T-3CF* _ _ o

904]M-T-4C 0 !i-_

900M-T-4CF* o

900M-T-K _ __

1510"C 511_F]

900M-T-R © _,_

_OM-T-RT 0iq_

(4_%;. _°F I

900M-T-I _,

" (4_-C. g7B.F)

9QOM-T-1.8H _

_, _ _"*/_, .,_..,,.,

i_=a_ (470"C, 87e,F)

• 90_ 1ip C_I Dram _5

9_OL

900L-T-B-_._,_

(480"C, e96"F)

900L-T-2B _) "__ o

(480,C, _"F)

900L-T-24D.... _ <,=-c%w,_

900L-T-3.2D[_) _=___

(,t_'C, 1_6"F)

900L-T-2C _2ff_. 31PF

9_OL-T-2CF* _ (,_o.c,e_o._)

_L-T-_C@_o_

900L-T-3CF* _'-,_ I-- o

(480_C, B9_,F)

900L-T-4C _=__ o

900L-T-4CF* _(,,so.c,e_.r)

900L-T-5C _)_'_E _ o

900L-T-5CF* (,mo_._6"FI

9OOL-T-I (_ "_.__ .z,o"c.._

g(]OL'T'K (_ _.____._ ÷_o_:.._

• 900L T@ Out I_am e85

_r These tips are tinnedfiatonly.

•Caution

1)Use exclusive tips for HAKKO 900 only.

2)The set temperature should be adjusted

according to the tip configuration.

If required, adjust the temperature with

"CAL" potentiometer on bottom of sta-

tion when changing tip configurations.

The temperature is increased by turning

"CAL" clockwise.

3) When using the Soldering Iron continu-

ously loosen Tip and remove oxide once

a week.

This helps prevent seizure and reduction

of Tip temperature.

4) Tin the tip daily as follows ;

1. Clean the Tip.

2. Set the temperature at 200°C (3920F).

3. Melt the solder gradually at the tip.

5 ) For heavy duty soldering, HAKKO re-

commends The 900L Iron with heavier

tips.

• The tip temperature may vary depending

on the figure. Refer to the left chart for the

quick and temporary adjustment.

Trouble Shooting Guide

Problem :Turn the power switch on, but Tip does not heat up or over heating.

Condition :The power lamp doesn't light up.

CheckPoint :Is the fuse blown?

Condition : The fuse is blown.

CheckPoints : 1. Is the inside of the iron short-circuited?

2. Is the grounding spring touching the Heating Element?

3. Is the Heating Element Lead twisted and short-circuited?

Condition : The power lamp lights up but the LED Heater Lamp doesntt blink.

CheckPoints : 1. Is the Connecting Plug connected correctly?

2. ls the Heating Element Lead broken?

Condition : The Power Lamp and The LED Heater Lamp lights up.

CheckPoints : 1. Is the Heating Element broken?

2. Is the Cord Asse'y broken?

Problem :The Tip heats up intermittently.

CheckPoint : 1. Is the Cord Asse'y almost broken?

Problem :The Tip doesn't wet.

CheckPoints : 1. Is the Tip temperature too high?

2. Is the Tip cleaned?

Problem :The Tip doesn't have desired temperature.

CheckPoint " Is the iron calibrated correctly?

Problem :The Tip can not be pulled off.

CheckPoints : 1. Is the Tip seisured?

2. Is the Tip expanded by deterioration.

NOTE: When repairs are needed, please send both the Soldering Iron and the station to your sales agent.

• How to check the breakage of Heating Element and Cord Asse'y.

Disconnect the Connecting Plug and measure the resistance

3value between pins of Connecting Plug as follows :

Between pin 4 & pin 5 2.5_-3.5 ohm

a(Heating Element) (Normal)

Between pin 1 & pin 2 43_58 ohm

b (Sensor) (Normal)

Between pin 3 & Tip Under 10 ohm

c (Grounding)

(I) If the value of "a" & "b" is different from above value, replace the Heating

Element (Sensor) or Cord Asse'y.

(2) If the value of "c" -- between pin 3 and tip (Grounding) is over above value,

remove the oxidizatipn film by rubbing lightly points shown as under with

sand-paper or steel wool.

Tip Enclosure Tip Nipple

• If the problem remains unsolved after check in the Soldering Iron,the Station may

have a problem.

Please contact your nearest HAKKO representative.

• If the tip doesn't wet.

• Tip temperature is higher than desired.

Recalibrate by adjusting "CAL" on the bottom of the Station.

• Tip is oxidized or dirty,

1 .Clean up with Cleaning Sponge.

2 .Set the Tip temperature at 250°C (482°F), and clean oxidized or dirty Tip with

steel wool.

• Never file or rub excessively specially plated tip.

3 .Melt the solder gradually at the tip.

Recalibrating of Iron Temperature

After replacing the Heating Element or replacing the tip, recalibrate the temperature

of the Soldering Iron.

1 ) Connect the Plug of Soldering Iron to the Station and lock it.

2 ) Set Temperature Control Dial at 400"C (752°F).

3 ) Turn the Power Switch on and wait till the L.E.D. Heater Lamp comes on and off.

4) Adjust the temperature of Tip at 400"C (752"F) by "CAL" on the bottom of the

Station using thermometer.

Conditions of Measurement

•Tip Temperature

The tip temperature was measured using HAKKO 191 thermometer.

• Insulation Resistance

The insulation resistance was measured between the tip and the lead of the Heating

Element using a 500V DC insulation resistance meter.

Caution : The insulation resistance cannot be measured between the tip and the

power plug as the transformer between the secondary part (Heating

Element) and the primary part acts as an insulator.

g Heating Element

IP D-Sleeve , "J' ,-- i

ONut OTip Enclosure O Tip ONipple O

Grounding Spring _Heating Element _Glass Tube

Heating Element Lead (Red) _ Sensor Lead (Blue)

Terminal Board _ Cord Asse'y _ Handle

1) Turn the Nut Ocounterclockwise and remove the Tip Enclosure O, the Tip 0.

2 ) Turn the Nipple O counterclockwise and remove it from Iron.

3) Pull both the Heating Element _ and the Cord Asse'y _out of the Handle

(toward the tip of the Iron).

4 ) Pull the Grounding Spring _ out of the D-Sleeve.

5 ) Measure the resistance value at the Sensor and Heating Element of the Terminal.

Resistance Value of Heating 2.5_3.5fl

Element

] Resistance Value of Sensor 43_58Q

Measure in normal condition

Heating Element Sensor

• If the resistance value is not normal, replace the Heating Element.

• If the resistance value is normal, the Cord Asse'y may be broken.

6 ) Desolder the Heating Element Leads.

• In the above Item 5 &6, be careful not to damage the leads with soldering iron.

64mm

I (2.52in) I1 1

Straighten th

7) Solder the new Heating Element. Solder two Sensor Leads (blue) and Heating

Element Leads (red) on the Terminal Board _ as above drawing.

• There is no polarity between leads of the same color.

8 ) Insert the Grounding Spring into the Heating Element. And connect the Grounding

Spring and D-sleeve on the side of the Heating Element Leads.

9 ) Pull the Power Cord and fix the Heating Element in the Handle to prevent rolling.

10) Turn the Nipple and secure the Handle.

11) Replace the Nipple _, the Tip _, the Tip Enclosure O and secure the Nut O.

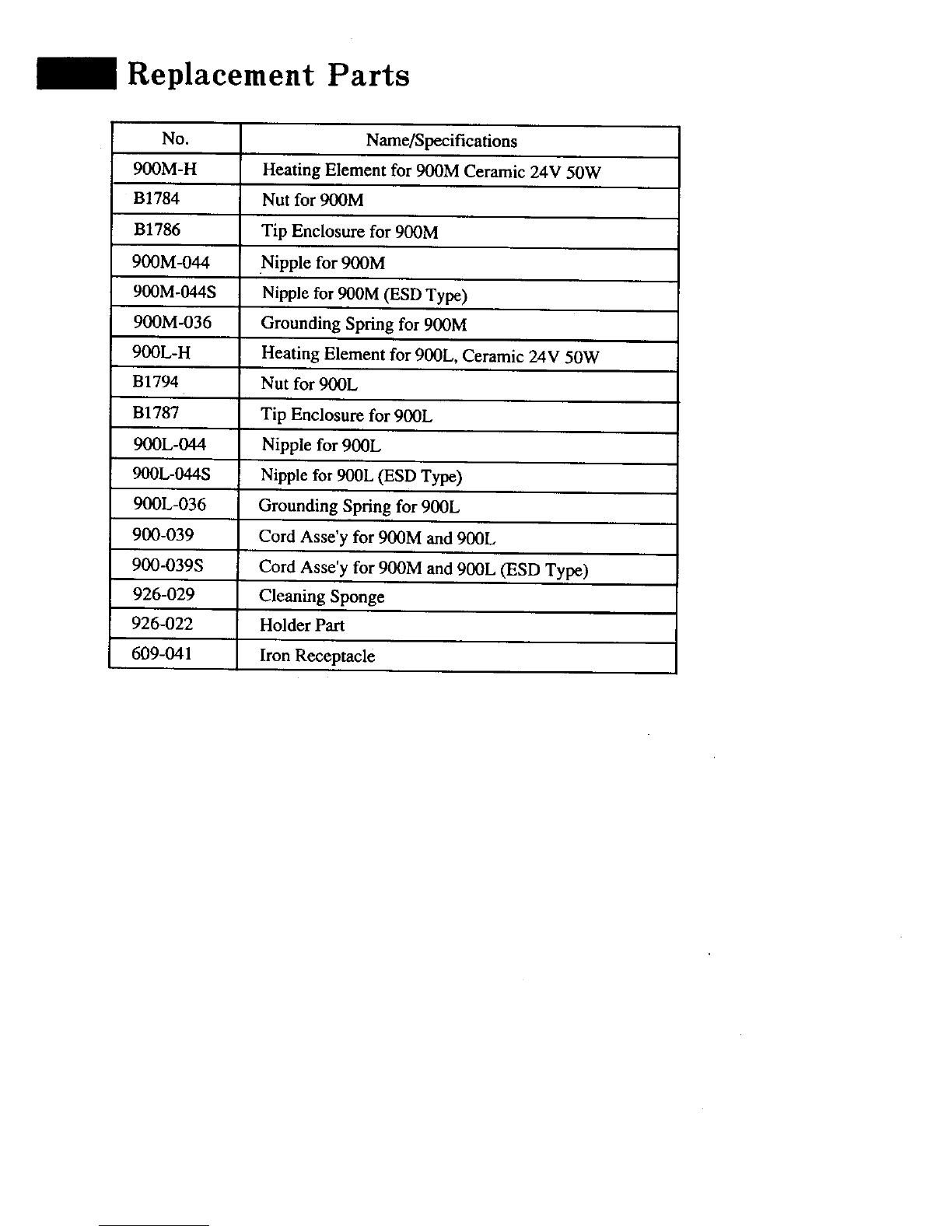

ll Replacement Parts

No. Name/Specifications

900M-H Heating Element for 900M Ceramic 24V 50W

B1784 Nut for 900M

B1786 Tip Enclosure for 900M

900M-044 Nipple for 900M

900M-044S Nipple for 900M (ESD Type)

900M-036 Grounding Spring for 900M

900L-H Heating Element for 900L, Ceramic 24V 50W

B1794 Nut for 900L

B1787 Tip Enclosure for 900L

900L-044 Nipple for 900L

900L-044S Nipple for 900L (ESD Type)

900L-036 Grounding Spring for 900L

900-039 Cord Asse'y for 900M and 900L

900-039S Cord Asse'y for 900M and 900L (ESD Type)

926-029 Cleaning Sponge

926-022 Holder Part

609-041 Iron Receptacle

Inhaltsverzeichnis

Andere Hakko Electronics Lötpistole Handbücher

Hakko Electronics

Hakko Electronics HU-200 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-305 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-301B Bedienungsanleitung

Hakko Electronics

Hakko Electronics 485 Bedienungsanleitung

Hakko Electronics

Hakko Electronics 485 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FU-500 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FP-102 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-951 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-100 Bedienungsanleitung

Hakko Electronics

Hakko Electronics A1560 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-100 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-888D Gebrauchsanweisung

Hakko Electronics

Hakko Electronics FX?801 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FM-202 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-100 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-889 Bedienungsanleitung

Hakko Electronics

Hakko Electronics 633 Series Bedienungsanleitung

Hakko Electronics

Hakko Electronics FN-1010 Bedienungsanleitung

Hakko Electronics

Hakko Electronics 936 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-951 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FX-951 Bedienungsanleitung

Hakko Electronics

Hakko Electronics FM-205 Bedienungsanleitung

Hakko Electronics

Hakko Electronics 853 Bedienungsanleitung

Hakko Electronics

Hakko Electronics 487 Bedienungsanleitung

Beliebte Lötpistole Handbücher anderer Marken

Bakon

Bakon 3200 Bedienungsanleitung

Proxxon

Proxxon Gaslotset MGS Bedienungsanleitung

jbc

jbc SFR-A Bedienungsanleitung

jbc

jbc CL8010 Bedienungsanleitung

HAKO

HAKO FX-8804 Bedienungsanleitung

SATA

SATA 02002A Bedienungsanleitung

Velleman

Velleman HRJA151 Bedienungsanleitung

Weller

Weller WSM 1 Bedienungsanleitung

Vishay Precision Group

Vishay Precision Group Micro-Measurements Mark V Montageanleitung

ersa

ersa i-CON 1V Bedienungsanleitung

Weller

Weller WAD 101 Bedienungsanleitung

Weller

Weller WXD 2 Bedienungsanleitung

AlienTek

AlienTek T100 Bedienungsanleitung

Atten

Atten ATETOOL AT-689A Bedienungsanleitung

Surtek

Surtek 112554 Abmessungen und Installationsanleitung

Parkside

Parkside PLBS 30 A1 Bedienungsanleitung

BlackJack SolderWerks

BlackJack SolderWerks BK8000 Bedienungsanleitung

Weller

Weller WX1 Bedienungsanleitung
