44” Wellston

Ceiling Fan by Hampton Bay

3-Speed Reverse Function for

Year-Round Comfort and Savings

Steeper Blade Pitch for

Greater Air Movement

Tri-Mount Installation

Accu-Arm™ for Accurate and

Easy Installation

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local Home Depot, please call our

Customer Service Team at 1-877-527-0313 or visit www.homedepot.com.

Please reference your SKU (000-000 brushed nickel), (000-000 oil-rubbed bronze),

(000-000 matte white) or UPC (082392 266172 brushed nickel), (082392 266073 oil-rubbed

bronze), (082392 266271 matte white)

Thank you for purchasing this Hampton Bay ceiling

fan. This product has been manufactured with the

highest standards of safety and quality. The nish

of this fan is weather resistant, but over time will

naturally weather and fade.

Safety Rules .................................. 1

Unpacking Your Fan .................... 2

Installing Your Fan ...................... 3

Operating Your Fan ..................... 10

Care of Your Fan.......................... 11

Troubleshooting............................ 11

Specications ................................ 12

Warranty Information................. 13

UL Model No: EF200B-44

Table of Contents

1. To reduce the risk of electric shock, insure electricity has

been turned off at the circuit breaker or fuse box before be-

ginning.

2. All wiring must be in accordance with the National Electri-

cal Code and local electrical codes. Electrical installation

should be performed by a qualied licensed electrician.

3. WARNING: To reduce the risk of re or electric shock, do

not use this fan with any solid-state fan speed control de-

vice.

4. CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

5. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of

35 pounds. Use only UL Listed outlet boxes marked “FOR

FAN SUPPORT.”

6. The fan must be mounted with a minimum of 7 feet clear-

ance from the trailing edge of the blades to the oor.

7. Do not operate reversing switch while fan blades are in mo-

tion. Fan must be turned off and blades stopped before re-

versing blade direction.

8. Avoid placing objects in path of the blades.

9. To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into outlet

box. The wires should be spread apart with the grounded

conductor and the equipment-grounding conductor on one

side of the outlet box.

12. Electrical diagrams are for reference only. Light kits that are

not packed with the fan must be UL Listed and marked suit-

able for use with the model fan you are installing. Switches

must be UL General Use Switches. Refer to the instructions

packaged with the light kits and switches for proper assem-

bly. Use 14W CFL bulbs max (included).

13. All set screws must be checked and retightened where neces-

sary before installation.

Safety Rules 1.

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

PLEASE REMOVE RUBBER MOTOR STOPS ON THE BOTTOM OF THE

FAN BEFORE INSTALLING BLADES OR TESTING MOTOR.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL IN-

JURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN

SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.

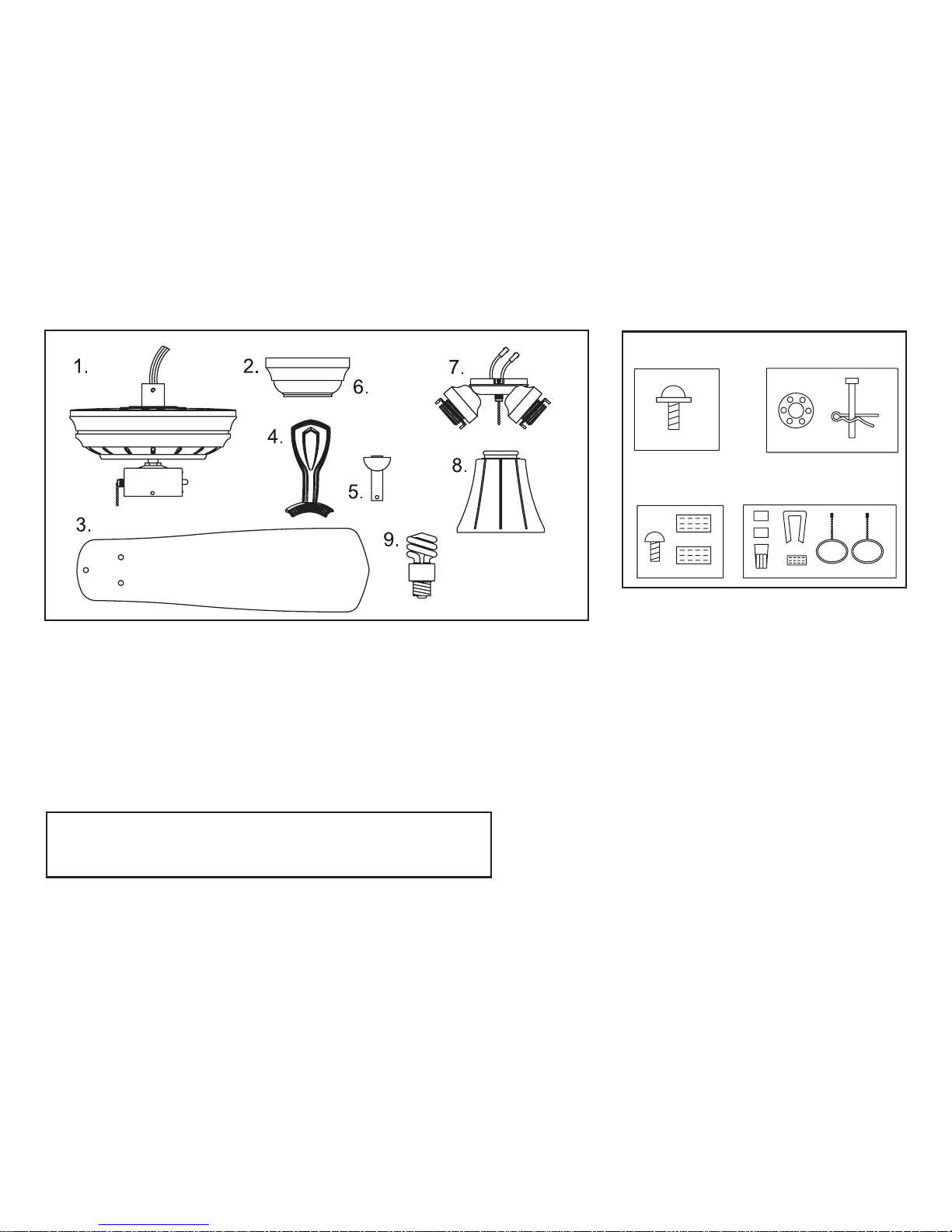

a. Blade attachment hardware

(15 Screws, rubber washers pre-attached

to the bracket)

b. Mounting Hardware

(1 bolt, 1 clevis pin, 1 rubber gasket)

c. Electrical hardware &

Balancing Kit

(3 plastic wire connectors, 1 pull chain for

the fan, 1 pull chain for the light kit, blade

balancing kit).

6. Slide-On Mounting Bracket

and Mounting Hardware (inside canopy)

7. Light Kit Fitter

8. Shade

9. (3) 14W CFL Light Bulbs

1. Fan Motor Assembly

2. Canopy

3. Blades (5)

4. Blade Bracket Set (5)

with motor screws pre-installed

5. Ball/Downrod Assembly

2. Unpacking Your Fan

IMPORTANT: THIS PRODUCT AND/OR COMPONENTS ARE COVERED

BY ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,947,436;

5,988,580; 5,971,573; 6,010,306; 6,039,541; 6,046,416 AND OTHER

PATENTS PENDING

Unpack your fan and check the contents. You should have the following items:

Installing Your Fan 3.

Tools Required

Phillips screw driver, straight slot screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing mounting box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 35 lbs.)

Do not use plastic outlet boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the outlet box.

Outlet Box

Recessed

Outlet Box

Ceiling

Mounting

Plate

Provide Strong

Support

Note: You may need a longer downrod to

maintain proper blade clearance when install-

ing on a steep, sloped ceiling. The maximum

angle allowable is 30˚. If the canopy touches

downrod, remove the decorative canopy

bottom cover and turn the canopy 180˚ before

attaching the canopy to the mounting bracket.

Outlet Box

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at your Hampton Bay retailer).

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN ONLY TO AN OUTLET BOX MARKED

ACCEPTABLE FOR FAN SUPPORT AND

USE THE MOUNTING SCREWS PROVIDED

WITH THE OUTLET BOX. OUTLET BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Standard Ceiling Mounting

1. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove the

mounting bracket.

2. Route the wires exiting the top of the fan

motor through the canopy and then through

the ball/downrod assembly (Figure 6).

3. Loosen, but do not remove, the 2 set

screws on the collar on the top of the mo-

tor housing.

4. Align the holes at the bottom of the down-

rod with holes in the collar on top of the

motor housing (Figure 6). Carefully insert

the bolt through the holes in the collar

Hanging the Fan

REMEMBER to turn off the pow-

er. Follow the steps below to hang your

fan properly.

NOTE: This ceiling fan is supplied with two

types of hanging assemblies; the standard

ceiling installation using the downrod with

ball and socket mounting, and the “close-to-

ceiling” mounting. The “close-to-ceiling”

mounting is recommended in rooms with

less than 8-foot ceilings or in areas where

additional space is desired from the oor

to the fan blades. When using standard

downrod installation, the distance from the

ceiling to the bottom of the fan blades will be

approximately 12 inches. The “close-to-ceiling”

installation reduces the distance from the

ceiling to the bottom of the fan blades to

approximately 8 inches.

Once you have decided which ceiling

installation you will use, proceed with the

following instructions. Where necessary,

each section of the instructions will note the

different procedures to follow for the two

types of installation.

Figure 6

Motor Collar

Bolt

Tighten Screw

Firmly

Locking

Ceiling

Canopy

Ball/Downrod

Assembly

Motor Wires Pin in Locked

Position

FAILURE TO PROPERLY INSTALL LOCKING PIN

AS NOTED IN STEP 4 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 5

Loosen but

Do Not

Remove

and downrod. Be careful not to jam bolt

against the wiring inside the downrod. In-

sert clevis pin and bend to ensure security,

as noted in the circle inset of Figure 6.

5. Tighten the two screws on top of the fan

motor rmly (Figure 6).

Figure 8

Figure 9

FAILURE TO COMPLETELY TIGHTEN THE

THREE SCREWS IN STEP 6 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

“Close-to-Ceiling” Mounting

1. Remove the mounting bracket from the

canopy by loosening the four screws on the

top of the canopy. Remove the two non-

slotted screws and loosen the slotted screws.

This will enable you to remove the hanger

bracket (Figure 5).

2. Remove the decorative canopy bottom cov-

er from the canopy by depressing the three

studs (Figure 7).

3. Remove three of the six screws and lock-

washers (every other one) securing the re-

inforcing plate to the top of the fan motor

housing (Figure 8).

4. Place the rubber gasket over the remaining

three screws, route the wires exiting the top

of the fan motor through the ceiling cano-

py over the collar at the top of the motor

(Figure 9).

5. Align the mounting holes with the holes

in the motor and fasten, using the three

screws and lock-washers removed in step 3

(Figure 9).

6. Tighten the mounting screws securely.

Figure 7

Canopy

Bottom

Cover

Installing Fan to

the Outlet Box

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 10.

2. Install the ceiling mounting bracket on the

outlet box by sliding the mounting bracket

over the two screws provided with the outlet

box. When using close-to-ceiling mounting,

it is important that the mounting bracket be

level. If necessary, use leveling washers (not

included) between the mounting bracket and

the outlet box. Note that the at side of the

mounting bracket is toward the outlet box

(Figure 10).

Figure 10

Figure 11

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. MAKE

SURE THE MOUNTING BRACKET SLOTS ARE

ON THE LOWER SIDE BY SLIDING THE MOUNT-

ING BRACKET FROM THE TOP DOWN. THE HOOK AS SHOWN IN FIGURE 11 IS ONLY

TO BALANCE FAN WHILE ATTACHING WIRING.

FAILURE TO HANG AS SHOWN IN FIGURE 11

MAY RESULT IN HOOK BREAKING, CAUSING

THE FAN TO FALL. HOOK MUST PASS FROM

INSIDE TO OUTSIDE OF CANOPY

LOCKING SLOTS OF CEILING CANOPY ARE

PROVIDED ONLY AS AN AID TO MOUNTING.

DO NOT LEAVE FAN ASSEMBLY UNATTENDED

UNTIL ALL FOUR CANOPY SCREWS ARE EN-

GAGED AND FIRMLY TIGHTENED.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY, MOUNT

FAN ONLY TO AN OUTLET BOX MARKED AC-

CEPTABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OUTLET BOX.

3. Securely tighten the two mounting screws.

4. Carefully lift the assembly up to the ceiling

mounting bracket and hang the fan on the

hook provided by utilizing one of the holes

at the outer rim of the ceiling canopy (Fig-

ure 11). If using standard mounting, seat the

hanger ball in the mounting bracket socket.

Make sure the tab on the mounting bracket

socket is properly seated in the groove in the

hanger ball (Figure 11).

WHEN USING THE STANDARD BALL/DOWN-

ROD MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Making the Electrical

Connections

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan

to your household wiring. Use the wire

connecting nuts supplied with your fan. Se-

cure the connectors with electrical tape.

Make sure there are no loose strands or

connections.

1. Connect the ground conductor of the 120v

supply (this may be a bare wire or a wire

with green colored insulation) to the green

ground lead(s) of the fan (Figure 12). When

using standard ceiling mounting, there are

two green grounding leads; one from the

ceiling mounting bracket and one from

the ball/downrod assembly. When using

“Close-to-Ceiling” mounting, there is only

one green ground lead from the ceiling

mounting bracket since the ball/downrod

assembly is not used.

Figure 12

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT USE A SOLID STATE SPEED

CONTROL WITH THIS FAN. IT WILL PERMANENT-

LY DAMAGE THE ELECTRONIC CIRCUITRY.

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS, EX-

CEPT FOR THE GROUND WIRE.

ELECTRICAL DIAGRAMS ARE FOR REFERENCE

ONLY. OPTIONAL USE OF ANY LIGHT KIT SHALL

BE UL LISTED AND MARKED SUITABLE FOR

USE WITH THIS FAN.

BLUE

BLACK

WHITE

GREEN

WHITE

BLACK

BLUE

BLACK WHITE

WHITE

Outlet

Box

Green

Grounding

Lead

Ground

Downrod

SUPPLY CIRCUIT

2. Connect the fan motor white wire to the

supply white (neutral) wire using a wire nut

(Figure 12).

3. Connect the fan motor black wire to the sup-

ply (hot) wire using a wire nut (Figure 12).

4. Connect the blue wire for the light kit to the

black household supply wire.

5. Turn wire nut connections upward, spread-

ing them apart so the green (ground) and

white wires will be on one side of the outlet

box and the black and blue wires will be on

the other side, and push into the outlet box.

Finishing the Fan

Installation

STANDARD CEILING MOUNTING

1. Align the locking slots of the ceiling canopy

with the two screws in the mounting bracket.

Push up to engage the slots and turn clock-

wise to lock in place. Immediately tighten

the two mounting screws rmly.

2. Install the remaining two mounting

screws into the holes in the canopy and

tighten rmly.

3. You may now proceed to attaching the

fan blades.

CLOSE-TO-CEILING MOUNTING

1. Carefully unhook the fan from the mount-

ing bracket and align the locking slots of the

ceiling canopy with the two screws in the

mounting bracket. Push up to engage the

slots and turn clockwise to lock in place.

Immediately tighten the two mounting

screws rmly.

2. Install the remaining two mounting screws

into the holes in the canopy and tighten

rmly.

3. You may now proceed to attaching the fan

blades.

WHEN USING THE STANDARD BALL/DOWN-

ROD MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

LOCKING SLOTS OF CEILING CANOPY ARE

PROVIDED ONLY AS AN AID TO MOUNTING.

DO NOT LEAVE FAN ASSEMBLY UNATTENDED

UNTIL ALL FOUR CANOPY SCREWS ARE EN-

GAGED AND FIRMLY TIGHTENED.

PLEASE REMOVE RUBBER MOTOR STOPS ON

THE BOTTOM OF THEFAN BEFORE INSTALL-

ING BLADES OR TESTING MOTOR.

Attaching the

Fan Blades

NOTE: Your fan blades are reversible. Select

the blade side nish that best accentuates your

decor.

1. Attach blade to blade bracket using the

screws provided as shown in Figure 13.

Please note that the rubber washers are pre-

attached to the blade bracket. Insert a screw

into the bracket. Repeat for the two remain-

ing screws.

2. Tighten each screw securely.

3. Fasten the blade assembly to the motor by

inserting the alignment post into the slot

on the bottom of the motor and tightening

the motor screws. Please note that the mo-

tor screws are pre-attached into the blade

bracket (Figure 14).

4. Repeat steps 1-3 for the remaining blades.

Blade

Mounting screw Blade

bracket

Pre-attached

rubber pad

Figure 13

Figure 14

Andere Handbücher für Wellston

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY SEAPORT AL634-NI Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Farmington Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CALTRIS AK382HG-MBK Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CHASTAIN II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 133-715 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Andover 640-655 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 57446 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY PALMARIA EF200S(X)-52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 326-722 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY GRANTWAY 48 RD5114B-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY EDELWEISS Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Glendale Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY MENA HUGGER 92402 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52101 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CYPRUS 220 635 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Asbury Plus Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Moonlight Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Mercer 52 inch Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 91371 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY GAZEBO II YG188-WH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 434-972 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Gazebo 473-131 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CARROLTON II AM215-ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Bryant Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
