HIK VISION DS-7104NI-SL Benutzerhandbuch

Network Video Recorder

Quick Operation Guide

UD.6L0202B1119A01

Quick Operation Guide of DS-7100NI-SL Series NVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to the models listed in the following table.

Series

Model

Type

7100NI-SL

DS-7104NI-SL

DS-7108NI-SL

Network Video Recorder

NVR Pre-Installation

The DS-7100NI-SL series NVR are highly advanced surveillance equipment that should be installed with care.

Please take into consideration the following precautionary steps before installation of the NVR.

1. Keep all liquids away from the NVR.

2. Install the NVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

NVR Installation

During the installation of the NVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.

6. Ensure the NVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC , 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the NVR. A factory

recommended HDD should be used for this installation.

1 SATA hard disks can be installed on your NVR.

Tools Required: Screwdriver.

Steps:

1. Remove the cover from the NVR by unfastening the screws on the bottom.

2. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.

Quick Operation Guide of DS-7100NI-SL Series NVR

3. Connect one end of the data cable to the motherboard of NVR and the other end to the HDD.

4. Connect the power cable to the HDD.

5. Re-install the cover of the NVR and fasten screws.

Front Panel

The front panel of DS-7100NI-SL is shown below:

Quick Operation Guide of DS-7100NI-SL Series NVR

No.

Icon

Description

Indicator turns red when DVR is powered up.

Indicator lights in red when data is being read from or written to HDD.

Indicator blinks blue when network connection is functioning properly.

Rear Panel

The rear panel of DS-7100NI-SL is shown below:

No.

Item

Description

Power Supply

12VDC power supply.

Audio In

RCA connector for voice talk input.

HDMI Interface

HDMI video output connector.

LAN Network Interface

Connector for LAN (Local Area Network).

Audio Out

RCA connector for audio output.

VGA Output

DB9 connector for VGA output. Display local video output and menu.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

Quick Operation Guide of DS-7100NI-SL Series NVR

Specifications

Specifications of DS-7100NI-SL

Model

DS-7104NI-SL

DS-7108NI-SL

Video/Audio

input

IP video input

4-ch

8-ch

Two-way audio

input

1-ch, RCA (2.0 Vp-p, 1kΩ)

Network

Incoming bandwidth

20Mbps

40Mbps

Outgoing bandwidth

40Mbps

Remote connection

128

Video/Audio

output

Recording resolution

5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI/VGA output

1-ch, resolution:

1920 × 1080P /60Hz, 1600 ×1200 /60Hz, 1280 × 1024 /60Hz, 1280 ×

720 /60Hz, 1024 × 768 /60Hz

Audio output

1-ch, RCA (Linear, 1kΩ)

Playback resolution

5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Synchronous

playback

4-ch@720P / 2-ch@1080P /

1-ch@5MP

8-ch@4CIF /4-ch@720P /

2-ch@1080P / 1-ch@5MP

Hard disk

SATA

1 SATA interface for 1 HDD

Capacity

Up to 4TB for each disk

External

interface

Network interface

1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface

USB interface

2 ×USB 2.0

Others

Power supply

12VDC

Consumption

≤ 15 W (without hard disk)

Working

temperature

-10 ºC ~ +55 ºC

Working humidity

10 % ~ 90 %

Chassis

1U chassis

Dimensions

(W ×D ×H)

200 ×200 ×45 mm

Weight

≤ 1 Kg ( without hard disk)

Quick Operation Guide of DS-7100NI-SL Series NVR

HDD Storage Calculation Chart

The following chart shows an estimation of storage space used based on recording at one channel for an hour at a

fixed bit rate.

Bit Rate

Storage Used

96K

42M

128K

56M

160K

70M

192K

84M

224K

98M

256K

112M

320K

140M

384K

168M

448K

196M

512K

225M

640K

281M

768K

337M

896K

393M

1024K

450M

1280K

562M

1536K

675M

1792K

787M

2048K

900M

4096K

1800M

8192K

3600M

16384K

7200M

Note: Please note that supplied values for storage space used is just for reference. Storage space used is estimated

by formulas and may have some deviation from actual value.

Quick Operation Guide of DS-7100NI-SL Series NVR

Accessing by Web Browser

Logging In

You can get access to the device via web browser. Open web browser, input the IP address of the device and then

press Enter. The login interface appears.

Input the user name and password, and click the Login button.

Notes:

1. The default IP address is 192.0.0.64.

2. The default user name is admin, and password is 12345.

3. You may use one of the following listed web browsers: Internet Explorer 6.0, Internet Explorer 7.0, Internet

Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0, Apple Safari, Mozilla Firefox, and Google Chrome.

4. The supported resolutions include 1024*768 and above.

When you log in for the first time, the system will remind you to install the Plug-in control. After the installation,

you can configure and manage the device remotely.

Live View

The live view interface appears by default when you log in the device.

Interface Introduction

①Channel List: Displays the list of channels and the playing and recording status of each channel.

②Live View Window: Displays the image of channel, and multi-window division is supported.

③Play Control Bar: Play control operations are supported.

④PTZ Control: Pan, tilt, zoom operations are supported, as well as preset editing and calling.

Note: PTZ function can only be realized if the connected camera supports PTZ control.

⑤Video Parameters Configuration: Brightness, contrast, saturation and hue of the image can be modified.

Quick Operation Guide of DS-7100NI-SL Series NVR

Start Live View

Steps:

1. In the live view window, select a playing window by clicking the mouse.

2. Double click a camera from the device list to start the live view.

3. You can click the button on the toolbar to start the live view of all cameras on the device list.

Refer to the following table for the description of buttons on the live view window:

Icon

Description

Icon

Description

Select the

window-division

mode

Start/Stop all live view

Capture pictures in

the live view mode

Start/Stop all

recording

Open/Close audio

Start/Stop two-way

audio

Adjust volume

Enable/Disable digital

zoom

Full-screen

Recording

Before you start

Make sure the device is connected with HDD or network disk, and the HDD or network disk has been initialized

for the first time to use.

Two recording types can be configured: Manual and Scheduled. The following section introduces the

configuration of scheduled recording.

Steps:

1. Click Remote Configuration> Camera Settings> Record Schedule to enter Record Schedule settings interface.

2. Select the camera to configure the record schedule.

3. Check the checkbox of Enable Schedule to enable recording schedule.

Quick Operation Guide of DS-7100NI-SL Series NVR

4. Choose the day in a week to configure scheduled recording.

5. Click Edit to edit record schedule.

1) Configure All Day or Customize record:

If you want to configure the all-day recording, please check the All Day checkbox.

If you want to record in different time sections, check the Customize checkbox. Set the Start Time and

End Time.

Note: The time of each segment can’t be overlapped. Up to 8 segments can be configured.

2) Select a Record Type. The record type can be Normal, Motion, Alarm, Motion & Alarm, and Motion |

Alarm.

3) Check the checkbox of Select All and click Copy to copy settings of this day to the whole week. You

can also check any of the checkboxes before the date and click Copy.

4) Click OK to save the settings and exit the Edit Schedule interface.

6. Click Advanced to configure advanced record parameters.

7. Click Save to validate the above settings.

Playback

Interface Introduction

Quick Operation Guide of DS-7100NI-SL Series NVR

①Channel List: Displays the list of channels and the playing status of each channel.

②Playback Window: Displays the image of channel.

③Play Control Bar: Play control operations are supported.

④Time Line: Displays the time bar and the records marked with different colors.

⑤Playback Status: Displays the playback status, including channel number and playback speed.

⑥Calendar: You can select the date to play.

Start Playback

Steps:

1. Click Playback on the menu bar to enter playback interface.

2. Click the camera from the device list for playback.

3. Select the date from the calendar and click Search.

4. Click the Play button to play the video file searched on the current date.

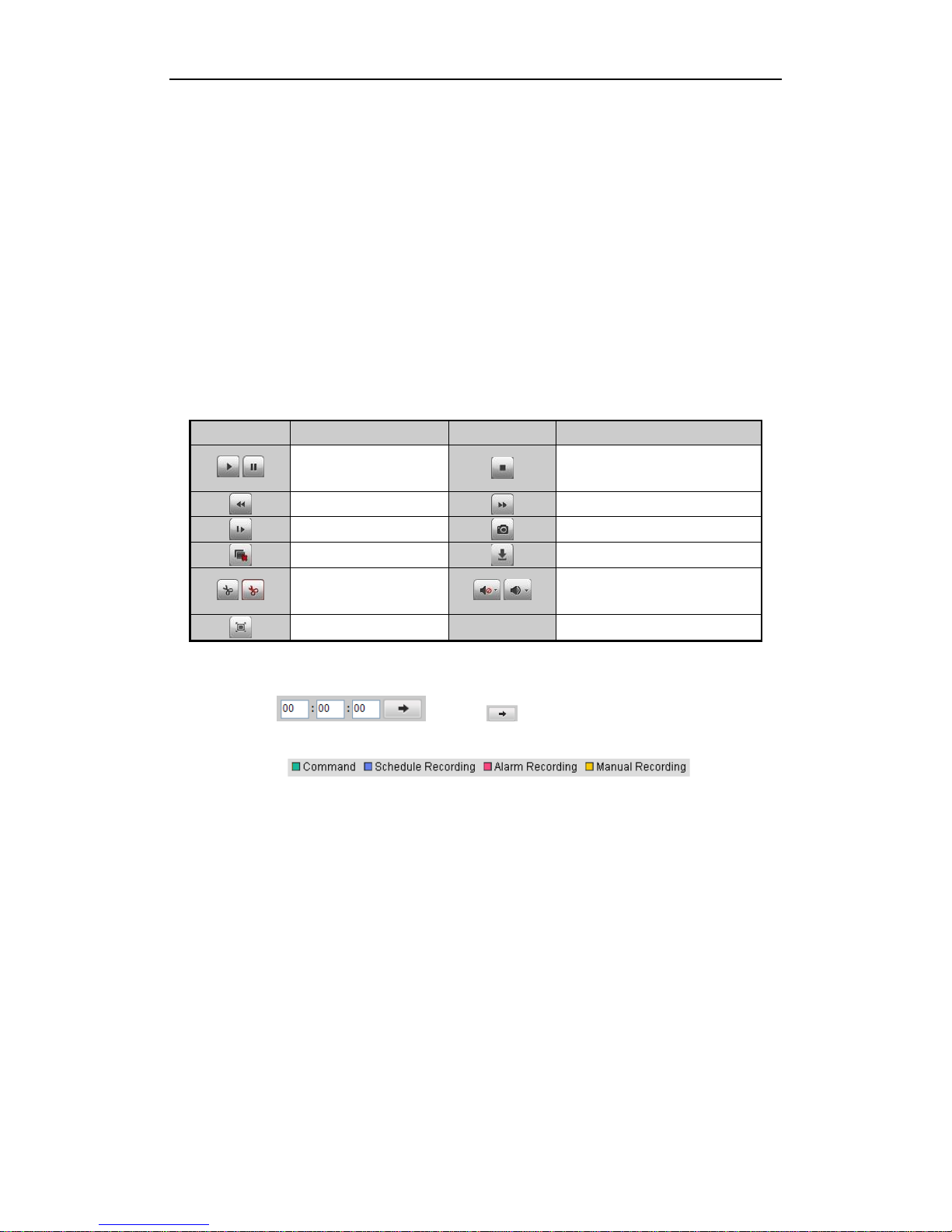

5. Use the buttons on the toolbar to operate in playback mode.

Button

Description

Button

Description

Play/Pause

Stop

Slow down

Speed up

Play by single frame

Capture

Stop All Playback

Download

Video Clip

Open/Close audio

Full-screen

6. You can drag the progress bar with the mouse to locate the exact playback point. You can also input the time

in the textbox and click button to locate the playback point.

The color of the video on the progress bar stands for the different video types.

Log

You can view and export the log files at any time, including operation, alarm, exception and information of device.

Before you start

The Log function can be realized only when the device is connected with HDD or network disk. And make sure

the HDD or network disk has been initialized for the first time to use.

Steps:

1. Click Log on the menu bar to enter the Log interface.

Andere Handbücher für DS-7104NI-SL

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Netzwerk-Hardware Handbücher

HIK VISION

HIK VISION DS-7116HQHI-K1 Bedienungsanleitung

HIK VISION

HIK VISION DS-7600NI-I2 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-8600NXI-I8/S Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NI-I8 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100NI-SL series Bedienungsanleitung

HIK VISION

HIK VISION DS-9000-ST Bedienungsanleitung

HIK VISION

HIK VISION DS-7732NI-I4/16P Bedienungsanleitung

HIK VISION

HIK VISION DS-96128NI-I16 Bedienungsanleitung

HIK VISION

HIK VISION HIK-7104NI Bedienungsanleitung

HIK VISION

HIK VISION UD.6L0202B1986A01 Bedienungsanleitung

HIK VISION

HIK VISION DS-7104NI-SL Bedienungsanleitung

HIK VISION

HIK VISION iDS-96000NXI-I16/24 Bedienungsanleitung

HIK VISION

HIK VISION DS-7608NI-K2/8P/4G Bedienungsanleitung

HIK VISION

HIK VISION LTN07128/256 Bedienungsanleitung

HIK VISION

HIK VISION HWN-4116MH Bedienungsanleitung

HIK VISION

HIK VISION DS-3WF03C Bedienungsanleitung

HIK VISION

HIK VISION DS-7600NI-Q1 Series Bedienungsanleitung

HIK VISION

HIK VISION HiLook IK-6288TH-MH/P Bedienungsanleitung

HIK VISION

HIK VISION DS-9608NI-I8 Bedienungsanleitung

HIK VISION

HIK VISION DS-D42AM2 Bedienungsanleitung

HIK VISION

HIK VISION DeepinMind Super iDS-96128NXI-I24 Bedienungsanleitung

HIK VISION

HIK VISION DS-9600NXI-I8/S Series Bedienungsanleitung

HIK VISION

HIK VISION DS-76xxNI-Ex/xP Bedienungsanleitung

HIK VISION

HIK VISION BCS-V-NVRXX02-4K Series Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
