HIK VISION DS-7604NI-Q1 Bedienungsanleitung

Network Video Recorder

Quick Start Guide

Network Video Recorder Quick Start Guide

TABLE OF CONTENTS

Chapter1 Panels Description.......................................................................................................................... 7

1.1 Front Panel........................................................................................................................................... 7

DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series......................................................................... 7

DS-7600NI-Q2 (/P) Series................................................................................................................. 7

DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series................................................................................. 8

1.2 Rear Panel............................................................................................................................................ 9

DS-7600NI-Q1, DS-7600NI-K1 (B) and DS-7600NI-Q2 Series....................................................... 9

DS-7600NI-Q1/P, DS-7600NI-K1/P(B) and DS-7600NI-Q2/P Series .............................................. 9

DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series............................................................................... 10

Chapter 2 Installation and Connections ...................................................................................................... 13

2.1 NVR Installation................................................................................................................................ 13

2.2 Hard Disk Installation........................................................................................................................ 13

2.3 HDD Storage Calculation Chart ........................................................................................................ 15

Chapter 3 Menu Operation........................................................................................................................... 16

3.1 Menu Structure.................................................................................................................................. 16

3.2 Startup and Shutdown........................................................................................................................ 16

3.3 Activating Your Device...................................................................................................................... 17

3.4 Using the Unlock Pattern for Login................................................................................................... 19

3.5 User Login......................................................................................................................................... 19

3.6 Using the Setup Wizard ..................................................................................................................... 20

3.7 Network Settings ............................................................................................................................... 21

3.8 Adding IP Cameras............................................................................................................................ 21

3.9 Live View .......................................................................................................................................... 22

3.10 Recording Settings........................................................................................................................... 23

3.11 Playback........................................................................................................................................... 23

Chapter 4 Accessing by Web Browser.......................................................................................................... 25

Network Video Recorder Quick Start Guide

Quick Start Guide

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Video Recorder (NVR).

The Manual includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information

contained in the Manual is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE

USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL

OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL

PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS

USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

Network Video Recorder Quick Start Guide

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at

his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and

comply therefore with the applicable harmonized European standards listed under the

EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of

as unsorted municipal waste in the European Union. For proper recycling, return this

product to your local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed

of as unsorted municipal waste in the European Union. See the product documentation

for specific battery information. The battery is marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return

the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Video Recorder Quick Start Guide

Applicable Models

This manual is applicable to the models listed in the following table.

Series

Model

DS-7600NI-Q1

DS-7604NI-Q1

DS-7608NI-Q1

DS-7616NI-Q1

DS-7600NI-Q2

DS-7608NI-Q2

DS-7616NI-Q2

DS-7600NI-Q1/P

DS-7604NI-Q1/4P

DS-7608NI-Q1/8P

DS-7600NI-Q2/P

DS-7608NI-Q2/8P

DS-7616NI-Q2/16P

DS-7600NI-K1(B)

DS-7604NI-K1(B)

DS-7608NI-K1(B)

DS-7616NI-K1(B)

DS-7600NI-K1/P(B)

DS-7604NI-K1/4P(B)

DS-7608NI-K1/8P(B)

DS-7700NI-Q4

DS-7708NI-Q4

DS-7716NI-Q4

DS-7732NI-Q4

DS-7700NI-Q4/P

DS-7708NI-Q4/8P

DS-7716NI-Q4/16P

DS-7732NI-Q4/16P

DS-8600NI-Q8

DS-8608NI-Q8

DS-8616NI-Q8

DS-8632NI-Q8

Network Video Recorder Quick Start Guide

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Safety Instructions

Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

In the use of the product, you must be in strict compliance with the electrical safety

regulations of the nation and region. Please refer to technical specifications for detailed

information.

Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power

Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to

technical specifications for detailed information.

Do not connect several devices to one power adapter as adapter overload may cause

over-heating or a fire hazard.

Please make sure that the plug is firmly connected to the power socket.

If smoke, odor or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

If the POE ports of device do not comply with Limited Power Source, the additional equipment

connected to POE ports shall have fire enclosure.

The USB interface of the /P devices can be connected with the mouse and U-flash disk storage

device only.

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

Ensure unit is installed in a well-ventilated, dust-free environment.

Unit is designed for indoor use only.

Keep all liquids away from the device.

Symbol

Description

Provides additional information to emphasize or supplement

important points of the main text.

Indicates a potentially hazardous situation, which if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

Network Video Recorder Quick Start Guide

Ensure environmental conditions meet factory specifications.

Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of

dropping it may cause damage to the sensitive electronics within the unit.

Use the device in conjunction with an UPS if possible.

Power down the unit before connecting and disconnecting accessories and peripherals.

A factory recommended HDD should be used for this device.

Improper use or replacement of the battery may result in hazard of explosion. Replace with

the same or equivalent type only. Dispose of used batteries according to the instructions

provided by the battery manufacturer.

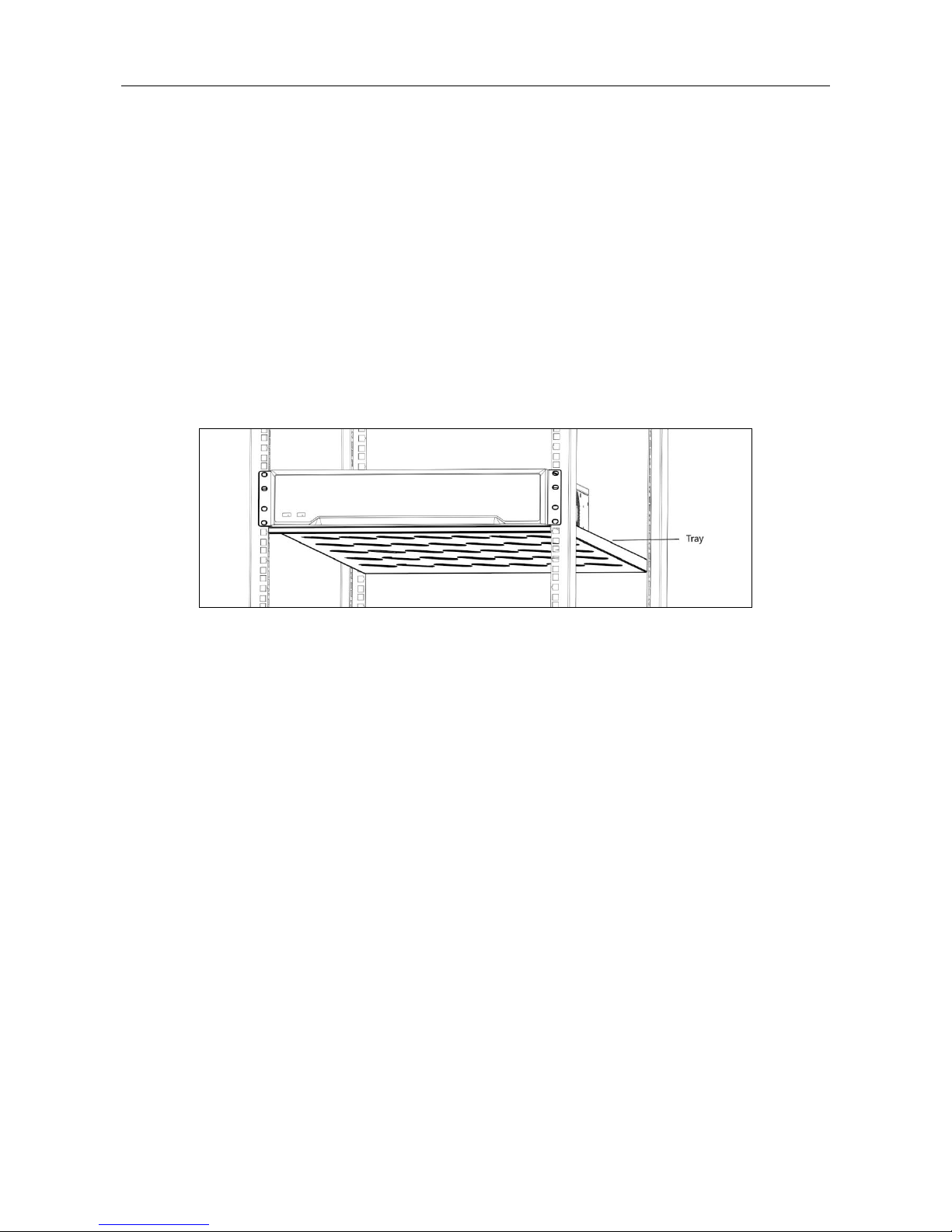

When installing the device into a cabinet over 2U height, it is suggest to use rack shelf to bear

the weight. If the cabinet height is over 4U, it is suggested to use slide rails or rack shelf to

bear the weight.

Network Video Recorder Quick Start Guide

Chapter1 Panels Description

1.1 Front Panel

DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series

Figure 1-1 DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series

Table 1-1 Panel Description

No.

Name

Description

Status

Indicator

Power

Power indicator turns green when system is

running.

Status

Status indicator blinks red when data is being

read from or written to HDD.

Tx/Rx

Tx/Rx indictor blinks green when network

connection is functioning properly.

USB Interface

Universal Serial Bus (USB) ports for additional

devices such as USB mouse and USB Hard Disk

Drive (HDD).

DS-7600NI-Q2 (/P) Series

Figure 1-2 DS-7600NI-Q2 and DS-7600NI-Q2/P Series

Network Video Recorder Quick Start Guide

Table 1-2 Panel Description

DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series

Figure 1-3 DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series

Table 1-3 Panel Description

No.

Name

Connections

POWER

Turns green when device is powered up.

HDD

Flickers red when data is being read from or written to HDD.

Tx/Rx

Flickers blue when network connection is functioning

properly.

USB Interface

Universal Serial Bus (USB) port for additional devices such as

USB mouse and USB Hard Disk Drive (HDD).

No.

Name

Connections

POWER

Turns white when device is powered up.

HDD

Flickers red when data is being read from or written to HDD.

Tx/Rx

Flickers white when network connection is functioning properly.

Infrared

Receiver

Receiver for IR remote control.

USB Interface

Universal Serial Bus (USB) port for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

Network Video Recorder Quick Start Guide

1.2 Rear Panel

DS-7600NI-Q1, DS-7600NI-K1 (B) and DS-7600NI-Q2 Series

Figure 1-4 DS-7600NI-Q1, DS-7600NI-K1 (B)and DS-7600NI-Q2 Series

Table 1-4 Panel Description

DS-7600NI-Q1/P, DS-7600NI-K1/P(B) and DS-7600NI-Q2/P Series

Figure 1-5 DS-7600NI-Q1/4P and DS-7604NI-K1/4P(B) Series

No.

Item

Description

Power Supply

12 VDC power supply.

Audio In

RCA connector for audio input.

HDMI Interface

HDMI video output connector.

LAN Network Interface

1, 10 /100 /1000 Mbps self-adaptive Ethernet interface.

Audio Out

RCA connector for audio output.

VGA Interface

DB9 connector for VGA output. Display local video

output and menu.

USB Interface

Universal Serial Bus (USB) ports for additional devices

such as USB mouse and USB Hard Disk Drive (HDD).

Ground

Ground (needs to be connected when NVR starts up).

Power Switch

Switch for turning on/off the device.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Netzwerk-Hardware Handbücher

HIK VISION

HIK VISION DS-7600NI-SE/P Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3WF0AC-2NT Bedienungsanleitung

HIK VISION

HIK VISION DS-96128NI-H16DS-96128NI-H16/HDS-96128NI-H16/IDS-96128NI-H16/H/IDS-96128NI-F16DS-96128NI-F16/HDS-96128NI-F16/IDS-96128NI Bedienungsanleitung

HIK VISION

HIK VISION DS-7604NI-E1/4P Bedienungsanleitung

HIK VISION

HIK VISION DS-9608NI-I8 Bedienungsanleitung

HIK VISION

HIK VISION EKI-K82T46 Bedienungsanleitung

HIK VISION

HIK VISION DS-96128NI-F16 Bedienungsanleitung

HIK VISION

HIK VISION DS-96000NI-I16 Series Bedienungsanleitung

HIK VISION

HIK VISION NVST HNR Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7604NI-VP Bedienungsanleitung

HIK VISION

HIK VISION DS-7600NI-KI/W Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7032NI-Q4 Bedienungsanleitung

HIK VISION

HIK VISION DS-7604NI-KI/W Bedienungsanleitung

HIK VISION

HIK VISION DS-7600NI-K2/4G Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100NI-E1 Series Bedienungsanleitung

HIK VISION

HIK VISION iDS-9632NXI-I8/16S Bedienungsanleitung

HIK VISION

HIK VISION DS-9608NI-ST Series Bedienungsanleitung

HIK VISION

HIK VISION HIK-7104NI Bedienungsanleitung

HIK VISION

HIK VISION DS-KH6320-TE1 Bedienungsanleitung

HIK VISION

HIK VISION NVR-100MH-D/W Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9608NI-I8 Bedienungsanleitung

HIK VISION

HIK VISION IDS-9664NXI-I8/X(STD)(C) Bedienungsanleitung

HIK VISION

HIK VISION DS-9608NI-I8 Bedienungsanleitung

HIK VISION

HIK VISION DS-3WF01C-2N/O Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
