HIK VISION CMHD3553D-Z Bedienungsanleitung

TURBO HD

5 MP Series Dome Camera

User Manual

UD06099N

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual may contain technical incorrect places or

printing errors, and the content is subject to change

without notice. The updates will be added to the new

version of this manual. We will readily improve or

update the products or procedures described in the

manual.

0100001070606

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot be

disposed of as unsorted municipal waste in

the European Union. See the product

documentation for specific battery

information. The battery is marked with

this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper

recycling, return the battery to your supplier or to a

designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

1Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, underground parking lot, bar, etc..

The main features are as follows:

High performance CMOS sensor

Low illumination, 0.008 Lux@(F1.2, AGC ON), 0 Lux

with IR

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

Internal synchronization

SMART IR mode

PoC (with -E)

3-axis adjustment

Note:

Type II camera is applicable to indoor only.

1.2 Overview

Before you start:

The device cables vary according to different models.

The cables of each type are shown in the figures below,

refer to the actual device.

You can debug the camera by connecting an auxiliary

HD TVI cable to the auxiliary video output.

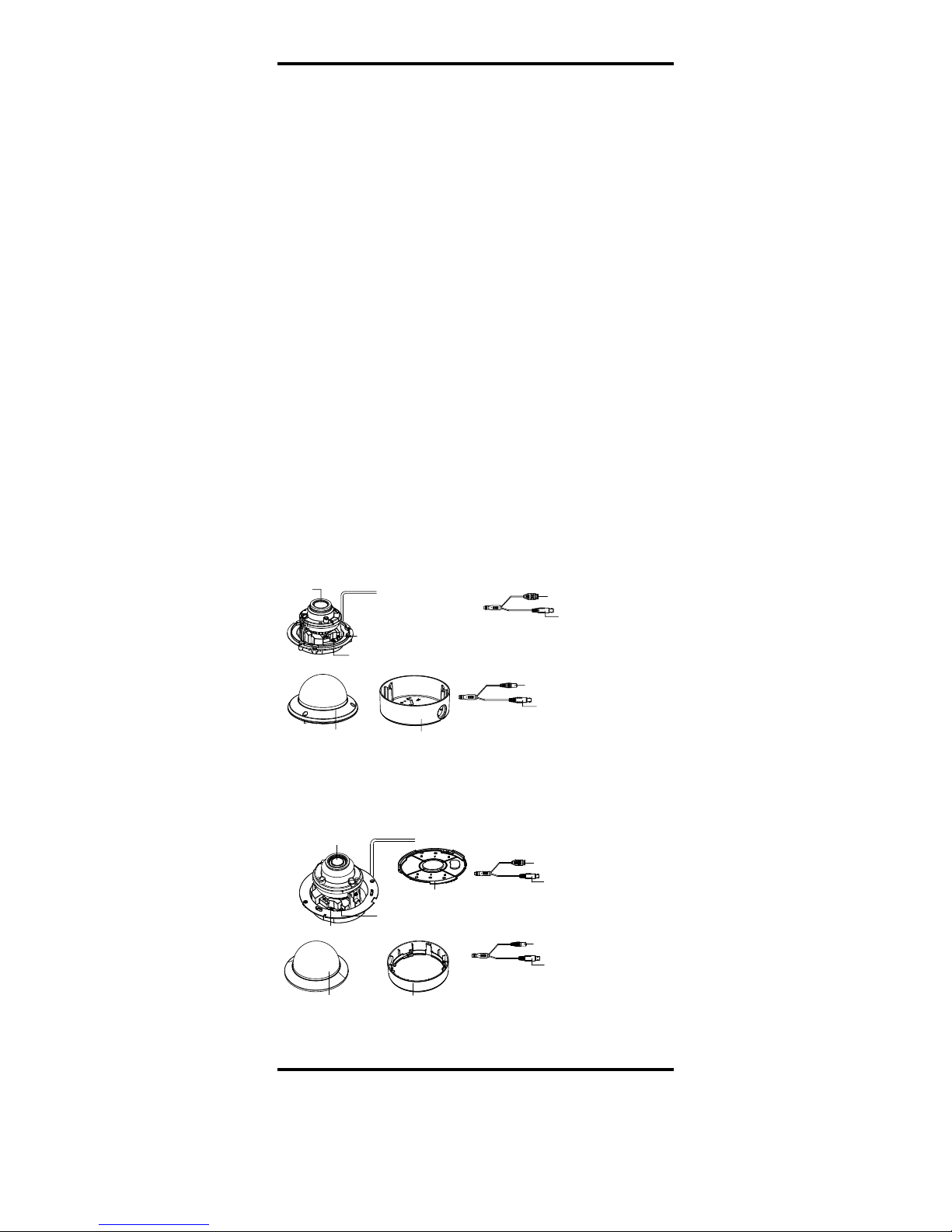

1.2.1 Overview of Type I Camera

Bubble

Auxiliary

Video Output

Lens

Back Box

Menu Button

Video Cable

24 VAC/12 VDC

Power Cord

Cables

Video Cable

12 VDC Power Cord

Model I Cables

Model II Cables

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Bubble

Auxiliary

Video Output

Lens

Back Box

Menu Button

Video Cable

24 VAC/12 VDC

Power Cord

Cables

Video Cable

12 VDC Power Cord

Model I Cables

Model II Cables

Base Plate

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is

power-off during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid the damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

bracket.

If the wall is cement, you need to insert expansion

bolts before you install the camera. If the wall is

wooden, you can use self-tapping screws to secure

the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance

by yourself.

2.1 Ceiling Mounting

Before you start:

Both wall mounting and ceiling mounting are suitable

for the dome camera. Ceiling mounting will be taken as

an example in this section. You can take steps of ceiling

mounting as a reference for wall mounting.

Steps:

1. Paste the drill template to the celling.

2. Drill screw holes and the cable hole (optional) on

the ceiling according to the supplied drill template.

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

Type I Camera

Type II Camera

Figure 2-1 The Drill Template

3. Loosen the screws on the bubble of the dome

camera to remove the bubble and the black liner.

4. Attach the back box of type I camera/base plate of

type II camera to the ceiling and secure them with

supplied screws.

Type I Camera

Type II Camera

Figure 2-2 Attach the Back Box/Base Plate

Note:

In the supplied screw package, both self-tapping

screws and expansion bolts are contained.

For cement ceiling, expansion bolts are required to

fix the camera. For wooden ceiling, self-tapping

screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Align the camera with the back box/base plate, and

tighten the screws to secure the camera with the

back box/base plate.

Type I Camera

Type II Camera

Figure 2-3 Fix the camera to the Ceiling

7. Connect the corresponding cables, such as power

cable and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Type I Camera

0°to 355°

0°to 75°

0°to 355°

0°to75°

Type II Camera

Figure 2-4 3-Axis Adjustment

9. Fit the black liner back to the camera and tighten

the screws on the bubble of the dome camera to

finish the installation.

2.2 Wall Mounting with a Bracket

Before you start:

You need to purchase a wall mounting bracket

separately.

Steps:

1. Drill 4 screw holes in the wall according to the holes

of the bracket.

2. Attach the bracket to the wall by aligning the 4

screw holes of the bracket with expansion screws on

the wall.

3. Secure the bracket with 4 hex nuts and washers.

Type I Camera

Type II Camera

Figure 2-5 Install Wall Mounting Bracket

4. Refer to step 3 of 2.1 Ceiling Mounting to remove

dome camera’s bubble and the black liner.

5. Attach the back box/base plate of the dome camera

to the wall mounting bracket and secure them with

supplied screws.

Type I Camera

Type II Camera

Figure 2-6 Attach the Base Plate to the Bracket

6. Route the cables through the bracket.

7. Repeat steps 6 to 9 of the 2.1 Ceiling Mounting to

complete the installation.

2.3 In-Ceiling Mounting

Before you start:

You need to purchase an in-ceiling mounting bracket

separately.

Steps:

1. Attach the drill template on the ceiling.

2. Drill the screw holes and cable holes (optional) in

the ceiling according to the supplied drill template.

Note:

Drill the cable hole when adopting the ceiling outlet

to route the cable.

3. Screw the bolts through the mounting bracket by

aligning with the 2 bolt holes. Fit the toggles onto

the bolts.

4. Push the two bolts through the two screw holes in

the ceiling. Rotate the bolt till the toggle holds the

ceiling tightly.

Figure 2-7 Install the In-Ceiling Mounting Bracket

5. Route the cables through the cable hole.

6. Fix the camera to the in-ceiling mounting bracket

with the supplied screws.

Type I Camera

Type II Camera

Figure 2-8 Fix the Camera to the Mount

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Repeat steps 8 to 9 of the 2.1 Ceiling Mounting to

complete the installation.

2.4 Mounting with Inclined Base of Type I Camera

Before you start:

You need to purchase an inclined base separately.

Steps:

1. Drill 4 screw holes and the cable hole in the ceiling

according to the holes of the inclined base.

2. Install the inclined base to the ceiling with supplied

screws, as shown in Figure 2-9.

Figure 2-9 Fix the Inclined Base

3. Route the cables through the cable hole, or the side

opening of the inclined base.

4. Fix the camera to the inclined base with the

supplied screws.

Figure 2-10 Fix the Camera to the Base

5. Repeat the steps 7 to 9 of the 2.1 Ceiling Mounting

section to complete the installation.

3Menu Description

Purpose:

Call the menu by clicking the button on the PTZ

Control interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

EXPOSURE

WHITE

BALANCE

BRIGHTNESS

SET UP

OUTPUT

MODE

LANGUAGE

DAY/NIGHT

VIDEO

SETTINGS

RESET

SAVE & EXIT

EXPOSURE MODE

MODE

BACK

MODE

BACK

CONTRAST

SHARPNESS

COLOR GAIN

DNR

MIRROR

BACK

GAIN

DWDR

ANTI-FLICKER

BACK

FOCUS

Figure 3-2 Main Menu Overview

5. Click the direction arrow to control the camera.

1). Click up/down direction button to select the

item.

2). Click Iris + to confirm the selection.

3). Click left/right direction button to adjust the

value of the selected item.

3.1 OUTPUT MODE

In the OUTPUT MODE submenu, you can set

RESOLUTION, FRAME RATE, and NTSC/PAL.

OUTPUT MODE

RESOLUTION

FRAME RATE

NTSC/PAL

APPLY

BACK

5 MEGA

12.5 FPS

PAL

Figure 3-3 OUTPUT MODE

RESOLUTION

Resolution refers to the number of the pixels contained

in an image. You can set the resolution as 5 megapixels,

4 megapixels or 1080p. The higher the value, the finer

the image is.

FRAME RATE

Frame rate refers to the number of image output in 1

second.

When the resolution is set as 5 megapixels, you are

allowed to set the frame rate as 20 fps or 12.5 fps.

When the resolution is set as 4 megapixels, you are

allowed to set the frame rate as 25 fps or 30 fps.

NTSC/PAL

PAL

(Phase Alternating Lines) is a color encoding system for

analog television used in broadcast television systems in

most countries.

NTSC

(National Television System Committee) is the analog

television system that is used in most of North America,

parts of South America, Myanmar, South Korea, etc.

Note:

NTSC/PAL is only available under the mode of

5 MEGA@12.5fps.

3.2 FOCUS

Move the cursor to FOCUS, and press the Iris+ to enter

the submenu. Click FOCUS+, FOCUS-, ZOOM+, and

ZOOM- to adjust the focus.

3.3 LANGUAGE

Supports English, and Chinese.

3.4 SET UP

3.4.1 EXPOSURE

Exposure describes the brightness-related parameters,

which can be adjusted by BRIGHTNESS, EXPOSURE

MODE, GAIN, DWDR and ANTI-FLICKER.

EXPOSURE

BRIGHTNESS

EXPOSURE MODE

GAIN

DWDR

ANTI-FLICKER

BACK

GLOBAL

LOW

OFF

Figure 3-4 EXPOSURE

BRIGHTNESS

Brightness refers to the brightness of the image.

You can set the brightness value from 1 to 10 to darken

or brighten the image. The higher the value, the

brighter the image is.

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, or BLC.

GLOBAL

GLOBAL refers to the normal exposure mode which

performs exposure according to the whole image

brightness.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensates light for the

front object to make it clear, but this may cause the

over-exposure of the background, where the light is

strong.

When BLC is selected as the exposure mode, the BLC

level can be adjusted from 0 to 8.

GAIN

It optimizes the clarity of the image in poor light

conditions. The GAIN level can be set as HIGH,

MEDIUM, or LOW. Select OFF to disable the GAIN

function.

Note:

The noise will be amplified, when the GAIN is on.

DWDR (Digital Wide Dynamic Range)

The DWDR helps the camera provide clear images even

under backlight circumstances. When both very bright

and very dark areas simultaneously exist in the image,

DWDR balances the brightness level of the whole image

to provide clear images with details.

Set the DWDR as ON to improve the image quality

under the backlight environment.

Set the DWDR as OFF to disable the function.

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION DS-2XE6252F-IS Bedienungsanleitung

HIK VISION

HIK VISION DS-2DF1-574D Bedienungsanleitung

HIK VISION

HIK VISION HiWatch HWI-D620H-Z Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE78U1T-IT1F Bedienungsanleitung

HIK VISION

HIK VISION Turbo HD D8T Series Bedienungsanleitung

HIK VISION

HIK VISION D8T Series Bedienungsanleitung

HIK VISION

HIK VISION Turbo HD D0T Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD6D54G1-IZS Bedienungsanleitung

HIK VISION

HIK VISION iDS-2CD7A G0-IZH Series Bedienungsanleitung

HIK VISION

HIK VISION AE-VC136T Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE56H1T-IT1E Bedienungsanleitung

HIK VISION

HIK VISION PanoVu PT Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16H0T-ITF Bedienungsanleitung

HIK VISION

HIK VISION Network Speed Dome Camera Bedienungsanleitung

HIK VISION

HIK VISION DS-2DF6223-CX Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16D0T-IR/IRP Bedienungsanleitung

HIK VISION

HIK VISION 5 Inch Network High Speed Dome Bedienungsanleitung

HIK VISION

HIK VISION DE4 Series Bedienungsanleitung

HIK VISION

HIK VISION UD.6L0201B2074A01 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD3086G2-IS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD1023G0-IU Bedienungsanleitung

HIK VISION

HIK VISION iDS-2CD71G0-IZS Series Bedienungsanleitung

HIK VISION

HIK VISION DeepinView DS-2XM6425G0/F Series Bedienungsanleitung

HIK VISION

HIK VISION PIR Series Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
