HIK VISION DS-2CD2012-I Benutzerhandbuch
Network Bullet Camera
UD.6L0201D008
5
A0
2
Q
u
ick Operation uide
Network Bullet Camera
·
··
·
Quick Operation uide
1
Thank you for purchasing our product. If there are any questions,
or requests, please do not hesitate to contact the dealer.
About This Document
This manual applies to DS-2CD2012-I and DS-2CD2032-I network
bullet camera.
This manual may contain several technical incorrect places or
printing errors, and the content is subject to change without notice.
The updates will be added to the new version of this manual. We
will readily improve or update the products or procedures
described in the manual.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the
performance or reliability of the security or signaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL
Certification does not cover the performance or reliability of the
security or signaling aspects of this product. UL MAKES NO
REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS
WHATSOEVER RE ARDIN THE PERFORMANCE OR RELIABILITY
OF ANY SECURITY OR SI NALIN RELATED FUNCTIONS OF THIS
PRODUCT.
Network Bullet Camera
·
··
·
Quick Operation uide
2
0400081021127
Network Bullet Camera
·
··
·
Quick Operation uide
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized
European standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC.
Network Bullet Camera
·
··
·
Quick Operation uide
4
2002/96/EC (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information
see: www.recyclethis.info.
Network Bullet Camera
·
··
·
Quick Operation uide
5
Table of Contents
1 Introduction .................................................................. 6
1.1 Overview .............................................................6
1.2 The Wiring ...........................................................7
2 Installation ................................................................... 8
Setting the Network Camera over the LAN .................. 10
4 Accessing via Web Browser ......................................... 16
Network Bullet Camera
·
··
·
Quick Operation uide
6
1Introduction
Overview
Figure 1-1 Bullet Camera
Overview
Table 1-1 Description
No. Description
1 Sun Shield
2 Back Box
3 rounding Screw
1
2
4
6
3
Network Bullet Camera
·
··
·
Quick Operation uide
7
No. Description
4 Adjustable Bracket
5 Mounting Base
6 Reset
The Wiring
Figure 1-2 Wiring
Please make sure that the power adapter is compatible with the
camera. It supports Power over Ethernet (PoE), and the standard
power supply is 12V DC.
Video Cable
Power Cable
Network Bullet Camera
·
··
·
Quick Operation uide
8
2Installation
Before you start, please verify the package contents are correct by
checking the items against the packing list, and make sure all the
components are included.
Wall mounting and ceiling mounting are selectable. We will take
ceiling mounting as an example to explain the installation steps in
this section.
Note: Please make sure that the ceiling is strong enough to
withstand three times the weight of the camera and the housing.
Steps:
1. Install the Camera
Secure the mounting base to the ceiling with the supplied P A4
screws.
Figure 2-1 Secure the Camera to the Ceiling
The Ceiling
Expansion Screw
Network Bullet Camera
·
··
·
Quick Operation uide
9
2. Adjust the Lens
1). Loosen the adjustable nut on the bracket.
2). Adjust the camera from pan direction which is
0~360°adjustable.
3). Adjust the camera from tilt direction which is
0~90°adjustable.
4). Rotate 0~360° to adjust the lens to the surveillance angle.
5). Tighten the adjustable nut to complete the installation.

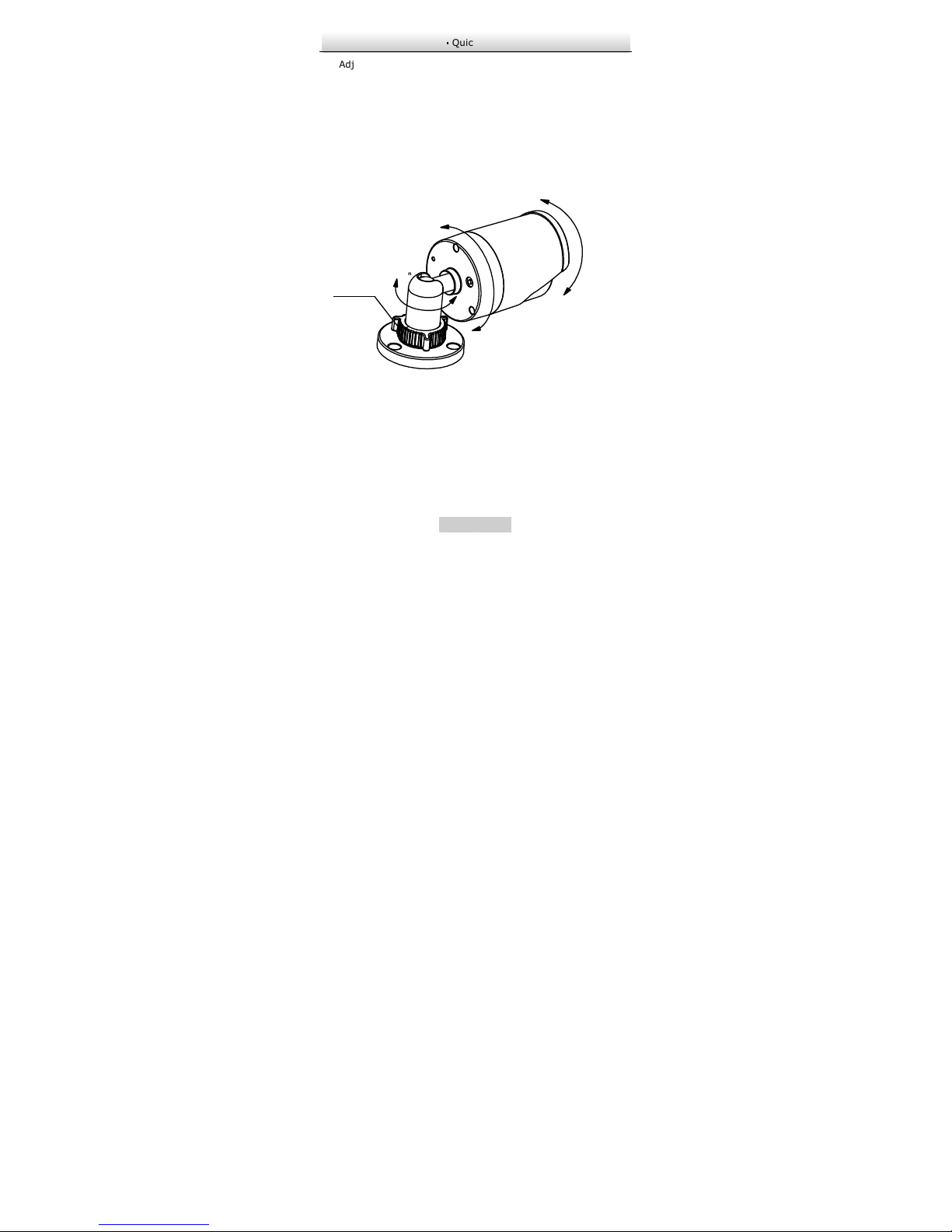

Figure 2-2 Three-axis Adjustment
Adjustable
Nut
T Direction
R Direction
P
Direction
