HIK VISION DS-2TD2466-50Y Bedienungsanleitung

Camera

Quick Start Guide

Anti-Corrosion

Thermal Network Bullet Camera

Quick Start Guide

Any and all information, including, among others, wordings,

pictures, graphs are the properties of Hangzhou Hikvision

Digital Technology Co., Ltd. or its subsidiaries (hereinafter

referred to be “Hikvision”). This user manual (hereinafter

referred to be “the Manual”) cannot be reproduced, changed,

translated, or distributed, partially or wholly, by any means,

without the prior written permission of Hikvision. Unless

otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to

the Manual.

About this Manual

This Manual is applicable to Anti-Corrosion Thermal Network

Bullet Camera.

The Manual includes instructions for using and managing the

product. Pictures, charts, images and all other information

hereinafter are for description and explanation only. The

information contained in the Manual is subject to change,

without notice, due to firmware updates or other reasons.

Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of

professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are

the properties of Hikvision in various jurisdictions. Other

trademarks and logos mentioned below are the properties of

their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,

THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE

AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND

ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A

PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD

PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS,

OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR

ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT

DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR

LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR

LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH

THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE

USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.

HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR

ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER

DAMAGES RESULTING FROM CYBER ATTACK, HACKER

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY

RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY

TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE

CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE

USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE

CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE

LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH

ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL

AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to

comply with the limits for Class A device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and

comply therefore with the applicable

harmonized European standards listed under the EMC Directive

2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked

with this symbol cannot be disposed of as

unsorted municipal waste in the European

Union. For proper recycling, return this product

to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collection points. For

more information see: www.recyclethis.info

2006/66/EC (battery directive): This product

contains a battery that cannot be disposed of

as unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling,

return the battery to your supplier or to a designated collection

point. For more information see: www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards

requirements.

Safety Instruction

These instructions are intended to ensure that user can use the

product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and

“Cautions”

Warnings: Serious injury or death may occur if any of the

warnings are neglected.

Cautions: Injury or equipment damage may occur if any of the

cautions are neglected.

Warnings

●Proper configuration of all passwords and other security

settings is the responsibility of the installer and/or

end-user.

●In the use of the product, you must be in strict compliance

with the electrical safety regulations of the nation and

region. Please refer to technical specifications for detailed

information.

●Input voltage should meet both the SELV (Safety Extra Low

Voltage) and the Limited Power Source with 24 VAC or 12

VDC according to the IEC60950-1 standard. Please refer to

technical specifications for detailed information.

●Do not connect several devices to one power adapter as

adapter overload may cause over-heating or a fire hazard.

●Please make sure that the plug is firmly connected to the

power socket. When the product is mounted on wall or

ceiling, the device shall be firmly fixed.

●If smoke, odor or noise rise from the device, turn off the

power at once and unplug the power cable, and then please

contact the service center.

Cautions

Warnings Follow these

safeguards to prevent

serious injury or death.

Cautions Follow these

precautions to prevent

potential injury or material

damage.

●Make sure the power supply voltage is correct before using

the camera.

●Do not drop the camera or subject it to physical shock.

●Do not touch sensor modules with fingers. If cleaning is

necessary, use clean cloth with a bit of ethanol and wipe it

gently. If the camera will not be used for an extended

period, please replace the lens cap to protect the sensor

from dirt.

●Do not aim the camera at the sun or extra bright places.

Blooming or smearing may occur otherwise (which is not a

malfunction), and affect the endurance of sensor at the

same time.

●The sensor may be burned out by a laser beam, so when

any laser equipment is in using, make sure that the surface

of sensor will not be exposed to the laser beam.

●Do not place the camera in extremely hot, cold (the

operating temperature shall be between -40° C ~ 65° C), ,

dusty or damp locations, and do not expose it to high

electromagnetic radiation.

●To avoid heat accumulation, good ventilation is required for

operating environment.

●Keep the camera away from liquid while in use.

●While in delivery, the camera shall be packed in its original

packing, or packing of the same texture.

●Regular part replacement: a few parts (e.g. electrolytic

capacitor) of the equipment shall be replaced regularly

according to their average enduring time. The average time

varies because of differences between operating

environment and using history, so regular checking is

recommended for all the users. Please contact with your

dealer for more details.

●Improper use or replacement of the battery may result in

hazard of explosion. Replace with the same or equivalent

type only. Dispose of used batteries according to the

instructions provided by the battery manufacturer.

●If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to

disassemble the camera yourself. (We shall not assume

any responsibility for problems caused by unauthorized

repair or maintenance.)

0504021070727

Table of Contents

1 Appearance Description .............................................................. 9

1.1 Camera Appearance..................................................... 9

1.2 Cable Description ......................................................... 9

2 Installation .................................................................................. 11

2.1 Wide Range Coverage for Different Specifications.. 12

2.2 Installing Camera ....................................................... 13

2.2.1 Wall Mounting .................................................. 13

2.2.2 Installing Junction Box.................................... 16

Installation of Network Cable Water-proof Jacket .. 20

3Setting the Network Camera over the LAN ............................. 23

3.1 Wiring .......................................................................... 23

3.2 Activating the Camera................................................ 24

3.2.1 Activation via Web Browser ............................ 24

3.2.2 Activation via SADP Software......................... 25

3.3 Modifying the IP Address........................................... 27

4Accessing via Web Browser ...................................................... 29

Appendix......................................................................................... 32

Frequently Asked Questions (FAQ).................................. 32

Device Running Error ................................................ 32

Device Upgrading...................................................... 32

Others ........................................................................ 32

Common Material Emissivity Reference ........................ 34

1Appearance Description

1.1 Camera Appearance

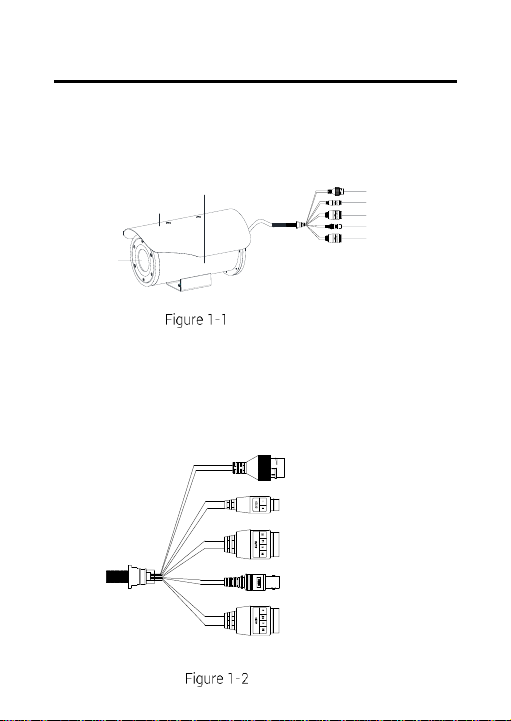

The overview of Anti-corrosion thermal network bullet

camera and its components are shown below:

Germanium

Glass Lens

Sun Shield

Camera Body Network Interface

Power Interface

Alarm Interface

BNC Interface

Audio Interface

Type I Camera Overview

1.2 Cable Description

The bullet camera cables, including power cable, coaxial

video cable, alarm cable, and audio cable are shown

below.

Audio Input Interface

Alarm Interface

Power Interface

BNC Interface

Network Interface

Cable Description

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION HiLook IPC-T250H Bedienungsanleitung

HIK VISION

HIK VISION DS-2XE62 2F-IS Series Bedienungsanleitung

HIK VISION

HIK VISION TurboHD H0T Series Bedienungsanleitung

HIK VISION

HIK VISION Explosion-Proof Bedienungsanleitung

HIK VISION

HIK VISION HWT-T110-P Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE59U7T-VPIT3ZF Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16C2T-IRP Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE12KF3T-LE Bedienungsanleitung

HIK VISION

HIK VISION UD04315B Bedienungsanleitung

HIK VISION

HIK VISION HiLook IPC-T240H Bedienungsanleitung

HIK VISION

HIK VISION DS-2CV2026G0-IDW Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE12DFT-PIRXOF28 Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD6267-100C4L/WY Bedienungsanleitung

HIK VISION

HIK VISION DS-2XS6A25G0-I/CH20S40 Bedienungsanleitung

HIK VISION

HIK VISION TurboHD H0T Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD6D44G1H-IZS Bedienungsanleitung

HIK VISION

HIK VISION US-5 Inch Speed Dome Bedienungsanleitung

HIK VISION

HIK VISION IDS-2CD7A46G0-IZHSY 8-32 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC12D8T-AMM Bedienungsanleitung

HIK VISION

HIK VISION UD04285B Bedienungsanleitung

HIK VISION

HIK VISION DS-2DF8836IX-AEL Bedienungsanleitung

HIK VISION

HIK VISION HiLook Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE1582N-IR Bedienungsanleitung

HIK VISION

HIK VISION DS-2TB2617-6/QA Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
