Honeywell Home RDWL915W2000 Betriebsanleitung
Installation and Operation Guide
Portable, Wired & Wireless Doorbell
English
French
Spanish
RDWL915W2000
Read before installing
A1
A2
B1
B2
AC1
AC2
Preparation
Doorbell
Wall
Anchors
Round Head
Screws
Phillips Screwdriver
Standard Screwdriver
Drill and 1/4 in. (6 mm) Drill Bit
4 C Alkaline Batteries
or
16V AC bell transformer
(Refer to Wiring diagram
section)
For installation, you will need
Content will vary according to your kit
Doorbell Wall
Mounting Bracket
for DW915 Models
Only
2
Safety
Before proceeding with the installation, please note the following safety
warnings:
• Always follow the manufacturer’s advice when using power tools and wear
suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
• Before drilling holes in walls, check for hidden electricity cables and water
pipes. The use of a cable/pipe locator is advisable if in doubt.
Install Doorbell
If you are not mounting the doorbell to the wall, place it where you want it.
1. Screw the doorbell wall mounting bracket
to the wall using the screws and anchors
included (if necessary).
Drill 1/4 inch holes for the anchors.
2. Hang the doorbell on the mounting bracket.

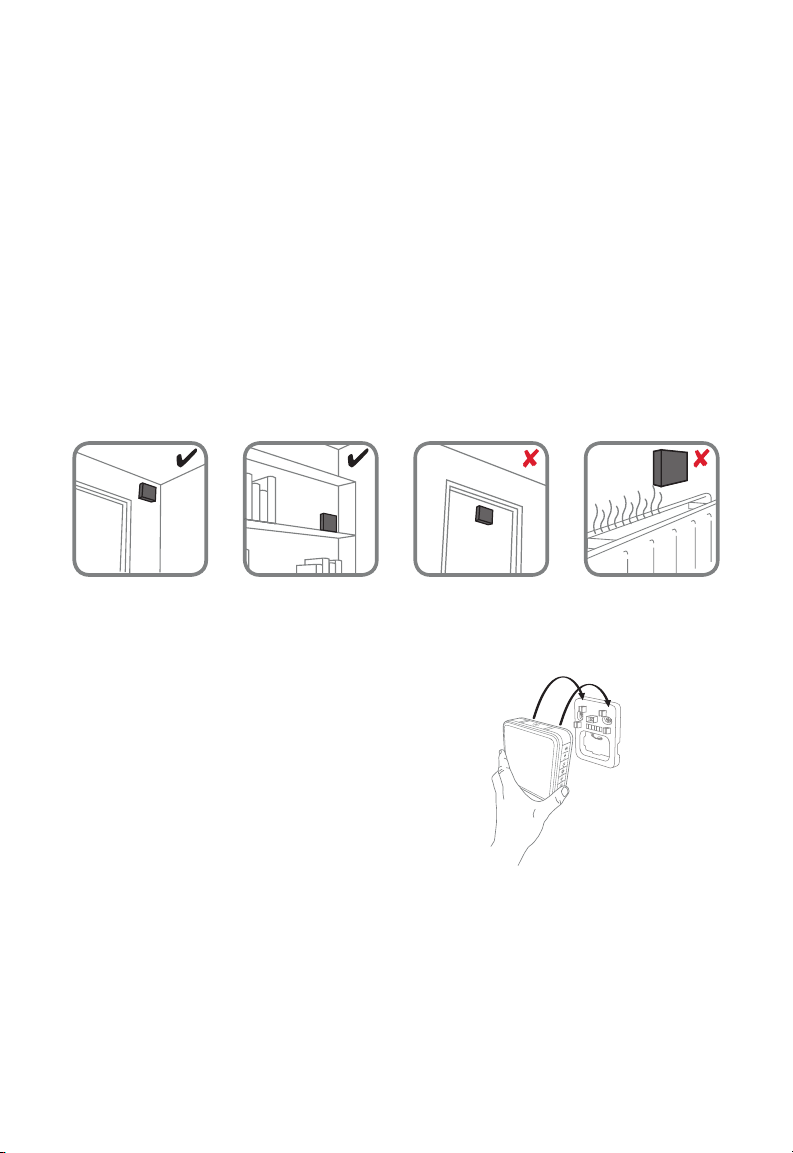

Installation
Choose a location that is not near a heat source or on something that moves
(like a door). For non-mounting locations, choose a place where the doorbell
will be easy to see and hear.
3

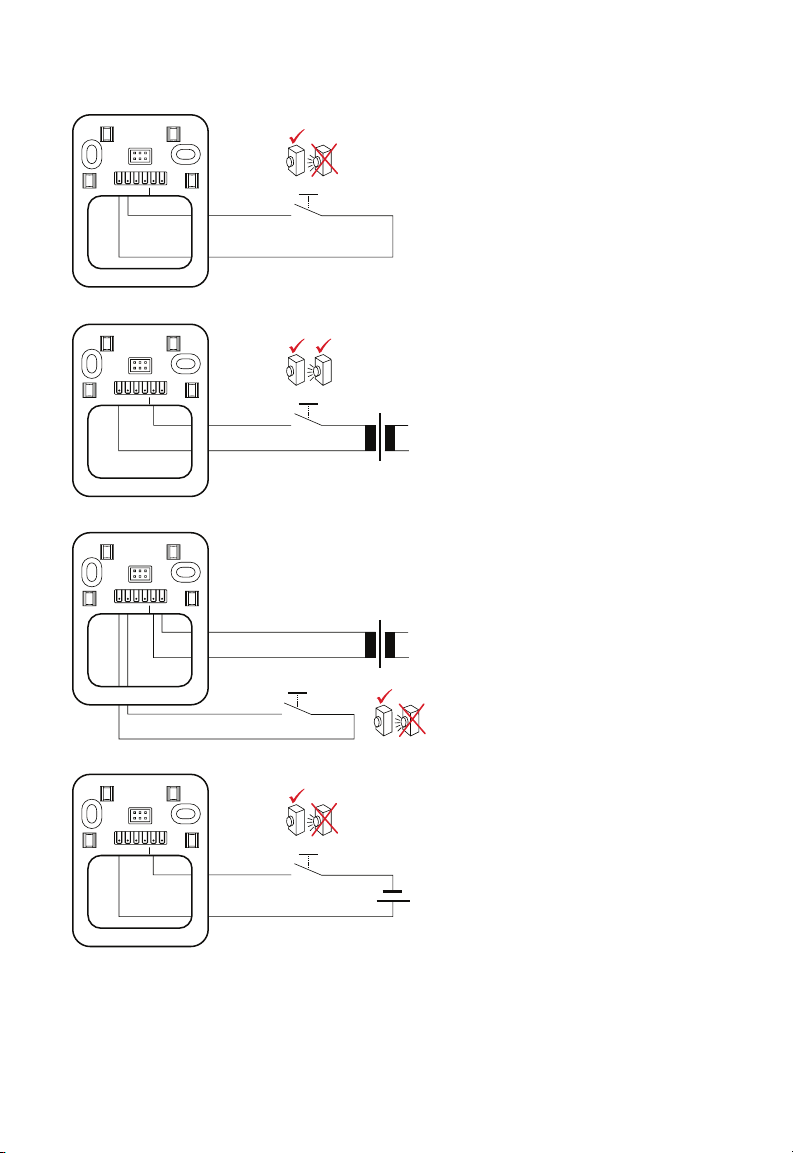

Wiring Diagrams
• Potential-free connection of a
wired doorbell button
• A second wired doorbell button
(terminals B1 & B2) can be
connected
• Batteries in chime must be
inserted
• Wireless expansion of a wired
doorbell/intercom system
• A second wired doorbell button
(terminals B1 & B2) can be
connected
• Batteries in chime must be
inserted
• Direct connection of a power
supply.
• A second wired doorbell button
(terminals B1 & B2) can be
connected
• Batteries for chime not required
• Wireless expansion of a wired
battery-powered chime (note the
polarity)
• Batteries in chime must be
inserted
A1
AC1
B2
B1
A2
AC2
A1
AC1
B2
B1
A2
AC2
A1
AC1
B2
B1
A2
AC2
-
+
A1
AC1
B2
B1
A2
AC2
8-16 VAC
8-16 VAC
110 V
110 V
4
Setup and Operation
Press the push button to test whether it is paired with the doorbell. The
doorbell will light up and ring. If it does not, see “Connect a Push Button” on
page 8.

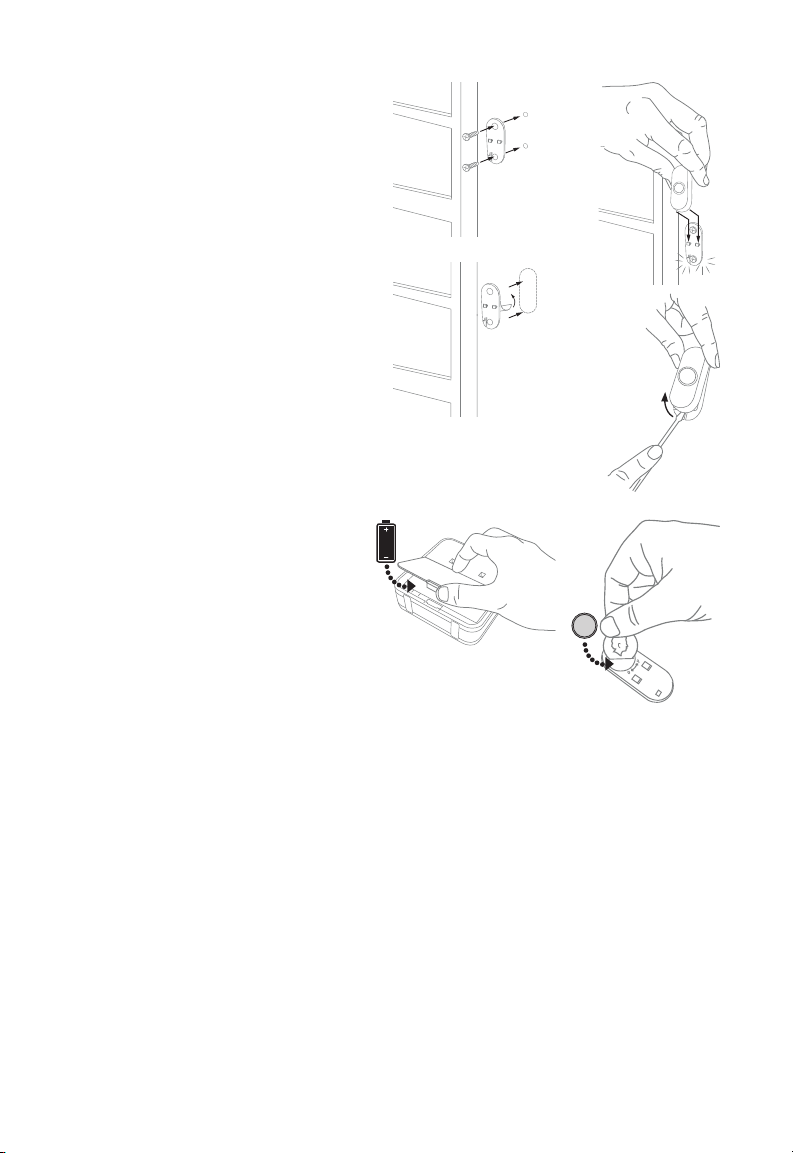

Install Batteries (optional)
1. Open the battery cover and
install 4 C alkaline batteries.
2. Open the battery cover and
install the CR2032 battery.
+
Install the wireless Push Button
(optional)
1. Mount the push button
bracket in the desired
location. Use the screws.
–OR–
Use the adhesive backing. If
using the adhesive backing,
clean the surface first.
2. Snap the push button onto
the mounting bracket.
–OR–
Note: If you need to remove the push button, use a small screwdriver
to release the tab.
5

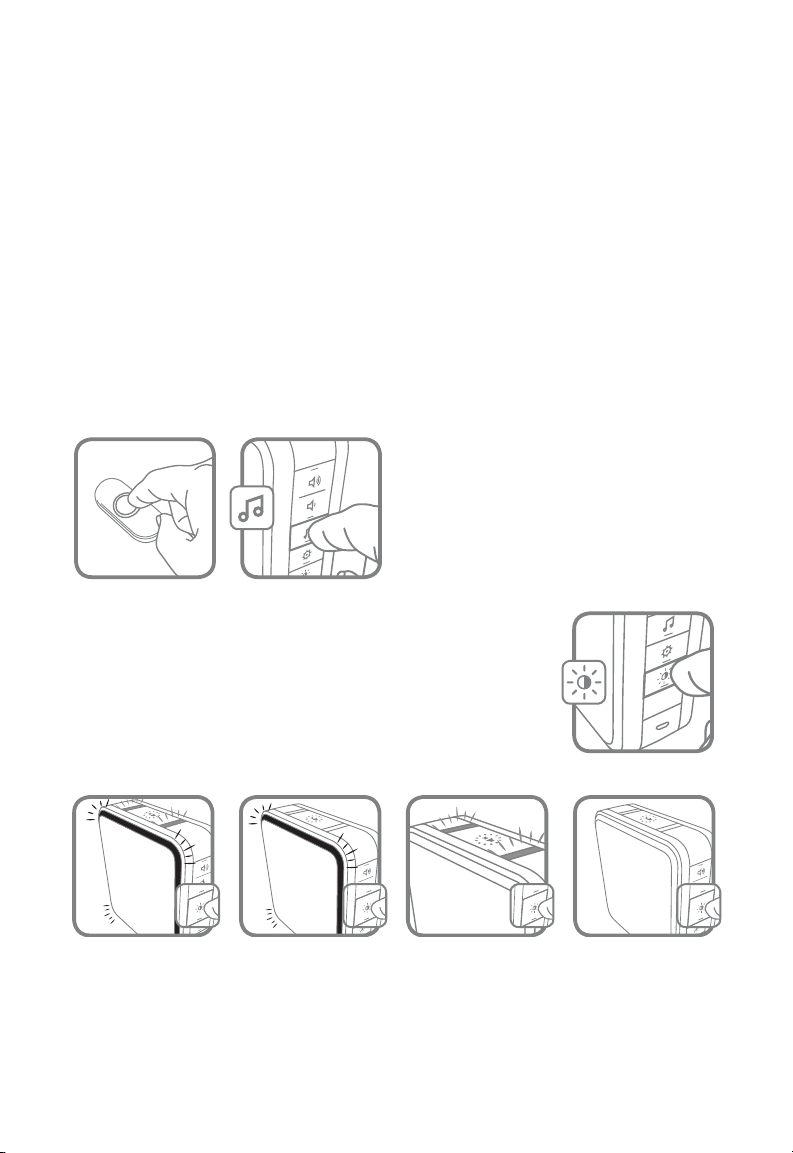

Change the Light Pattern
Press the Sunlight button to change the lights that ash
when the doorbell rings.
Press the Sunlight button.
1 time 2 times 3 times 4 times
Halo light and
top lights
Halo light
only
Top lights only No lights
Change the Tune
Press the Music button to change the doorbell tune.
Every time you press the Music button, the tune will change. Stop pressing the
Music button when you hear the tune you want.
If you have multiple push buttons paired with the chime, you can select the
melody for the last push button that was triggered.
Press the push button. (For any new wireless push button, ensure that it is
paired rst. Refer to “Connect a Push Button” on page 8.)
Within 12 seconds, press the melody selection button until the desired tune is
selected.
Ding Dong
Westminster
Piano
Fantasy
Marimba
Bell
Soft Alert
Smart Sax
Glocken
Clock-ding-dong
Contemporary
6
Adjust the Volume
Press the Volume Up or Volume Down buttons to adjust
the volume of the Doorbell.
Set the Mute
You can also mute the doorbell for specic amounts of
time. Press the Mute button.
Mute button shows Doorbell is mute
1 time doorbell is mute
2 times 3 hours
3 times 6 hours
Mute button shows Doorbell is mute
4 times 9 hours
5 times 12 hours
6 times no longer mute
Mute the Doorbell
Press the Mute button to silence the doorbell.
Change the Halo Light Colour
Press the push button.
Within 12 seconds, press the
Sunlight button.
Every time you press the Sunlight
button, the halo light will change
colour. Stop pressing the Sunlight
button when you see the colour
you want:
Light Blue
White
Red
Dark Blue
Green
Purple
Yellow
It is also easier to unmute the doorbell by pressing and holding the mute
button until it beeps.
7
Accessories
You can connect up to 5 accessories to your doorbell, including other push
buttons, and motion sensors.
If you try to connect more accessories than the max number, the doorbell will
sound two beeps.

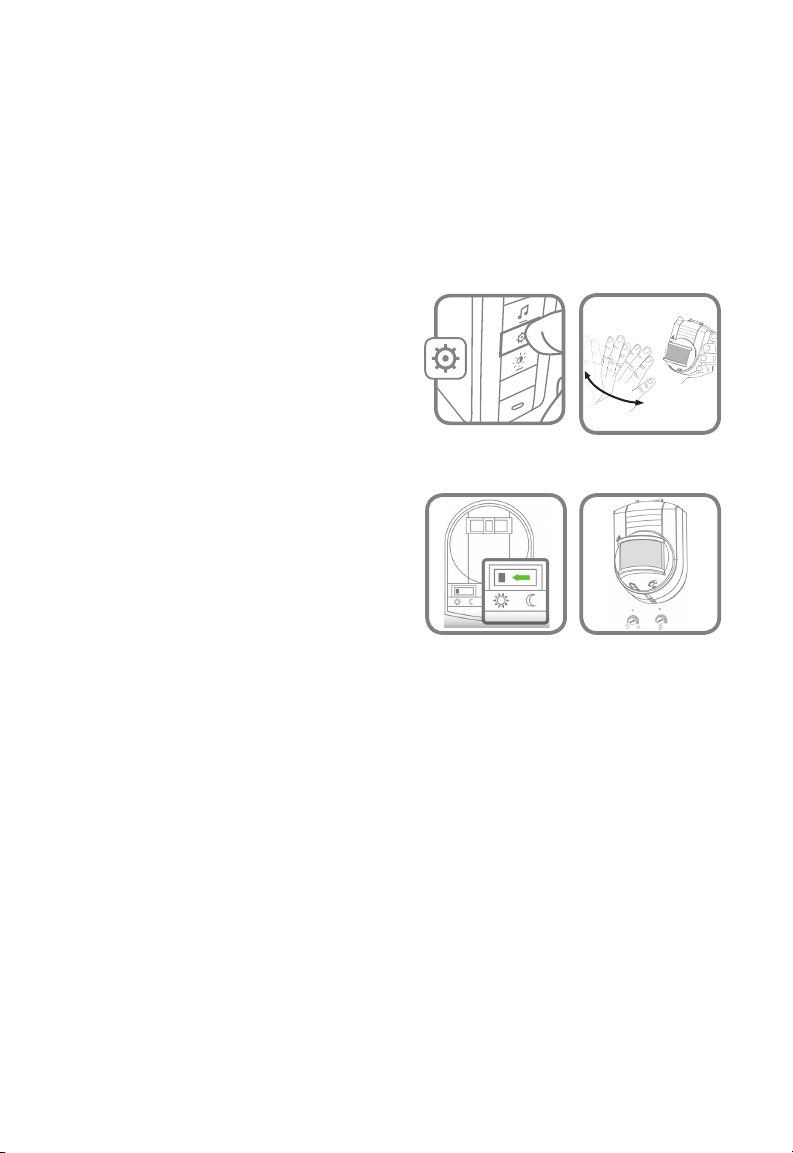

Connect a Motion Sensor
1. Press and hold the Setting button on
the doorbell for three seconds.
The halo light will circle.
2. Within 20 seconds of pressing the
Setting button, wave or make some
other kind of motion in front of the
motion sensor.
Before linking your outdoor motion
sensor, you will need to adjust its
settings:
Turn the Dusk control and Time control
fully anti-clockwise to its minimum
setting.
Ensure your sensor is in Day Mode. This
will be shown by the slider button being
in the left position (Sun symbol).
8
Connect a Push Button
Follow these steps to change the ring and halo light colour for an existing
doorbell, too.
1. Press and hold the Setting button
on the doorbell for three seconds.
The halo light will circle.
2. Press the push button.
3. Within 12 seconds of pressing the
push button, press the Music button
to select the ring for that push
button.
4. Within 12 seconds of pressing the
doorbell, press the Sunlight button
to select a halo light colour for that
push button.
Secret Knock
For each push button, you can set up a Secret Knock that has a different
ring and halo light colour. The Secret Knock is triggered by pressing the push
button quickly 3 times.
1. Press the push button 3 times quickly.
2. Within 12 seconds of pressing the push button, press the Music button to
select the ring for the Secret Knock.
3. Within 12 seconds of pressing the push button, press the Sunlight button
to select a halo light colour for the Secret Knock.
Built-In Range Extender Function
The series 9 range of doorbells have a built in range extender function,
meaning that when it receives a signal from a linked push button it will
automatically boost the signal in a 450 ft (137 m) diameter range.
The only condition will be to link the wireless push button or buttons to all the
chimes that are required to be triggered by the range extender.
9
Maintenance
Your doorbell and push button require no maintenance except periodically
changing the batteries.
If using the correct batteries, battery life should be approximately:
• Up to 5 years for the doorbell; replace with 4 C alkaline batteries
• Up to 2 years for the push button; replace with a CR2032 lithium battery
Low Battery Notification
When the doorbell batteries are low, the bottom edge of the halo light ashes
yellow every 6 seconds until the batteries are replaced.
When the push button batteries are low, two beep sounds are heard after the
normal tune.
Reset
This process removes all pairings, including the push button that came with
this doorbell:
1. Remove the doorbell batteries.
2. Press and hold the Setting button and replace the battery at the same
time.
3. The halo light will circle and the doorbell is returned to its default factory
settings.
Specications
Doorbell
Operating Temperature
Honeywell Home ActivLink™ 916.8 MHz
Up to 5 years
10
Troubleshooting
If Then
The doorbell does not work
1.
2.
correct polarity.
3.
4.
5.
6.
8.
the normal tune
the bottom edge
Range is reduced
1.
doorbell or doorbell push on or near metal structures.
2. Move the doorbell closer to the doorbell push button.
3.
*Under these scenarios the push button is considered the “transmitter”. Other examples of transmitters are the wireless motion
(PIR) sensor.
For help please visit honeywellhome.com or call 18006333991.
