Honeywell RCWL200A Bedienungsanleitung

Installation

Instructions

RCWL200A and RCWL210A

Portable Chime (51375SL; 51376SL) With Push (51381SL)

69-2112EFS-07

69-2112EFS_D.indd 1 12/10/2009 12:05:44 PM

Installation Instructions

69-2112EFS—07 ii

M27177

FLASHING LIGHT (FOR

RCWL210A ONLY)

VOLUME CONTROL

SWITCH

LED

PROGRAMMING

BUTTON

FLASHING LIGHT AND SOUND

SELECTION SWITCH (FOR

RCWL210A ONLY)

LED INDICATES

TRANSMITION

PUSH BUTTON

M27176

69-2112EFS_D.indd 2 12/10/2009 12:05:44 PM

RCWL200A and RCWL210A

1 69-2112EFS—07

• Chime

• Bellpush

• CR2032batteryforbellpush

• 2xscrewsforpush

• 2xwallplugs

• Adhesivepad

Youwillneed:

• 3XLR14Csize1.5VAlkaline

batteries

• A#1Philips-headscrewdriver

• Asmallflatbladedscrewdriver

• A1/4-in.(6mm)drillbit

Safety

Beforeproceedingwiththeinstallation,pleasenotethefollowingsafetywarnings:

• Alwaysfollowthemanufacturer’sadvicewhenusingpowertoolsandwear

suitableprotectiveequipment(e.g.safetygoggles)whendrillingholes,etc.

• Beforedrillingholesinwalls,checkforhiddenelectricitycablesandwaterpipes.

Theuseofacable/pipelocatorisadvisableifindoubt.

Batteries(batterypackorbatteriesinstalled)shallnotbeexposedtoexcessiveheat

suchassunshine,fireorthelike;dangerofdamageifbatteryisincorrectlyreplaced.

Replaceonlywiththesameorequivalenttype.

1. Checking Pack Contents

69-2112EFS_D.indd 1 12/10/2009 12:05:44 PM

Installation Instructions

69-2112EFS—07 2

2. Installing Batteries

+–

–

M27178

+–

LR14 C SIZE

M27182

CR2032

69-2112EFS_D.indd 2 12/10/2009 12:05:44 PM

RCWL200A and RCWL210A

3 69-2112EFS—07

3. Change Tune or Program New Push

Pressandreleaseprogrammingbutton,LEDwillilluminate,presspushbuttontohear

thetune.Presspushbuttonagaintohearanothertune.

Tosavethetuneselected,press

andreleaseprogrammingbutton.

Note:Pressingtheprogrambuttonformorethan15sec

willeraseallmemory.Followstep3tore-program.

M27145

M27183

69-2112EFS_D.indd 3 12/10/2009 12:05:44 PM

Installation Instructions

69-2112EFS—07 4

4. Install Back Cover Using Screws or Adhesive Pad Provided

TOP

M27184

Note:Beforefinalinstallationadjustdistanceandposi-

tionbetweenpushandchimetooptimizethechime

withinyourenvironment.Densewallsandmetalcan

reducerange.

Wall Type Range Reduction

Dry-linedpartitionwall 10–30%

Single-layerbrickwall 20–40%

Double-layerbrickwall 30–70%

Metalpanel/radiator 90–100%

69-2112EFS_D.indd 4 12/10/2009 12:05:44 PM

RCWL200A and RCWL210A

5 69-2112EFS—07

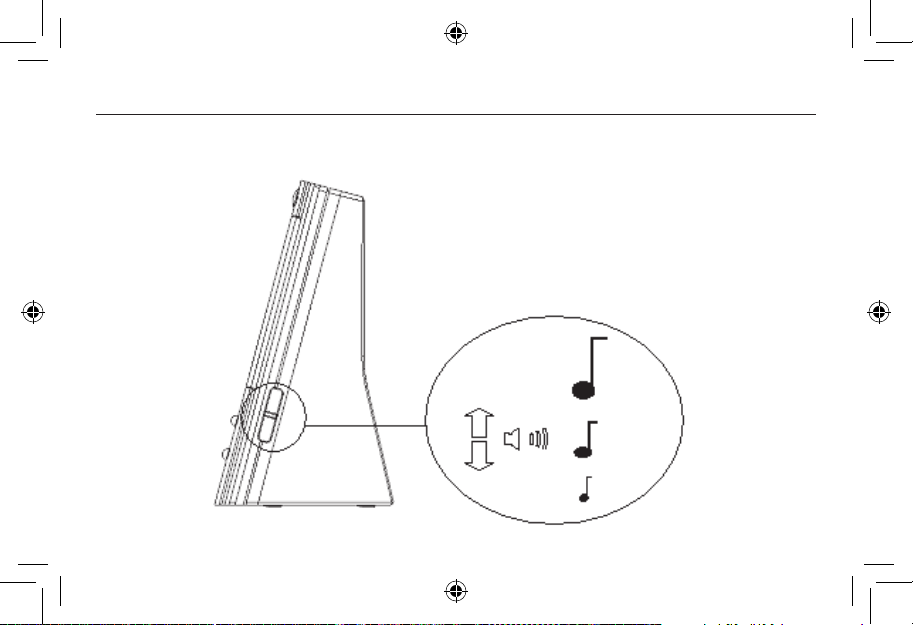

5. Volume Adjustment

69-2112EFS_D.indd 5 12/10/2009 12:05:45 PM

Installation Instructions

69-2112EFS—07 6

6. Strobe and Sound Selections

Lightandsoundselection(applicabletoRCWL210Aonly).

M27180

69-2112EFS_D.indd 6 12/10/2009 12:05:45 PM

RCWL200A and RCWL210A

7 69-2112EFS—07

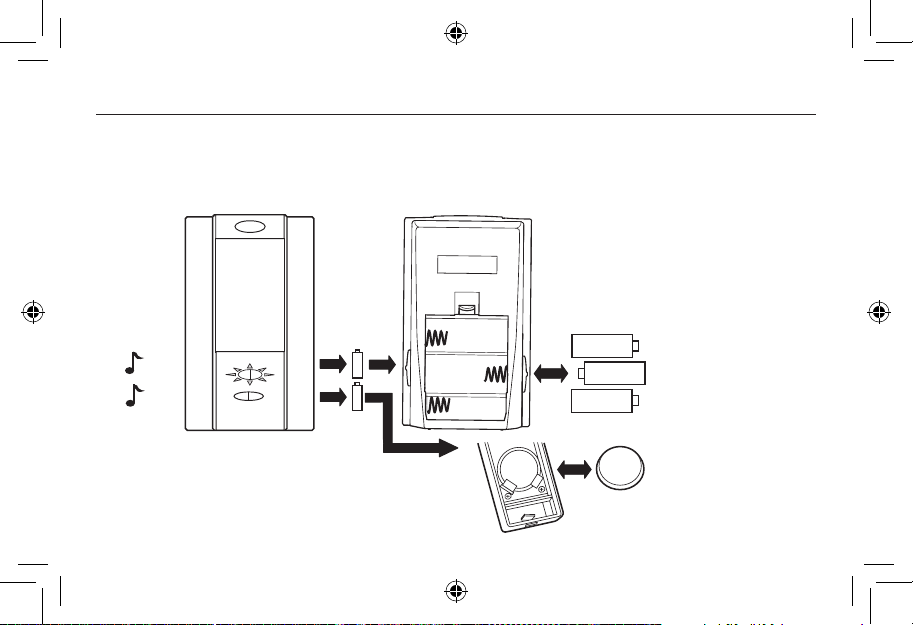

7. Low Battery Indication

Tune+2beeps+2LEDflashes=changebatteriesinchime.

Tune+3beeps+3LEDflashes=changebatteryinpush.

M27181

+–

–

+–

+BEEP2

+BEEP3

x 2

x 3

CR2032

69-2112EFS_D.indd 7 12/10/2009 12:05:45 PM

Installation Instructions

69-2112EFS—07 8

Specification Chime Bell Push

OperatingTemperature 32°Fto104°F

0°Cto+40°C 14°Fto104°F

-10°Cto+40°C

RFFrequency–US 345MHz 345MHz

Range(openfield) 200ft(61m)

SoundLevel(typical) 82dBA@3ft(1m)

RFPower <1mW

BatteryType LR14Csize CR2032

BatteryLife

(5operations/day) 12months 18months

WaterProof PassULraintest

Tunes

DingDong

4notesModern

8notesWestminster

SaxophoneSound

69-2112EFS_D.indd 8 12/10/2009 12:05:45 PM
