E529 Product Guide

Rev 2.0 3/20/2017 1

E529 Smart Digital Thermostat Product Guide

Table of Contents

Table of Contents .............................................. Page 1

Overview and General Concept......................... Page 2

Application......................................................... Page 3

Features ............................................................ Page 4

LCD Item Descriptions....................................... Page 5

Back and Bottom Features ................................ Page 6

Wireless Communication................................... Page 6

Installation ......................................................... Page 7

Placement.......................................................... Page 7

Mounting Instructions ........................................ Page 7

Technical Specifications .................................... Page 8

FCC Statement.................................................. Page 8

Document Revision History ............................... Page 9

E529 Product Guide

Rev 2.0 3/20/2017 2

Overview and

General Concepts

The E529.4G battery-operated wireless RF thermostat works in conjunction

with an HVAC controller partner such as an INNCOM X47 or X07.P to monitor

and maintain room temperature. The E529.4G has an onboard temperature

and optional humidity sensor to measure room temperature and humidity and

reports this information to the HVAC controller partner physically connected to

the room HVAC unit. The E529.4G has no onboard relays or HVAC control

logic to control the room HVAC unit. It can only measure temperature an

optionally humidity and report this to its HVAC controller partner.

The E529.4G has no IR Eye or S5-Bus installed and only communicates with

other devices via RF. The HVAC partner in the room must be equipped with a

Deep Mesh Layer-X radio, or S5 Bus connected to a radio equipped device

such as a PC502.4G. Appendix 4 shows typical installations using the

E529.4G. Figure 1 below shows a typical E529.4G installation.

Since the E529.4G has a user interface, it can also be used to configure in-

room devices that do not have a user interface such as an X47, PC502.4G or

X07.P. The E529.4G is routinely used as a commissioning tool.

Figure 1. Typical E529.4G Installation E529.4G

E529 Product Guide

Rev 2.0 3/20/2017 3

Application

In its most basic form, the battery powered e529 functions as a programmable

DDC thermostat, automatically adjusting fan speeds and valves to achieve set

temperature (Note: Guests can manually select heat or cool by pressing the

OFF/AUTO button and cycling through OFF, AUTO, HEAT and COOL). The

e528 is also an “intelligent” device capable of linking ancillary sensors and

serving as an information gateway. For example, coupled with a magnetic door

switch (wired or wireless), motion detectors, and other devices, the e528

becomes the brain of a highly effective Energy Management System (EMS)

application, communicating EMS information requirements to central servers. It

comes standard with five relays and can be equipped with a radio frequency

(RF) transceiver and Passive Infrared (PIR) motion detector.

The e529 interfaces with all common HVAC unit voltage configurations (24 volt

to 277 volt). The e529 can be installed in a wireless INNCOM guestroom

control system, which makes installation feasible and affordable in either new

construction or retrofit installations.

Through interfaces with other devices and sensors, the e529 supports the

following functions:

Remote HVAC control

•Guestroom HVAC diagnostics

•Remote room occupancy indication

•Automatic lighting control

•Remote mini-bar access reporting

•Remote smoke detector annunciation

•Central Electronic Lock control

•Humidity control

•Remote drape control

•Outside temperature display

•Peak demand load shedding

•Property/Building Management System (PMS/BMS) interface

E529 Product Guide

Rev 2.0 3/20/2017 4

Features

1. LCD Display

2. Up Arrow: Raises temperature or displayed

parameter value

3. °F/°C: Toggles temperature readings between

Fahrenheit and Celsius scales.

4. Down Arrow: Lowers temperature or displayed

parameter value

5. OFF/AUTO: In Auto mode, AUTO is displayed along

with the target (Set) temperature. The controller will

6. Fan: Forces the fan into a fixed speed. The first press sets

low (LO) speed, pressing again sets medium (MED), and

another press sets high (HI). The fan speed cycle begins

again with the next push

7. DISPLAY: Cycles the LCD between the Set (selected)

temperature and the measured Room temperature. [Outdoor

temperature may also be displayed if the system is networked

to a server or the Web broadcasting readings from an outside

sensor.].

8. ecoMODE®button (Optional Feature): Pressing this

button allows the guest to voluntarily enable ecoMode

which opens the un-occupied temperature control band

used by +/- 1 degrees (default value is 1 but can be

increased)

9. Passive Infrared (PIR) Motion Sensor

Figure 2. E529.4G Front Button

and Features Description

E529 Product Guide

Rev 2.0 3/20/2017 5

LCD Item Descriptions

1. Low Battery Indicator: Displays icon when AA Battery

voltage < 4 Volts

2. ecoMODE selected: Guest has pressed the green eco

button to place the room in ecoMODE

3. Room Entry Door Open: Appears when room entry

being monitored is open

4. Temperature Reading: Displays Set (target), Room

(measured), or (optionally, if networked to an exterior

sensor) Outside temperature. Press the DISPLAY

button to toggle between each

5. Temperature Scale: Displays temperature in Fahrenheit

(°F) or Celsius (°C)

6. Network Connection Status: The presence of this “dot”

indicates the room is online and connected to the

INNCOM server. NOTE: As of 6/2016 this feature

DOES NOT currently work if using a CBL32 Room

Gateway such as an E528.4G or PC502.4G. You will

NOT get a Dot on the E529 display. You must use the

E529 rUn2 WAN Test to check that the room is

connected to the network

7. HVAC Control Mode: AUTO displayed when HVAC

control is in AUTO Mode.

8. Fan Speed (LO, MED or HI): Displayed when FAN

button has been pressed to select a manual Fan

Speed.

9. Temperature Reading: Displays Set (target), Room

(measured), or (optionally, if networked to an exterior

sensor) Outside temperature

10. A “V” indicates the Value of a selected Parameter is

being displayed

11. A “P” indicates a Parameter# is being displayed

12. Room Balcony or Window Open: Appears when a

window or balcony door being monitored is open

Figure 3. LCD Features

E529 Product Guide

Rev 2.0 3/20/2017 6

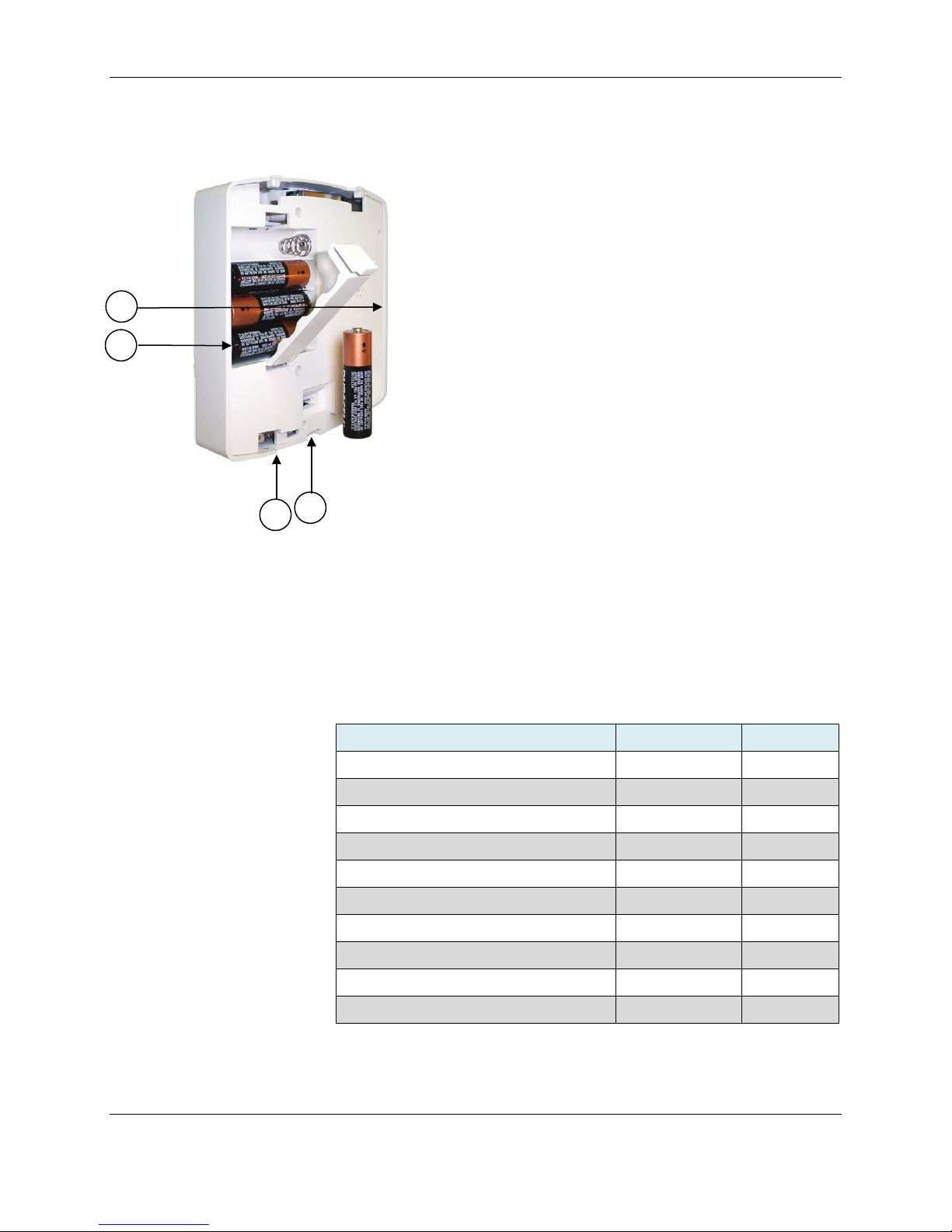

Back and Bottom Features

1. Battery Compartment: Holds 4 AA Alkaline Batteries

2. Programming Header: Provides the ability to upload

new software to the E529.RF to upgrade features

[NOTE: Used exclusively at the factory]

3. Light Sensor: Detects level of light in the room to be

used for energy management

4. ES-1 Key Header: Used to copy new software from the

ES-1 Key to the E529

Wireless Communication

2.4HHz Wireless RF

Table 1 E529.RF

Performance 0dB 20dB

RF Data Rate 250kbps 250kbps

Antenna Type SMT SMT

Indoor Range 70ft 100ft+

Outdoor/RF line-of-site range

540ft

1000ft+

Transmit Power 1mW 10mW

Receive Sensitivity -94.6dBm -94.6dBm

Frequency Band 2.4GHz 2.4GHz

Encryption AES-128 AES-128

Protocol 802.15.4 802.15.4

Frequency Channels

11-26

Figure 4.

E529 Product Guide

Rev 2.0 3/20/2017 7

Installation

CAUTION!

•The E529.4G is intended for indoor use only.

•The E529.4G installer must be a trained, experienced service

technician.

•All wiring must comply with local codes and ordinances.

•Failure to follow the instructions provided with the product could

damage the product or cause a hazardous condition.

Placement

Since the E529.4G has the sensor to measure room temperature, it should

be installed in a location that represents the desired room temperature. In

addition, select a location that minimizes exposure to conditions that interfere

with room temperature measurement, such as away from external doors or

windows and areas in direct sunlight.

RF is critical to the E529.4G’s operation, so placement of the device and

careful consideration of possible sources of radio interference are important.

For instance, the unit should not be placed close to floor or ceiling or near pipe

or other metallic items.

Mounting Instructions

1. Separate the E529.4G body and the mounting plate by pulling the bottom

of the mounting plate away from the E529.4G body and then pull the

mounting plate down. NOTE: If the back-mounting plate is rotated more

than 2 or 3 degrees, the plastic tabs at the top of the plate may fracture

or break off.

2. Attach the mounting plate to the wall or electrical box with the arrow

embossed on the mounting plate pointing upward. The E529.4G is

provided with four 6-32 ¾” sheet metal screws for mounting the plate to

an existing 4” × 4” electrical box. If attaching the mounting plate to

sheetrock or a similar wall surface, install four 6-8 × ¾ anchors. The four

holes on the mounting plate can be used to mark the location for the

anchors.

3. Install the four AA alkaline batteries (NOTE: Use alkaline batteries only)

provided into the battery compartment located on the rear of the

E529.4G. Depress the battery clamp latch at the top of the battery

compartment and then swing open the battery clamp. Insert the 4 AA

alkaline batteries, matching the “+” terminals on the batteries to the “+”

symbols in the battery compartment. Close the battery clamp and verify

the latch is securely fastened.

4. Verify that the E529.4G display is now showing information. At power ON

(ie inserting the 4 AA batteries), confirm all segments and characters are

displayed on the E529 LCD display. If the display is blank, verify that the

E529 Product Guide

Rev 2.0 3/20/2017 8

batteries are completely installed with the right polarities and that the

batteries are not dead. Just after startup the E529 will cycle through RF

Channels 26, 25, 24… all the way to 11 and send a 0x00061 Battery

Powered thermostat exchange message on each RF Channel looking for

a reply from an HVAC thermostat partner with the same Room ID

currently stored in the E529.4G. You will typically not have the HVAC

partner configured yet. Just allow this process to continue until

completion. You will be configuring the actual Room ID and other

required parameters into the E529.4G later.

5. Hook the tabs at the top rear of the E529.4G housing into the matching

depressions at the top of mounting plate and rotate the bottom of the

E529.4G housing toward the wall until it snaps into the place on the

mounting plate. Secure the E529.4G housing to the mounting plate with

the two small screws provided with the E529.4G. The screws thread into

two small holes on the bottom of the E529.4G housing.

Technical Specifications

Table 7. Technical Specifications

FCC Statement

This equipment has been tested and found to comply with the limits for Class B

digital device, pursuant of part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the guarantee that

interference will not occur in a installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

•Consult the dealer or experienced radio/TV technician for help

Dimensions 4.7” W x 4.7” H x 1.2” D (119mm x 119nn x 30mm)

Operating Range 41ºF to 149ºF (5ºC to 65ºC)

Temperature ± 1ºF-60ºF to 85 ºF (± 5ºC-15ºC to 30ºC)

Power in Four AA Batteries

E529 Product Guide

Rev 2.0 3/20/2017 9

Document Revision History

REVISION

DATE ISSUED

REASON FOR CHANGE

First issue 26-Apr-2015

REV 2.0 30-Dec-2016 Reformat to HON branding

The material in this document is for information purposes only. The content and the product it describes are subject to change without notice.

Honeywell makes no representations or warranties with respect to this document. In no event shall Honeywell be liable for technical or editorial

omissions or mistakes in this document, nor shall it be liable for any damages, direct or incidental, arising out of or related to the use of this document.

No part of this document may be reproduced in any form or by any means without prior written permission from Honeywell.

Honeywell I 277 West Main Street I Niantic, CT 06357 I Phone: 1.860-739-4468 I www.INNCOM.com

Andere Handbücher für INNCOM E529

Inhaltsverzeichnis

Andere Honeywell Thermostat Handbücher

Honeywell

Honeywell Y9520Z Sundial RF2 Pack 5 Bedienungsanleitung

Honeywell

Honeywell T834C Bedienungsanleitung

Honeywell

Honeywell TB7200 Series Gebrauchs- und Pflegehandbuch

Honeywell

Honeywell FocusPRO 5000 Series Montageanleitung

Honeywell

Honeywell HEAT PUMP THERMOSTAT T8411R Bedienungsanleitung

Honeywell

Honeywell PRO TH2000 Series Bedienungsanleitung

Honeywell

Honeywell RTHL2510C Bedienungsanleitung

Honeywell

Honeywell FocusPRO TH5110D Bedienungsanleitung

Honeywell

Honeywell TH8320ZW1000 Bedienungsanleitung

Honeywell

Honeywell RTH5160 Series Bedienungsanleitung

Honeywell

Honeywell RTH9590 Bedienungsanleitung

Honeywell

Honeywell RTH9600WF Bedienungsanleitung

Honeywell

Honeywell T8602C Bedienungsanleitung

Honeywell

Honeywell TB7220U Bedienungsanleitung

Honeywell

Honeywell THE ROUND Y460A2003 Bedienungsanleitung

Honeywell

Honeywell T498A Bedienungsanleitung

Honeywell

Honeywell T8600D Bedienungsanleitung

Honeywell

Honeywell Chronotherm modulation Bedienungsanleitung

Honeywell

Honeywell VisionPRO Series Bedienungsanleitung

Honeywell

Honeywell CT70A Bedienungsanleitung

Honeywell

Honeywell VisionPRO TB8220 Bedienungsanleitung

Honeywell

Honeywell CM702 Montageanleitung

Honeywell

Honeywell 69-1776EFS-01 Bedienungsanleitung

Honeywell

Honeywell T6811DP08 Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung

Aube Technologies

Aube Technologies TH305 Bedienungsanleitung

Powtier Controls

Powtier Controls 505MST Bedienungsanleitung

Kanmor

Kanmor Zone Control 369e Bedienungsanleitung
