HP Pro 3400 Series Gebrauchsanweisung

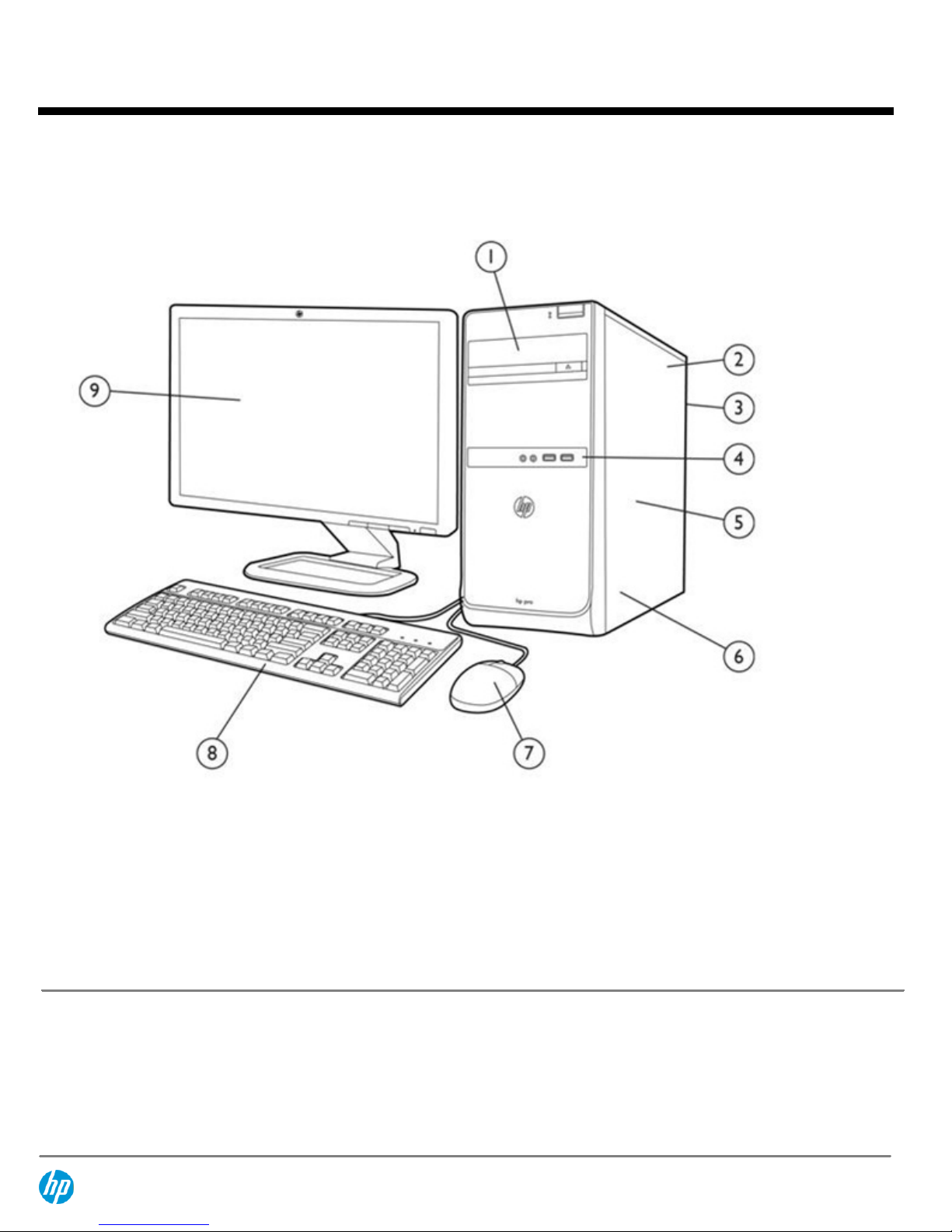

(1) external 5.25" drive bay

(3) PCIe x1 slots, (1) PCIe x16 slot, (1) miniPCIe slot

300 Watt Power Supply

USB Scroll Mouse

Rear I/O includes: (4) USB 2.0 ports, RJ-45 Ethernet Port, DVI-D

and VGA video Ports, microphone jack, audio in/out jacks (5.1

channel audio out)

HP USB Standard Value Keyboard

Front I/O includes: (2) USB 2.0 ports, dedicated headphone

Port, microphone jack

HP Monitor

(1) internal 3.5" hard drive bay

QuickSpecs

HP Pro 3400 Microtower Business PC

Overview (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 1

At A Glance

Genuine Windows® 7 Professional Edition (32- and 64-bit), Genuine Windows 7 Home Premium Edition (64-bit), Genuine

Windows 7 Home Basic Edition (64-bit), Genuine Windows 7 Starter Edition (32-bit), FreeDOS, or RedFlag Linux

Choice of Intel® Celeron™, Intel Pentium™ and Intel Core™ i3, Intel Core i5, and Intel Core i7 processors

Integrated graphics (Intel HD Graphics, Intel HD 2000 Graphics, Intel HD 3000 Graphics) based on processor

Intel H61 Express Chipset

Up to 8 GB DDR3 SDRAM system memory available standard (depending on model)

Up to 1 TB 3.0 Gb/s SATA hard drive

SuperMulti DVD Drive or DVD ROM Drive

Integrated Realtek RTL8171E Gigabit Ethernet Controller

(10) USB 2.0 ports, including (2) Front, (4) rear, (4) Internal

DVI-D and VGA video ports that support independent dual displays

HP Wireless NIC 802.11b/g/n Mini Card (1x1) (optional)

5.1 audio channels

Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.

QuickSpecs

HP Pro 3400 Microtower Business PC

Overview (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 2

Processors

(Availability

list is subject to change)

Intel Celeron (dual-core) Processors

Intel Celeron G540 Processor (2.5 GHz, 2 MB cache, 2C/2T)

Intel Pentium Processors

Intel Pentium G860 Processor (3.0 GHz, 3 MB cache, 2C/2T)

Intel Pentium G850 Processor (2.9 GHz, 3 MB cache, 2C/2T)

Intel Pentium G840 Processor (2.8 GHz, 3 MB cache, 2C/2T)

Intel Pentium G630 Processor (2.7 GHz, 3 MB cache, 2C/2T)

Intel Pentium G620 Processor (2.6 GHz, 3 MB cache, 2C/2T)

Intel Core i3 Processors

Intel Core i3-2130 Processor (3.4 GHz, 3 MB cache, 2C/4T, Turbo, HD 2000 Graphics)

Intel Core i3-2120 Processor (3.3 GHz, 3 MB cache, 2C/4T, Turbo, HD 2000 Graphics)

Intel Core i3-2105 Processor (3.1 GHz, 3 MB cache, 2C/4T, Turbo, HD 3000 Graphics)

Intel Core i3-2100 Processor (3.1 GHz, 3 MB cache, 2C/4T, Turbo, HD 2000 Graphics)

Intel Core i5 Processors

Intel Core i5-2500 Processor (3.3 GHz, 6 MB cache, 4C/4T, Turbo, HD 2000 Graphics)

Up to 3.7 GHz with Intel Turbo Boost Technology

Intel Core i5-2400 Processor (3.1 GHz, 6 MB cache, 4C/4T, Turbo, HD 2000 Graphics)

Up to 3.4 GHz with Intel Turbo Boost Technology

Intel Core i5-2320 Processor (3.0 GHz, 6 MB cache, 4C/4T, Turbo, HD 2000 Graphics)

Up to 3.3 GHz with Intel Turbo Boost Technology

Intel Core i5-2310 Processor (2.9 GHz, 6 MB cache, 4C/4T, Turbo, HD 2000 Graphics)

Up to 3.2 GHz with Intel Turbo Boost Technology

Intel Core i5-2300 Processor (2.8 GHz, 6 MB cache, 4C/4T, Turbo, HD 2000 Graphics)

Up to 3.1 GHz with Intel Turbo Boost Technology

Intel Core i7 Processors

Intel Core i7-2600 Processor (3.4 GHz, 8 MB cache, 4C/8T, Turbo, HD 2000 Graphics)

Up to 3.8 GHz with Intel Turbo Boost Technology

NOTE:

Intel processor numbers are not a measure of performance. Processor numbers differentiate

features within each processor family, not across different processor families.

QuickSpecs

HP Pro 3400 Microtower Business PC

Standard Features (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 3

Operating System

Preinstalled

Genuine Windows 7 Professional Edition (32-bit)

Genuine Windows 7 Professional Edition (64-bit)

Genuine Windows 7 Home Premium Edition (64-bit)

Genuine Windows 7 Home Basic Edition (64-bit)

Genuine Windows 7 Starter Edition

(32-bit)

FreeDOS

RedFlag Linux

* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the

Windows 7 software and take full advantage of Windows 7 functionality. See

http://www.microsoft.com/windows/windows-7/

for details.

** Restrictions exist for this operating system. It is not available in some countries and is not compatible

with some CPUs. Please check for availability.

Chipset

Intel H61 Express Chipset

Graphics

Integrated

Intel HD Graphics

Processor

Number

Core

Freq.

Max. Turbo

Boost

Integrated Graphics

G540

2.5 GHz

Intel HD Graphics

G860

3.0 GHz

Intel HD Graphics

G850

2.9 GHz

Intel HD Graphics

G840

2.8 GHz

Intel HD Graphics

G630

2.7 GHz

Intel HD Graphics

G620

2.6 GHz

Intel HD Graphics

i7-2600

3.4 GHz 3.8 GHz

Intel HD 2000 Graphics

i5-2500

3.3 GHz 3.7 GHz

Intel HD 2000 Graphics

i5-2400

3.1 GHz 3.4 GHz

Intel HD 2000 Graphics

i5-2320

3.0 GHz 3.3 GHz

Intel HD 2000 Graphics

i5-2310

2.9 GHz 3.2 GHz

Intel HD 2000 Graphics

i5-2300

2.8 GHz 3.1 GHz

Intel HD 2000 Graphics

i3-2130

3.4 GHz

Intel HD 2000 Graphics

i3-2120

3.3 GHz

Intel HD 2000 Graphics

i3-2105

3.1 GHz

Intel HD 3000 Graphics

i3-2100

3.1 GHz

Intel HD 2000 Graphics

QuickSpecs

HP Pro 3400 Microtower Business PC

Standard Features (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 4

System Memory

Memory Type

PC3-10600 (DDR3-1333) UDIMM Memory

Expansion Slots

Two (2) DIMM slots

Maximum Memory

8 GB

Standard Configurations

1 GB (1 x 1GB)

2 GB (1 x 2GB)

4 GB (1 x 4GB)

4 GB (2 x 2GB)

6 GB (1 x 2GB + 1 x 4GB)

8 GB (2 x 4GB)

* For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may

not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit

operating system.

Storage

Hard Drive (SATA)

3.5-inch, 7200 rpm, s SATA Hard Drive (NCQ, SMART IV):

250 GB

320 GB

500 GB

750 GB

1 TB

Optical Drive (SATA)

HP SATA 16X SuperMulti Drive

HP SATA 16X/40X DVD-ROM

Bays

Internal

One (1) 3.5-inch

External

One (1) 5.25-inch

QuickSpecs

HP Pro 3400 Microtower Business PC

Standard Features (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 5

Maximum Quantity Supported

Position Supported

Controller

Drive Support

SuperMulti DVD Drives

1 1

SATA

3.5" Serial ATA Hard Drives

1 3

SATA

Slots

# PCI Express x1 slots

# PCI Express x16 slots

# MiniPCIe slot

Communication

Realtek RTL8171E Gigabit Ethernet Controller

HP Wireless NIC 802.11b/g/n Mini Card (1x1) (optional)

QuickSpecs

HP Pro 3400 Microtower Business PC

Standard Features (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 6

USB Support

EHCI high-speed USB 2.0 controller

Ten (10) ports available:

(2) front ports

(4) rear ports (4) Internal

HP USB 3.0 4-Port SuperSpeed FH PCIe x1 Card (Optional)

Interfaces

One (1) DVI-D video port

One (1) VGA video port

One (1) RJ45 Ethernet port

One (1) audio in; 5.1 audio channel out; one (1) microphone in

Webcam

HP USB HD 720P Business Webcam - (Optional - Americas Only)

Displays

HP S1933 18.5" Monitor

HP Compaq LE2002x 20" Monitor

Audio

Realtek ALC656

Input Devices

Keyboard

HP USB Standard Value Keyboard

Mouse

HP USB Optical Mouse

Software

Preinstalled software

(varies by country)

Microsoft Office 2010 Home and Business Preloaded (purchase of a Product

Key required to activate a full Office 2010 suite)

Microsoft Office 2010 Professional Preloaded(purchase of a Product Key

required to activate a full Office 2010 suite)

Microsoft Office Starter 2010 Preloaded (purchase of a Product Key required

to activate a full Office 2010 suite)

Microsoft Windows Virtual PC - XP

Cyberlink PowerDVD

Cyberlink Label Print

Cyberlink Power 2 Go

Norton Internet Security 2012(60-day trial)

PDF Complete Special Edition

HP Power Assistant

HP ProtectTools Security Suite for SMB

HP SimplePass PE 2011

HP MyRoom

Xobni

Quicken Financial Center (SBSO version)

Customer Feedback Questionaire

QuickSpecs

HP Pro 3400 Microtower Business PC

Standard Features (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 7

HP Recovery Manager

HP Support Assistant (HPSA)

HP Vision Hardware Diagnostics

Vision Diagnostics

Newspaper Direct e-Reader

Skype Offer

Zinio e-Reader

Blio K-NFB Tech e-Reader

Kobo e-Reader

* Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel, unless a full

version suite is added to the configuration at additional cost. Purchase of Product Key required to activate

full Office 2010 suite available at participating resellers/retailers and

http://www.office.com

** Supporting software available with certain optical drive configurations.

Power Supply

300W regular Power Supply

Model

300W regular

Rated Voltage Range

100 - 240 VAC

115V/230V Line switch

N/A

Service and Support

On-site Warranty

Note 1

: 1-1-1, limited warranty delivers on-site, next business-day

Note 2

service for parts

and labor and includes free telephone support

Note 3

24 x 7. Global coverage

Note 2

ensures that any product

purchased in one country and transferred to another non-restricted country will remain fully covered

under the original warranty and service offering. One-year onsite and labor are not available in all

countries.

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other

warranty variations may be offered in your region.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized HP

third-party provider, and is not available in certain countries. Global service response times are based on

commercially reasonable best effort and may vary by country.

NOTE 3:

Technical telephone support applies only to HP-configured Compaq and third-party HP-qualified

hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs

HP Pro 3400 Microtower Business PC

Standard Features (availability varies by configuration and by country)

DA - 14119 North America — Version 8 — July 19, 2013

Page 8

Monitors

Part Number

HP LV1911 18.5-inch LED Backlit LCD Monitor

A5V72AA

HP LV2011 20-inch LED Backlit LCD Monitor

A3R82AA

HP LV2311 23-inch LED Backlit LCD Monitor

A6B85AA

QuickSpecs

HP Pro 3400 Microtower Business PC

After-Market Options (availability may vary by region)

DA - 14119 North America — Version 8 — July 19, 2013

Page 9

System Unit

Dimensions

(HxWxD)

14.49 x 6.50 x 15.31 in

368x 165 x 389mm

Weight

15.28 lbs ~15.83 lbs

6.932 kg ~7.18 kg

Packaging Dimensions

(LxWxH)

19.52 x 9.45 x 20.39 in

496x 240 x 518 mm

Shipping Weight

21.94 lbs ~22.49 kg

9.952 kg ~10.2 kg

Temperature

Operating

32° to 104° F (0to 40° C)

Non-operating

-22° to 149° F (-30° to 65° C)

Relative Humidity

Operating

10% to 90% (non-condensing at ambient)

Non-operating

5% to 95% (non-condensing at ambient)

Shock

Operating

40 G, half-sine

Non-operating

35G, T-Shock, 165 cm/sec half sine, 2-3 ms

Maximum Altitude

(unpressurized)

Operating

10,000 ft (3048 m)

Non-operating

30,000 ft (9144 m)

Environmental

TAA Compliant

Yes

For accessibility information on HP products, please visit:

http://www.hp.com/accessibility

Unit Environment and

Operating Conditions

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and

cold, to ensure that unit is operated within the specified operating range.

Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required airflow.

Never restrict airflow into the computer by blocking any vents or air intakes.

Do not stack computers on top of each other or place computers so near each other that they are

subject to each other's re-circulated or preheated air.

Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint,

dust and other foreign matter can block the vents and limit the airflow.

If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must

be provided on the enclosure, and the same operating guidelines listed above will still apply.

QuickSpecs

HP Pro 3400 Microtower Business PC

Technical Specifications

DA - 14119 North America — Version 8 — July 19, 2013

Page 10

Andere Handbücher für Pro 3400 Series

Inhaltsverzeichnis

Andere HP Desktop Handbücher

HP Compaq Presario Bedienungsanleitung

HP dc72 - Blade Workstation Client Montage- und Wartungsanleitung

HP Visualize b1000 Kurzanleitung

HP Compaq dx2000 MT Bedienungsanleitung

HP A6110n - Pavilion - 2 GB RAM Bedienungsanleitung

HP Chromebox G2 Montageanleitung

HP Compaq dc7100 DT Bedienungsanleitung

HP Xw4400 - Workstation - 2 GB RAM Bedienungsanleitung

HP Pavilion a200 - Desktop PC Bedienungsanleitung

HP Intel EtherExpress PRO 10+ ISA Bedienungsanleitung

HP Pavilion a700 - Desktop PC Bedienungsanleitung

HP Compaq Presario Bedienungsanleitung

HP Z1 G2 Montageanleitung

HP Pavilion t100 - Desktop PC Bedienungsanleitung

HP Z1 Bedienungsanleitung

HP EliteOne 800 G1 Bedienungsanleitung

HP Compaq Presario Handbuch

HP Xw4600 - Workstation - 2 GB RAM Gebrauchs- und Pflegehandbuch

HP Compaq dc5800 Bedienungsanleitung

HP Firebird VoodooDNA 803 Bedienungsanleitung

HP j6700 Anleitung zur Verwendung

HP Compaq Presario Kurzanleitung

HP 512424-001 Handbuch

HP ProLiant ML350e Bedienungsanleitung

Beliebte Desktop Handbücher anderer Marken

Asus

Asus E210 Series Bedienungsanleitung

Dell

Dell Inspiron 600m Bedienungsanleitung

Dell

Dell Inspiron 3662 Bedienungsanleitung

TotalFlow

TotalFlow uFLO Bedienungsanleitung

Logitech

Logitech MK320 Bedienungsanleitung

Dell

Dell XPS 730 H2C Bedienungsanleitung

Sony

Sony Vaio Series Bedienungsanleitung

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Bedienungsanleitung

Alto

Alto MD 250 Bedienungsanleitung

Lenovo

Lenovo ThinkCentre Edge 72 Handbuch

Lenovo

Lenovo ThinkStation D20 Handbuch

Arbor Technology

Arbor Technology FPC-7800 Series Bedienungsanleitung

Sony

Sony VAIO VGX-TP1 Series Bedienungsanleitung

Asus

Asus Eee Box B204 Bedienungsanleitung

Dell

Dell Optiplex 9010 All In One Bedienungsanleitung

Everex

Everex eXplora Bedienungsanleitung

Lenovo

Lenovo ThinkCentre M75e Bedienungsanleitung

Dell

Dell Alienware Area-51 R4 Bedienungsanleitung
