HUANUO HNCM20 Bedienungsanleitung
Monitor Desk Mount Instruction Manual
V3.0
Model: HNCM20
Thank you for choosing this HUANUO product! At HUANUO we
strive to provide you with the best quality products and services
in the industry. Please share your experience of our product
with others on www.huanuoav.com/reviews if you are satisfied.
Should you have any issues, please don't hesitate to contact us.
Telephone: 1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Website:
www.huanuoav.com
IMPORTANT SAFETY INSTRUCTIONS
• Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
contact our Technical Support line at 1-800-556-0533 or customer service at
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• The desk must be capable of supporting five times the weight of the monitor
and mount combined.

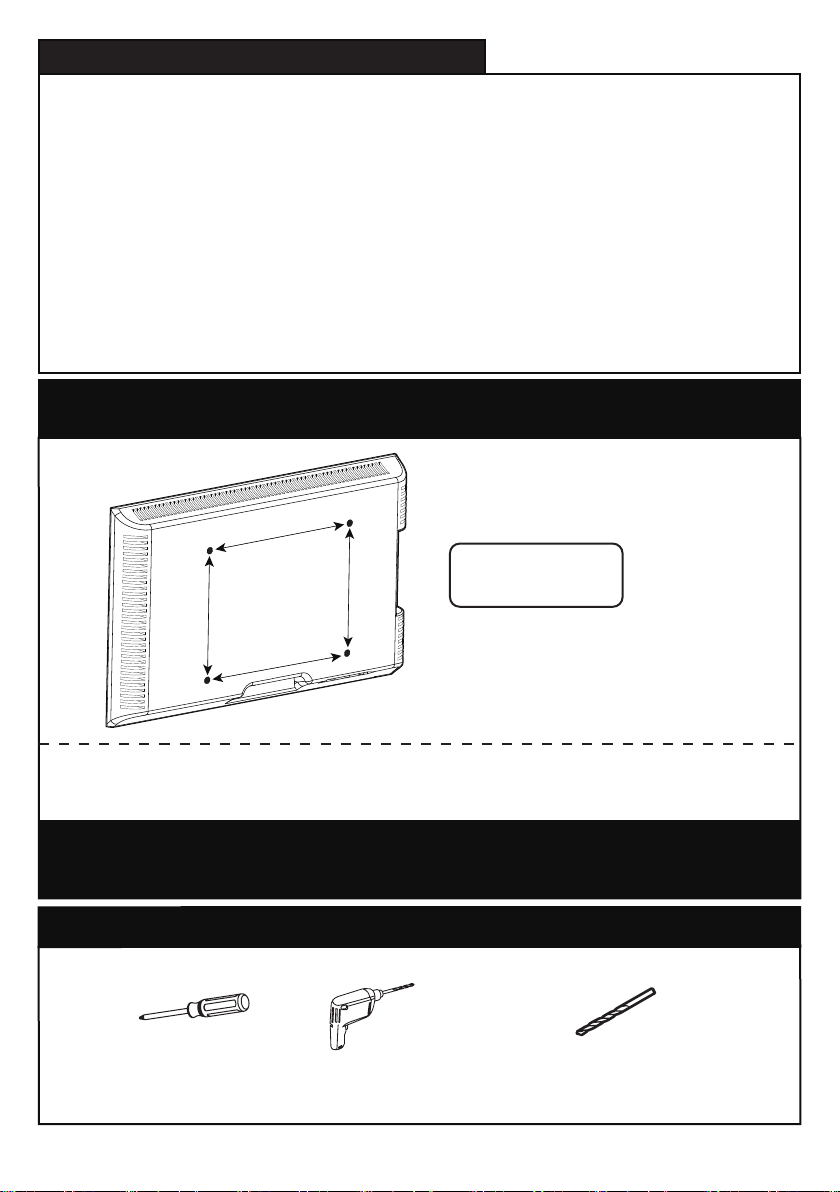

Check the VESA Pattern of Your Monitor beforeYouBegin the
Installation
If this desk mount is NOT compatible, please contact customer service
at [email protected] to find a compatible product.
If your monitor VESA is greater than 100x100 mm/4x4 in. or less than
VESA 75x75mm/3x3in., this mount is NOT compatible.
75 mm ≈ 3 in.
100 mm ≈ 4 in.
Minimum VESA pattern:
75mm/3 in.(W)x75mm/3 in.(H)
MAX:100
mm/4 in.
MAX:100
mm/4 in.
MAX:100
mm/4 in.
Tool Need（Not Included）
Phillips
Screwdriver Drill(Optional) 1/2 in.(13mm) - 1 in.(25mm)
Drill Bit (Optional)
01 02 03 04 05 06
Warning: This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, contact our
Product Support line at 1-800-556-0533 or customer service at
• Please note: Not all hardware included in this package will be used.
Supplied Parts and Hardware
5/32 in.(4mm)
Small Allen Key
C (x1)
13/64 in.(5mm)
Large Allen Key
D (x1)
Supplied Parts and Hardware for Step 2
Supplied Parts and Hardware for Step 3
Pole
01 (x1) C Clamp Plate
02 (x1) C Clamp Plate
03 (x1) Bolt
M6x10mm
A (x3)
Bolt
M8x10mm
B (x2)
Supplied Parts and Hardware for Step 1
Bottom Pad
05 (x1)
φ5.2Xφ12X1.5
Washer
F (x4)
Bolt
M4x12mm
TV1 (x8)
Bolt
M4x16mm
TV2 (x8)
Bolt
M5x12mm
TV3 (x8)
Bolt
M5x16mm
TV4 (x8)
L2.5 mm
Spacer
E (x16)
13/64 in.(5mm)
Large Allen Key
D (x1)
Cable Clip
06 (x1) Swivel Arm
07 (x1)
Supplied Hardware for Step 4
5/32 in.(4mm)
Small Allen Key
C (x1)
Supplied Hardware for Step 5
13/64 in.(5mm)
Large Allen Key
D (x1)
01 02 03 04 05 06
Step 1 Install the Pole to the Desktop
Option A: Desk Clamp Assembly
05
A
05
C
Small Allen
Key
03
01
B
D
02
Large
Allen Key
OR
19/32 in. - 3 5/32 in.
(15-80mm)
19/32 in. - 3 5/32 in.
(15-80mm)
15/32 in. - 1 31/32 in.
(12-50mm)
15/32 in. - 1 31/32 in.
(12-50mm)
01 02 03 04 05 06
Option B: Grommet Base Assembly
Step 2 Secure the Swivel Arm to the Pole
06
07
D
Large
Allen Key
Large
Allen Key
UP
If there is no grommet hole on
your desk, position the pole (01)
on the mounting surface and
mark the hole. Drill a hole using
the drill bit in a diameter of
7/16in.(11mm)-33/64in.(13mm)
at the marked position through
the mounting surface.
02b
02a
01
25/32 in. - 2 23/64 in.
(20-60mm)
7/16 in. - 33/64 in.
(11-13mm)
7/16 in. - 33/64 in.
(11-13mm)
02b
02a
01 02 03 04 05 06
HEAVY! You may need
assistance with this step.
Step 3 Secure the Moitors to Swivel Arms
Alternate
Spacer
Setups
Secure 2 pcs bolts into the
top VESA holes on the back
of the monitor manually.
Please keep about 0.2 in.(5mm)
spacing left for the two bolts.
4x4 in.(100x100mm)
TV1/TV2
TV3/TV4
3x3 in.(75x75mm)
E
(If needed)(If needed)
3 in. (75mm)x3 in. (75mm)
4 in.(100mm)x4 in.(100mm)
Phillips
Screwdriver
[Not Included]
0.2 in.(5mm) spacing left0.2 in.(5mm) spacing left
TV1/TV2
TV3/TV4
E
F
(If needed)(If needed)
01 02 03 04 05 06
Step 5 Cable Management and Angle Adjustment
Step 4 Adjust the Monitor Position
Turn the preassembled bolt [S]
clokwise or counter-clockwise to
adjust the monitor up or down
Slightly Adjust the Height of the Monitor
D
S
Large
Allen Key
Large
Allen Key
360°
360°
C
Small Allen
Key
Small Allen
Key
Slightly loosen the set bolt
to adjust the tilt angle and
tighten set bolt to hold the
tilt angle.
Tilt Adjustment
Tilt Adjustment
01 02 03 04 05 06
Thank you again for
choosing this HUANUO product!
All of us at HUANUO do appreciate your product purchase. We hope
that you are as happy with your product as we designing and
manufacturing it for you. We strive to provide you with the best quality
products and services in the industry. Please share your experience of
our product with others at www.huanuoav.com/reviews if you are
satisfied. If you have any questions please don't hesitate to contact us
at
Technical Support:
1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US/CA)
Please check
www.huanuoav.com
for more products and
company information.
