HUANUO HNCM5 Bedienungsanleitung

Thank you for choosing this Huanuo product! At Huanuo we

strive to provide you with the best quality products and

services in the industry. Please share your experience of our

product with others at www.huanuoav.com/reviews if you

are satisﬁed. Should you have any issues, please don't

hesitate to contact us.

Technical Support:

1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)

Other Info:

[email protected] (US/CA/DE/UK/FR/IT/ES/AU)

Website:

www.huanuoav.com

Model:HNCM5

Monitor Stand

Instruction Manual

Supplied Parts and Hardware

MAX:100

mm/4 in.

MAX:100

mm/4 in.

100 mm ≈ 4 in.

75 mm ≈ 3 in.

01 X1

02 X1

04 X1

IMPORTANT SAFTY INSTRUCTIONS

Check the VESA Pattern of Monitor Before the Installation

Please carefully read all instructions before attempting installation. If you do

not understand the instructions or have any concerns or questions, please

contact our customer service at [email protected]

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose that is not explicitly speciﬁed in this

manual. Do not exceed weight capacity. We are not liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

Minimum VESA pattern:75mm/3 in.(W)x75mm/3 in.(H)

If your TV VESA is greater than 100x100 mm/4x4 in. or less than

VESA 75x75mm/3x3in., this mount is NOT compatible.

If this mount is NOT compatible, please contact customer service at

[email protected] to ﬁnd a compatible mount.

Monitor Plate

Support Pillar Cable Clip Knob Grommet Plate

06 X1

Monitor Connector Base

Tools Required [Not Included]

Drill(Optional)

Note: If there isn’t a hole on your desk, you

can use a 0.47 in.-1.18 in.(12 mm-30mm)

drill to drill a hole. The drill is NOT included.

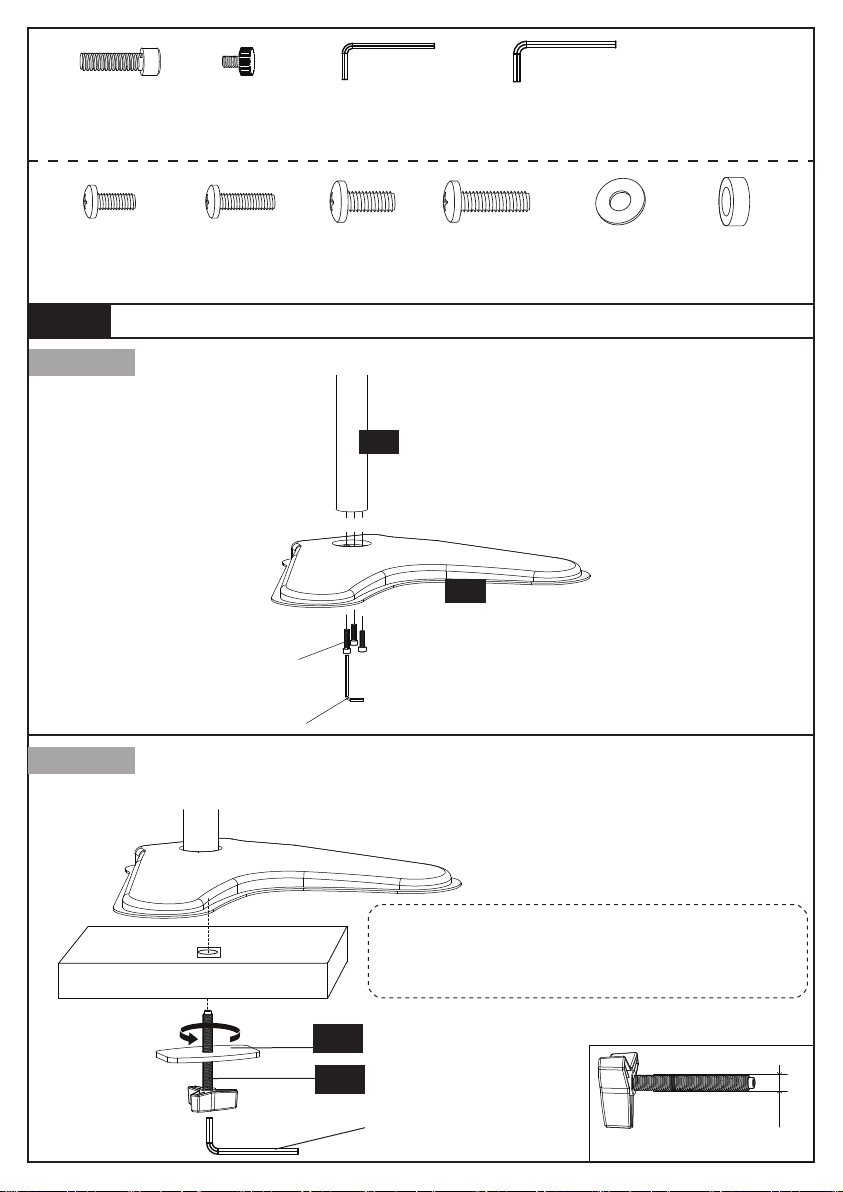

Secure the Support Pillar [04] to the Base [03]

Step 1

(A) X3 (B) X1

M4x12mm

M-A X4

M4x16mm

M-B X4

M5x12mm

M-C X4

M5x16mm

M-D X4

M-E X4 M-F X4

5/32 in.(4mm)

(D) X1

15/64 in.(6mm)

Bolt Bolt Allen Key Allen Key

Bolt Bolt Bolt Bolt Washer Spacer

Option A

Option B

Secure the support pillar [04] to the base [03] using bolts [A] and

Allen key [C]

Secure the support pillar [04] with base [03] to desktop using

grommet plate [07] and knob [06]

Dφ 3/8（10mm）

Step 2-1

Step 2-2

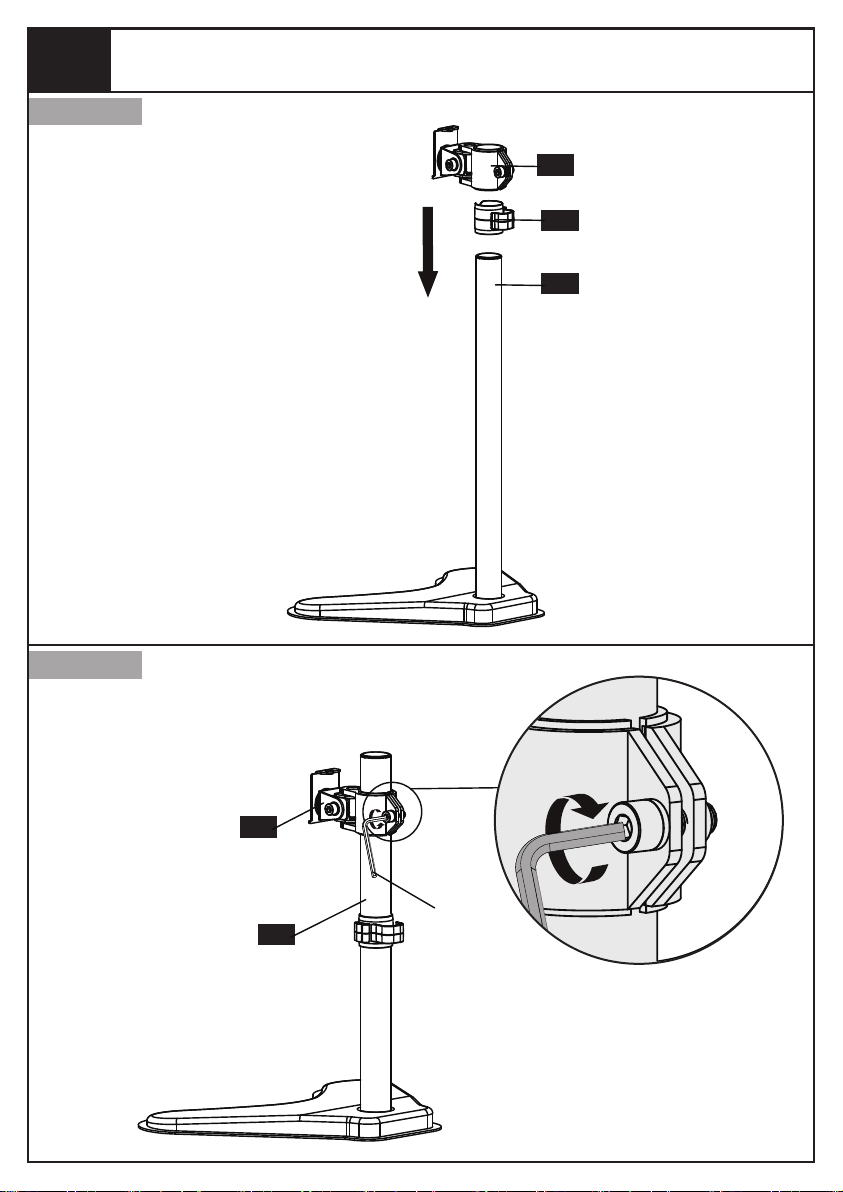

Secure Cable Clip [05] and Monitor Connector [02] in

Sequence to the Support Pillar [04]

Step 2

Slide the cable clip [05] and monitor connector [02] in sequence to

the support pillar [04].

Tighten monitor connector [02] to the support pillar [04] using

Allen key [D]

Attach the Monitor Plate to the Monitor

Step 4

Select Monitor Bolts

Step 3

M5M4

Only one bolt size ﬁts your monitor.

Bolt length:Verify adequate thread engagement with bolts or bolts/spacers

combination.We recommend thread engagement by at least 5 turns.

-Too short will not hold the monitor.

-Too long will damage the monitor.

M-A/M-C

M-E

FLAT BACK MONITOR

(UNIVERSAL MONITOR PLATE)

Hang Monitor to the Stand and Secure with Bolt [B].

Step 5

M-B/M-D

M-E

M-F

ROUND BACK MONITOR

(UNIVERSAL MONITOR PLATE)

(If Needed)

Fix Tilt Angle of the Monitor

Step 6

Manage Cables

Step 7

360°

Store Allen Keys into the Cable Clip

Step 8

Features

D 15/64 in.(6mm)

C 5/32 in.(4mm)

180°

Tilt
