Product Features / Produktmerkmale / Caractéristiques du produit /

Características del producto / Caratteristiche del prodotto / 製品の特徴

360°360° 180°

180°

+80°/-35°

Desk/Schreibtisch/

Bureau/Escritorio/

Stringere/デスク

Desk/Schreibtisch/

Bureau/Escritorio/

Stringere/デスク

Desk/Schreibtisch/

Bureau/Escritorio/

Stringere/デスク

Grommet Mounting / Befestigung mit Kabeldurchführung /

Montage par passe-câbles / Montaje con pasacables /

Montaggio con passacavo / グロメット式で取り付ける

C-Clamp Mounting / Befestigung mit C-Klemme /

Montage par pince en C / Montaje con abrazadera en C /

Montaggio con morsetto a C / Cクランプ式で取り付ける

01 02 03 04 05 06 07 08 09 10 11 12 13

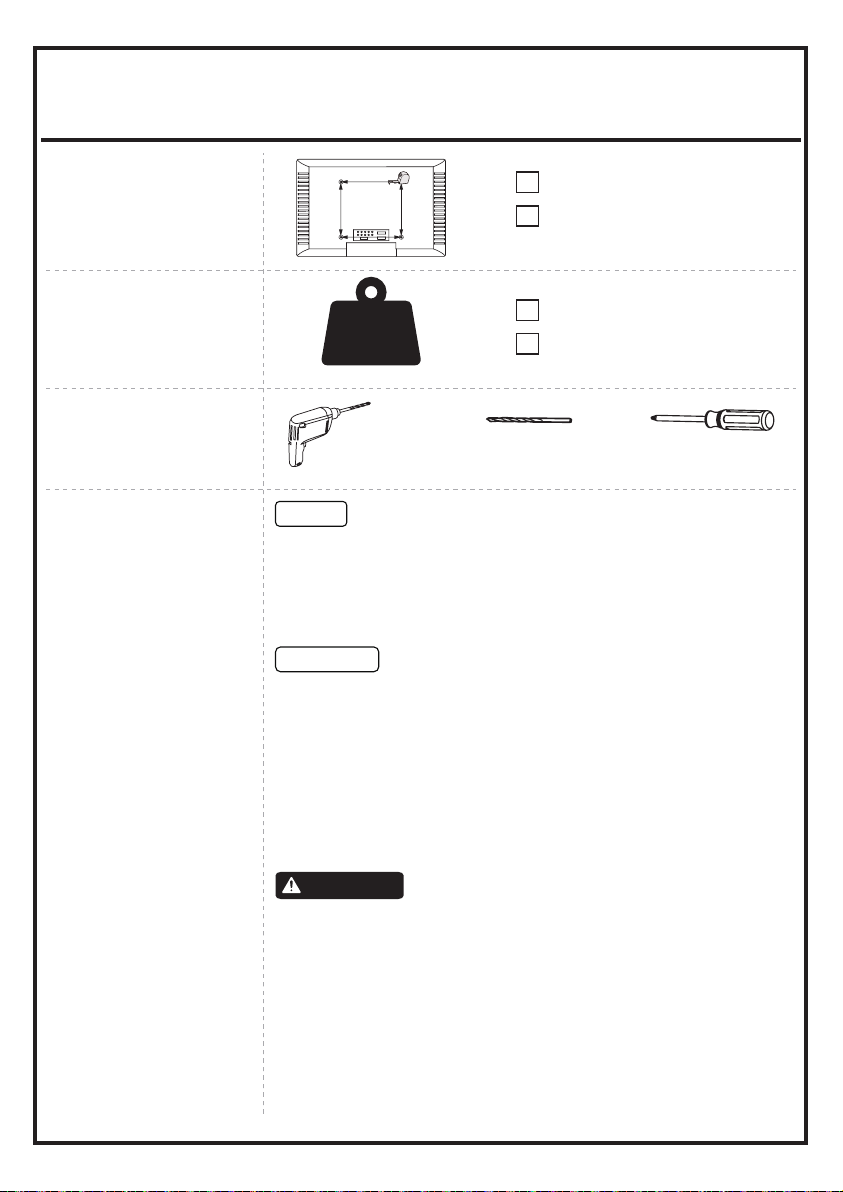

Tools Needed (NOT lncluded)

Before getting started,

let's make sure this mount is compatible.

19.8 lbs

(9kg)

Is the VESA pattern

of your monitor 75 x 75mm

x 3

″

) or 100 x 100mm

(3.9

x 3.9

″

Does your monitor

(including accessories)

weigh less than 19.8 lbs

(9kg)?

Tools Needed

(not included)

Important Safety

Information

Yes – Perfect!

No – This mount is NOT

compatible.

Yes – Perfect!

No – This mount is NOT

compatible.

Electric Drill

(optional)

7/16-7/8″ (11-22mm)

Drill Bit (optional)

Phillips Screwdriver

NOTE

• Please carefully read all instructions before attempting installation.

If you DO NOT understand the instructions or have any questions

or concerns, please call technical support or email customer

service.

• Not all hardware included in this package will be used.

• This product contains small items that may pose a choking

hazard.

• This product contains gas spring arms which are under high

pressure. Do not puncture these arms or expose the arms to fire

or flame. If this product is defective, please call technical support

or email customer service.

• Do not use this product on desks made of particle board or other

soft woods.

• The information contained in this manual does not cover all

possible conditions or variables in relation to the installation of

this product.

WARNING

Avoid personal injuries and property damage!

• DO NOT use this product for any purpose that is NOT explicitly

specified in this manual. DO NOT exceed weight capacity. We are

NOT liable for damage or injury caused by improper mounting,

incorrect assembly or inappropriate use.

• Before starting assembly, verify all parts are included and

undamaged. DO NOT use damaged or defective parts. lf you

require replacement parts, please call technical support or email

customer service.

CAUTION

01 02 03 04 05 06 07 08 09 10 11 12 13

DO NOT adjust tension without monitor attached.

1. Verify the weight of your monitor (including accessories) is between

4.4-19.8 Ibs (2-9kg)

2. Monitor weight information can be found within its box or manual.

3. Ensure monitor has been securely attached to the mount.

TENSION ADJUSTMENT SHOULD BE DONE ONLY

AFTER MONITOR INSTALLATION

Attention

WARNING:

• Gas spring arm is under pressure and should be handled with care.

• Failure to follow the instructions may result in damage to the mount

and/or personal injury.

Firmly hold the two halves of the spring arm together

and remove the cable tie from around the spring arm.

Slowly release the pressure on the spring arm and

allow it to gradually stretch to its full extension.

DO NOTremovethe cable tie from around the spring

arm if you are not holding the two halves of the spring

arm together.

Warning!

01 02 03 04 05 06 07 08 09 10 11 12 13

M6 x 12mm

Bolt

[C] x 4

Supplied Parts and Hardware for Step 1

Supplied Parts and Hardware for Step 2

Supplied Parts and Hardware for Step 3

C-Clamp

x 1

Pole Assembly

x 1

Decorative Cover

x 1

Arm

x 2

Cable Clip

x 2

Locking Plate

[E] x 1

M8 x 120mm

Grommet Bolt

[D2] x 1

Butterﬂy Nut

[D1] x 1

5/32″ (4mm)

Small Allen Key

[F1] x 1

5/32″ (4mm)

Small Allen Key

[F1] x 1

M4 x 12mm

Bolt

[A] x 8

M4 x 30mm

Bolt

[B-1] x 8

13mm

Spacer

[B-2] x 8

01 02 03 04 05 06 07 08 09 10 11 12 13

3/16″ (5mm)

Large Allen Key

[F2] x 1

M4 x 6mm

Bolt

[G] x 4

For desk thickness:

0.39-3.74″

(10-95mm) OR

For C-Clamp Mounting For Grommet Mounting

Skip to Page 06

Option A: For C-Clamp Mounting

Supplied Hardware for Step 4 and Step 7

Supplied Parts and Hardware for Step 8

Step 1 Install the Base

Cable Cover

x 2

For desk thickness:

0.39-3.74″

(10-95mm)

5/32″

(4mm)

02-Y 02-X 5/32″

(4mm) F1

02-X

CAUTION:

Ensure the bolts

are secured firmly.

01 02 03 04 05 06 07 08 09 10 11 12 13

Option B: For Grommet Mounting

Desk

CAUTION:

Ensure the

grommet bolt is

screwed securely

into the base.

OR OR

5/32″

(4mm)

5/32″

(4mm)

5/32″

(4mm)

02-Y

02-X

02-Y

02-X

02-Y

02-X

Desk

01 02 03 04 05 06 07 08 09 10 11 12 13

Desk

NOTE: If there is no

grommet hole on the

desk, you will need to drill

one. Mark the desired

location at least 2

″

(50mm) from the desk

edge. Drill the hole using

a 7/16-7/8

″

(11-22mm)

drill bit.

7/16-7/8

″

(11-22mm)

″

(50mm)

Desk

Electric Drill

(not included)

Drill Bit

(not included)

Step 2 Install the Arms

Desk

5/32″

(4mm)

03 03

CAUTION:

Ensure the bolts

are secured firmly.

01 02 03 04 05 06 07 08 09 10 11 12 13

Hand thread bolts into the threaded inserts on the back of your monitor to determine

which bolt (M4 x 12mm or M4 x 30mm) to use. A minimum of 4-5 turns into the

threading is required. Do not turn past the bottom of the hole.

For Flat Back Monitors

Choose the bolt and spacer configuration that fits your monitor type.

Thread in the top bolts, but do not tighten all the way yet.

For Curved Back Monitors

Only one

bolt size

fits the

monitor. M4 x 12mm M4 x30mm

Step 3 Hang the Monitors on the Mount

You may need to grip the plate

like a steering wheel to rotate.

B-1

B-2

01 02 03 04 05 06 07 08 09 10 11 12 13

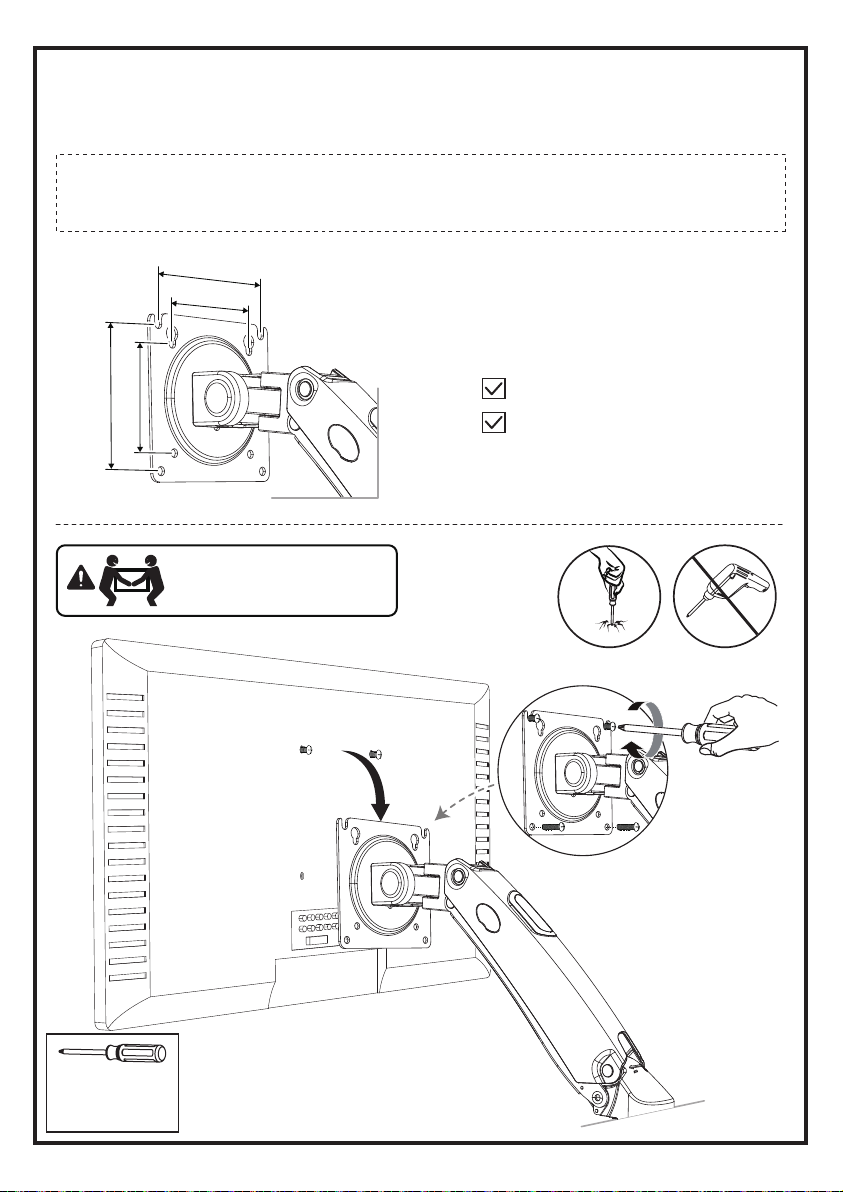

With the top bolts attached, hang the monitor onto the VESA plate using the top

100mm slots or 75mm holes. Thread in the bottom bolts, then firmly tighten all bolts

to secure the monitor to the mount arm.

100mm (3.9

″

)

100mm (3.9

″

)

75mm (3

″

)

75mm (3

″

)

HEAVY! You may need

assistance with this step.

75 x 75mm (3

x 3

″

)

For VESA hole pattern:

100 x 100mm (3.9

x 3.9

″

)

NOTE: Gas spring tension is preset at 8.8-11 lbs (4-5kg).

After hanging the monitor on the mount, release the monitor slowly so that it

doesn't suddenly fall.

Phillips

Screwdriver

(not included)

01 02 03 04 05 06 07 08 09 10 11 12 13
