Quidway® NetEngine 5000E Core Router OC-48c/STM-16c POS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://www.huawei.com/products/datacomm/ 1

Quidway® NetEngine 5000E Core Router

OC-48c/STM-16c POS Optical Interface Boards

Overview

The Quidway®NetEngine 5000E core router (hereinafter referred to as "NE5000E") provides

OC-48c/STM-16c POS optical interface boards with different port densities to connect with SDH

transmission equipment or other equipment. These boards can be installed in any service slot of

the NE5000E, and provide 2.5G transmission channels. As the NE5000E has16 service slots, and

each board can provide up to 8-port OC-48c/STM-16c POS interfaces and support multi-chassis

cascading, the whole system can provide high-density 2.5G POS interfaces.

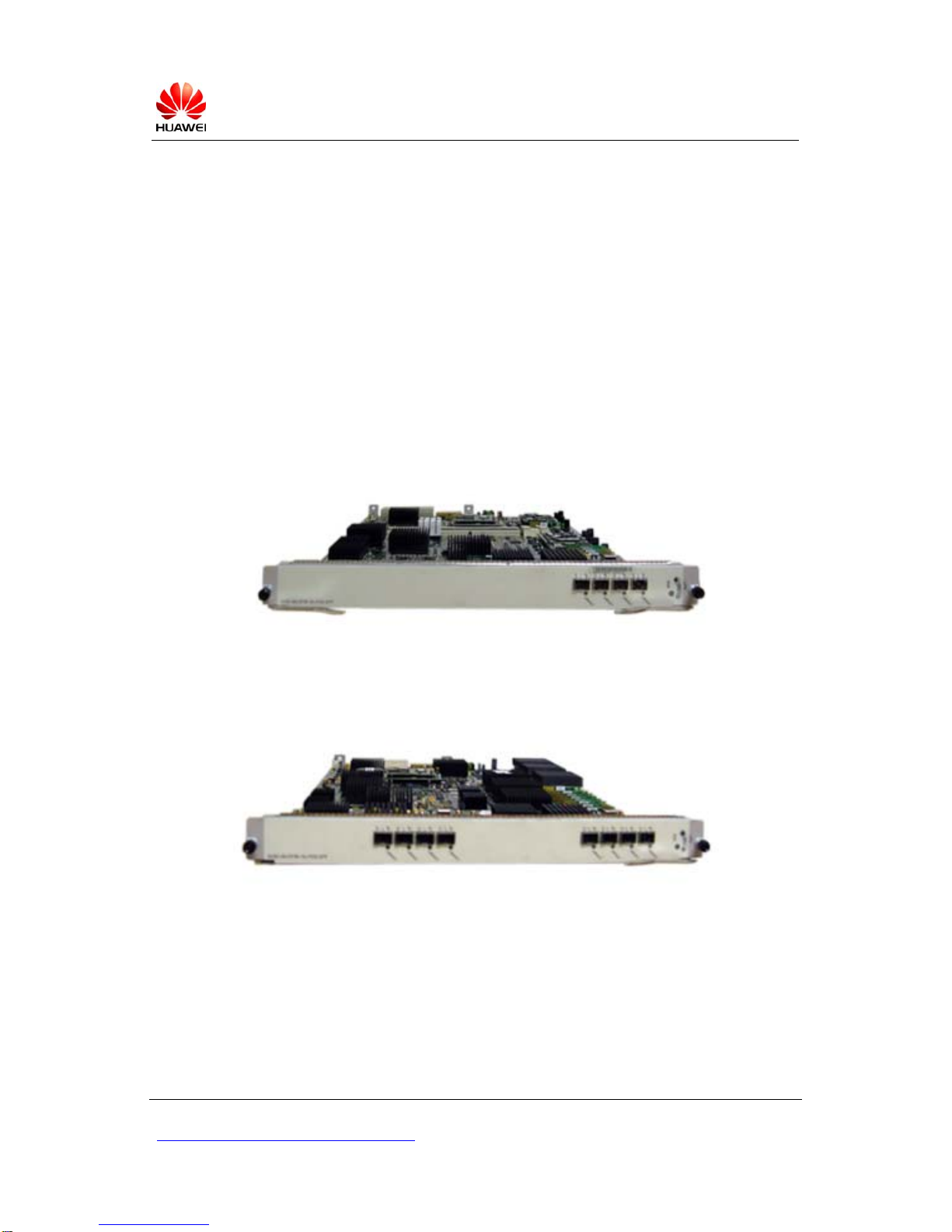

CR52K-4xPOS/STM16-SFP

CR52K-8xPOS/STM16-SFP

The OC-48c/STM-16c POS optical interface board mainly implements POS frame

encapsulation/decapsulation of data flows, SDH/SONET mapping/demapping of POS frames,

provides 2.5 Gbps external optical interfaces, and enables such functions as loopback,

environment monitoring and information query.

Quidway® NetEngine 5000E Core Router OC-48c/STM-16c POS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://www.huawei.com/products/datacomm/ 2

The OC-48c/STM-16c POS optical interface board is hot-pluggable. You can install or remove

interface boards while the NE5000E is powered on, without affecting services of other interface

boards. Hot-pluggable and plug-and-play SFP optical modules can be used on the

OC-48c/STM-16c POS optical interface board, achieving a rate of 2.5 Gbps. You can choose

optical modules with different transmission distances according to networking requirements.

Specifications

The NE5000E provides four types of OC-48c/STM-16c POS optical interface boards with different

port densities. The specifications are listed below:

Module name Interface type Description

CR52K-8xPOS/STM16-SFP LC 8-port 2.5G POS SFP optical interface board:

Different SFP optical modules can be chosen

for different transmission distances.

CR52K-4xPOS/STM16-SFP LC

4-port 2.5G POS SFP optical interface board:

Different SFP optical modules can be chosen

for different transmission distances.

CR52K-2xPOS/STM16-SFP LC

2-port 2.5G POS SFP optical interface board:

Different SFP optical modules can be chosen

for different transmission distances.

CR52K-1xPOS/STM16-SFP LC

1-port 2.5G POS SFP optical interface board:

Different SFP optical modules can be chosen

for different transmission distances.

The NE5000E supports the following four types of 2.5G POS SFP optical modules:

Interface rate 2.5 Gbps

Transmission distance 2 km 15 km 40 km 80 km

Center wavelength 1310 nm 1310 nm 1310 nm 1550 nm

Min. -10.0 dBm -5.0 dBm -2.0 dBm -2.0 dBm

Transmitting optical

power Max. -3.0 dBm 0.0 dBm 3.0 dBm 3.0 dBm

Receiving sensibility -21.0 dBm -21.0 dBm -30.0 dBm -30.0 dBm

Overload optical power -3.0 dBm 0.0 dBm -9.0 dBm -9.0 dBm

Fiber type Single-mode Single-mode Single-mode Single-mode

Quidway® NetEngine 5000E Core Router OC-48c/STM-16c POS Optical Interface Boards

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.

http://www.huawei.com/products/datacomm/ 3
