Huawei OptiX RTN 950A Bedienungsanleitung

HUAWEI TECHNOLOGIES CO., LTD.

OptiX RTN 950A Radio Transmission System

V100R010

IDU Quick Installation Guide (Indoor)

Issue: 01

Date: 2017-05-30

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: [email protected]

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees

or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Installation Process

Before You Start PrecautionsPage 2

Start

Instructions and

Precautions for

Handling Boards

Page 3

Instructions and

Precautions for

Handling Power

Cable Terminals

Page 4

Precautions for

Handling the Toggle

Lever Switch

Page 5

Introduction to the

RTN 950A

Equipment

Page 9

Installing the RTN

950A

Pages

11 to 17

Optional: Installing

the E1 Panel

Pages

17 to 18

Installing BoardsPage 19

Installing IDU

Cables

Pages

19 to 31

Checking the

Installation

Page 38

End

Installing Power

Cables

Pages

19 to 21

Installing PGND

Cables

Page19

Installing Ethernet

Service Cables

Page 23

Installing E1 Cables

Pages

21 to 22

Installing IF

Jumpers

Page 24

Installing XPIC

Cables

Page 23

Installing STM-1e

Cables

Page 26

Installing Fibers

Pages

25 to 26

Installing Orderwire

Phone Cables

Page 27

Installing NM

Cables

Pages

26 to 27

Installing

Asynchronous and

Synchronous Data

Cables

Page 29

Installing External

Clock Cables

Page 28

Cable Layout

Effectiveness

Page 31

Installing External

Alarm Cables

Page 30

Installing the

Chassis in the 19-

Inch Cabinet

Pages

10 to11

Installing the

Chassis in the

ETSI Cabinet

Pages

11 to 12

Wall-Mounting the

Chassis

Pages

12 to 14

Desk-Mounting the

Chassis

Page 15

Tools for InstallationPage 8

Precautions for

Handling IF Cables

Page 6

Precautions for

Handling IF

Jumpers

Page 6

Precautions for

Handling IF Boards

Page 7

Commissioning Process

Powering On the

Equipment

Page 35

Start

Configuring the NE

Data (by Using the

USB Flash Drive)

Page 36

Configuring the NE

Data (by Using the

Web LCT / Hand-

Held Tool)

Page 37

Aligning the

Antennas

Pages

38 to 40

Checking the Radio

Link Status

Page 40 Aligning the Dual-

Polarized Antennas

Pages

39 to 40

Aligning the Single-

Polarized Antennas

Pages

38 to 39

End

Precautions

This document provides quick guidelines for hardware installation.

This document does not describe pre-delivery assembly. This document describes only procedures for

onsite installation.

Electrostatic Discharge

Wear ESD gloves or an ESD wrist strap prior to contact

with the equipment or before handling the plug-boards,

boards, and IC chips to prevent damage to sensitive

components caused by electrostatic discharge from the

human body. Ensure that the other end of the ESD wrist

strap is properly grounded.

Binding Cables

Binding intervals between cable ties or optical fiber binding straps inside the cabinet cannot exceed 250

mm. (The distance cannot exceed 200 mm for user cables).

Binding intervals between cable ties for all cables and corrugated pipes outside the cabinet are

determined according to the distance between the two horizontal beams. If the cable trough does not

contain any beams, the binding intervals between cable ties cannot exceed 250 mm.

Pre-installation Check

Check the telecommunications room, cabinet, power supply, ground wires, optical cables, and

associated facilities prior to installation. Start the installation according to the engineering design

documents after verifying that conditions are met.

NOTE

CAUTION

Power Supply

The equipment uses a -48 V/-60 V DC power supply. An AC power supply or a high-voltage power

supply may cause equipment damage or even human injuries and therefore is forbidden.

CAUTION

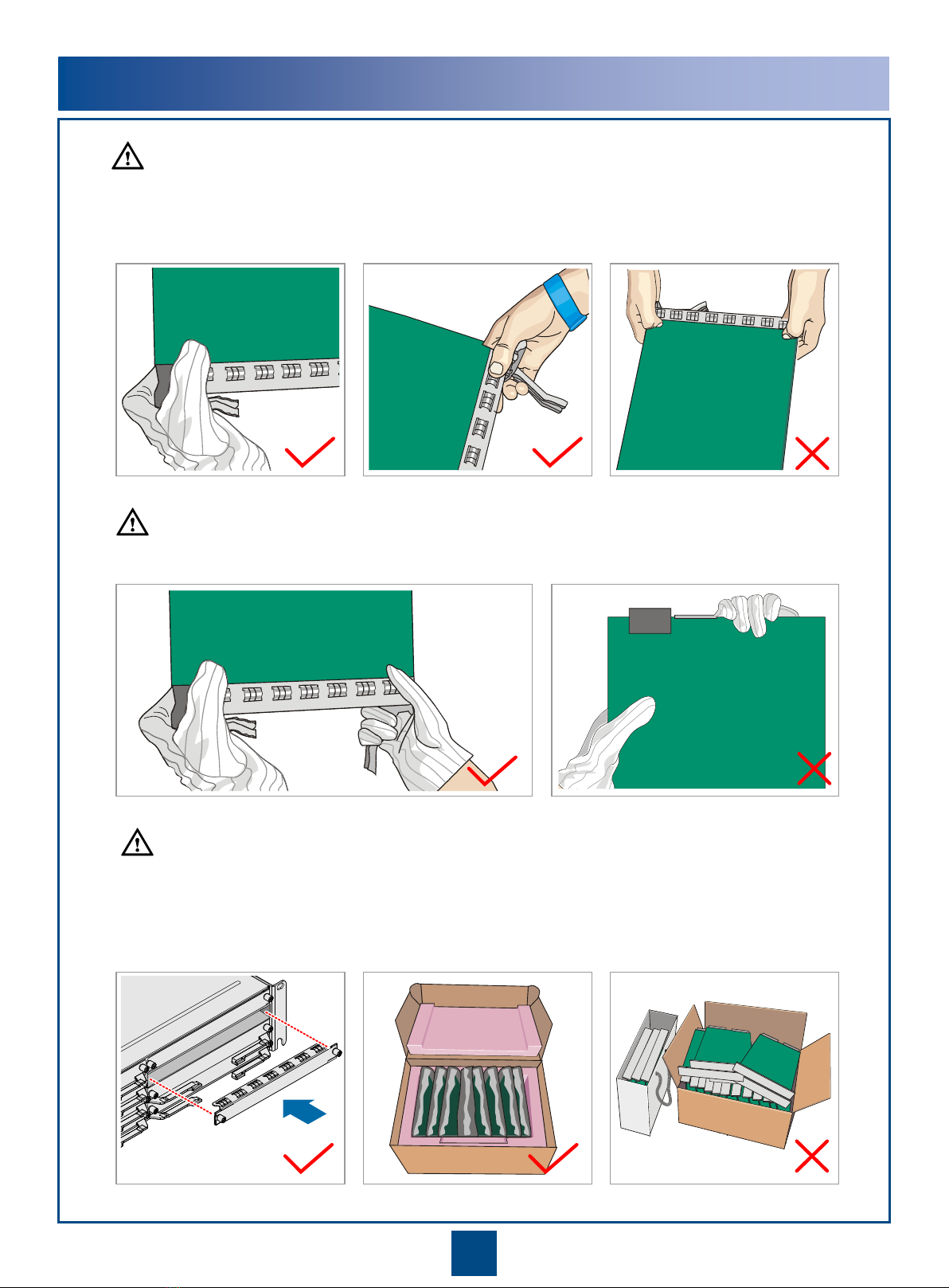

Do not hold a board without hand protection. Wear an ESD wrist strip or ESD gloves before handling a board.

Insert filler panels into vacant slots on an NE to prevent foreign matters from getting into the NE, which

may result in faults on the NE.

Boards are fragile and valuable. When handling or placing a board, exercise caution and put it into a

dedicated packing box.

Holding a board without hand protectionWearing ESD gloves Wearing an ESD strip

Hold the front panel of a board with hands.

Instructions and Precautions for Handling Boards

CAUTION

Instructions and Precautions for Handling Power Cable

Terminals

Do not pick up the tail end of the red latch by using a finger or a screwdriver to avoid damage.

Press the front of the red latch. Properly move the red latch outwards.

CAUTION

Precautions for Handling the Toggle Lever Switch

Turn the toggle lever switch only

after gently pulling it out.

•Position and description of the toggle lever switch

I : ON

O: OFF

•Turning on the switch

•Turning off the switch

Pull the switch out gently. Turn the switch. Release the switch.

CAUTION

A dual-channel IF board does not

have a toggle lever switch.

NOTE

Power off the ODU. Connect or disconnect the IF cable .

Connect or disconnect an IF cable only after

powering off the ODU. Do not connect or disconnect an IF cable when the

ODU is powered on.

Connect or disconnect an IF cable only

after powering off the ODU. Do not connect or disconnect an IF cable when the

ODU is powered on.

Power off the ODU. Connect or disconnect the IF cable.

CAUTION

CAUTION CAUTION

Precautions for Handling IDU-side IF Cables (Single-

Channel IF Board)

Precautions for Handling ODU-side IF Cables (Single-

Channel IF Board)

Precautions for Installing IF Cables (Dual-Channel IF Board)

Precautions for Removing IF Cables (Dual-Channel IF

Board)

CAUTION

When installing an IF cable, connect one end of the cable

to the ODU and then connect the other end of the cable to

the IDU.

Connect the IF cable to the ODU. Connect the IF cable to the IDU.

CAUTION

When removing or replacing an IF cable, disconnect one

end of the cable from the IDU and then disconnect the

other end of the cable from the ODU.

Disconnect the IF cable from the IDU. Disconnect the IF cable from the ODU.
