Quick Start Guide

Issue: 14 (2018-10-26)

Part number: 31505671

AR550 Series Industrial Switching Routers

Thank you for purchasing a Huawei AR series router. This guide describes how to install AR550 series routers. It also

explains how to log in to your router for the first time.

For more information, see the Hardware Installation and Maintenance Guide for your router on the Huawei

support website.

The installation, connection, and login methods of AR550 series industrial switching routers are similar. This

document uses the AR550-8FE-D-H routers as an example.

Figures in the document are for reference only and may be different from actual devices.

1 About This Guide

2 Packing List

3 Safety Guidelines

To ensure personal and equipment safety, observe all the safety precautions on the equipment and in this

document. WARNING and CAUTION items do not cover all the safety precautions and are only supplementary

to the safety precautions.

Follow all the safety precautions and instructions provided by Huawei. The safety precautions outlined in this

document are only requirements of Huawei and do not include general safety requirements. Huawei is not

liable for any consequence that results from violation of regulations pertaining to safe operations or safety

codes pertaining to design, production, and equipment use.

WARNING

AR550 series industrial switching routers are class A products. In a domestic environment, these products may cause radio

interference in which case the user may be required to take the adequate measures.

The AR550 has more than one power input. Disconnect all power inputs to power off this device.

- Console cable

- 3-pin connector

AR550-8FE-D-H/AR550-24FE-D-H (with the product model on the nameplate)

Installation accessory package:

- Ground cable

- Two 2-pin input connectors

- Warranty card

- Quick Start Guide

- Cable tie

- 7-pin connector

AR550C-2C6GE/AR550C-4GE/AR550C-2C6GE-2D (with the product model on the nameplate)

Installation accessory package:

- Ground cable

- 2-pin connector

- 3-pin connector

- Warranty card

- 5-pin connector

- Quick Start Guide

- 4-pin connector

- Quick Start Guide

- USB dust plug

AR550E (with the product model on the nameplate)

Installation accessory package:

- Ground cable

- Four 2-pin connectors

- Warranty card

- 5-pin connector

The installation accessory package of AR550C-2C6GE does not include 3-pin connector and 4-pin connector.

The installation accessory package of AR550C-4GE does not include 2-pin connector, 3-pin connector, and 7-pin connector.

The installation accessory package of AR550C-2C6GE-2D does not include 4-pin connector and 7-pin connector.

Items and quantities in the installation accessory package vary depending on the product model.

NOTE

During installation and maintenance, take ESD protection measures, for example, wear ESD gloves or an ESD wrist strap.

During router transport and installation, prevent the router from colliding with objects like doors, walls, or shelves.

Do not place other objects on the router.

CAUTION

4 Site Environment

Do not place this product in an environment with flammable or explosive gases, or smoke.

The installation site must be free from leaking or dripping water or heavy dew. If the relative humidity is high,

use dehumidifiers or air conditioners with dehumidification features.

The installation site must be well ventilated, and the air vents of the router must not be blocked.

Do not place the router in a dusty environment.

Leave more than 100 mm clearance at two sides and the rear of the router for heat dissipation.

5 Installing the Router

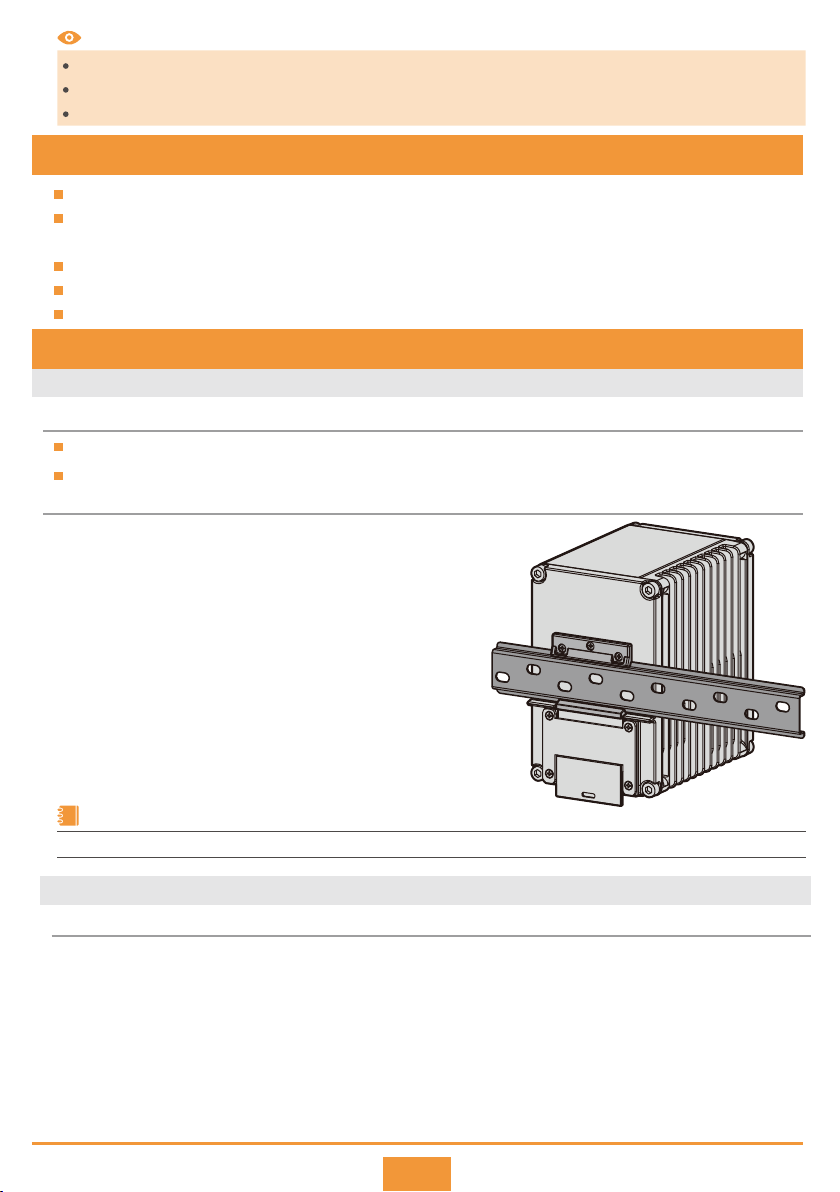

Scenario 1: Installing the Router on a DIN Rail

Before the installation, ensure that the DIN rail has been secured in position.

The router is placed near the DIN rail for convenient movement.

Before You Start

Installation Procedure

Place the router's real panel in front of the DIN rail and

ensure that the DIN rail fits in between the fixture near the

top of the router and spring latch near the bottom.

Make the router incline forward with the bottom away

from the DIN rail, and place the fixture at the rear of the

router on the top of the DIN rail.

Slowly push the router toward the DIN rail to make the

spring latch at the rear of the router move down. The

spring latch then bounces back to fix the router on the DIN

rail.

Step 1

Step 2

Step 3

Scenario 2: Installing the Router in a Cabinet (Using a 550 Horizontal Rack-Mounting Kit)

There must be a clearance larger than or equal to the router's width at the left and right of the router after the

installation. The clearance above the router must be at least two times the router's height and the clearance

below the router must be greater than or equal to the router's height.

Before You Start

If the spring latch is too tight to move down, you can pull down the spring latch during the installation.

NOTE

Installation Procedure

Install two floating nuts on each front mounting rail of the cabinet. Leave four mounting holes between the

two floating nuts on the same mounting rail.

Step 1

The length of six adjacent mounting holes may not be 2 U. Observe the scale ticks on the mounting rails when installing floating

nuts.

You can use a flat-head screwdriver to install floating nuts.

NOTE

Attach the brackets of the 550 horizontal rack-mounting kit on the front mounting rails of the cabinet and

insert M6 screws in the mounting holes. Use a Phillips screwdriver to tighten the lower M6 screws and then

the upper ones to fix the rack-mounting kit.

Step 2

Place the rear panel of the router in front of the DIN rail on the rack-mounting kit and ensure that the DIN rail

fits in between the fixture near the top of the router and the spring latch near the bottom.

Make the router incline forward with the bottom away from the DIN rail, and place the fixture at the rear of

the router on the top of the DIN rail.

Slowly push the router toward the DIN rail to make the spring latch at the rear of the router move down. The

spring latch then bounces back to fix the router on the DIN rail.

Step 3

Step 4

Step 5

If the spring latch is too tight to move down, you can use a flat-head screwdriver to hold down the spring latch during the

installation.

NOTE

Scenario 3: Using a Vertical Rack-Mounting Bracket to Install an AR550E Router into an F01S200 Cabinet

Installation Procedure

On each front mounting rail, install two floating nuts in the fifth and eighth mounting holes counted from the

left.

Step 1

×4

1 2

You can use a flat-head screwdriver to install floating nuts.

NOTE

Mount the router on the vertical rack-mounting bracket.

a. Use a Phillips screwdriver to remove the seven M4 screws at the back of the router.

b. Align the seven M4 mounting holes on the vertical rack-mounting bracket with those at the back of the

router.

c. Use M4 screws to fix the router on the vertical rack-mounting bracket.

Move the router and vertical rack-mounting bracket into the cabinet. Use the Phillips screwdriver to tighten

the M6 screws on a diagonal line on the vertical rack-mounting bracket, and then tighten the M6 screws

on the other diagonal line.

Step 2

Step 3

SYS

USB

SYNC

PoE1 PoE2

DC1 DC2

RESET

CONSOLE

10GE

GE/PoE+

48V;5A12V-48V; 6A

2.5GE

- +

PoE2

- +

PoE1

- +

DC2

- +

DC1

6 Connecting the Router

Do not connect cables while the power is on.

Do not power on the router before you finish connecting and routing cables.

Invisible laser beams will cause eye damage. Do not look into bores of optical modules or connectors of

optical fibers without eye protection.

For details about pin assignments and cable connections, see the Hardware Description.

Before You Start

2.a 2.c

No.

—

Item Connect To Remarks No. Item Connect To Remarks

M4 lug: to the

router

M6 lug: to the

protection ground

External power

supply system

Upstream

network device

Switch or PC

Maintenance

terminal

(generally a PC)

Connect to an

electrical interface to

receive and send

data services.

M4 lug: the end

with a smaller hole

M6 lug: the end

with a larger hole

When the router is

powered on for the

first time, connect the

console interface to a

PC for onsite

configuration.

Ground cable

Ethernet cable

Optical fiber

Console cable

Insert the 2-pin

connector in the

correct direction and

do not insert it

reversely.

External digital

input devices

Boolean output

cable

2-pin DC power

cable

A combo interface

consists of an GE

optical interface and

an GE electrical

interface.The optical

fiber must be used

with an optical

module.

Step 1

Step 2

Step 3

Turn on the power switch on the external power supply and log in to the

router after the RUN indicator slow blinking green (indicating that the

system is running properly).

Use a console cable to connect a PC to the console interface of the

router.

Start the terminal simulation software, create a connection, specify the

connected port, and set communication parameters as follows:

7 Logging In to the Router for the First Time

Before You Start

If your PC's operating system provides terminal simulation software (like HyperTerminal in Windows 2000), you

do not need to install additional terminal simulation software. If the PC runs on an operating system without

terminal simulation software (like Windows 7), install third-party terminal simulation software on the PC by

referring to user manual or online help.

A PC may have more than one serial port. Select the port connected to the console port. Generally, COM1 is

used. If you modify the serial port communication parameters on the router, modify the communication

parameters on the PC to ensure that they use the same communication parameters, and then set up the

connection again.

If the web page is displayed abnormally, the browser version may be too low. Upgrade the browser and log in

to the web platform using Mozilla Firefox 12.0 or later, Google Chrome 23 or later, or Internet Explorer 8.0 or

later.

The login page varies according to version.

Transmission rate: 9600

Data bit (B): 8

Parity bit: None

Stop bit (S): 1

Flow control mode: None

Step 4 Press Enter until a message is displayed asking you to enter the username and password. (The following

information is for reference only.)

Username:admin

Password:

Info:The entered password is the same as the default. You are advised to

change it to ensure security.

The default user name is admin and the default password is Admin@huawei.

If you forget the login password, restore the password according to the Troubleshooting.

NOTE

After successful login, you can configure the router on the command line interface. For more information, see the

CLI-based Configuration.

To configure the router using the web-based management system, perform the following steps.

Connect a PC to the management interface of the router using an Ethernet cable.

Configure a management IP address for the router.

For example, set the management IP address to 192.168.1.1/24 on GE0/0/0.

Step 5

Step 6

<Huawei> system-view

[Huawei] interface gigabitethernet 0/0/0

[Huawei-GigabitEthernet0/0/0] ip address 192.168.1.1 24

Configure an HTTP user. The HTTP user level is management level.Step 7

<Huawei> system-view

[Huawei] aaa

[Huawei-aaa] local-user admin password irreversible-cipher Admin@huawei

[Huawei-aaa] local-user admin privilege level 15

[Huawei-aaa] local-user admin service-type http

[Huawei-aaa] quit

[Huawei] quit

Configure a server SSL policy.Step 8

[Huawei] ssl policy userserver type server

[Huawei-ssl-policy-userserver] pki-realm default

Apply the SSL policy userserver to the HTTPS server.Step 9

[Huawei] http secure-server ssl-policy userserver

Enable the HTTPS server function on the router.Step 10

[Huawei] http secure-server enable

This operation will take several minutes, please

wait.........................................................

Info: Succeeded in starting the HTTPS server

[Huawei] quit

Configure an IP address for the PC. The IP address must be in the range of 192.168.1.2 to

192.168.1.254.

Start the browser, enter https://192.168.1.1 in the address box, and press Enter to display the login

page.

Enter the user name admin and password Admin@huawei (case sensitive).

Step 11

Step 12

Step 13

You can use the web-based management system to configure the router. For details, see Web-based

Configuration.

(http://support.huawei.com/enterprise), and select a specific product model and version to

find its documentation.

and post your questions in the community.

8 Obtaining Product Documentation and Technical Support

Huawei Enterprise

Technical Support

In V200R005C20 and later versions, you can open the web login page of your router, and click Open Source

Software Notice at the lower right corner of the page to view details about the open source software notice.

9 Open Source Software Notice

No part of this document may be reproduced or transmitted in any form or by

any means without prior written consent of Huawei Technologies Co., Ltd.

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the

property of their respective holders.

Qualification Card

PASS

Qualification Card

11 Trademarks and Permissions

Unique Identifier: trade name: HUAWEI; product name: Router;

model number: AR550 series routers

Responsible Party- U.S. Contact Information

Huawei Technologies USA Inc.

5700 Tennyson Parkway, Suite 500

Plano, Texas 75024

Main: 214-919-6000 / TAC Hotline: 877-448-2934

FCC Compliance Statement ( for products subject to Part 15)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

10 Supplier’s Declaration of Conformity (SDoC)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Huawei Netzwerk-Router Handbücher

Huawei

Huawei 31010GEV Bedienungsanleitung

Huawei

Huawei NE20E-S Series Leitfaden

Huawei

Huawei B315S-607 Bedienungsanleitung

Huawei

Huawei AR120 Series Technische Daten

Huawei

Huawei LTE CPE B5338-168 Bedienungsanleitung

Huawei

Huawei B681-54 Bedienungsanleitung

Huawei

Huawei HG659 Bedienungsanleitung

Huawei

Huawei EchoLife EG8041V5 Bedienungsanleitung

Huawei

Huawei WiFi AX3 Bedienungsanleitung

Huawei

Huawei EG8143A5 Bedienungsanleitung

Huawei

Huawei B315 LTE CPE Bedienungsanleitung

Huawei

Huawei Quidway NetEngine80E Bedienungsanleitung

Huawei

Huawei Mobile WiFi Smart E355 Bedienungsanleitung

Huawei

Huawei SmartAX MT800 Bedienungsanleitung

Huawei

Huawei AR2200-S Series Bedienungsanleitung

Huawei

Huawei Quidway S1700-24-AC Bedienungsanleitung

Huawei

Huawei AR200-S Series Bedienungsanleitung

Huawei

Huawei E5180s-22 Technische Daten

Huawei

Huawei AR502 Series Bedienungsanleitung

Huawei

Huawei Pocket WiFi 4G Installations- und Betriebshandbuch

Huawei

Huawei NE05E Bedienungsanleitung

Huawei

Huawei S6700 Series Leitfaden

Huawei

Huawei SmartAX MT800 Bedienungsanleitung

Huawei

Huawei quidway s7700 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
