Huawei UPS5000-E Series Bedienungsanleitung

Issue: 06

Part Number: 31509228

Date: 2019-06-20

UPS5000-E-(50 kVA–125 kVA)

Quick Guide (Integrated UPS 3.0)

UPS Model Capacity

Configuration Weight (Full

Configuration) Dimensions (H x W x D)

UPS5000-E-50K-HABBS 50 kVA 352 kg 2000 mm x 600 mm x 1100

UPS5000-E-50K-HASBS 390 kg

UPS5000-E-125K-HABBS 125 kVA 435 kg

UPS5000-E-125K-HASBS 453 kg

•The appearance of the UPS5000-E-50K-HABBS (02311FTB-001) is similar to that of the

UPS5000-E-125K-HABBS (02311FTD-002).

•The appearance of the UPS5000-E-50K-HASBS (02311FTC-001) is similar to that of the

UPS5000-E-125K-HASBS (02311FTE-002).

•The appearance of the UPS5000-E-50K-HASBS (02311FTC-004) is similar to that of the

UPS5000-E-125K-HASBS (02311FTE-004)

UPS5000-E-50K-HABBS(02311FTB-001)

(1) Power input

status indicator

(2) Input circuit

breaker

(3) Lighting

circuit breaker

(4) Air conditioner power

distribution circuit

breaker

(5) IT load circuit

breaker

(6) UPS input

circuit breaker

(7) UPS maintenance

bypass circuit breaker

(8) Control module

(9) Bypass module

(10) Filler panel

(11) Power module

(12) Monitor display unit

(MDU)

(13) Power distribution

monitoring board

(14) UPS output

circuit breaker

UPS5000-E-125K-HASBS(02311FTE-002)

(1) Power input

status indicator

(2) ATS

(3) Lighting

circuit breaker

(4) ATS handle

installation slot

(5) Air conditioner power

distribution circuit

breaker

(6) IT load circuit

breaker

(7) UPS input

circuit breaker

(8) UPS maintenance

bypass circuit breaker

(9) Control

module

(10) Bypass module

(11) Power module

(12) Monitor display unit

(MDU)

(13) Power distribution

monitoring board

(14) UPS output

circuit breaker

UPS5000-E-125K-HASBS(02311FTE-004)

(1) Power input

status indicator

(2) ATS drive module

(3) ATS monitoring

module

(4) Lighting

circuit breaker

(5) Air conditioner power

distribution circuit

breaker

(6) IT load circuit

breaker

(7) UPS input

circuit breaker

(8) UPS maintenance

bypass circuit breaker

(9) Control

module

(10) Bypass module

(11) Power module

(12) ATS

transfer switch

(13) ATS

handle

(14) Monitor display unit

(MDU)

(15) Power distribution

monitoring board

(16) UPS output

circuit breaker

2Installing the UPS

Unit: mm

1. Before installation, read the user manual carefully to get familiar with product information and

safety precautions.

2. Use insulated tools during installation.

3. Only engineers certified by Huawei or its agents are allowed to install, commission, and

maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the UPS

faults caused are beyond the warranty scope of Huawei.

1. Determine the mounting holes based on the marking-off template, drill holes, and install expansion

sleeves.

3. Secure the UPS.2. Adjust the anchor bolts and ensure that the

anchor bolts touch the floor. Then level the

UPS.

2. Secure the tail frame upper sealing plate to

the tail frame.

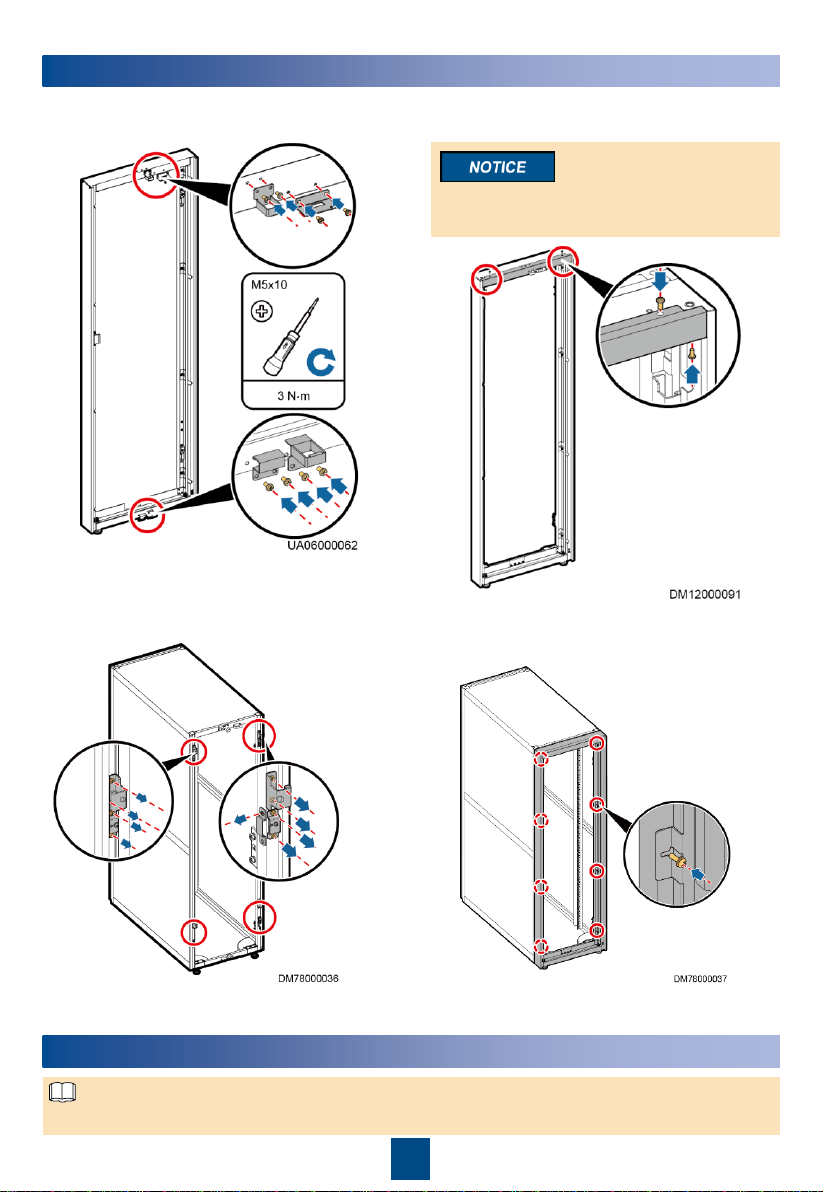

3(Optional) Installing the Tail Frame

1. Secure the tail frame fittings to the tail frame.

There are two upper sealing plates, and the

one used in this step has a gap.

3. Remove the rear door of the cabinet, hinges,

connecting plates, and ground cable. 4. Adjust the tail frame anchor bolts until the tail

frame is as high as the cabinet. Then secure

the tail frame to the UPS.

5. Install the hinges, connecting plates, and rear door on the tail frame.

6. Connect the ground cable to the rear door of the cabinet.

4(Optional) Combining Cabinets

The figures are for reference only. The actual product appearance prevails.

NOTE

2. Remove the cabinet connecting kits from the

rack.

3. Secure the connecting kits in the connection

positions on the front door using screws.

1. Open the front and rear doors. Wrench the

anchor bolts using an wrench to adjust the

cabinet height. Use a level to level the cabinet.

4. Use the same method to secure the

connecting kits in the connection

positions on the rear door.

NOTE

5Connecting Cables

5. Repeat the procedure to combine other cabinets.

6. Secure the bolts using a socket wrench.

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may

ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinet in a timely manner. Ensure that there is no

foreign matter inside and around the cabinet.

Remove the screw from the supporting kit of

the connecting kit to secure the connecting kit.

Recommended Cross

-Sectional

Areas for Power Cables

UPS5000

-E-

125K (ATS)

UPS5000

-E-

125K (MCCB)

UPS5000

-E-

50K (ATS)

UPS5000

-E-

50K (MCCB)

Input I

Input I current (A)

385

184

Recommended circuit

Breaker

Three

-pole,

400 A

Three

-pole,

400 A

Three

-pole,

250 A

Three

-pole,

250 A

Recommended

cross

-sectional

area (

mm2)

4 x 185

4 x 95

Input II

Input II current (A)

385

N/A

184

N/A

Recommended circuit

Breaker

Three

-pole,

400 A

N/A

Three

-pole,

250 A

N/A

Recommended

cross

-sectional

area (mm

4 x 185

N/A

4 x 95

N/A

Battery

cable

Maximum discharge

current (A)

411

164

Recommended

cross

-sectional

area (mm

2 x 95

Recommended Cross-Sectional Areas for Output Cables Cable Specifications

Air conditioner (40 A)

Recommended cross-

sectional

area (mm2)

5 x 6

Air conditioner (63 A)

Recommended cross-

sectional

area (mm2)

5 x 10

Lighting system

Recommended cross-

sectional

area (mm2)

L3 x 2.5N

IT load (40 A)

Recommended cross-

sectional

area (mm2)

L3 x 6N

IT load (63 A)

Recommended cross-

sectional

area (mm2)

L3 x 10N

1. Remove the insulation protective panel from

the rear of the cabinet and remove covers

from the top as required.

2. Connect a ground cable to the UPS cabinet.

•Please refer to the user manual for details about cable requirements.

•The cabling route is for reference only. Connect cables based on site requirements.

NOTE

02311FTC-001 and 02311FTE-002 ATS input

3. Connect the AC input power cable.

MCCB input

4. Connect battery cables, AC output power cables, fire protection cables and generator Start/Stop

cables. Neutral cables

Battery cables PE cables

IT and air conditioner output power cables

Lighting cables

Fire Protection and Generator

Start/Stop Cables (ATS input cabinet)

02311FTC-004 and 02311FTE-004 ATS input

The wire routed from the middle point of positive and negative battery strings is the neutral wire.

Take a battery string consisting of 32 batteries for example. The battery neutral wire is routed

from the middle between positive and negative battery strings, each consisting of 16 batteries.

NOTE

5. Connect a communications cable between the FE port on the UPS monitoring interface card and

any PoE port on the ETH gateway.

ETH gateway

Port Description Bolt Specifications Bolt Length Torque

AC input M12 45 mm 46 N·m

Battery input M10 30 mm 26 N·m

PE M12 45 mm 46 N·m

Safe grounding M6 16 mm 4.5 N·m

6Verifying the Installation

1. Check that there is no foreign matter at the top and bottom of the cabinet, copper bars, switches,

and the rear of modules.

2. After routing cables and verifying cable

connections, seal the gap between cables and

the cabinet using sealing putty. (Remove the

paper protective film from the sealing putty.)

Dustproof cover

7(02311FTC-001 and 02311FTE-002) ATS Commissioning

Before System Power-On

1. Only electrical professionals are allowed to install and maintain the ATS.

2. The generator can be connected only to power supply 2 (LN 2)-switch II. If the generator is

configured, power supply 2 (LN 2)-switch II cannot be set as the preferred power supply.

3. Do not open any cover of the ATS. Even if the power supply is disconnected, hazardous

external control voltage may still exist inside the product.

4. Do not adjust the control cable when the ATS or external control cable is electrified.

5. Do not replace the fuse (F1) with another model. Only fuses labeled with the same model can

be used as replacements.

6. When the ATS is connected to the electric loop, do not attempt to install or maintain the device.

7. Before performing maintenance tasks, ensure that the power supply to the switch is

disconnected.

3. After verifying the installation, reinstall all

the covers. After the installation is complete,

reinstall the dustproof cover to prevent dust

inside if the UPS is not to be powered on

immediately.

1. Before power-on, operate the handle to switch on and off the ATS for one to three times.

Ensure that the primary and secondary contacts of the ATS work smoothly.

2. Before power-on, check that the phase sequence of the two power supplies for the ATS is

correct using a phase sequence meter.

NOTE

Perform system commissioning and power-on strictly according to the system manual and ATS

instructions. For any changes in operations and parameters, consult Huawei engineers.

Otherwise, system commissioning or power-on may fail, or even the cabinet is damaged.

Sealing putty

Sealing putty must be used as a whole and

the gap can be sealed only from the top.

Paper

protective film
