AP6510DN-AGN-US Outdoor Wireless LAN Access Point

Quick Start Guide

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Technologies Co., Ltd.

Address: Huawei Technologies Co., Ltd.

Bantian,Longgang

Shenzhen 518129

People’s Republic of China

Website: http://enterprise.huawei.com

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of

Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or

part of the products, services and features described in this document may not be within the purchase scope or the usage

scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are

provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation

of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document

do not constitute the warranty of any kind, express or implied.

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol Description

NOTE

CAUTION Indicates a potentially hazardous situation, which if not avoided, could

result in equipment damage, data loss, performance degradation, or

unexpected results.

Provides additional information to emphasize or supplement important

points of the main text.

Change History

Changes between document issues are cumulative. Therefore，the latest document issue contains all the changes in

previous issues.

Change in Issue 01 (2012-09-30)

Initial commercial release.

AP6510DN-AGN-US

Quick Start Guide

技术支持

Before performing Installation, confirm that the installation accessories and tools are available.

Installation tools: Technical Support

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian,Longgang

Shenzhen 518129

People’s Republic of China

Website: http://enterprise.huawei.com

Installation

suite Expansion

bolt M4X12 hexagon

socket head cap

screw

Hoop

Installation accessories:

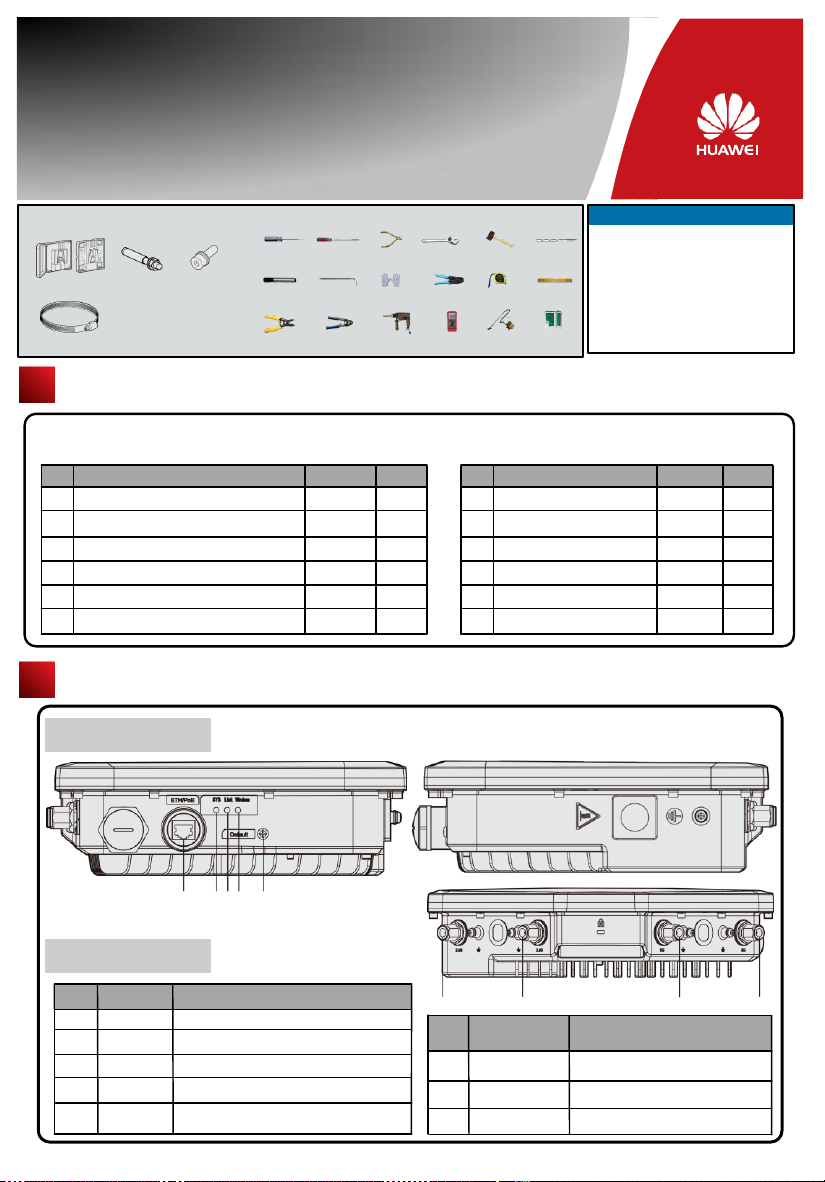

Device Overview

Packing List

Unpack the equipment. Ensure that all items listed in the package list are included in the shipment. If any item is missing,

contact the supplier.

Ports and indicators

5G antenna port

72.4G antenna port

Connected to the feeder.

Item Description

Product functions

Item Quantity Unit

AP device PCS

PCS

Installation suite

1PCS

Network port connector

Expansion bolt PCS

M4X12 hexagon socket head cap screw

PCS

10 1

Item Quantity Unit

PCS

Warranty card

Certificate of Conformance

Hoop

71PCS

Quick Start Guide (including the

printed packing list)

81PCS

Toxic or Hazardous Substance &

Elements Declaration

1PCS

1234 5

Item Description

SYS

Wireless

Default

SYS status indicator.

Link

ETH/POE

port

Link status indicator.

Wireless status indicator.

Used for Ethernet connections.

Press and hold down the Reset button for 3 seconds

to restore the factory settings and restart the AP.

6 677

Phillips

screwdriver Hammer

Maker

Flat-head

screwdriver Diagonal

pliers Adjustable

wrench

ESD

gloves COAX

crimping toolMeasuring

tape

Wire

stripper RJ45

Crimping tool Multimeter

Level

Vacuum

cleaner Network

cable tester

Hammer

drill

Hex key

6mm drill

bit

No. No.

Installing an AP

●Select an appropriate installation position and leave space above and around the device for cooling air circulation.

●Outdoors Aps are used for hotspot coverage and often installed against walls or poles. The pole diameter is 48 mm to 114 mm.

AP6510DN-AGN-US dimensions (unit: mm) without a backplane

support. Recommended AP6510DN-AGN-US installation space

(unit: mm).

●Installing the AP6510DN-AGN-US against a Wall:

330 83

306

Hexagon

socket head

cap screw

Field strength

场强示意

1. Fix the wall-mounting bracket to the wall, adjust the

installation position, and use the marker, level, and

measuring tape to mark the drilling positions where

expansion bolts are installed.

2. Use #8 drill bit to drill 35 mm to 40 mm deep holes in the

drilling positions and install expansion bolts. Screw the nut

into the expansion tube, hammer the expansion bolt into a

hole until the flat washer is flattened against the wall, and

remove the nuts, spring washer, and flat washer in order.

Flat washer

Spring washer

Nuts

3. Use four M4*12 hexagon socket head cap screws to fasten the wall-mounting bracket to the AP.

4. Pinch the wall-mounting bracket on the expansion

bolts, and fasten the flat washer, spring washer, and

nuts in order.

5. Slide the AP into the wall-mounting bracket to complete

installation.

64mm

37mm

Installing an AP

上电调试

●Installing the AP6510DN-AGN-US against a vertical pole:

Field strength

场强示意

NOTE

Lock hole

Security

lock

1. Determine the AP installation position, slide the hoop

through the hole of the wall-mounting bracket and attach

it to the pole, And use the screwdriver to secure screws

on the hoop.

2. Slide the AP that has the connector fastened into the wall-

mounting bracket.

●The procedure for installing the AP6510DN-AGN-US against a horizontal pole is similar to the procedure for installing the

AP6510DN-AGN-US against a vertical pole.

●Installing the Security Lock

To prevent unauthorized personnel from moving the AP, lock the AP. The preceding figure shows the security lock. The

carrier should purchase the security lock and determine the position for installing the security lock.

Installing Cables

●AP6510DN-AGN-US external cable arrangement drawing

3. Put the network cable through the hole on the waterproof PG connector.

a b c d

4. Connect the RJ45 connector to the AP and secure the waterproof PG connector, as shown in figures b, c, and d.

a b c d

Waterproof PG connector

●Connecting network cables

1. Use a shield straight-through cable. Cut the cable of proper length based on the distance between the AP and the PSE

device, peel the insulation on both ends of the network cable, and crimp the wires to RJ45 connectors.

2. Make a network cable onsite according to the following pin assignment. Otherwise, the communication quality is

affected even if devices can be connected.

X1 Pin

X2 Pin

Wire Color

White and orange

Orange

White and green

Blue

White and blue

Green

White and brown

Brown

Feed line

Ground cable

Network cable

Feed line

Feed lineFeed line

●The network cables used are category-5 twisted pairs.

●Ensure that the RJ45 connector is correctly Connected to the AP. Otherwise, the network cable may be damaged.

Before removing the network cable, remove the waterproof PG connector, and then remove the RJ45 connector from

the AP.

CAUTION

Installing Cables

●Connecting the feed line

1. The outdoor AP's antenna ports already have 5 KA surge protection capability. Generally, no surge protection devices

need to be installed; therefore, the antenna cables are directly connected to the AP's antenna ports.

2. If higher surge protection capability is required, the customer can purchase a surge protection device. When installing the

surge protection device, ensure that it is connected to a ground cable.

Waterproof adhesive tape

Ground cable

Surge

protection

device

Waterproof

adhesive

tape

Feed line

Connecting the ground

bar

●Connecting the ground cable

●Cut the cable of proper length, the M4 connector is connected to the AP and the M6 connector is connected to the

ground bar.

●When no antenna is installed on the 5G antenna interface, cover the interface with a dustproof cap and wrap the

dustproof cap with insulating tape and waterproof tape.

●Wrap the feed line using one-layer PVC black insulation tape, three-layer waterproof adhesive tape, and then three-layer

PVC black insulation tape.

●Stretch the waterproof adhesive tape evenly and ensure that the upper layer of the tap overlaps 1/2 of the lower layer.

Each layer should be attached tightly.

●Wrap the three-layer waterproof adhesive tape from bottom to up, from up to bottom, and from bottom to up in order.

NOTE

Installing Cables

Requirements for laying out ground cables:

1. All ground cables must be connected to a ground bar.

2. The ground cable cannot be led in aerially, but buried in the earth or arranged indoor.

3. Both ends of the external conductor of the coaxial cable and those of the insulation of the shielded cable should

have good electric contact with the metal shell of the equipment they connect to.

4. Ground cables must be separated from signal cables to reduce interference between them.

5. Do not add any switch or fuse on the ground cable.

6. Do not use another device for an electrical connection with the ground cable.

7. All metal components in the shell must be securely connected to the ground cable.

Keep the screw properly and install it again after pressing the Reset button.

CAUTION

●Pressing the Reset Button

The Reset button on an outdoor AP is protected by a waterproof screw. Before pressing the Reset button, remove the

waterproof screw.

CAUTION

Power-on

2连接线缆

Technical Specifications

NOTE

255mm×255mm×83mm

2.2Kg

Item Description

Operating temperature –40°C to +60°C

Storage temperature

0% to 100%

Relative humidity

Altitude

70 kPa to 106 kPa

Weight

Dimensions (W x D x H)

–40°C to +70°C

Pressure

PoE power supply -48V

–60 m to 4000 m When the altitude is

between 1800 m and 4000 m, the

operating temperature decreases by

1°C each time the altitude increases by

220 m.

SYS Wireless

Link Description

Information

Type

Steady green

Steady red

Blinking green

Blinking once

every 2s

Steady or

Blinking

green

Off

Blinking green

Off

The system is working properly.

The system fails to load the DRAM or system software.

The device is being started.

Blinking once

every 2s

The system is working properly. However, the Ethernet is not connected. Radios

are disabled and no user is connected to the AP.

The system is working properly, but the Ethernet is not connected. The AP has

wireless users connected to the 2.4 GHz band and is transmiting data. The

indicator blinks more quickly when more packets are being transmitted.

Off The system is working properly, the Ethernet is connected, and radios are

disabled. The indicator blinks more quickly when more data is being transmitted.

Blinking yellow The system is working properly, but the Ethernet is not connected. The AP has

wireless users connected to the 5 GHz band and is transmiting data. The

indicator blinks more quickly when more packets are being transmitted.

The system is working properly, but the Ethernet is not connected. The AP has

wireless users connected to the 2.4 GHz and 5 GHz bands and is transmiting

data.

Blinking green The system is working properly, and the Ethernet is connected. The AP has

wireless users connected to the 2.4 GHz band and is transmiting data. The

indicator blinks more quickly when more packets are being transmitted.

Blinking yellow The system is working properly, and the Ethernet is connected. The AP has

wireless users connected to the 5 GHz band and is transmiting data. The

indicator blinks more quickly when more packets are being transmitted.

The AP has wireless users connected to the 2.4 GHz and 5 GHz bands and

is transmiting data. The indicator blinks more quickly when more packets are

being transmitted.

Blinking green and

yellow alternately

Blinking green and

yellow alternately

The AP6510DN-AGN-US supports the PoE function that complies with 802.3at.

Power on the AP6510DN-AGN-US and check the indicator status to determine the

system running status.

Running and

connection

Startup status

NA NA

Inhaltsverzeichnis

Andere Huawei Drahtloser Zugangspunkt Handbücher

Huawei

Huawei PT530 Bedienungsanleitung

Huawei

Huawei WA603DE Bedienungsanleitung

Huawei

Huawei eLTE2.2 eA660 Series Technische Daten

Huawei

Huawei AP3010DN-AGN Bedienungsanleitung

Huawei

Huawei AP7050DE Bedienungsanleitung

Huawei

Huawei AP6510DN-AGN Bedienungsanleitung

Huawei

Huawei E5186 Bedienungsanleitung

Huawei

Huawei AP3010DN-AGN Bedienungsanleitung

Huawei

Huawei OptiXstar P622E Bedienungsanleitung

Huawei

Huawei Quidway NE40E Leitfaden

Huawei

Huawei AP4050DN Betriebsanleitung

Huawei

Huawei OptiXstar P812E Bedienungsanleitung

Huawei

Huawei RTN510 Bedienungsanleitung

Huawei

Huawei HES-319M Bedienungsanleitung

Huawei

Huawei Quidway W1000 Series Bedienungsanleitung

Huawei

Huawei eA660 Series Bedienungsanleitung

Huawei

Huawei AP8030DN Technische Daten

Huawei

Huawei H352-381 Bedienungsanleitung

Huawei

Huawei B818-263 Technische Daten

Huawei

Huawei eA660 Series Bedienungsanleitung

Huawei

Huawei EG860 Series Bedienungsanleitung

Huawei

Huawei e5577s Bedienungsanleitung

Huawei

Huawei Mobile WiFi E5878 Bedienungsanleitung

Huawei

Huawei UA5000 Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
