Huawei OptiXstar P602E Bedienungsanleitung

OptiXstar P602E

Quick Start

Issue 01

Date 2019-09-30

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the

customer. All or part of the products, services and features described in this document may not be within the

purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information,

and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: https://www.huawei.com

Email: [email protected]

Contents

1 Product Appearance...................................................................................................................... 1

2 Installing the Device.....................................................................................................................2

3 Connecting Cables.......................................................................................................................10

4 Description of Indicator............................................................................................................. 11

5 Technical Specifications.............................................................................................................13

6 FAQs...............................................................................................................................................14

OptiXstar P602E

Quick Start Contents

1 Product Appearance

If the appearance of the product in this document differs from the actual product, the actual product

prevails.

OptiXstar P602E

Quick Start 1 Product Appearance

2 Installing the Device

The OptiXstar P602E supports outdoor network box installation and indoor desktop

installation, wall mounting, or network box installation.

NO TICE

lThe OptiXstar P602E belongs to the remote optical access unit (ONU) product series. It is

referred to ONU in the following description.

lDo not stack horizontally placed ONU.

lDo not install the ONU outdoor.

lThe ONU is vulnerable to lightning strikes, surge protectors need to be deployed for the

power port and be routed securely in the cabinet or network box installation. You are

advised to follow the suggestions below to install a surge protector:

1. Use a Huawei-authenticated surge protector for the power port. Ensure that the power

port surge protector is reliably grounded and the ground cable (cross sectional area ≥ 6

mm2) is as short as possible. Use surge protectors of the following specifications:

1. Surge current: 20 kA in common/differential mode;

2. The maximal running voltage: 385 V AC;

3. The protecting voltage: 1.8 kV.

2. Other requirements for the installation of a surge protector:

1. Impedance: < 10 Ω for the network box from the ground; < 0.1 Ω for the surge

protector from the ground bar

2. Ensure that network box is reliably grounded and ground cable is shorter than 50 m.

Use a cable of longer than 5 m to connect the surge protector of the input port of the

power adapter to the power port of the ONU and coil the cable.

3. To install the surge protector near the ONU and behind the air switch (lightning

protection voltage: 20 kV). The ONU is powered in front of the socket. Ensure that

the distance between the AC power cable and network cable is longer than 50 cm.

When the ONU is mounted to a pole, keep the network cable as short as possible

and do not route the excessive network cable in parallel with the AC power cable

(recommended length of parallel routing < 50 cm).

3. Other specifications (including waterproof, temperature, and humidity requirements):

consistent with those for other ONUs.

OptiXstar P602E

Quick Start 2 Installing the Device

Space for Heat Dissipation

lThe space requirements for heat dissipation indicated in the following figures are applicable to

ONUs desktop flat,wall-mounted and network box installation.

lThe heat dissipation sides are not allowed to have any contact with the wall or desktop.

Mounting on the desktop

Do not stack the device when it is placed on the desktop.

OptiXstar P602E

Quick Start 2 Installing the Device

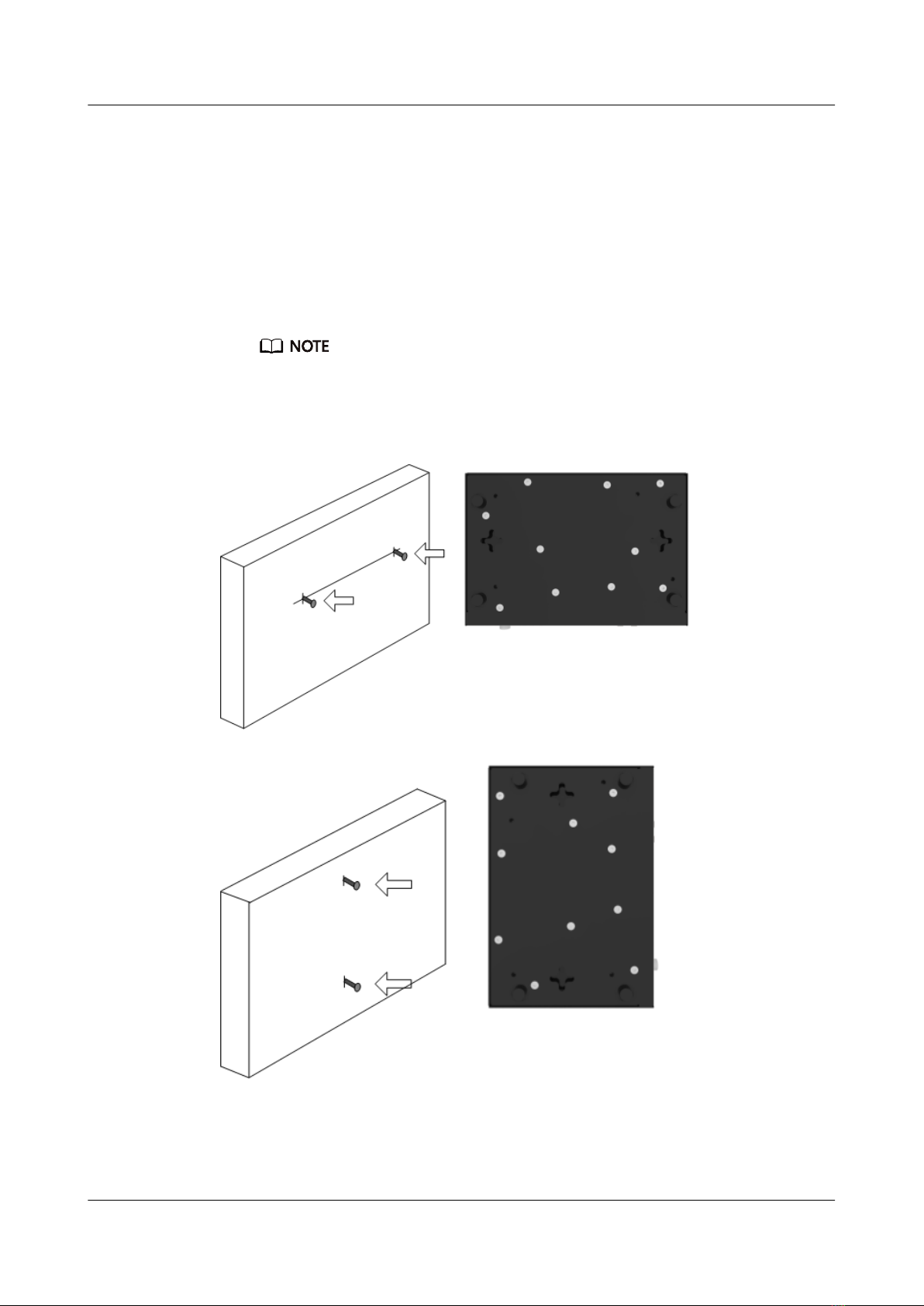

Mounting on the wall

It is recommended that the port be facing down to prevent other objects such as dust from

falling in for wall mounting, as shown in the following figure.

1. Mark two positions with the same spacing as that between the two mounting holes of the

ONU using a marker on a wall.

2. Select a proper drill bit according to the outer diameter of the screws. Use a hammer drill

to drill the marked positions on the wall. Then clean the holes and install two expansion

bolts.

It is recommended that the screw diameter be less than or equal to 4 mm, the nut diameter be 6 to

8 mm, and the length should not be less than 20 mm.

3. Use a screwdriver to fasten the screws into the expansion bolts, reserving 5 mm ends out

of the wall, and mount the ONU onto the screws.

OptiXstar P602E

Quick Start 2 Installing the Device

Mounting in the network box

NO TICE

lDo not use an enclosed network box and ensure that the air intake and exhaust vents are

not blocked to ensure proper heat dissipation of the ONU.

lIf the network box is installed indoors or in a corridor that is free from rain, the network

box must meet the requirements of IP31 protection. ("IP" is short for international

protection. The first number indicates a class for preventing the solid particle from

entering the device and the second number indicates a class for preventing water from

entering the network box. "3" means that solid particles with diameters equal to or larger

than 2.5 mm can be prevented from entering the box. "1" means that the drips fallen

vertically cannot damage the device.)

lIf the network box is installed outdoors or in a corridor that is exposed to rain, the network

box must meet the requirements of IP55 protection. ("5" means that the network box

cannot completely prevent dust from entering, but the amount of dust that enters the

network box does not damage the device. "5" means that the water sprayed from different

directions to the network box does not damage the device.)

lThe method for installing the ONU in a non-Huawei network box depends on the network

box specifications. When the ONU is installed in a non-Huawei network box, the

preceding heat dissipation space rules must be observed.

lGuide for Grounding the Network Box of TN-S and TN-C-S Power Distribution

Systems

OptiXstar P602E

Quick Start 2 Installing the Device

–In the case of the TN-C-S and TN-S AC power distribution systems, you are

advised to use the PE wire of the AC power cable for the ONU grounding

connection. The PE wire of the AC power cable for the corridor of the building is

already grounded properly.

–Connect the ground bar and all the internal devices using the ground cable (the

cross-sectional area of the ground cable must be greater than or equal to 6 mm2),

and the ground bar to the network box in an equipotential manner through a

metallic structure.

–Connect the grounding point of the strength member of the optical fiber to the

ground bar through a ground cable, or connect this grounding point to the network

box in an equipotential manner through a metallic structure.

–When the PE line of the AC power cable in the corridor of the building does not

meet the grounding requirement, ground the network box through an external

ground cable (PGND cable) and ensure that the strength member of the optical fiber

is disconnected from the device ground point.

–Decouple the surge protector from the ONU power source using a power cable of

3–5 m.

lGuide for Grounding the Network Box of the TT Power Distribution System

–In the case of the TT power distribution system, you are advised to use an external

ground device. For example, use a grounding device dedicated for buildings (such

as the ground flat steel, ground stud, and ground bar) or the base steel bar of the

reinforcement concrete of the building, or deploy a new ground grid.

–Use the ground cable (the cross-sectional area of the ground cable must be greater

than or equal to 6 mm2) to connect the ground bar and all the internal devices, and

OptiXstar P602E

Quick Start 2 Installing the Device

the ground bar to the network box in an equipotential manner through a metallic

structure.

–Connect the external ground cable (PGND cable) of the network box to the external

ground device. As specified by the grounding standard, the cross-sectional area of

the external ground cable must be greater than or equal to 16 mm2.

lGuide to Ground the Strength Member

Table 2-1 Engineering Responsibilities

Optical

Cable

Provider

Engineering

Party

Recommended

Solution

Remarks

Huawei Huawei Solution 1 is

preferred. If solution

1 fails to implement,

Huawei is required to

communicate with

the customer about

engineering risks and

sign a memorandum

with the customer

before using solution

If solution 1 is used, the

engineering quality must

strictly comply with

engineering specifications.

If solution 2 is used, the

network box must be

securely grounded. In

addition, a metal

protective cover must be

installed between the fiber

strength member and

network box fixing points,

preventing sparks from

spreading if the fiber

strength member connects

to a heavy-current power

line.

Customer Solution 1 If the engineering does not

comply with solution 1,

the customer must take

consequences.

Customer Huawei Requirements:

During engineering,

do not route the fiber

strength member into

the network box. In

addition, ground the

fiber strength

member and the

network box

separately. Install the

network box and

ONU based on the

instructions provided

in this document.

The customer must ensure

that the fiber strength

member is not be routed

inside the network box.

Otherwise, the customer

must take consequences.

OptiXstar P602E

Quick Start 2 Installing the Device
