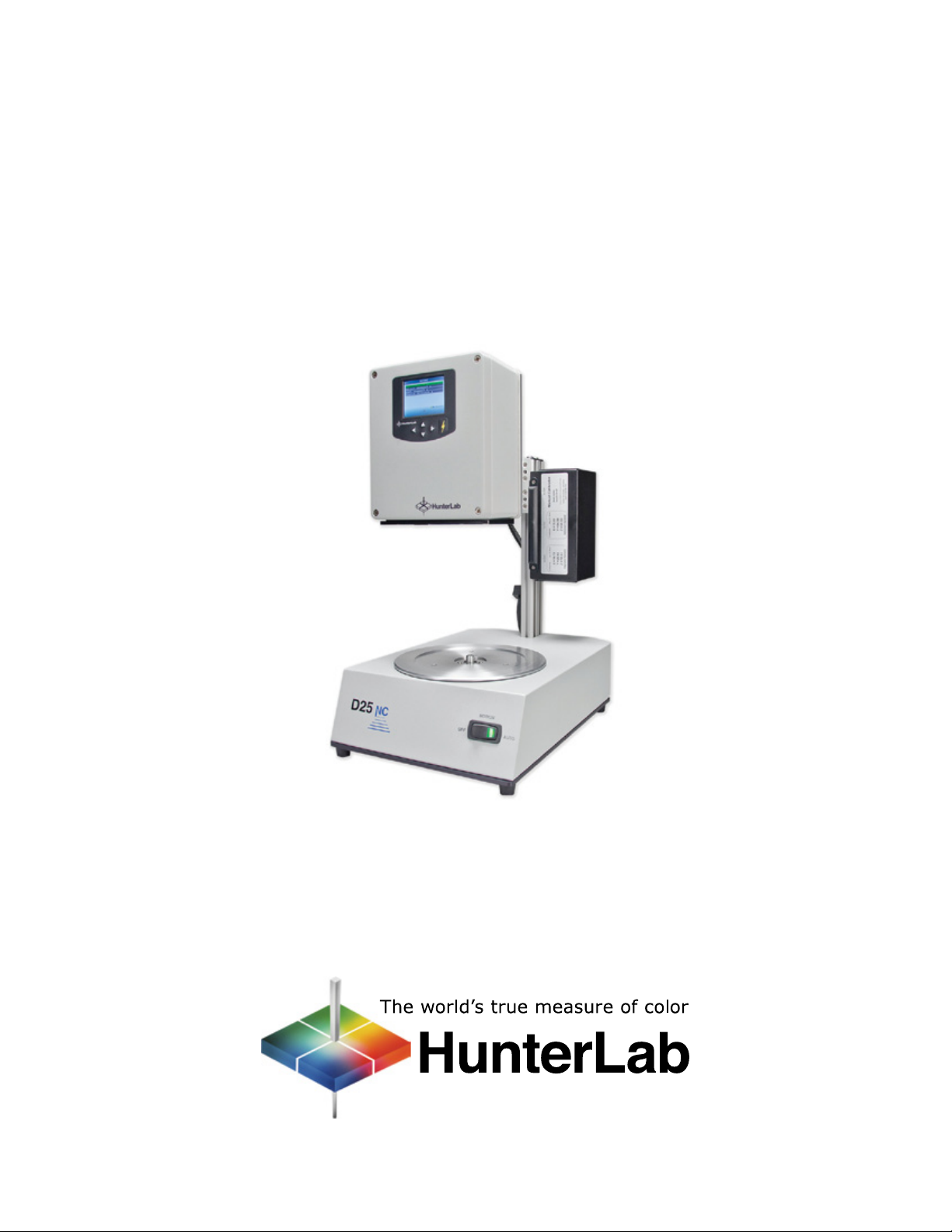

HunterLab D25 NC Bedienungsanleitung

D25®NC Quick Start Guide

A60-1016-531 ver 1.1

SETTING UP THE INSTRUMENT STANDARDIZATION

1. In MAIN MENU, press the RIGHT

ARROW to select STANDARDIZE.

Current values of the white and

green tiles are displayed, matching

the calibration box. Press NEXT

(right arrow) to continue.

2. Slide the calibration box onto the

track under the sensor. Line up the

black glass and press GO.

3. Slide the white tile into view —> GO.

4. Place green check tile into view —>

GO.

5. The result of the green check tile is

displayed. If PASS, press the RIGHT

ARROW to return to the MAIN MENU.

Now your instrument is ready

for standardization. Now your instrument is ready

to read samples.

SET DISTANCE FROM

SENSOR TO PRODUCT

For more detailed instructions on using the instrument, please refer to the D25®NC User’s Manual.

Visit www.hunterlab.com for information on all our products.

1. Place sample in the dish and press

MEASURE.

2. (Option) Press the DOWN arrow to

PRINT the reading to a USB printer.

1. Select a sample dish to use with the

turntable and place the product in

the dish on the turntable.

3. Raise and lower sensor height until

distance sensor reads close to 90 mm.

2. From the MAIN MENU go to SYSTEM

SETTINGS > DIAGNOSTICS —> GO —>

DISTANCE SENSOR >.

ABC

READING SAMPLES

1. Unpack the D25 NC sensor and

place the unit on the bench.

Save the shipping box in case

of service.

2. Connect the power cord to the

back of the turntable and

an electrical outlet.

(Option) Connect the USB cable

from the instrument to a printer.

3. Turn the power on using the switch

on the back of the turntable.

The MAIN MENU will display.

A60-1016-531 ver 1.1

Electrical

outlet
