THANK YOU FOR SELECTING A HUSKY FLOOR LINER

FROM WINFIELD CONSUMER PRODUCTS

CARE AND USE INSTRUCTIONS

Your new floor liner is custom molded to fit your particular vehicle. The liner is made to take the place of your

factory floor mats. For correct fit, it is necessary to remove the factory floor mat before installing your new floor

liner. However, do not remove the factory-installed carpeting.

Your liner is made from an engineering resin that is lightweight and extremely tough and durable. The easiest

way to clean your liner is with a damp cloth or sponge. If using a cleaner, 409®or Glass Plus®work well. Use of

Armor All®, Son-of-a-Gun®or similar items is discouraged as these products make the liner slick.

INSTALLATION INSTRUCTIONS FOR YOUR

TOYOTA RAV-4 SECOND SEAT FLOOR LINERS

FRONT OF VEHICLE

LEFT OR

DRIVER’S

SIDE

RIGHT OR

PASSENGER’S

SIDE

1

2006 RAV4 LIMITED MODELS WITH 3RD ROW SEATING HAVE CLIMATE CONTROL DUCTING ALONG THE

REAR WALL OF THE 2ND ROW OF SEATS. THIS FEATURE KEEPS PART #6597 FROM FITTING CORRECTLY

AS PACKAGED. HOWEVER, A TRIM AREA IS MOLDED INTO PART #6597 WHICH WILL ALLOW THIS

PART TO BE TRIMMED TO ACCOMMODATE THE DUCTING. TO TRIM, REMOVE THE SECTION OF THE

LINER SHOWN ABOVE (FIGURES #2 AND #3). USE THE FRONT EDGE OF THE RAISED BAND AS A

TRIMMING GUIDE (SEE PHOTOS ON BACK).

IF YOUR RAV4 HAS POWER FRONT SEATS, YOU WILL NEED TO TRIM YOUR LINER AS SHOWN IN

FIGURE #1 ABOVE (PHOTOS ON BACK) TO AVOID INTERFERENCE WITH THE POWER SEAT TRACK.

TRIM LEAVING A _” PERIMETER LIP AS SHOWN ABOVE AND IN PHOTOS ON THE BACK OF THIS PAGE.

3

2

6597 Front_Back.doc

05/08/2006

TRIMMING PHOTOS OF PART #6597

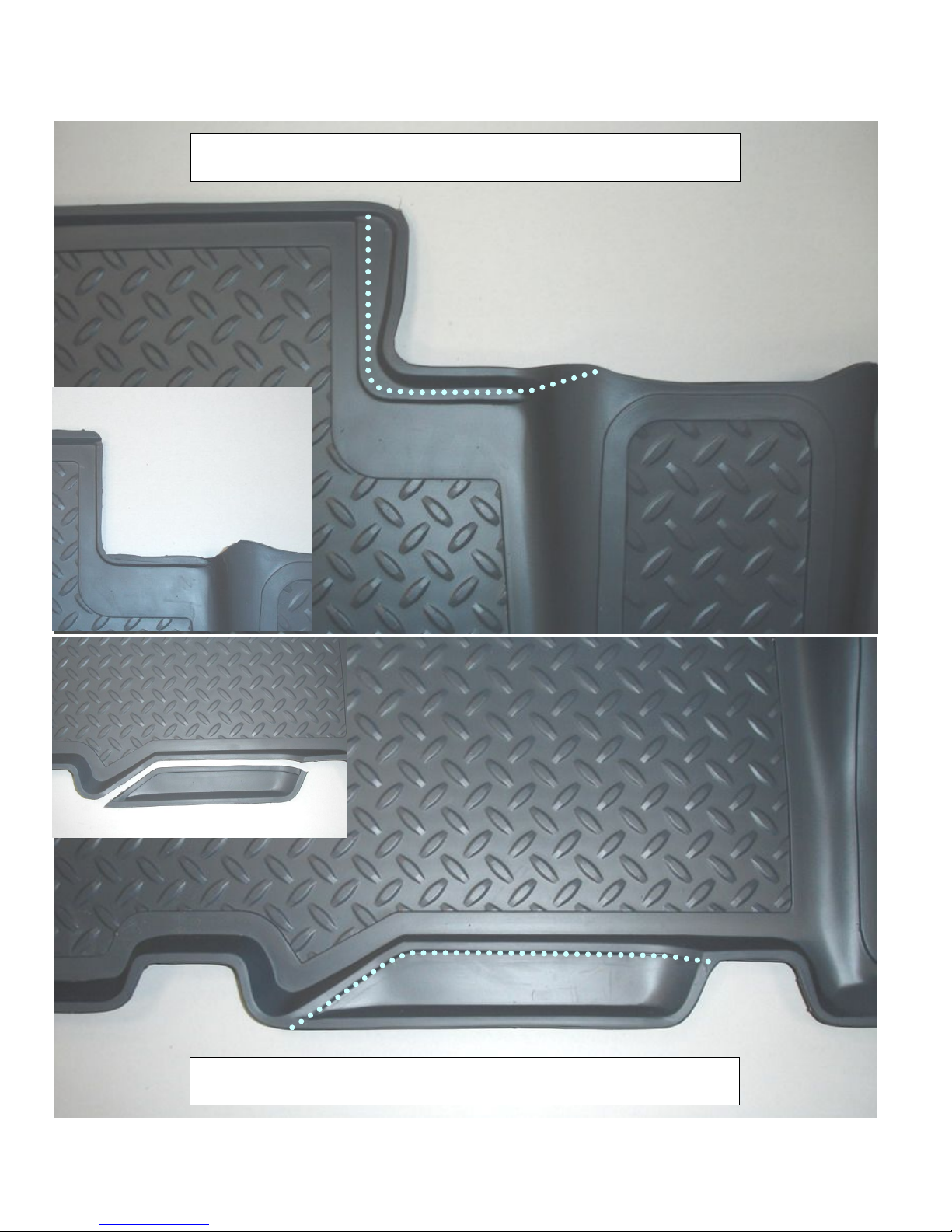

PART #6597 SHOWN UNTRIMMED. TRIM BY REMOVING RAISED AREA ON

LINER. LEAVE _” LIP AS SHOWN BY DOTTED LINE AND IN INSET..

PART #6597 SHOWN UNTRIMMED. TRIM BY FOLLOWING EDGE FORMED BY

PART AND RAISED EDGE (SEE DOTTED LINE AND PHOTO INSET).
