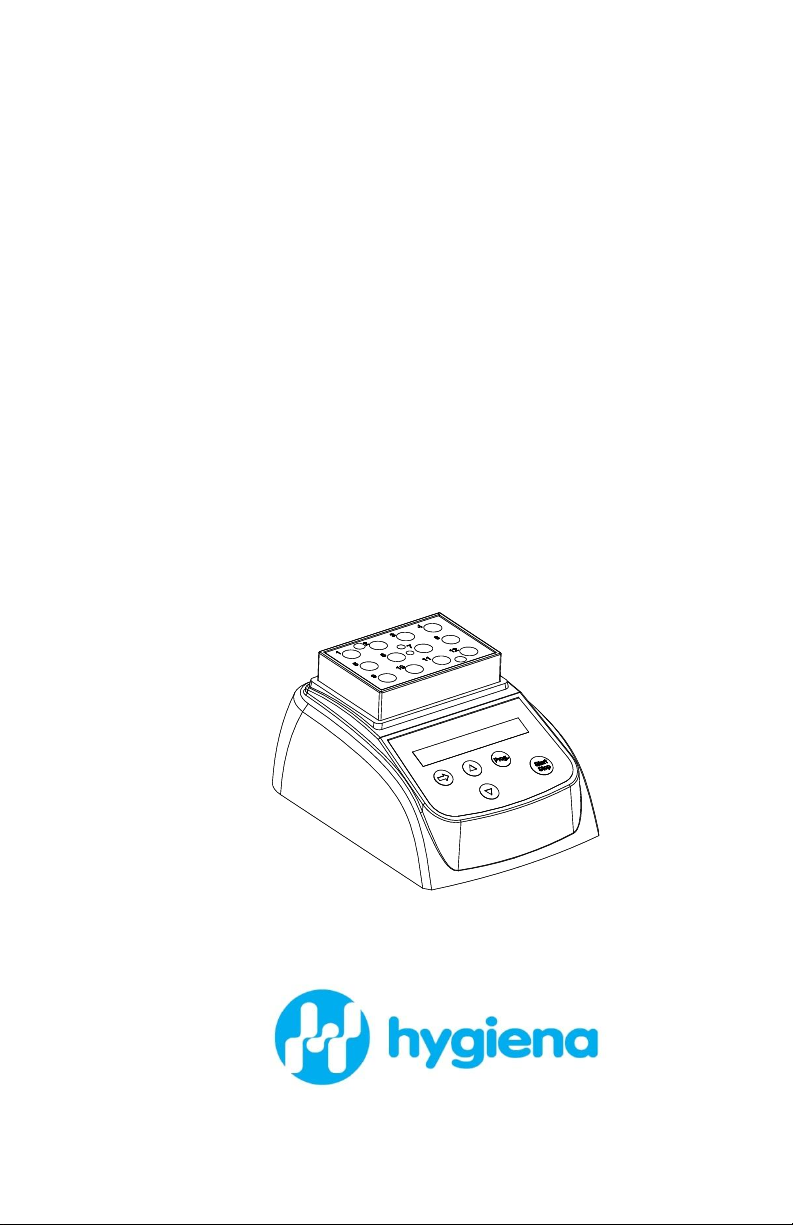

Hygiena INCUBATOR Bedienungsanleitung

INCUBATOR

Operations Manual

Version 1.0

Hygiena

941 Avenida Acaso

Camarillo, CA 93012

805-388-8007

Packing List

. Item Type QTY

1 Incubator INCUBATOR 1

2 Adapter 12V 4A 1

3 Wrench 1

4 Operations manual 1

5 Certification 1

Foreword

Thank you for purchasing our Products: INCUBATOR, This

Manual for users contains function and operation of the Inst

rument. In order to use the instrument properly, please read

this manual carefully before using the Instrument.

Opening Check

Please check the Instrument and Appendix with the packing

list when you first open the instrument packing case. If you

find there is something wrong with the Instrument and the

Appendix, do contact the vendor or the producer.

Annex 1 Wiring Diagram for Incubator

100-240V～

Adapter

12V 4A Mains switch

Sensor Heater

Display

Main

board

J8 J10

J3 J4

panel

Contents

1. Introduction………………………………………………......1

1.1 Delivery package…………………………….…………….1

1.2 Structure Description………………………………….......2

1.3 Installing the device………………………………….…....3

2. Technical data……………………………………………….4

3. Safety precautions……………..……………………….......5

4. Operation guide..…………………………………………….6

4.1 Control elements……….…………………………………..6

4.2 Create a new program……... ..…………………………...6

4.3 Min or Sec….…….………………………………..…….....6

4.4 Run and Stop…………………………………………….…7

4.5 Temperature calibration…………………………………..8

5.Maintenance and cleaning…………………………………10

6. Troubleshooting……………………………......................10

Annex 1 Wiring Diagram for Incubator …………………...11

Packing list…………………………………………………..12

1 Introduction

This Incubator designed for workstations in training and rese

arch laboratories in the fields of bioscience, medicine and ch

emistry.

Before starting up this incubator for the first time, please rea

d the rest of this operations manual.

1.1 Delivery package

Incubator 1pcs

Adapter 1pcs

Wrench 1pcs

Operations manual 1pcs

Certification 1pcs

5 Maintenance and cleaning

The well in the block should be cleaned by the cloth stained

with alcohol to assure good heat translation between the bl

ock and the test tube and no pollution. If there are smutche

s on the Instrument, clean them with cloth.

Power off when cleaning the Instrument.

When cleaning the well, don’t drop the cleaning liquid in th

e well.

Corrosive cleaning liquid is strongly prohibited.

6 Troubleshooting

Error Cause Solution

No display

No main power

connection.

Power failure.

Plug in mains cable

on both sides.

Check the mains fuse

“OPEN” in the

display with the

alarm of “du...”

Broken sensor

or loose

contact of the

module

Contact service.

“SHO” in the

display with the

alarm of “du...”

The sensor is

short Contact service.

No heating of

the block Heater failure Contact service.

Press invalid Keyboard

failure Contact service.

40.0Adj 

4.5.3 Pressing “”and“” key simultaneously,

practical temperature shows 20.5, and rise to 40.0

at once, at the same time the sign “*” flicker

ceaselessly. When the practical temperature reach

40.0, the sign “ADJ” and “*” flicker ceaselessly

together.

Press “start”

4.5.4 After 20 mintues, the actual temperature of

Thermometer is 38.8℃, then pressing “”or

“”key to amend the display value to

38.8, then pressing “start” key to confirm.

38.8Adj 

Then rise to 80.0℃automatically and “*”

flicker ceaselessly.

4.5.5 When the practical temperature reach

80.0,

the sign “ADJ” and “*” flicker ceaselessly

together.

80.0Adj 

4.5.6 After 20 mintues，the actual temperature of

Thermometer is 79.0℃. pressing “”or “”key to

amend the display value to 79.0, then pressing

“start” key to confirm.

79.0Adj 

“”

Press “start”

4.5.7 Then the screen returns to the

display as the right chart. P1 74.5 ℃NOTOK

After Temperature calibration, the temperature displayed is the

same with the practical temperature of block.

Note! During Temperature calibration, press “”and“”key

simultaneously to cancel the calibration. The system keeps the former

calibration.

So don’t press “”and “”key simultaneously unless need

calibrate the temperature!

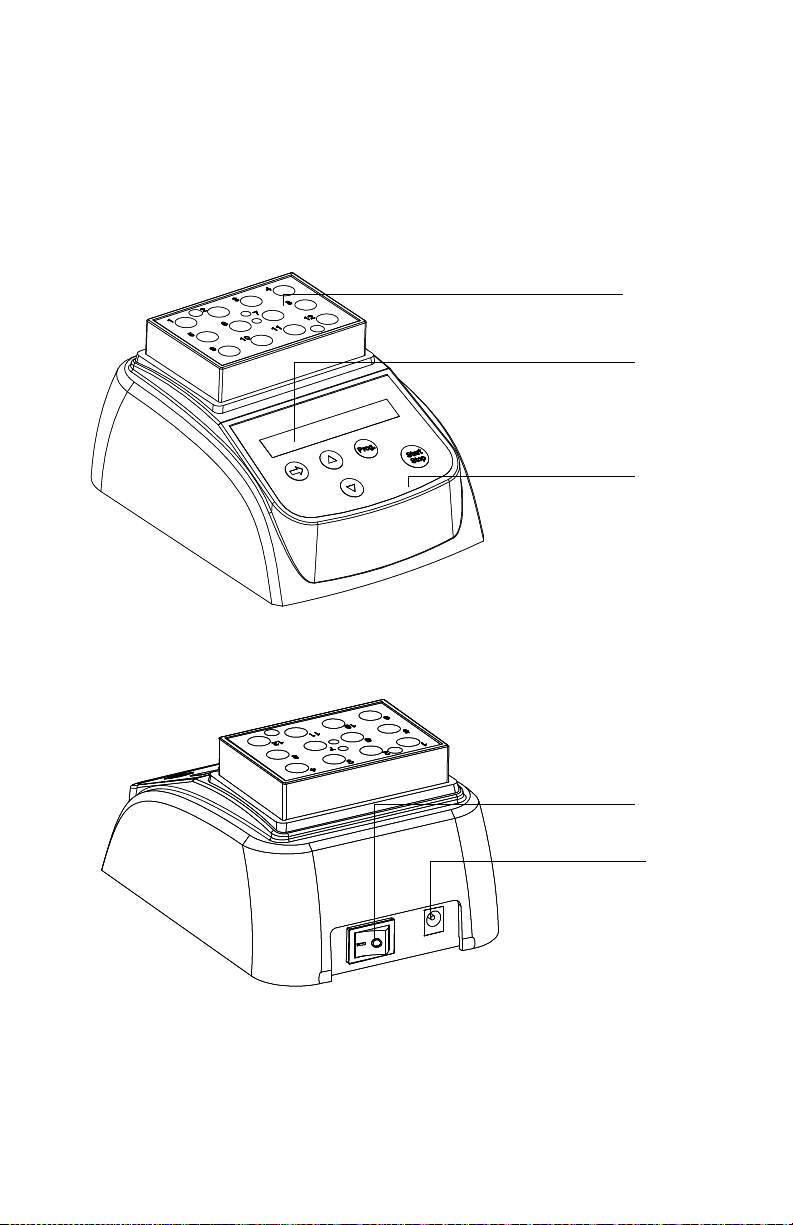

1.2 Structure Description

Display

Panel

Power Switch

Power connector

Block

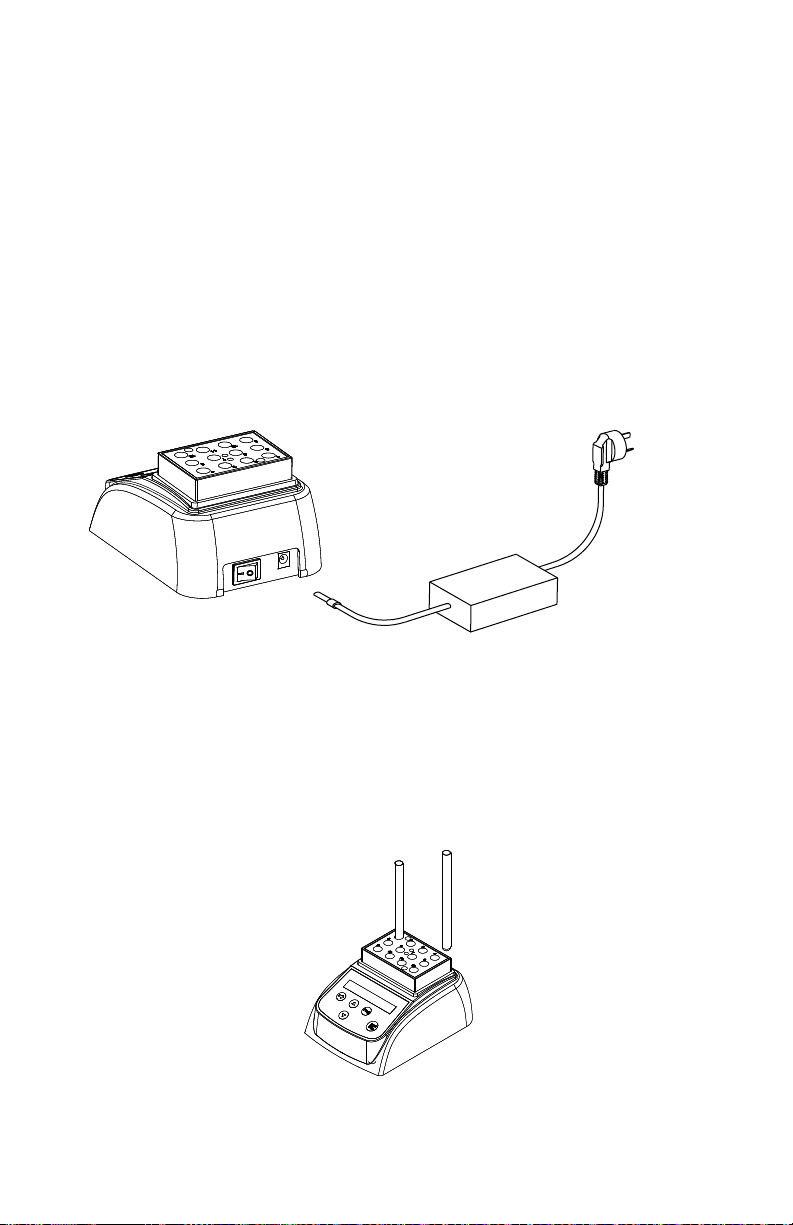

1.3 Installing the device

1.3.1 Place the incubator onto a level , horizontal surface.

1.3.2 Insert the column connector of the adapter to power connector

of the device ,and insert another connector of the adapter to mains p

ower supply.

1.3.3 Power on the main switch. The incubator is ready to operate

when the display becomes visible.

1.3.4 Put the test tube into the block.

100-240V～

DC 12V

Tube

4.5 Temperature calibration

The temperature of the instrument has been calibrated before it is sold

out. But if there is deviation between the actual temperature and the

displayed temperature due to some reasons, you can do as follows to

correct the error.

Notes: The Instrument uses double temperatures adjustment to ensure

its veracity. This means it is linearly calibrated on 40℃and 80℃two

points. The temperature veracity will be within ±0.5℃after the double

temperature adjustment.

The circumstances should be lower than 35℃.

Adjustment methods as follows:

4.5.1 After the startup of the Instrument, it enters waiting interface. Make

sure the temperature in display is below 35℃. If the temperature is

higher than 35℃, you should wait until the temperature is below 35℃.

4.5.2 Inject olefin oil into one of the cone-shaped wells, and then put a

thermometer into this well (Make sure the precision of the thermometer

should be within 0.1℃and the temperature ball should be absolutely

immerged into the cone-shaped well). Seeing from Fig a.

Note! The temperature can be corrected only after the instrument

reaches the set temperature for 20 minutes to ensure the precise

of the temperature.

Fig a Thermometer

Mineral oil

cone-shaped well

4.4 Run and Stop

4.4.1 Press “PROG.” key to select the program.

4.4.2 The instrument start to heat automatically according to the previ

ous set temperature, it shows “NOTOK” at the display. When it reach t

he target temperature, it shows “OK” at the display. Then pressing the

START/STOP key to run,

4.4.4 Press “START/STOP” key for 1 seconds continuously to stop

the program.

P8 35.5 ℃NOTOK

4.4.3 When the second time reach 0, the buzzer alarm “du. du. du…

….” and the display appear PROGRAM END. The controller hold the

second temperature. Pressing any key to return, and pressing the

START key to run again.

Pressing any key

When the first temperature over ,it will run second temperature autom

-atically.

PROGRAM END

P8 45.0 ℃OK

Press START to run again

P8 45.0 ℃OK

P8 45.0 020min P8 45.0 020min

2 Technical data

Model INCUBATOR

Power supply DC12V

Power 35 W

Temperature range RT+5 ℃～80 ℃

Timing range 1sec ～999sec or

1min ～999min

Accuracy of the

temperature ≤±0.5℃

Display accuracy 0.1℃

Heating time

(from 20 ℃to 80 ℃) ≤12min

Ambient temperature 5℃～35℃

Dimensions（W×D×H）110mm×150mm×80mm

Weight 0.5 kg

3 Safety precautions

This product is a normal and an indoor Instrument.

Read the Manual carefully before operation, The expert o

f wiring equipment can operate this Instrument.

The operator should not open or repair the Instrument by hi

mself, which will result in losing the qualification of repair gu

arantee or occur accident. If there is some wrong with the In

strument, the company will repair it.

The Instrument should be put in the place of low temperatur

e, little dust, no water and no sun or strong lamp. What’s mo

re, the place should be good aeration, no corrosively gas or

strong disturbing magnetic field, far away from central heatin

g, camp stove and other hot resource. Don't put the Instrum

ent in wet and dusty place.

Mains switch is on the rear of the device, push “I” to

power on the device, and push “O” to power off the

device.

Power off when you finish your work. Pull off the connector plu

g when there’s long time no use of the Instrument and cover it

with a cloth or plastic paper to prevent from dust.

Power connector is on the rear of the

device, DC12V input, inside is “+” , Out

side is “-”.

4. Operation guide

4.1 Control elements

START/STOP----for start or stop the procedure

PROG.-------------select various programs

 ----------------for setting the temperature and the time

----------------remove the cursor

4.2 Create a new program

press “PROG.” key to select various programs, from P1 to P9

default. If select P8,then press key to remove the cursor ,press

 key to set new value, we can set, first temperature ,first timing

time ,second temperature and second timing time . The sign “ ” is

first temperature and first time ,the sign “ ” is second temperature

and second time.

P8 50.0 003min First temperature and time

Second temperature and time

P8 40.0 006min

4.3 Min or sec

At setting interface ,the timer unit can select one of the Minute or

Second. Press key for 2 seconds continuously.

Timer unit : sec

Timer unit : min 

Then press  to select min or sec, then press key to confirm.

P8 36.2 ℃NOTOK

About 8 seconds, the curse will disappear, exit setting interface.

show room temperature

3 Safety precautions

This product is a normal and an indoor Instrument.

Read the Manual carefully before operation, The expert o

f wiring equipment can operate this Instrument.

The operator should not open or repair the Instrument by hi

mself, which will result in losing the qualification of repair gu

arantee or occur accident. If there is some wrong with the In

strument, the company will repair it.

The Instrument should be put in the place of low temperatur

e, little dust, no water and no sun or strong lamp. What’s mo

re, the place should be good aeration, no corrosively gas or

strong disturbing magnetic field, far away from central heatin

g, camp stove and other hot resource. Don't put the Instrum

ent in wet and dusty place.

Mains switch is on the rear of the device, push “I” to

power on the device, and push “O” to power off the

device.

Power off when you finish your work. Pull off the connector plu

g when there’s long time no use of the Instrument and cover it

with a cloth or plastic paper to prevent from dust.

Power connector is on the rear of the

device, DC12V input, inside is “+” , Out

side is “-”.

4. Operation guide

4.1 Control elements

START/STOP----for start or stop the procedure

PROG.-------------select various programs

 ----------------for setting the temperature and the time

----------------remove the cursor

4.2 Create a new program

press “PROG.” key to select various programs, from P1 to P9

default. If select P8,then press key to remove the cursor ,press

 key to set new value, we can set, first temperature ,first timing

time ,second temperature and second timing time . The sign “ ” is

first temperature and first time ,the sign “ ” is second temperature

and second time.

P8 50.0 003min First temperature and time

Second temperature and time

P8 40.0 006min

4.3 Min or sec

At setting interface ,the timer unit can select one of the Minute or

Second. Press key for 2 seconds continuously.

Timer unit : sec

Timer unit : min 

Then press  to select min or sec, then press key to confirm.

P8 36.2 ℃NOTOK

About 8 seconds, the curse will disappear, exit setting interface.

show room temperature

4.4 Run and Stop

4.4.1 Press “PROG.” key to select the program.

4.4.2 The instrument start to heat automatically according to the previ

ous set temperature, it shows “NOTOK” at the display. When it reach t

he target temperature, it shows “OK” at the display. Then pressing the

START/STOP key to run,

4.4.4 Press “START/STOP” key for 1 seconds continuously to stop

the program.

P8 35.5 ℃NOTOK

4.4.3 When the second time reach 0, the buzzer alarm “du. du. du…

….” and the display appear PROGRAM END. The controller hold the

second temperature. Pressing any key to return, and pressing the

START key to run again.

Pressing any key

When the first temperature over ,it will run second temperature autom

-atically.

PROGRAM END

P8 45.0 ℃OK

Press START to run again

P8 45.0 ℃OK

P8 45.0 020min P8 45.0 020min

2 Technical data

Model INCUBATOR

Power supply DC12V

Power 35 W

Temperature range RT+5 ℃～80 ℃

Timing range 1sec ～999sec or

1min ～999min

Accuracy of the

temperature ≤±0.5℃

Display accuracy 0.1℃

Heating time

(from 20 ℃to 80 ℃) ≤12min

Ambient temperature 5℃～35℃

Dimensions（W×D×H）110mm×150mm×80mm

Weight 0.5 kg

Andere Handbücher für INCUBATOR

Inhaltsverzeichnis

Andere Hygiena Laborausrüstung Handbücher

Hygiena

Hygiena Dualo 32 Merkblatt

Hygiena

Hygiena Autosampler III Bedienungsanleitung

Hygiena

Hygiena DUP-1000 Bedienungsanleitung

Hygiena

Hygiena BAX System Q7 Bedienungsanleitung

Hygiena

Hygiena foodproof KIT230127 Bedienungsanleitung

Hygiena

Hygiena PCD4000 Bedienungsanleitung

Hygiena

Hygiena Dualo 32 R2 Merkblatt

Hygiena

Hygiena SuperSnap SUS3000X Bedienungsanleitung

Hygiena

Hygiena RiboPrinter Bedienungsanleitung

Hygiena

Hygiena BAX Q7 Bedienungsanleitung

Hygiena

Hygiena UltraSnap US2020 Bedienungsanleitung

Hygiena

Hygiena Scigiene DB625 Bedienungsanleitung

Hygiena

Hygiena EnSURE Touch Bedienungsanleitung

Hygiena

Hygiena Innovate Installationshandbuch

Hygiena

Hygiena BAX System X5 Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
