i-Vac X10 Bedienungsanleitung
Lightweight •Lithium •Cordless
2.
10
15
14
11
8
4
5
13
6
7
2
3
1
12
9
2-in-1
Cleaning Tool
Crevice Tool
3.
Specifications:
Voltage: 21.6V DC
Power: 125W + 30W
Noise Level: 78.6dBA
Dust Capacity: 500mL
Run Time: 23 minutes
Weight: 2.38 kg/1.5 kg (handvac)
Battery: 2200mAh Li-Ion Battery
Charge Time: Approx. 5 hours
Charger: ZD12D260050AU
Input: 100-240V~ 50/60Hz 0.5A
Output: 26Vdc 500mA
Features:
1. Battery Release Buttons
2. Dust Bin
3. Dust Bin Lid Release Button
4. On/Off Button
5. Filter Release Lever
6. Dust Bin Release Buttons
7. Rod Release Button
8. Rod
9. Wheels
10. Floor Head Release Button
11. Floor Head
12. Charging Port
13. Power Indicator
Please contact Godfreys Customer Care 1800 815 270,
NZ 0800 282 288 to find your local spare parts provider.
X10
Congratulations on the purchase of your new i-Vac vacuum cleaner. There are many useful features
built into your vacuum cleaner. We recommend that you carefully read this instruction manual to take
the best advantage of these features.
Features
Accessories:
14. Crevice Tool
15. 2-in-1 Cleaning Tool
4.
Before You Begin
This cleaner must be operated in accordance with these instructions and used only for domestic
household cleaning to remove DRY dirt and dust from household carpets, flooring, walls and fabrics.
This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used
inappropriately.
Please read these instructions thoroughly
This will ensure you obtain full benefit from your new cleaner. Keep this Instruction Manual in a safe and
convenient place for future reference.
Important
Always switch off the appliance before cleaning, when not in use, attempting any maintenance task, fitting
or removing accessories. The charger must only be connected to an AC power supply at the voltage
shown on the rating label. This cleaner should only be charged with the charger provided. This cleaner
should only be used for its intended purpose as described in these instructions.
Precautionary measures:
1. Do not operate the vacuum cleaner too close to heaters, radiators or other
hot surfaces.
2. Before inserting the power plug into the power supply, make sure your hands are dry.
3. Before turning on the vacuum cleaner, safely remove any large objects from the
floor or cleaning surface in order to prevent damage to the filter.
4. When removing the power plug from the power supply, do not use the power cable, gently
pull the power plug from the power socket.
5. Do not use this vacuum cleaner to pick-up water or liquids.
5.
When using your vacuum cleaner, basic
precautions should always be observed, including
the following;
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory, mental capabilities or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
2. Children should be supervised to ensure that
they do not play with the appliance.
3. To prevent electrical shock, do not immerse
the appliance, battery or power plug into water
or other liquids.
4. To prevent electrical shock, do not use the
vacuum cleaner outdoors or on wet surfaces.
5. Always check the power cord before use, the
power cord and the power plug should be in
a good condition and must not be damaged.
If the power cord is damaged or defective,
it must be replaced by the manufacturer, its
service agent or similarly qualified person in
order to avoid a hazard.
6. The appliance and charger are intended for
domestic indoors use only.
7. Do not unplug the charger by pulling on the
power cord. To unplug, grasp the power
plug, not the power cord and gently pull the
power plug from the power socket. Use only
Australian and New Zealand electrical safety
approved extension cords.
8. Do not pull or carry the appliance by the power
cable, use the power cable as a handle or
pull the power cable around sharp edges or
corners. Avoid running the appliance over
the power cable.
9. Do not handle or operate the appliance with
wet hands. Follow electrical safety precautions
at all times.
10. Extreme caution should be exercised when
using the appliance on stairs.
11. Do not attempt to change the attachments
while the appliance is switched on. Use only
manufacturer’s recommended accessories.
12. Do not operate the vacuum cleaner too close
to heaters, radiators and other hot surfaces.
13. Do not use the appliance to pick up flammable
items or combustible liquids (i.e. gasoline,
hot ashes, cigarettes, matches, explosive
materials or anything burning) or use in areas
where such substances and items may be
present.
14. Do not use the appliance to pick up toxic
materials (i.e. chlorine, bleach, ammonia).
15. Never operate or use the appliance without
the filters in place.
16. Before vacuuming, remove any large or sharp
objects from the floor or cleaning surface in
order to prevent damage to the filter.
Safety Precautions & Warnings
IMPORTANT! Always switch off the appliance before cleaning, when not in use or
attempting any maintenance task. The charger must only be connected to an AC
power supply at the voltage shown on the rating label. This cleaner should only be
used for its intended purpose as described in this instruction manual. Never operate
the vacuum cleaner without filters.
Before You Begin
6.
17. If the air inlet or floor head is blocked, switch
off the cleaner straight away. Clear the blocked
object before attempting to start the vacuum
cleaner again.
18. Before carrying out any maintenance or cleaning
the filters, always switch off the vacuum cleaner.
19. Keep openings away from your face and body.
20. Do not use the vacuum cleaner if it is damaged
or broken. If connection cables are damaged,
have them replaced immediately.
21. Never clean the vacuum cleaner or any of
the electrical parts, especially the electrical
connections with water or liquid cleaners.
22. Never attempt to make any modifications to the
vacuum cleaner and charger.
23. Always store the appliance and charger indoors
in a cool and dry place.
24. Do not use the vacuum to pick up water or
liquids. This cleaner is for dry household use
only.
25. Use the electric power head only for vacuuming
dust and dry substances in the home.
26. Never run over the power cable with the power
head, as this may cause damage to the power
cable.
27. Keep your hands away from the roller brush while
the vacuum cleaner is switched on.
28. To prevent unnecessary wear on the power
head, keep it moving while in operation.
29. Damage caused by improper use or by not
observing the instructions in this manual
will void the warranty.
Battery use and care
1. The appliance is only to be used with the charger
provided with the appliance.
2. Only charge the battery inside the product and
only use the specifically designated charger to
charge the product.
3. When the appliance is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects
that can make a connection from one terminal
to another. Shorting the appliance terminals
together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
occurs, flush with water immediately. If liquid
comes into contact with your eyes, seek medical
help immediately.
5. Do not charge or store the appliance outdoors
or inside the car. Only charge or store the battery
in a dry indoor area where the temperature is
more than 5oC but less than 45oC. The charger is
for indoor use only.
6. Never attempt to open the battery for any
reason. If the plastic housing of the battery
casing breaks or cracks, immediately
discontinue use and do not recharge.
7. The charger is not a serviceable part.
8. Before disposal of your battery, fully discharge
your battery by running the product until it stops.
9. The cleaner contains a Li-Ion battery. Do not
dispose the appliance with your local garbage.
Contact your local council for instructions on
how to safely dispose of the battery.
10. Do not use the charger to charge a
non-chargeable battery.
7.
IMPORTANT! Always remove the battery from the appliance before fitting or
removing accessories.
Assembly

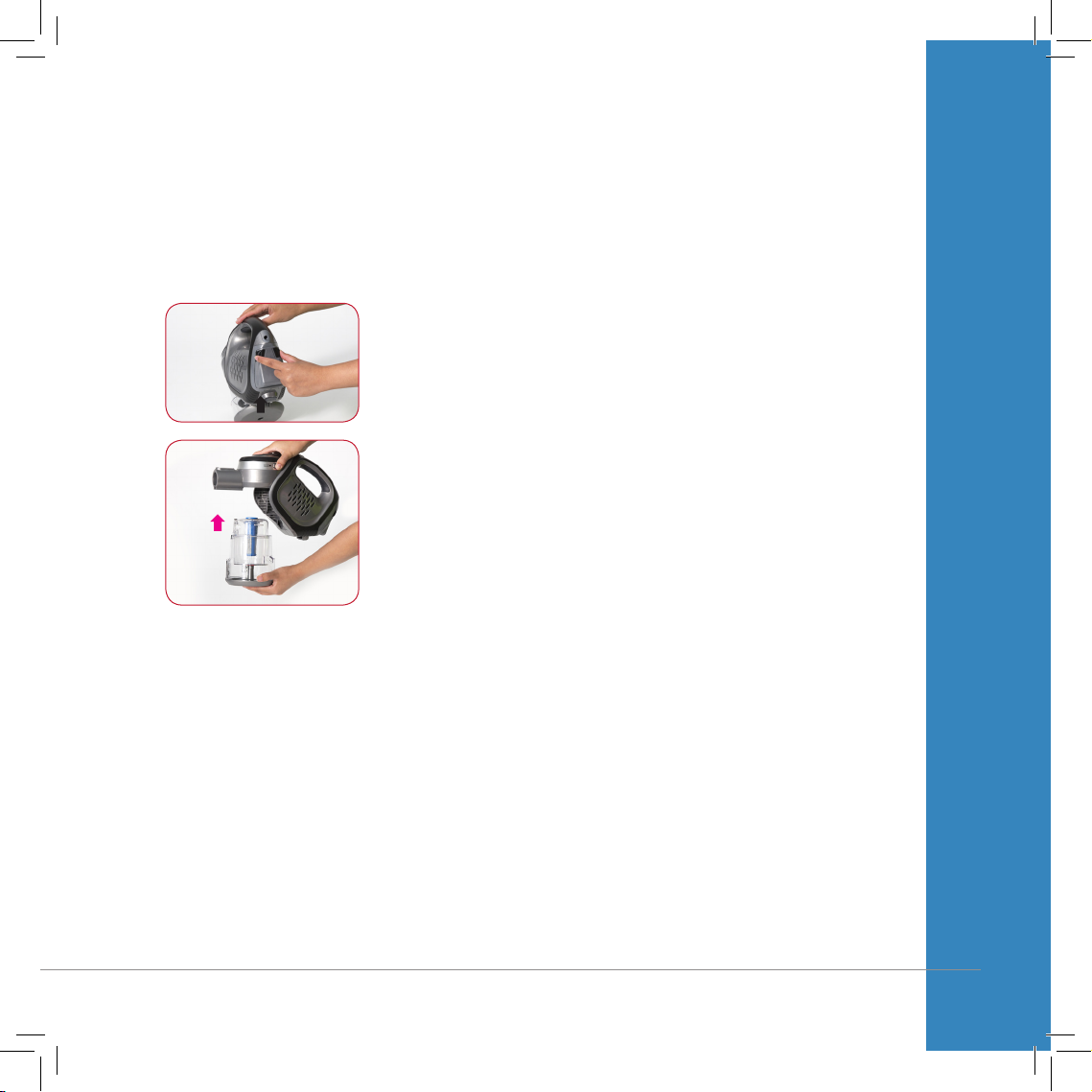

1. Insert the battery into the machine (as shown) until a “click”
is heard.
Warnings
Installing the battery
Installing the dust bin
1. Align the dust bin to the cleaner and push upward (as
shown) until a “click” is heard.
8.
Assembly (continued)
Insert the floorhead into the rod. You will hear a “click” when it
is securely in place.
Connecting the floorhead
Insert the opposite end of the rod into the air inlet of the
cleaner. Once securely in place, you will hear a “click”.
Connecting the rod to the cleaner
9.
Assembly
Accessories
2-in-1 Cleaning Tool
The 2-in-1 Cleaning Tool can be used as a soft dusting
brush for cleaning a variety of surfaces or as an upholstery
tool for cleaning furniture.
Crevice Tool
The crevice tool can be used to clean in between hard to
reach places.
2-in-1 Cleaning Tool
Crevice Tool
10.

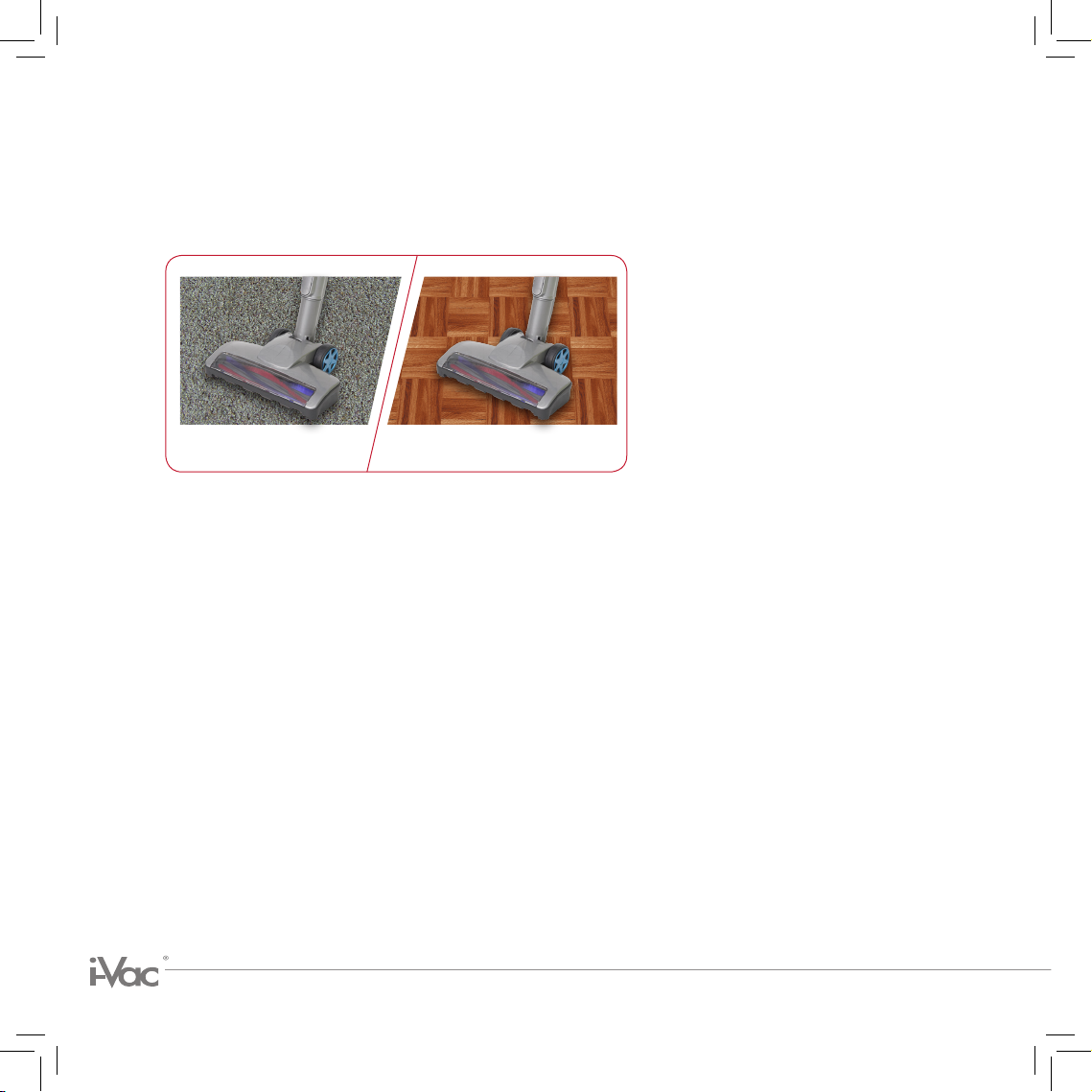

Ideal for daily cleaning on
carpets and hard floors.
Carpet Hard Floors
Floorhead
NOTE: If the floorhead is blocked, the motor will switch off automatically. If this
occurs, switch off the vacuum cleaner and remove the battery. Remove any object
that has blocked the floorhead, then reinsert the battery and switch on the cleaner.
If the floorhead cannot be restarted, do not try to dismantle the floorhead. Please
contact your local Godfreys store.
Accessories (continued)
