SERVICE PARTS MANUAL

MODEL-ICE1806 and ICE1807 Version 3

MODEL-ICE2106 and ICE2107 Version 3

Ice-O-Matic

11100 East 45th Ave

Denver, Colorado 80239

Part Number 9081376-01 Date 5/08

SERVICE PARTS MANUAL

22 INCH WIDE ICE SERIES CUBERS

MODEL-ICE0320, ICE0520

Includes 50Hz. Units

ICE-O-Matic

11100 East 45th Ave

Denver, Colorado 80239

Part Number 9081297-01 PD04/02 Rev1/05

ICE1800 and 2100 Series Version 3 Service Parts

This parts list contains the service parts available for the following icemakers.

ICE1806 Water and Remote Version 3

ICE1807 Water and Remote Version 3

ICE2106 Water and Remote Version 3

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Exterior Panels Page 2

Water Cooled Page 4

Remote Page 6

Control Box Page 8

Harvest Assist Page 10

Water Pump/Float Page 12

VRC Condenser Page 14

Ice-O-Matic

11100 East 45th Ave.

Denver Co. 80239

800-423-3367

Page 1

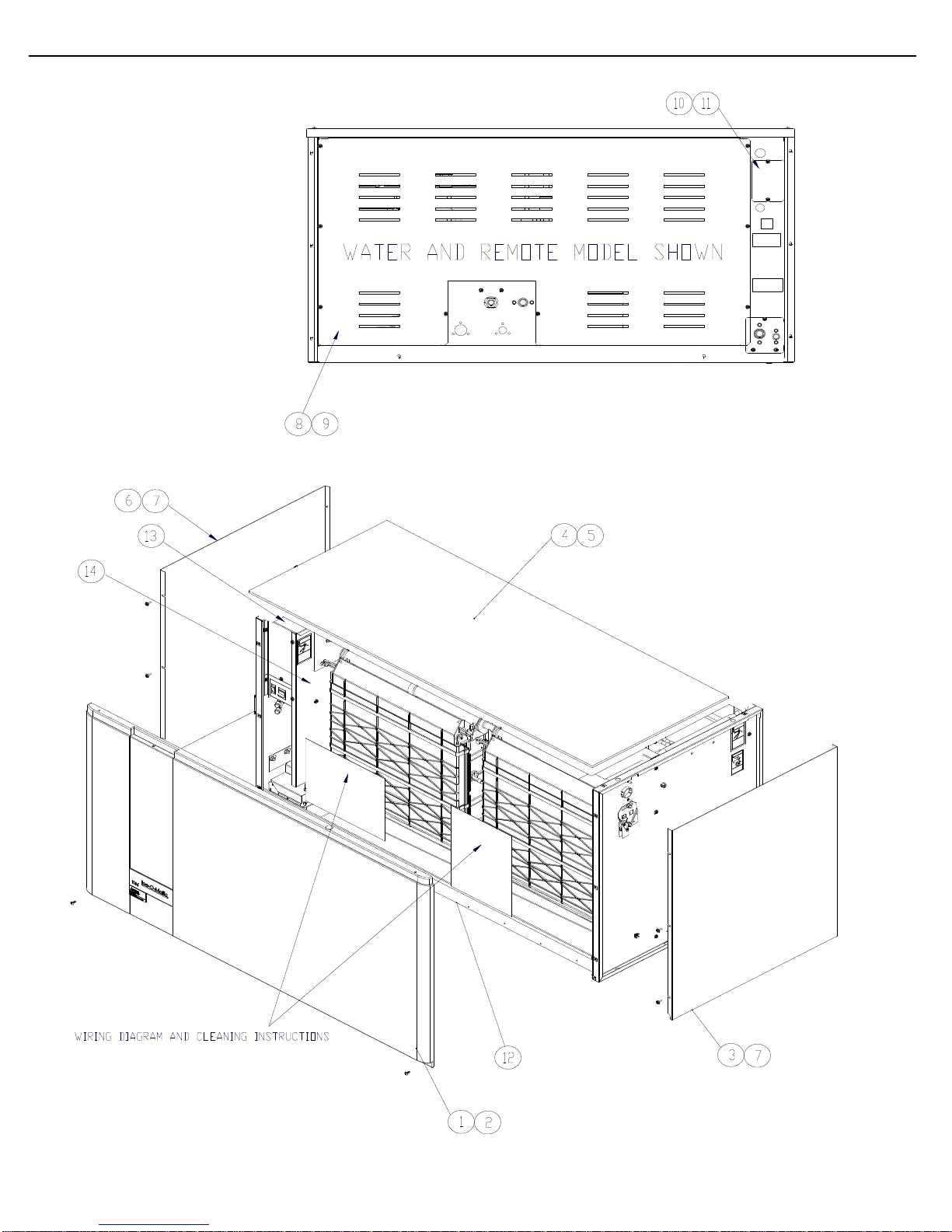

ICE1800 and 2100 Series Version 3 Exterior Panels

Page 2

ICE1800 and 2100 Series Version 3 Exterior Panels

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 2031465-05 2031465-05 2031465-05 2031465-05 Front Panel

2 9031098-02 9031098-02 9031098-02 9031098-02 Front Panel Screws

3 3021929-01 3021929-01 3021929-01 3021929-01 Right Hand Side Panel-Water Cooled and Remote Only

4 9051469-01 9051469-01 9051469-01 9051469-01 Top Panel

5 9031098-02 9031098-02 9031098-02 9031098-02 Top Panel Screws

6 3021934-01 3021934-01 3021934-01 3021934-01 Left Hand Side Panel-Water Cooled and Remote Only

7 9031046-03 9031046-03 9031046-03 9031046-03 Side Panel Screw

8 3021926-01 3021926-01 3021926-01 3021926-01 Rear Panel

9 9031046-01 9031046-01 9031046-01 9031046-01 Rear Cover Panel Screws

10 3013308-01 3013308-01 3013308-01 3013308-01 Junction Box Cover

11 9031046-01 9031046-01 9031046-01 9031046-01 Junction Box Cover Screws

12 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector

13 3013294-01 3013294-01 3013294-01 3013294-01 Control Box Top Cover

14 3013293-01 3013293-01 3013293-01 3013293-01 Control Box Side Cover

15 N/

Machine Compartment Cover

Model Number

Page 3

ICE1800 and 2100 Series Version 3 Water Cooled

Page 4

ICE1800 and 2100 Series Version 3 Water Cooled

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 9181108-11 9181108-12 9181129-11 9181129-12 Compressor

2 9151004-03 9151004-03 9151004-03 9151004-03 Filter Drier

3 9151153-01 9151153-01 9151153-01 9151153-01 Expansion Valve

4 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body

5 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil

6 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control

7 9141123-01 9141123-01 9141123-01 9141123-01 Water Condenser

8 9051154-12 9051154-14 9051154-14 9051154-14 Evaporator Splash Curtain

9 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector

10 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube

11 2051239-81 2051239-81 2051239-81 2051239-81 Evaporator Right Side Full Cube

11 2051239-82 2051239-82 2051239-82 2051239-82 Evaporator Right Side Half Cube

12 2051240-81 2051240-81 2051240-81 2051240-81 Evapoartor Left Side Full Cube

12 2051240-82 2051240-82 2051240-82 2051240-82 Evapoartor Left Side Hal

Cube

13 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel

14 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel

15 9051135-04 9051135-04 9051135-04 9051135-04 Water return

16 9051135-05 9051135-05 9051135-05 9051135-05 Spillway

17 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core

18 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap

19 9101124-02 9101124-02 9101124-02 9101124-02 Bin Switch Right Side (Cut Arm)

20 9101124-02 9101124-02 9101124-02 9101124-02 Bin Switch Left Side (Cut Arm)

21 9041056-01 9041056-01 9041056-01 9041056-01 Water Regulating Valve

22 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace

23 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control

24 9091063-02 9091063-02 9091063-02 9091063-02 Condenser Drain Fitting

Model Number

Page 5

ICE1800 and 2100 Series Version 3 Remote

Page 6

ICE1800 and 2100 Series Version 3 Remote

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 9181008-11 9181108-12 9181129-11 9181129-12 Compressor

2 9151004-03 9151004-03 9151004-03 9151004-03 Filter Drier

3 9151152-01 9151152-01 9151152-01 9151152-01 Expansion Valve

4 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body

5 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil

6 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control

7 9151109-01 9151109-01 9151109-01 9151109-01 Receiver

8 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain

9 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector

10 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube

11 2051239-81 2051239-81 2051239-81 2051239-81 Evaporator Right Side Full Cube

11 2051239-82 2051239-82 2051239-82 2051239-82 Evaporator Right Side Half Cube

12 2051240-81 2051240-81 2051240-81 2051240-81 Evapoartor Left Side Full Cube

12 2051240-82 2051240-82 2051240-82 2051240-82 Evapoartor Left Side Hal

Cube

13 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel

14 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel

15 9051135-04 9051135-04 9051135-04 9051135-04 Water Return

16 9051135-05 9051135-05 9051135-05 9051135-05 Spillway

17 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core

18 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap

19 9101124-02 9101124-02 9101124-02 9101124-02 Bin Switch Right Side (Cut Arm)

20 9101124-02 9101124-02 9101124-02 9101124-02 Bin Switch Left Side (Cut Arm)

21 9091143-02 9091143-02 9091143-02 9091143-02 Remote Shut-Off Valve (Large)

9091143-01 9091143-01 9091143-01 9091143-01 Remote Shut-Off Valve (Small)

22 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace

23 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control

24 9041092-02 9041092-02 9041092-02 9041092-02 Pump Down Control

25 9151123-02 9151123-02 9151123-02 9151123-02 Liquid Line Solenoid

26 2101421-01 2101421-01 2101421-01 2101421-01 Accumulator Assembly

9091001-12 9091001-12 9091001-12 9091001-12 1/2 Inch Coupling (Not Shown)

9091001-11 9091001-11 9091001-11 9091001-11 3/8 Inch Coupling (Not Shown)

9151139-01 9151139-01 9151139-01 9151139-01 Check Valve (Not Shown)

Model Number

Page 7

ICE1800 and 2100 Series Version 3 Control Box

Page 8
