WISE-5801-MTCP User-defined I/O & Data Logger Module - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

WISE-5801-MTCP

User-defined I/O & Data Logger Module

Quick Start Guide

Thank you for purchasing WISE-5801-MTCP –the Intelligent Data Logger PAC

controller for remote monitoring and control application. This Quick Start Guide

will provide you with minimum information to get started with WISE-5801-MTCP. It

is intended for use only as a quick reference. For more detailed information and

procedures, please refer to the full user manual on the CD included in this

package.

In addition to this guide, the package includes the following items:

GSM Antenna

WISE-5801-MTCP Software 2G microSD RS-232 cable Screw Driver

(ANT-421-02)

Series Module Utility CD card (CA-0910) (1C016) Only for WISE-

5801-MTCP

WISE-5801-MTCP Quick Start

Guide

WISE-5801-MTCP Website 

https://www.icpdas-usa.com/wise_5801_mtcp.html 

WISE-5801-MTCP User-defined I/O & Data Logger Module - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

1--------------------------------------------

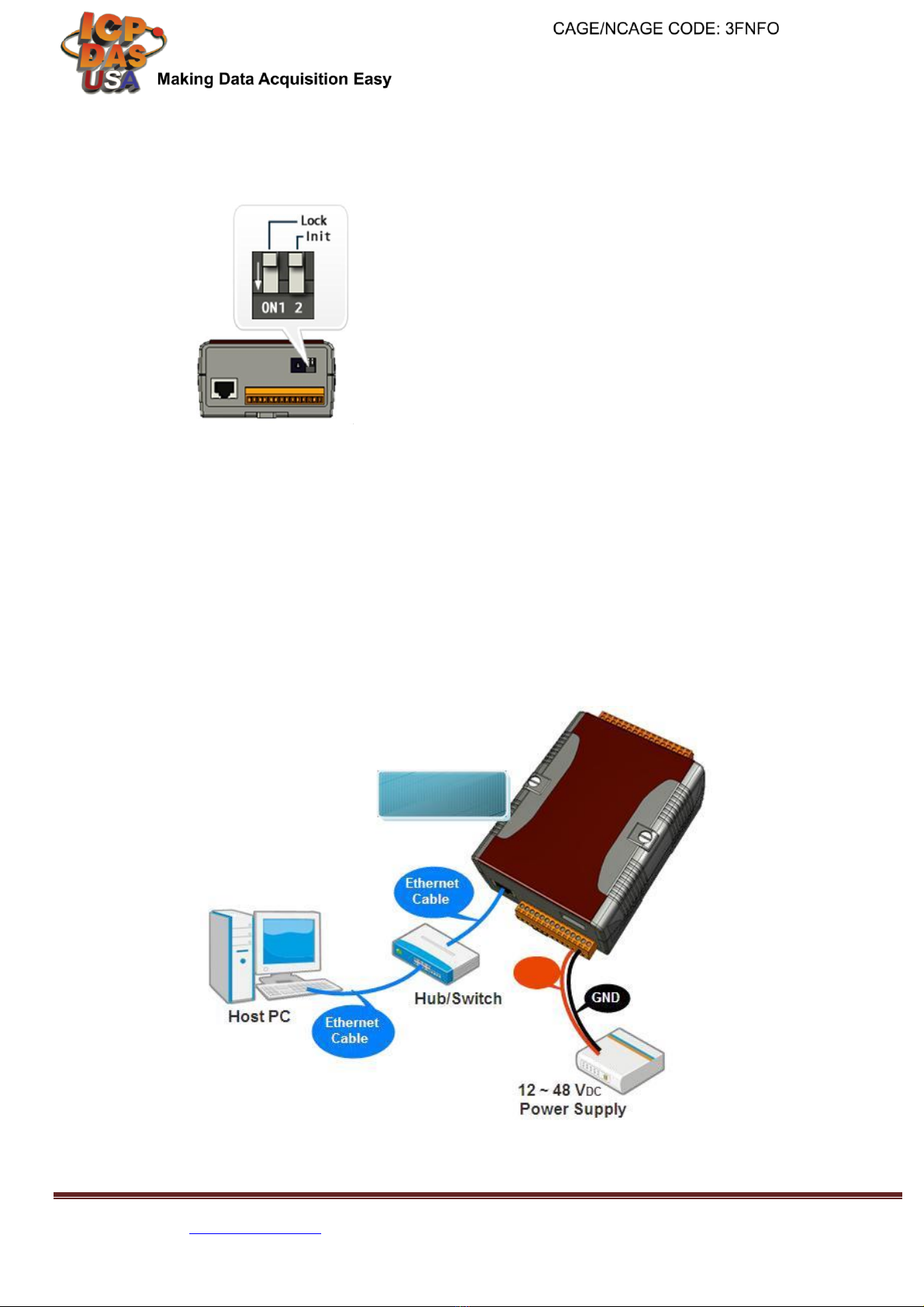

Configuring Boot Mode

Make sure the “Lock“ switch placed in the “OFF”

position, and the “Init’ switch placed in the “OFF”

position.

2 ---------------------------------------------------------------------

Connecting to PC, Network and Power

The WISE-5801-MTCP is equipped with an RJ-45 Ethernet port for connection to

an Ethernet hub/switch and PC. You can also link directly the WISE-5801-MTCP to

PC with an Ethernet cable.

WISE-5801-MTCP

+Vs

WISE-5801-MTCP Quick Start

Guide

WISE-5801-MTCP User-defined I/O & Data Logger Module - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

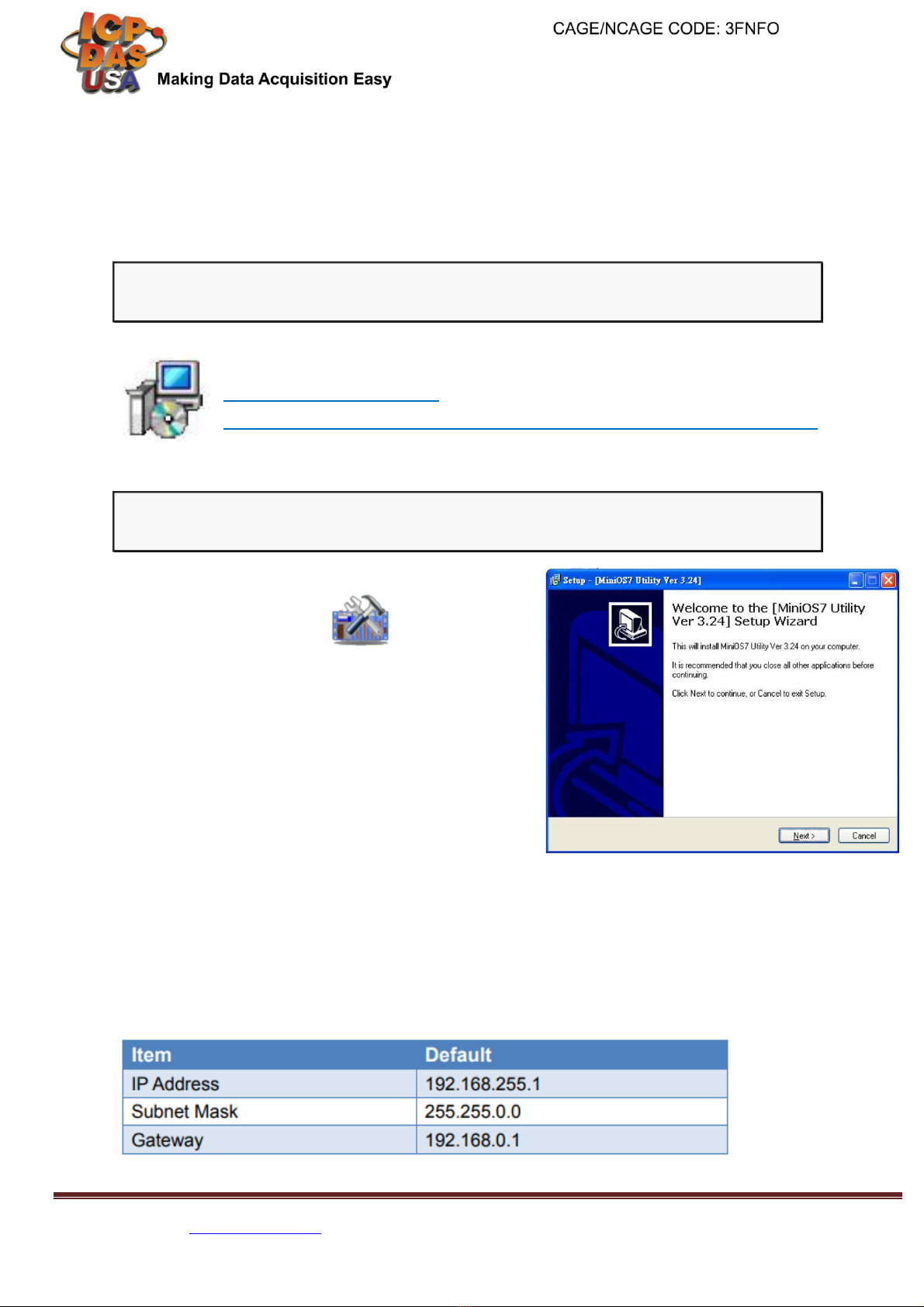

3. Installing the MiniOS7 Utility

Step 1: Get the MiniOS7 Utility

The MiniOS7 Utility can be obtained from companion CD or our FTP site:

CD:\Tools\MiniOS7 Utility\

ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/minios7/utility/minios7_utility/

Please download version v3.2.4 or later.

Step 2: Follow the prompts to complete the installation

MiniOS7 Utility Ver 3.24

After the installation has been completed, there will

be a new short-cut for MiniOS7 Utility on the

desktop.

4-------------------------------------------------------------------------

Using MiniOS7 Utility to Assign a New IP

The WISE-5801-MTCP is an Ethernet device, which comes with a default IP address,

therefore, you must first assign a new IP address to the WISE-5801-MTCP.

WISE-5801-MTCP User-defined I/O & Data Logger Module - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

WISE-5801-MTCP User-defined I/O & Data Logger Module - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

the status tip,

WISE-5801-MTCP User-defined I/O & Data Logger Module - QuickStart (May/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5----------------------------------------------------------------------------------

Go to WISE-5801-MTCP Web Site to edit Control

Logic

Please follow the steps below to implement IF-THEN-ELSE control logic on

controllers:

Step 1: Open a browser, and type in the URL address of the WISE-5801-MTCP

Open a browser (recommended using Internet Explorer, new version is better). Type

in the URL address of the WISE-5801-MTCP module in the address bar. Make sure

the IP address is accurate.

Step2: Get on the WISE-5801-MTCP web site

Get on the WISE-5801-MTCP web site.

“wise”. Implement the control logic

configuration in the order (Basic

SettingAdvanced SettingRule

SettingDownload to Module), then

complete the IF-THEN-ELSE rule

editing.

Step 3: For more detail information, please refer to WISE User Manual

WISE-5801-MTCP Quick Start

Guide
