ZT-2053 - 14-channel DI Module with Counters- QuickStart (Sep/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 1

ZT-2053

ZigBee Wireless Module with 14 Digital Input

Channels

Quick Start Guide

Product Website:

https://www.icpdas-usa.com/zt_2053

Introduction

The ZT-2053 offers 14 digital input channels which can be used for either dry or

wet contact. Its effective distance for dry contact is up to 500 meters. All channels

are able to be used as 16-bit counters. The ZT-2053 includes 14 LED indicators to

display the channel status as well as 4 kV ESD protection and 3750 Vrms intra-

module isolation. Users can easily to configure the module address, protocol,

checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP

switches.

What’s in the Shipping Package?

The shipping package contains the following items:

ZT‐2053 DIO Device ANT‐124‐05 Quick Start

ZT-2053 - 14-channel DI Module with Counters- QuickStart (Sep/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2

Preparing the Device

1. Refer the chapter 3. to configure the DIP switch of ZT-2053 I/O device.

2. Install the ZT Configuration Utility to configure the ZT-2053 coordinator. CD:

\Napdos\ZigBee\ZT_Series\Utility http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/

zt_series/utility

3. Power Supply: +10 ~ +30 VDC

Setting up the ZT‐2053 DIO Device

3.1 Introduction to the Configuration Parameters

A. “Pan ID” parameter is the group identity for a ZigBee network, and must the same

for all devices in the same ZigBee network.

“Address/Node ID” parameter is the individed identity of a specific the ZigBee

module, and must be unique for each device connected the same ZigBee network.

B. “RF Channel” parameter indicates the radio frequency channel, and must be set to the

same value as other modules on the same ZigBee network.

Channel

0x00

0x01

……

0x0F

Frequency(MHz)

2405

2410

……

2480

※

RF channels 0x04, 0x09, 0x0E or 0x0F are recommended because they do not overlap

with the Wi-Fi frequencies based.

802.11b/g

Channel 1

Channel 6

Channel 11

2400 00

2485

MHz

802.11b/g Channel (North America)

802.15.4 Channel

C. Protocol/Application Mode：

ZT-2053 - 14-channel DI Module with Counters- QuickStart (Sep/2017)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3

When implementing custom programs based on different protocols, the following

application modes are recommended in order to ensure

communicatible

User Program Protocol

DCON

Modbus RTU

Modbus TCP

ZT-2053 I/O

ZT-2550

ZT-2570

DCON

Transparent

Modbus RTU

Transparent

Modbus Gateway

Modbus RTU

------

Modbus Gateway

ZT-2053 - 8-channel DI DAQ module - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 4

Rotation Switch and DIP Switch

The configuration of ZT-2053 series can be adjusted by using the external rotary

switch and the DIP switches. The ZT-2053 device should only be rebooted once the

configuration is complete.

 DIP Switch to the ZT‐2042/ZT‐2043/ZT‐2053/ZT‐2055

Protocol Pan ID

Checksum

RF Channel

Reserved

Address LSB

Address MSB

(Node ID)

 DIP Switch to the ZT‐2053/ZT‐2060

Protocol Pan ID

Address LSB

Address MSB

Checksum

RF Channel

(Node ID)

ZT-2053 - 8-channel DI DAQ module - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 5

 Rotation Switch

……

Note

Address

……

MSB = 0

Node ID

0x0001

0x0002

0x003

……

0x000F

……

Address

……

MSB = 1

Node ID

0x0010

0x0011

0x0012

0x013

……

0x001F

※

Once the address of hardware switch is set to 0x00, it mens the address is using software

configurations. Refer the more detailed information at Sec. 6.6 of user manual.

 DIP Switch

Number

Item

Status

Explain

Address MSB

OFF

Valid Address (Node ID) from 0x00 to 0x0F

Valid Address (Node ID) from 0x10 to 0x1F

Protocol

OFF

DCON Protocol

Modbus RTUProtocol

Checksum

OFF

Disabled

Enabled

ZigBee Pan ID

OFF

Pan ID = 0x0000

Pan ID = 0x0001

OFF

------

0x08

OFF

------

ZigBee

0x04

RF Channel

OFF

------

0x02

OFF

------

0x01

ZT-2053 - 8-channel DI DAQ module - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 6

Start‐up ZT‐2000 I/O Device

As the ZigBee network is controlled by the ZigBee coordinator, the ZT-2550/ZT-

2570 (ZigBee coordinator) must be configured first. Please refert to documents shown

below for full details of how to configure these devices.

Once configuration of the ZigBee coordinator has been completed. Set the ”Pan ID” and

the “RF Channel” values for the ZT-2000 I/O device to the same values as the network, and

then reboot the device. The module will automatically start to function on the ZigBee network

using the default protocol.

※Configuration Utility (Used to configure ZT-2000 I/O device Coordinator)

http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zt_series/utility/

ZT-2053 - 8-channel DI DAQ module - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 7

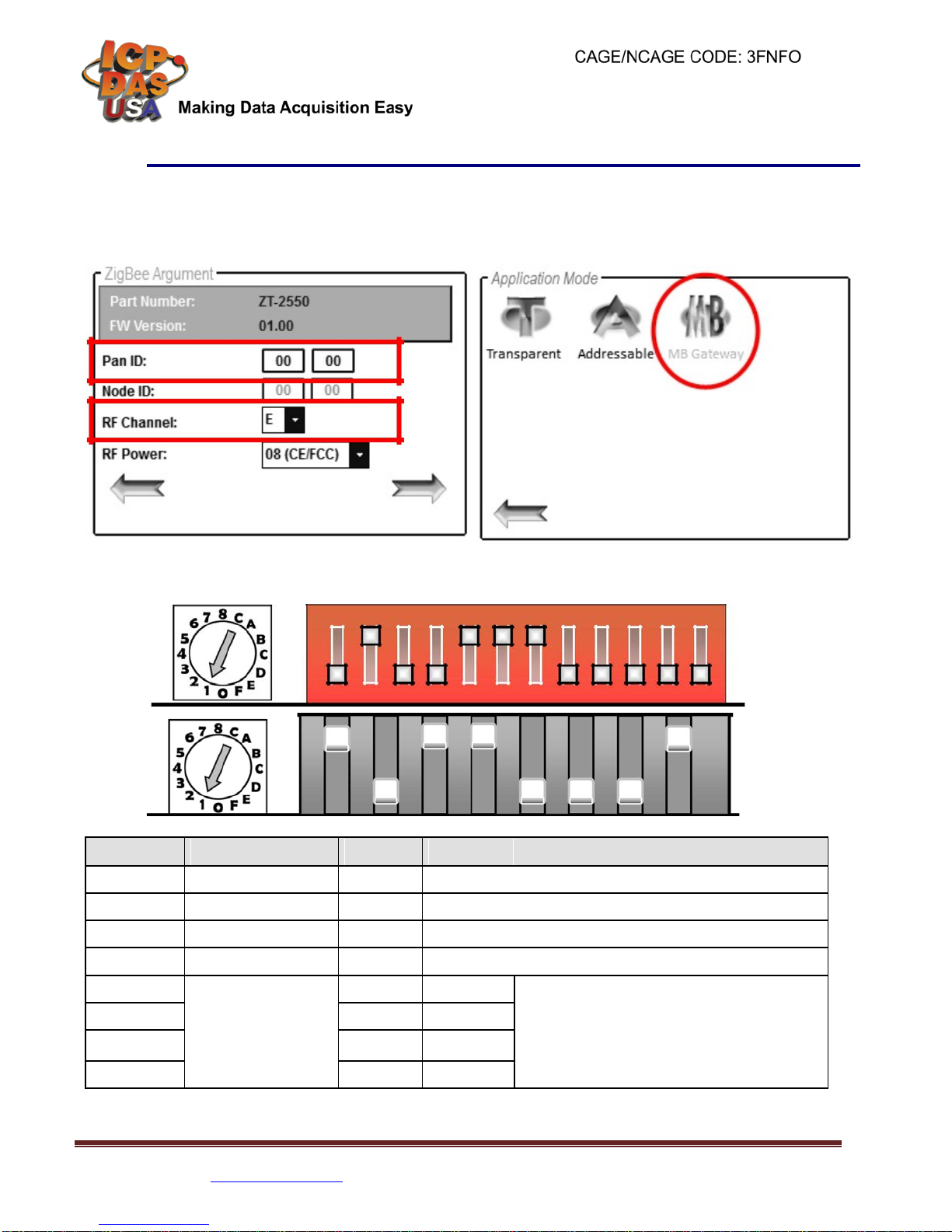

Examples

 Configurations of ZT‐2550/ZT‐2570

 Configurations of ZT-2000 I/O Device

12345678910 11 12

Number

Item

Status

Explain

Address MSB

OFF

Address/Node ID is 01

(Rotation Switch=1)

Protocol

Use

Modbus RTU

Protocol

Checksum

OFF

Disabled

ZigBee Pan ID

OFF

Pan ID=0x0000

0x08

ZigBee

0x04

ZigBee RF Channel =

0x0E

Channel

0x02

OFF

------

ZT-2053 - 8-channel DI DAQ module - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 8

Communication Test

Once the ZT-2000 I/O device has joined the ZigBee network, the signal quality can

be comfirmed by monitoring the status of the ZigBee Net LED indicators. If the LED

indicator shows a steady light, communication with the ZT-2000 I/O device has been

successfully established for data acquisition and control.

ICP DAS also provides the “DCON Utility”, which can be used to simulate

DCON/Modbus communication. This software can also be used to verify the device

settings and ZigBee I/O functions.

※The DCON Utility can be dowmload from:

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

Simulate I/O channel operating via using DCON Utility

1. Launch DCON Utility and select the correct COM Port settings to connect the

ZigBee Coordinator (ZT-2550/ZT-2570).

2. Clicking “Search” button will start searching which ZT-2000 I/O device is in the

same ZigBee network.

3. If there is any ZT-2000 I/O devices displayed, double clicking the “module

name” will start the I/O channels operated platform.

ZT-2053 - 8-channel DI DAQ module - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 9

ZT-2053 - 8-channel DI DAQ module - QuickStart (Nov/2016)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 10

Troubleshooting

(1) Technical Support.

If you have any difficulties using your ZT-2000 series I/O device, please send a

description of the problem to service@icpdas.com

Include the following items in your email:



A description or diagram of the current DIP switch positions.



A copy of the configuration file for the ZT-2000 coordinator. This file can be

obtained using the procedure outlined below and should be attached to your email.

a. Set the DIP switch of the ZT-255x device to the [ZBSET] position then reboot the

device. Launch the ZT Configuration Utility and select [Save Log] icon to save the

configuration of the ZT-255x as a file.

b. After clicking the [Save Log] icon, enter the “File Name” and the “File Path” in

the Windows “Save” dialog box. Once the configuration has been successfully

saved, the following message will be displayed.
