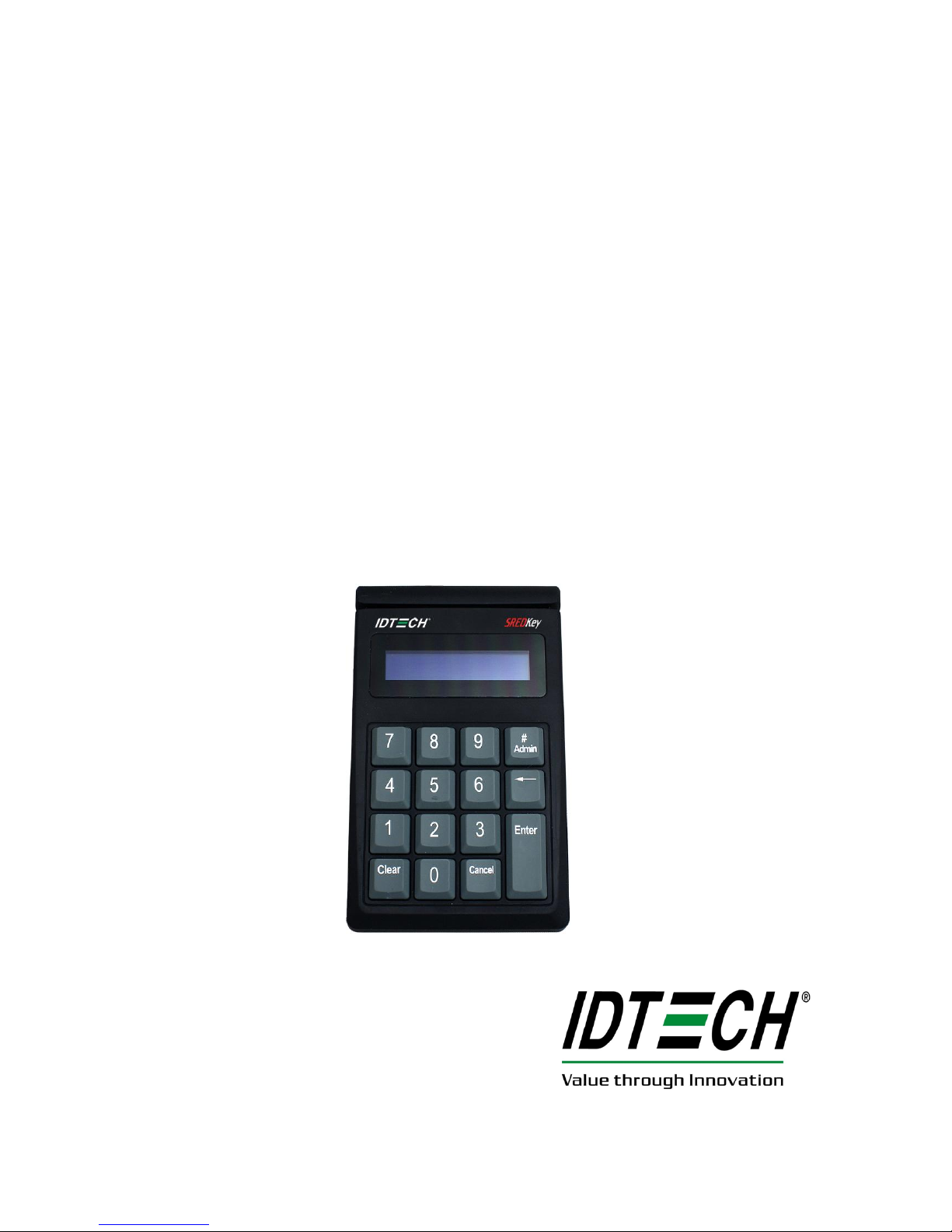

SREDKey

PCI 3.0 Encrypted Key Pad

with MagStripe Card Reader

USB Interface

QuickStart Manual

AGENCY APPROVED

Specifications for subpart B of part 15 of FCC rule for a Class A computing device.

LIMITED WARRANTY

ID TECH warrants to the original purchaser for a period of 12 months from the date of

invoice that this product is in good working order and free from defects in material and

workmanship under normal use and service. ID TECH’s obligation under this warranty is

limited to, at its option, replacing, repairing, or giving credit for any product which has,

within the warranty period, been returned to the factory of origin, transportation charges

and insurance prepaid, and which is, after examination, disclosed to ID TECH’s

satisfaction to be thus defective. The expense of removal and reinstallation of any item or

items of equipment is not included in this warranty. No person, firm, or corporation is

authorized to assume for ID TECH any other liabilities in connection with the sales of

any product. In no event shall ID TECH be liable for any special, incidental or

consequential damages to Purchaser or any third party caused by any defective item of

equipment, whether that defect is warranted against or not. Purchaser’s sole and exclusive

remedy for defective equipment, which does not conform to the requirements of sales, is

to have such equipment replaced or repaired by ID TECH. For limited warranty service

during the warranty period, please contact ID TECH to obtain a Return Material

Authorization (RMA) number & instructions for returning the product.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE. THERE ARE

NO OTHER WARRANTIES OR GUARANTEES, EXPRESS OR IMPLIED, OTHER

THAN THOSE HEREIN STATED. THIS PRODUCT IS SOLD AS IS. IN NO EVENT

SHALL ID TECH BE LIABLE FOR CLAIMS BASED UPON BREACH OF EXPRESS

OR IMPLIED WARRANTY OF NEGLIGENCE OF ANY OTHER DAMAGES

WHETHER DIRECT, IMMEDIATE, FORESEEABLE, CONSEQUENTIAL OR

SPECIAL OR FOR ANY EXPENSE INCURRED BY REASON OF THE USE OR

MISUSE, SALE OR FABRICATIONS OF PRODUCTS WHICH DO NOT CONFORM

TO THE TERMS AND CONDITIONS OF THE CONTRACT.

- 3 -

herein is provided to the user as a convenience. While every effort has been made to

ensure accuracy, ID TECH is not responsible for damages that might occur because of

errors or omissions, including any loss of profit or other commercial damage. The

specifications described herein were current at the time of publication, but are subject to

change at any time without prior notice.

ID TECH is a registered trademark of International Technologies & Systems

Corporation. Value through Innovation is the trademark of International Technologies &

Systems Corporation.

- 4 -

DESCRIPTION

ID TECH SREDKey is a PCI 3.0 certified encrypted numeric keypad with a Magnetic

Swipe Reader (MSR) that reads up to three tracks, which also has the SRED function

supported. The unit is equipped with tamper switch so once the device is tampered, all

the information will be removed automatically. The keypad allows the retailers to not

only encrypt credit card data at the magnetic readers but it also encrypts manually entered

credit card number, expiration date and etc. The SREDKey has 15 keys (10 Numeric, 5

functional) with a 2x20 backlit LCD.

Currently we offer the following standard configurations:

1. IDSK-534833TEB SREDKey IDT Enhanced Encryption Format, TDES

2. IDSK-534833AEB SREDKey IDT Enhanced Encryption Format, AES

SREDKey encrypts the data using TDES or AES algorithm format with DUKPT key

management. SREDKey is available in USB-Keyboard and USB-HID interface.

- 5 -

Magstripe Reader Operation

Plug in the SREDKey USB cable to the terminal, and the LCD will show “Ready” for a

few seconds for the initialization. After the prompt changes to “Swipe Card or Key-in

Card Number”, the user can swipe a card or key-in the card number on the keypad.

The magstripe reader reads up to three tracks bi-directionally. When a card is swiped, the

encrypted track data is sent to the host immediately.

Function Keys Operation:

Clear:

-Pressing the “Clear” key allows users to remove all entered data at the current

level. The current transaction would not be cancelled.

-Pressing the “ ” (backspace) key allows users to remove the entered data one

character at a time.

#Admin:

-Pressing the “#Admin” key when the screen displays “Swipe Card or Key-in Card

Number” or “Enter Card Number then press Enter” allows user to enter the

Admin Menu. Pressing the “#Admin” key in other screens puts the device in the

Help Mode.

Cancel:

-Pressing the “Cancel” key once allows users to remove all the input in the current

as well as the previous level. The device then goes back to the previous prompt of

the current transaction. If the “Cancel” key is pressed twice, the current

transaction would be cancelled and the device goes back to the initial mode.

- 6 -

Manually-Keyed Configuration Options

When the “Admin” key is pressed, the screen will display "Select manual config 1-6" to

prompt the user to select one of five manual entry modes.

Configuration #1: Card Number, Expiration Date

Configuration #2: Card Number, Expiration Date, Zip Code

Configuration #3: Card Number, Expiration Date, Street Number of the Address, Zip Code

Configuration #4: Card Number, Expiration Date, Security Code, Zip Code

Configuration #5: Card Number, Expiration Date, Security Code, Address, Zip Code

Configuration #6: Card Number, Expiration Date, Security Code

When the user selects the key corresponding to a manual mode, and then selects enter,

the mode will be configured and the unit will return to the data capture mode. If the user

selects more than one key, then the last key selected will be used to select the mode.If a

invalid key is selected the unit will display "error" then "Select manual config 1-6"

ID TECH

10721 Walker Street

Cypress, CA 90630

(714) 761-6368

80137504-001-B www.idtechproducts.com R07/14
