Content

Safety instructions

Source language: German

Indicates an (extremely) hazardous situation, which, if

not avoided, will result in death, serious injury.

Indicates a potentially hazardous situation, which, if not

avoided, can result in death, serious injury.

Indicates a potentially hazardous situation, which, if not

avoided, can result in injury.

Indicates practices which, if not avoided, can result in

equipment damage.

Indicates crushing risk of ﬁngers/hand.

Warning symbols

Declaration of conformity

We declare under our sole responsibility that this product corresponds to the re-

gulations 2014/35/EU, 2006/42/EC, 2014/30/EU and 2011/65/EU and conforms

with the standards or standardized documents EN 61010-1, -2-051,

EN 61326-1

EN 60529 and EN ISO 12100.

For your protection

• Read the operating instructions in full before starting up and fol-

low the safety instructions.

• Keep the operating instructions in a place where they can be accessed by

everyone.

• Ensure that only trained staff work with the appliance.

• Follow the safety instructions, guidelines, occupational health and safety

and accident prevention regulations.

WARNING

Wear your personal protective equipment in accor-

dance with the hazard category of the medium to

be processed. Otherwise there is a risk of:

- splashing liquids

- projectile parts

body parts

, hair, clothing and jewellery getting caught.

• Keep hand/arm vibration to a minimum (Directive 2002/44/EC) when ope-

rated manually:

- Keep the sample container as vertical as possible.

- Only exert the minimum pressure necessary for the mixing process.

- Use attachments for multiple samples when there is a large number of

samples.

• Set up the appliance in a spacious area on an even, stable, clean, non-slip,

dry and fireproof surface.

• The feet of the appliance must be clean and undamaged.

CAUTION

Before starting the device set a low speed.

Gradually increase the speed.

• If the shaking movement of the appliance increases (resonance), reduce the

speed or pass through the critical phase as quickly as possible.

• Reduce the speed if

- the medium splashes out of the vessel because the speed is too high

- the appliance is not running smoothly

- the appliance begins to move around because of dynamic forces.

CAUTION

Caution! Risk of crushing when changing attach-

ments.

CAUTION

DANGER

WARNING

CAUTION

NOTICE

Page

Device setup/Display 2/3

Declaration of conformity 15

Warning symbols 15

Safety instructions 15

Unpack 16

Correct use

Commissioning 17

Accessories 19

Interface and output 20

Connection, laboratory device - PC

Error code 21

Maintenance 22

Technical data 22

Warranty 23

Unpack

- Please unpack the device carefully

- In the case of any damage a fact report must be set immediately (post, rail

or forwarder)

Use

For mixing liquids

- Touch mode for single test tubes

- Continuous mode for single or several vessels

Range of use (indoor use only)

- Laboratories - Schools

- Pharmacies

The protection for the user is not ensured no more, if the equipment with

accessories is operated, which are supplied or are not recommended not by

the manufacturer or if the equipment in not correct use is operated against

the manufacturer default.

Unpack

Correct use

Delivey scope

- Shaker TTS 3 control

- Power supply

- Standard attachment MS 3.1

- Universal attachment MS 3.3

- One-hand insert MS 1.21

- Microtiter attachment MS 3.4

- Test tube insert MS 1.32

- Operating instructions

• Firmly secure the accessories and vessels in place, otherwise shaking vessels

could be damaged or projected out.

• Check the appliance and accessories beforehand for damage each time you

use them. Do not use damaged components.

• Position one single shaking vessel in the centre and several shaking vessels

so that they are evenly spread out.

• Sharp edged vessels cause wear debris on the attachments.

DANGER

Beware of the risk of

- flammable materials

- glass breakage as a result of mechanical shaking

power

• Do not work with biological or microbiological media.

• Only process media that will not react dangerously to the extra energy pro-

duced through processing. This also applies to any extra energy produced

in other ways, e.g. through light irradiation.

DANGER

Do not operate the appliance in explosive atmo-

spheres, with hazardous substances or under

water.

• Safe operation is only guaranteed with the accessories described in the

”Accessories” chapter.

• Always disconnect the plug before fitting accessories.

• The appliance does not start up again automatically following a cut in the

power supply.

• The appliance may heat up when in use.

For protection of the equipment

• The voltage stated on the nameplate must correspond to the mains voltage.

•

The device must only be operated with the original plug-in power supply unit.

• Protect the appliance and accessories from bumps and impacts.

• The appliance may only be opened by experts.

Commissioning

Power

Switching on

einschalten

Start

Stop

Change to

continuous mode

Mode A

Operating mode

"Continuous" operation

Speed upto 1300 1/min

The unit is ready for service

when the mains plug has been

plugged in

Introductory screen

Mode A

Operating mode "Touch"

Speed upto 3000 1/min

Touch mode

Setting the

operating modes

Plugging in the

mains plug

The values which were previously

set (speed and timer) are stored.

The mode will always be set to A

when the device is powered on .

Speed

adjustment

SET 1/min

SET TIME

h: min :sec

REMOTE

1300

min :sec

SET TIME

SET 1/min

SET TIME

1300

SET 1/min

SET TIME

1300

min :sec

1300

min :sec

SET TIME

SET 1/min

Operating modes

Mode A

(with speed limiter)

Mode B

(without speed limiter)

Touch mode

(

with standard attachment

MS 3.1)

max. 3000 1/min

3000

max. 3000 1/min

3000

with/without timer

Continuous mode

(with all attachments)

max. 1300 1/min

1300

max. 3000 1/min

3000

with/without timer

Setting

Display

Action

Change mode

B A

Power Switch off the device and

switch on again, see 1

Setting Timer /

Change Timer

Setting Mode Timer min:sec

Change to

mode h:min

Countdown runs

Switch off the device

Power

5.1

5.2

Mode B

Operating modes "Touch" and

"Contionuous operation"

Speed upto 3000 1/min

Switch off the device

Power

Switch on:

Keep the button "Start/Stop"

pressed and also press the

button "Power"

Power

Start

Stop

Time

Set

Power

Time

Set

Time

Set

Set the desired time

A B

Start

Stop

Confirm

Operation without

timer setting

Value "Time"=0, no countdown

An audible signal will be given

three times when the count-

down is complete

Keep the button “Set Time”

pressed and also press the

button "Power".

Value "Time"=0, no countdown,

Device in operation

1300

min: sec

SET TIME

SET 1/min

min: sec

SET TIME

SET 1/min

1300

SET 1/min

SET TIME

1300

min: sec

h: min

SET TIME

SET 1/min

SET TIME

h: min

1300

SET 1/min

SET TIME

h: min

1300

3000

SET 1/min

SET TIME

h: min

1300

h: min

SET TIME

SET 1/min

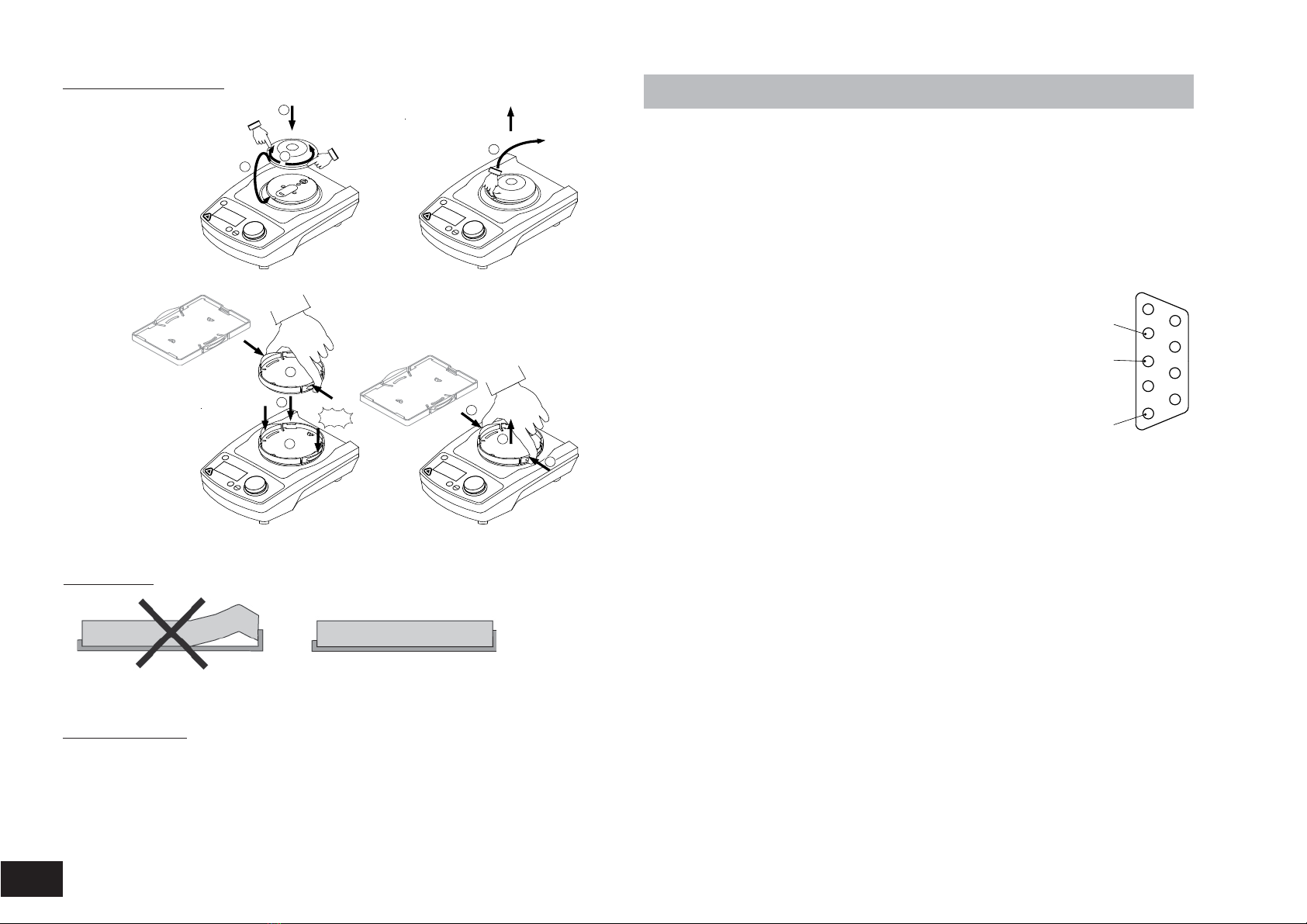

Accessories

Possible uses and permitted speed ranges of attachments:

Designation

Description

Ident- Nr. Touch mode Continuous

mode Speed range (rpm) Mode

MS 3.1

Standard attachment

For test tubes and small vessels upto

ø 50 mm

3426300 x

0/100-3000

0/100-1300

0/100-3000

A and B

MS 3.3

Universal attachment

For different rubber foam inserts

3426600 -x0/100-1300

0/100-3000

MS 3.4

Microtiter attachment

For one microtiter plate

3426400 -x0/100-1300 A

MS 3.5

PCR-Plate attachment

For one 96-well PCR-plate

3428000 -x0/100-1300 A

MS 3.51

PCR-Plate insert

- F

or inserting into the PCR-Plate attachment

3428700 -x0/100-1300 A

MS 1.21

One-hand insert

For inserting into the

universal

attachment

L001540 -x0/100-1300

0/100-3000

MS 1.30

Test tube insert
