MISTRAL M60, M90 & M135 BOTTLE COOLERS

INSTALLATION AND OPERATING MANUAL

PLEASE LEAVE WITH OPERATOR

Mistral M60, M90 and M135 Bottle Coolers

Series 13

R290a

Imperial Machine Company Limited

Unit 1, Abbey Road

Wrexham Industrial Estate

Wrexham LL13 9RF

Tel: +44 (0)1978 661155

Fax: +44 (0)1978 729990

Service Fax: +44 (0)1978 667766

Spares Fax: +44 (0)1978 667759

E-mail: info@imco.co.uk

Website: www.imco.co.uk

A34/092 R1 ECN 8827 March 2019

Mistral M60, M90, M135 2

EC DECLARATION OF CONFORMITY

(Guarantee of Production Quality)

We, Imperial Machine Company Limited of:

Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF

Declare under our sole responsibility that the following products

Mistral M60, M90 and M135

as described in the attached technical documentation, are in conformity with the protection

requirements of the Electromagnetic Compatibility Directive 2014/30/EU and manufactured in

accordance with harmonised standards EN 61000-6-1: 2001 Immunity and EN 61000-6-3: 2007

Emissions (plus product specific standards).

They also satisfy the essential health and safety requirements of the Low Voltage Directive

2014/95/EC and are manufactured in accordance with standards BS EN 60335-1 and BS EN

60335-24, and the relevant requirements of the Pressure Equipment Directive 2014/68/EU.

Approved by Eddy Plumb, Engineering Manager

Date: March 2019

Mistral M60, M90, M135 3

INDEX

INDEX ................................................................................................................... 3

WARRANTY ......................................................................................................... 4

DELIVERY ............................................................................................................ 4

SAMPLE RATING LABEL.................................................................................... 5

INTRODUCTION................................................................................................... 5

TURNING LED LIGHTS ON-OFF ......................................................................... 9

CHANGING A LED LIGHT ASSEMBLY............................................................. 10

ELECTRICITY SUPPLY CONNECTION............................................................. 11

COMMISSIONING .............................................................................................. 11

CHANGING THE CONTROLLER SET POINT ................................................... 12

USING YOUR BOTTLE COOLER ...................................................................... 12

CLEANING.......................................................................................................... 13

CHANGING SHELF POSITION .......................................................................... 13

MAINTENANCE.................................................................................................. 14

DO’S AND DON’TS ............................................................................................ 15

ORDERING SPARE PARTS............................................................................... 16

END OF LIFE DISPOSAL................................................................................... 16

MATERIAL CONTENT........................................................................................ 16

M60 WIRING DIAGRAM ..................................................................................... 17

M90 WIRING DIAGRAM ..................................................................................... 18

M135 WIRING DIAGRAM ................................................................................ 19

SPARES IDENTIFICATION FRONT................................................................... 20

SPARES IDENTIFICATION REAR ..................................................................... 21

SPARE PARTS LIST .......................................................................................... 22

NOTES................................................................................................................ 24

Mistral

60,

135

WARRANTY

These bottle coolers are guaranteed by IMC for 2 years from the date of

purchase from IMC, or from one of its stockists, dealers or distributors. The

guarantee is limited to the replacement of faulty parts or products and excludes

any consequential loss or expense incurred by the purchaser. Defects which

arise from faulty installation, inadequate maintenance, incorrect use, connection

to the wrong electricity supply, or fair wear and tear, are not covered by the

guarantee.

The guarantee applies in this form to installations within the United Kingdom.

Export units carry 2 years “parts only”warranty.

Please observe these instructions carefully.

DELIVERY

The packaged machine consists of:

M60 Bottle Cooler containing:

Shelf (Full size)

Shelf clips

Sets of keys

M90 Bottle Cooler containing:

Shelf (Full size)

Shelf clips

Sets of keys

M135 Bottle cooler containing:

Shelf (Full size)

Shelf clips

Sets of keys

Instruction Booklet 1

Please notify both the carrier and the supplier within three days of receipt if

anything is missing or damaged.

Check that the correct machine has been supplied and that the voltage, marked

on the rating plate, is suitable for the supply available. The rating plate is

located internally on the right hand side of the unit.

Mistral

60,

135

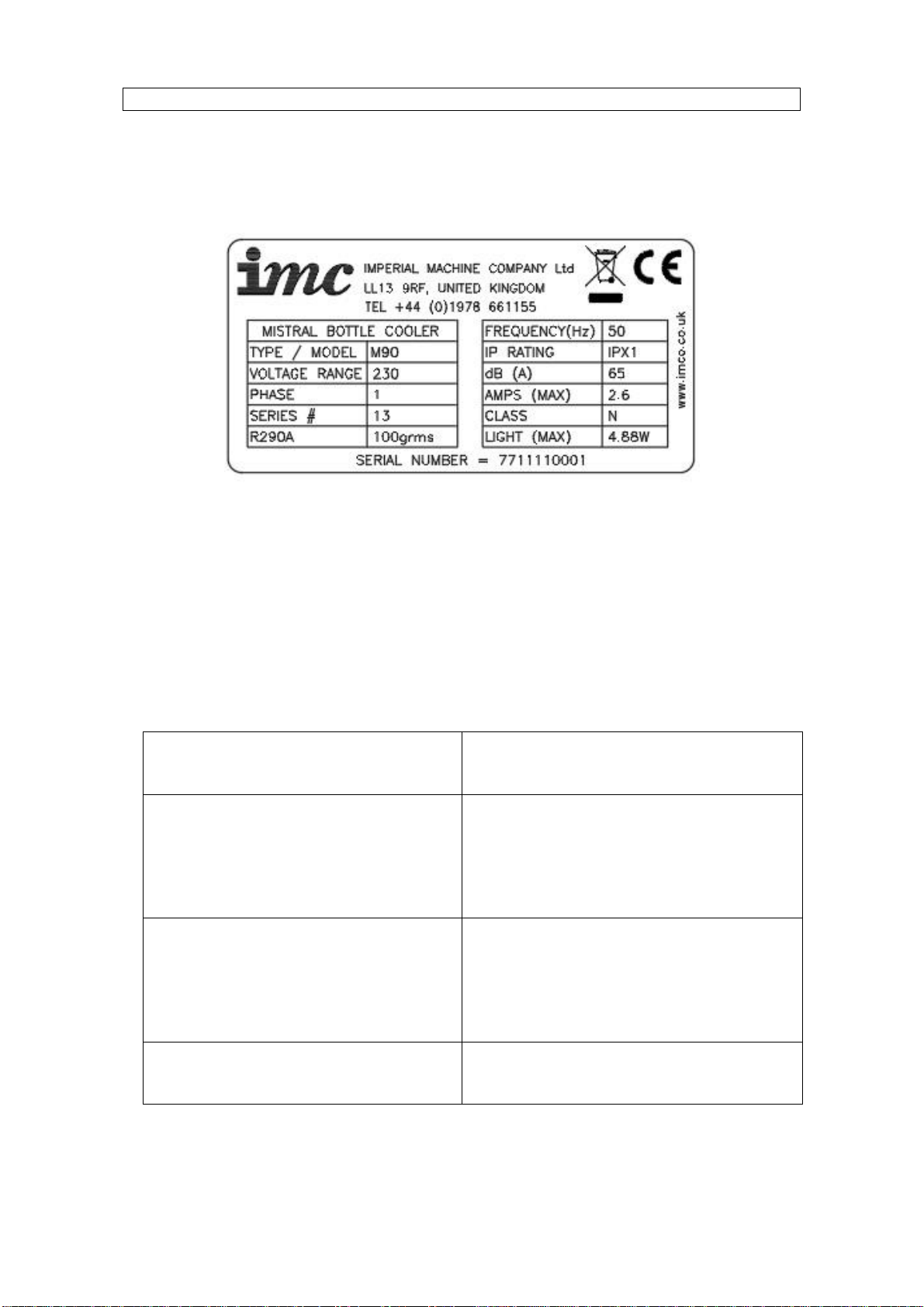

SAMPLE RATING LABEL

INTRODUCTION

The Mistral M60 , M90 and M135 are back-bar or under-bar refrigerators

designed for the cooling and storage of beverages.

The following quantity of beverage bottles/mixers can be held in each unit:

Bottle Cooler Capacity

(330ml Bottles / 150ml mixer cans)

M60 (900h x 600w x 500d) std

M60 (850h x 600w x 500d)

M60 (800h x 600w x 500d)

120

72 / 48

M90 (900h x 900w x 500d) std

M90 (850h x 900w x 500d)

M90 (800h x 900w x 500d)

195

117 / 78

M135 (900h x 1350w x 500d) std

M135 (800h x 1350w x 500d) 310

185 / 125

Mistral

60,

135

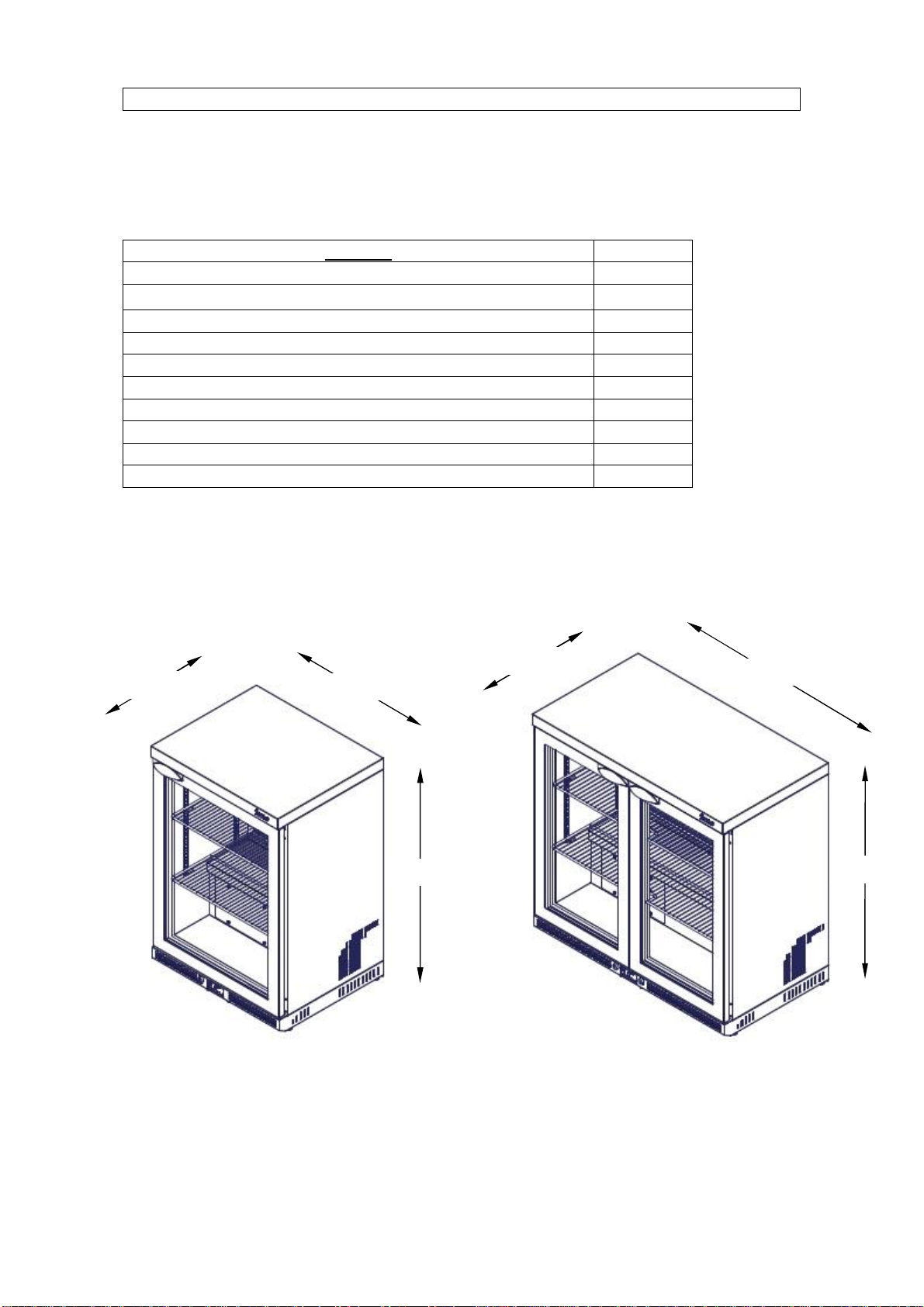

Mistral Dimensions:

MODEL

STANDARD

900

M60 850 SHORT

850

M60 800 SHORT

800

STANDARD

900

M90 850 SHORT

850

M90 800 SHORT

800

M135 STANDARD

900

M135 800 SHORT

800

500

Y mm

00mm

500

Mistral

60,

135

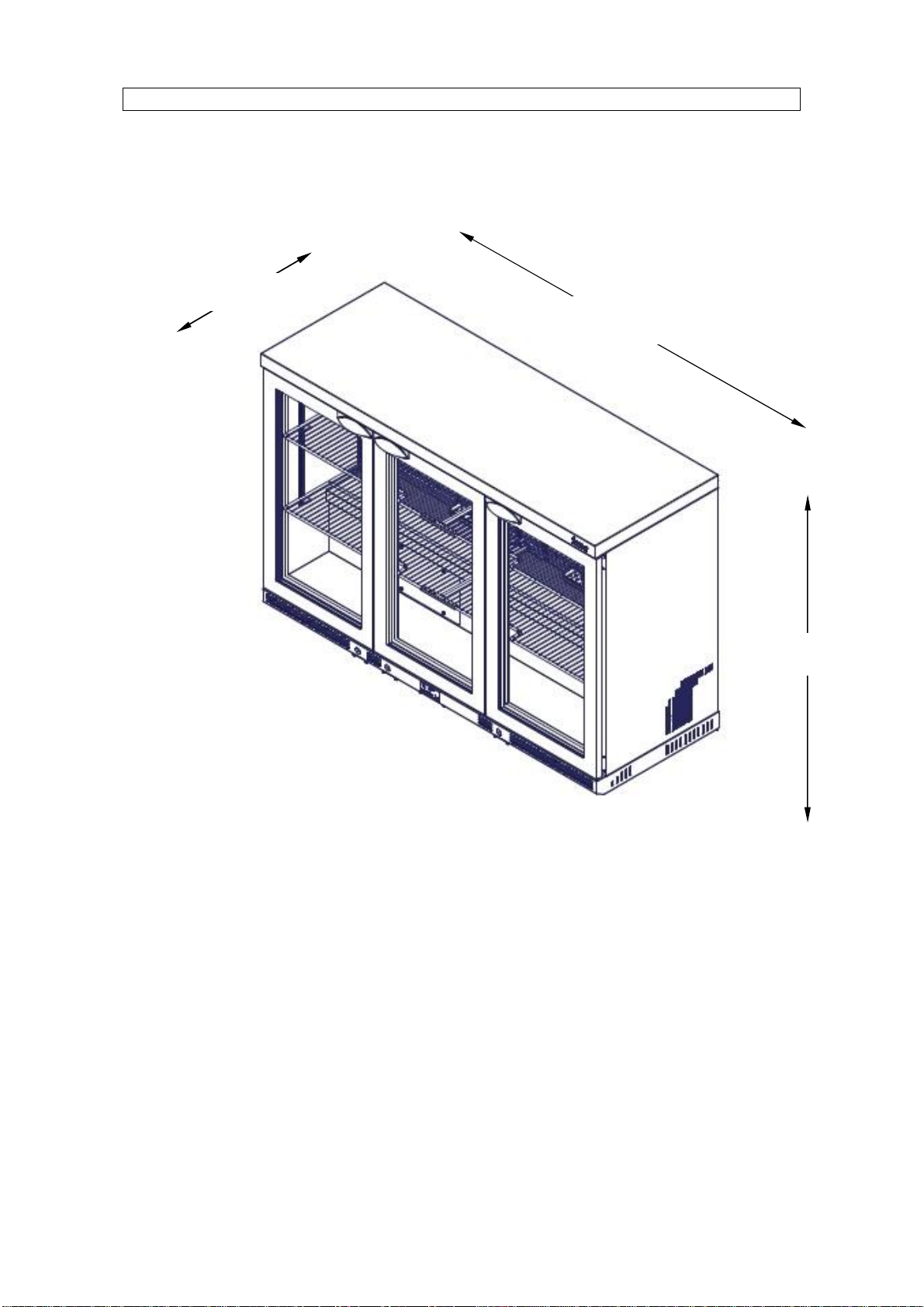

500 mm

Y mm

1350mm

M135

Mistral

60,

135

INSTALLATION

For the Installer

These Instructions contain important information designed to help the user

obtain the maximum benefit from their investment in an IMC Mistral Bottle

Cooler.

Please read them carefully before starting work, and consult with the supplier in

the event of any queries.

Be sure to leave this Instruction Manual with the user after installation of the

machine is complete.

Procedure

WARNING

The following table shows the weight and the minimum quantity of

people required to lift each unit:

Bottle Cooler Net Weight Quantity of

People

M60 (all variants) 57.5 kg (max) 2

M90 (all variants) 76.5 kg (max) 4

M135 (all variants) 125 kg (max) 4

Install the unit on a flat and level floor.

Ensure a min 10mm clearance either side of the unit, there is to be a min

20mm clearance at the top of the unit and a min 60mm clearance at the

back.

The M135 is supplied on castors to aid installation and cleaning.

Do not install the unit close to a heat source such as a radiator or a warm air

outlet. Ensure that the unit is standing level by adjusting the feet on the base of

the unit.

The unit has an automatic defrost cycle and evaporates all the condensate

water without the need for a drainage system.

NOTE!

The castors on the M135 are to aid installation only. The

machine is not designed to be used as a mobile unit.

It is important to install the Bottle Cooler on a flat surface. This

ensures that the doors are level. Adjustment is provided via the

feet, to enable the installer to level the cabinet.

Engineer Call-outs in order to level Bottle Coolers, will not be

covered under warranty.

Mistral

60,

135

TURNING LED LIGHTS ON-OFF

The cabinet is illuminated by a LED light unit, this light can be turned on or off

by depressing the switch that is located on the underside of the worktop.

To access this switch the door must be opened (the right hand furthest door on

the M90 & M135 units)

When the switch is flush the lights are on.

Light Switch

Mistral

60,

135

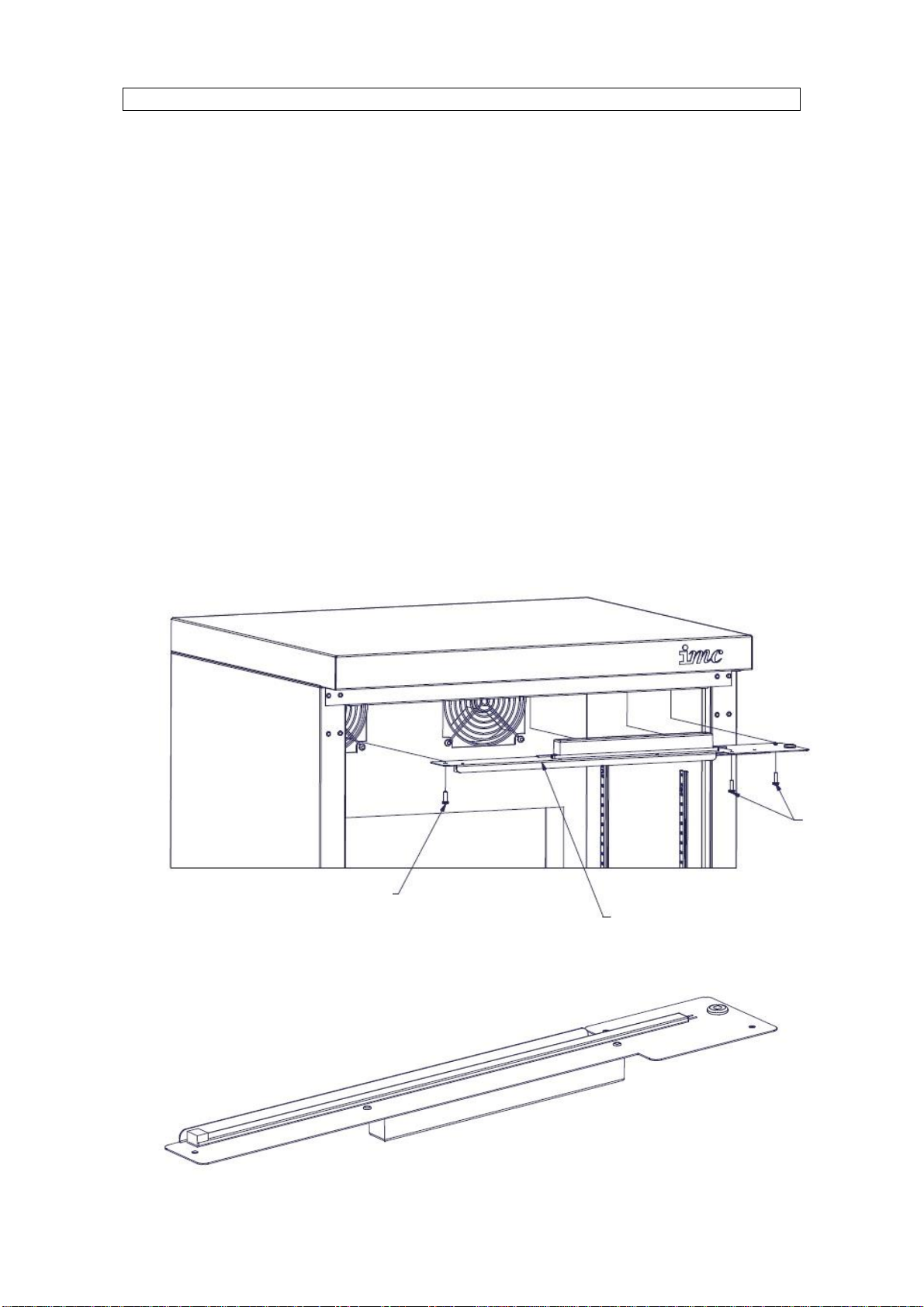

CHANGING A LED LIGHT ASSEMBLY

The cabinet interior is illuminated by a LED light strip fitting located at the front

of the top inner panel.

To change the light assembly:

·Ensure the mains power to the unit has been turned off.

·Open the front cabinet door(s).

·Unscrew the screws holding the LED assembly in place.

·Carefully lower the LED assembly down and disconnect the 2 wires from the

unit.

·The LED light assembly should now be free to fully remove from the unit.

·To fit the replacement unit.

·Place the new LED light assembly inside the unit, re connect the 2 wires

from the unit to the new LED light assembly.

·Re fit the LED light assembly inside the unit by using the screws.

·Re-connect the mains power and ensure the light illuminates by means of

the switch.

Fixing

Screws

Fixing

Screw

LED Light

Assembly

crews

LED Light

Assembly

ews
