Impex BF-6730A Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

BF-6730A

Retain This

Manual for

Reference

07-06-09

OWNER'S

MANUAL

Deluxe Upright Bike

BF-6730A

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

HARDWARE PACK……….....…....................................................................…. 4

ASSEMBLY INSTRUCTIONS........................................................................…. 5

EXPLODED DIAGRAM………………………………………………………………. 11

PARTS LIST...................................................................................................… 12

WARRANTY.................................................................................................…. 13

ORDERING PARTS.....................................................................................….. 13

BEFORE YOU BEGIN

Thank you for selecting the BODY FIT Deluxe Upright Bike BF-6730A by

IMPEX®INC. For your safety and benefit, read this manual carefully before

using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are

missing or damaged parts, we guarantee you complete satisfaction through

direct assistance from our factory. To avoid unnecessary delays, please call our

TOLL-FREE customer service number. Our Customer Service Agents will

provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions

apply whenever you operate a piece of exercise equipment. Be sure to read the

entire manual before you assemble or operate your machine. In particular, note the

following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT leave

children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine near

water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes

or other clothing that could become caught in the machine. Running or aerobic

shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO NOT

use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to properly

warm up.

11. Never operate the machine if the machine is not functioning properly.

12. The Maximum Weight Capacity is 300 lbs.

13. Read all warnings posted on the exercise bike.

14. Inspect the exercise bike for worn or loose component prior to use.

Tighten/replace any loose or wore components prior to use.

15. Care should be taken in mounting or dismounting the exercise bike.

16. This exercise bike is for consumer and home use only.

Maintenance and Storage

1. Inspect and tighten all parts each time you use the machine. Replace any worn parts

immediately.

2. The bike can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use

solvents.

3. Store the machine IN-DOOR. Excess moisture and water would cause rust on the frame.

4. The machine shall be placed at least 24 inches away from the wall or/and any other object such

as furniture to provide safe access to and passage around the machine.

5. To avoid possible injury, the help of two or more people are needed when moving the machine

around.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT

YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS

OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH

PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS

EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL

INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF

THIS PRODUCT.

SAVE THESE INSTRUCTIONS. 2

WARNING LABEL PLACEMENT

The Warning Label shown here has been placed on the Rear Stabilizer. If the label is missing or

illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location

shown.

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to

measure the size.

ASSEMBLY INSTRUCTION

NOTE: It is strongly recommended that two or more people assemble this machine to

avoid possible injury.

STEP 1 (See Diagram1)

A.) Do not tighten Nuts and Bolts until instructed to do so.

B.) Attach the Front Stabilizer (#19) to the Main Frame (#42). Secure it with two M8 x 2 3/8”

Carriage Bolts (#17), two ∅5/8” Curved Washers (#15), and two M8 Acorn Nuts (#18).

C.) Attach the Rear Stabilizer (#50) to the Main Frame. Secure it with two M8 x 2 3/8” Carriage Bolts

(#17), two Ø 5/8” Curved Washers (#15), and two M8 Acorn Nuts (#18).

D.) Securely tighten all Nuts and Bolts.

DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Note: Extra help may be needed when installing the computer wires in Front Post

(#12).

B.) Attach the Front Post (#12) to the Main Frame (#42). Connect the Upper Computer Wire

(#13) from the bottom of Front Post to the Lower Computer Wire (#14) from the main Fame.

C.) Attach the Front Post to Main Frame. Secure them together with four M8 x 5/8” Allen Bolts

(#16) and four Ø 5/8” Curved Washers (#15).

DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Remove the L-shaped Lock Bolt (#10) and Ø 5/8” Flat Washer (#11) from the handle

holder bracket on Front Post (#12). Flip up the handle holder bracket.

B.) Attach the Handle (#3) to Front Post, turn the Handle to desired hand holding position,

and then flip down the handle holder bracket.

C.) Securely thread the L-shaped Lock Bolt with Ø 5/8” Flat Washer (#11) back into the

bracket to lock the Handle in position. DIAGRAM 3

STEP 4 (See Diagram 4)

A.) Remove three Ø 5/8” Flat Zinc Washers (#55) and three M8 Aircraft Nuts (#54)

from the Seat (#56).

B.) Attach the Seat to the Seat Post (#53). Secure it with the three Ø 5/8” Flat Zinc

Washers (#55), and three M8 Aircraft Nuts (#54).

C.)Insert the Seat Post into the opening on Main Frame (#42). Thread the M12

Lock Knob (#27) through the hole on Seat Post to securely lock it at desired

height.

DIAGRAM 4

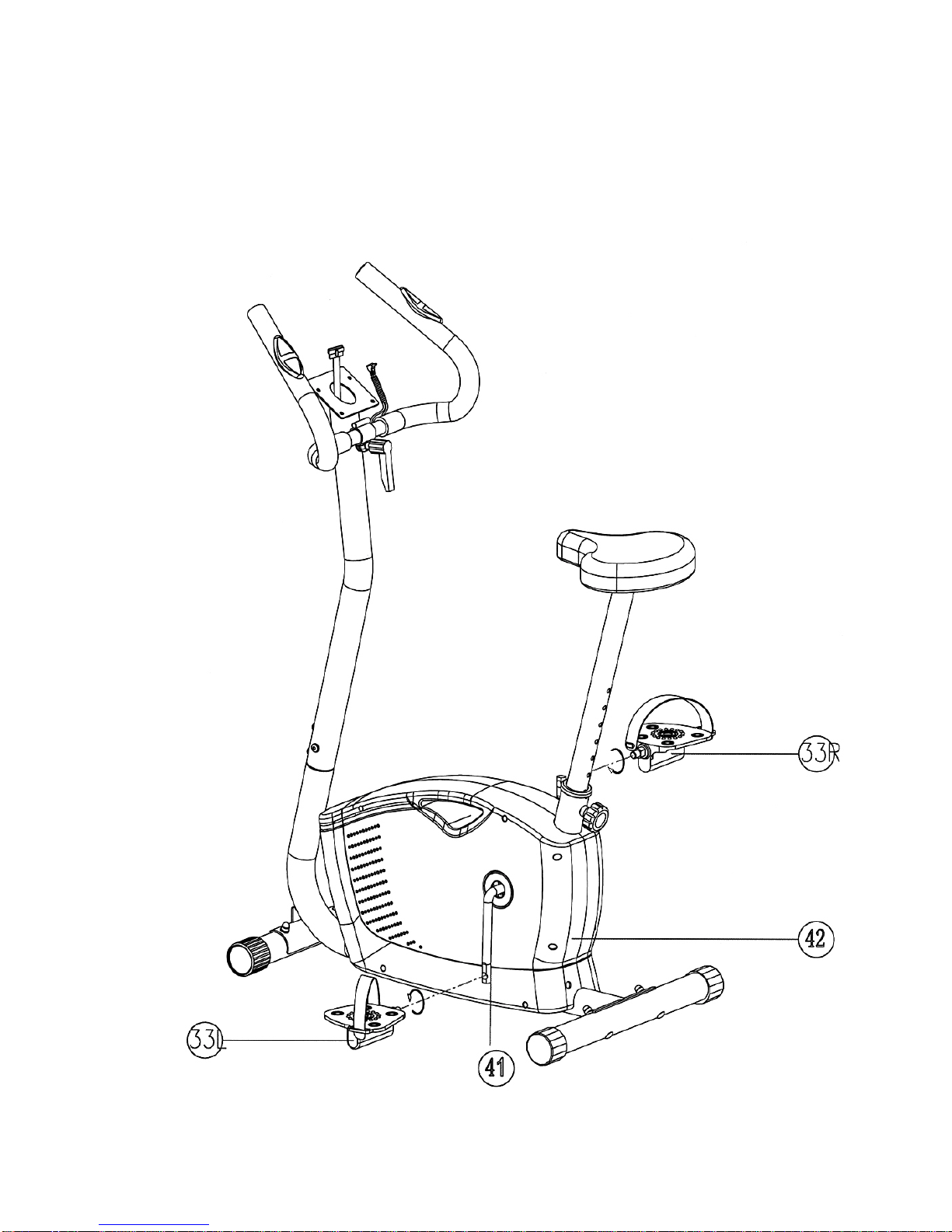

STEP 5 (See Diagram 5)

A.) Thread the Left Pedal (#33L) counterclockwise onto the Crank (#41).

B.) Thread the Right Pedal (#33R) clockwise onto the Crank on the other side.

DIAGRAM 5
