Impex AMZ-948BK Montage- und Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

AMZ-948BK

Retain This

Manual for

Reference

180912

ASSEMBLY &

OWNER'S

MANUAL

CLUB REVOLUTION CYCLE

AMZ-948BK

IMPEX®INC.

2801 S. Towne Ave., Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.marcypro.com

support@impex-fitness.com

©IMPEX INC. www.marcypro.com

TABLE OF CONTENTS

BEFORE YOU BEGIN

Thank you for selecting the CIRCUIT FITNESS Club Revolution Cycle by IMPEX®

INC. For your safety and benefit, read this manual carefully before using the bike.

As a manufacturer, we are committed to provide you complete customer

satisfaction. If you have any questions, or find there are missing or damaged parts,

we guarantee you complete satisfaction through direct assistance from our factory.

To avoid unnecessary delays, please call our TOLL-FREE customer service

number. Our Customer Service Agents will provide immediate assistance to you.

BEFORE YOU BEGIN

IMPORTANT SAFETY NOTICES

WARNING LABEL PLACEMENT

HARDWARE PACK

COMPONENT FOR ASSEMBLY

IMPORTANT ASSEMBLY INSTRUCTION

EXPLODED DIAGRAM

PARTS LIST

CARE AND MAINTENANCE, WEIGHT CAPACITY & DIMS.

EXERCISE GUIDELINES

WARRANTY

ORDERING PARTS

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.marcypro.com

[email protected]

©IMPEX INC. www.marcypro.com

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise bike is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire

manual before you assemble or operate your bike. In particular, note the following

safety precautions:

1. Keep children and pets away from the exercise bike at all times. DO NOT leave

children unattended in the same room with the bike.

2. Only one person at a time should use the bike.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the bike on a clear, leveled surface. DO NOT use the bike near water or

outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or

other clothing that could become caught in the bike. Running or aerobic shoes are

also required when using the bike.

7. Use the bike only for its intended use as described in this manual. DO NOT use

attachments not recommended by the manufacturer.

8. Do not place any sharp object around the bike.

9. Disabled person should not use the bike without a qualified person or physician in

attendance.

10. Before using the bike to exercise, always do stretching exercises to properly warm

up.

11. Never operate the bike if it is not functioning properly.

12. Read all warnings posted on the exercise bike.

13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace

any loose or wore components prior to use.

14. Care should be taken in mounting or dismounting the exercise bike.

15. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

©IMPEX INC. www.marcypro.com

WARNING LABEL PLACEMENT

The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer and Main

Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for

replacement. Apply the labels in location shown.

©IMPEX INC. www.marcypro.com

HARDWARE PACK

©IMPEX INC. www.marcypro.com

COMPONENTS FOR ASSEMBLY

©IMPEX INC. www.marcypro.com

ASSEMBLY INSTRUCTION

•Tools Required For Assembling the Bike: One Crossing Wrench and Allen Wrench,

provided by manufacturer.

•NOTE: It is strongly recommended that two or more people assemble this bike to

avoid possible injury.

STEP 1

A.) Attach the Front Stabilizer (#2) and Rear Stabilizer (#3) to the Main Frame (#1).

Secure it with two M10 x ⅓” Allen Bolts (#36), two Ø ⅔” Lock Washers (#37), and two

Ø ⅔” Curved Washers (#39).

Note: the Stabilizers can be adjusted (by twisting the leveler adjustor #15) to

ensure the bike is stable.

©IMPEX INC. www.marcypro.com

STEP 2

A.) Install the Locking knob into Seat Support Frame (#4) by threading in the locking

knob (#8).

B.) Insert the Seat Support Frame into the Main Frame and install a Locking knob into

the Main Frame to secure the Seat Support Frame at the desired height.

©IMPEX INC. www.marcypro.com

STEP 3

A.) Insert the Seat Support (#5) into the Seat Adjustable Support and lock in with

Locking Knob at the desired position.

B.) Screw in the Pan Head Philips Self-Tapping Screw w/ Adhesive (#42) into the end

of the Seat Support to prevent the Seat Support from accidentally slipping out.

©IMPEX INC. www.marcypro.com

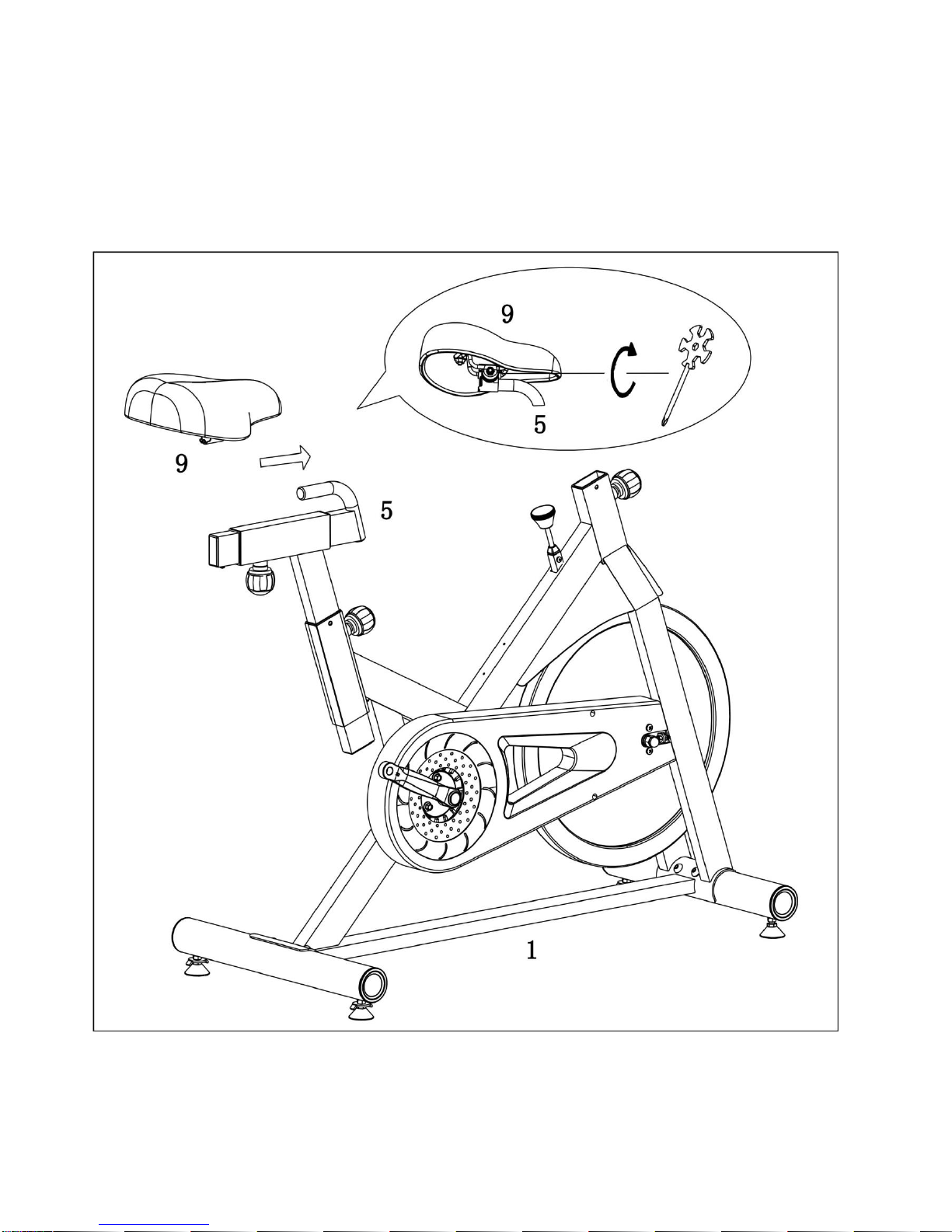

STEP 4

A.) Install the Seat Pad (#9) onto the Seat Support.

B.) Tighten the hex nuts with the provided Multi-Wrench.
