Impex CB-202 Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

CB 202

Retain This

Manual for

Reference

06-29-07

OWNER'S

MANUAL

COMPETITOR BENCH

CB-202

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICE....................................................................... 2

HARDWARE PACK ……….....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 5

EXPLODED DIAGRAM.........................................................................………. 9

PARTS LIST…………………………………………………………………………. 10

WARRANTY.................................................................................................… 11

ORDERING PARTS......................................................................................... 11

BEFORE YOU BEGIN

Thank you for selecting the Competitor Bench CB-202 by IMPEX®INC. For

your safety and benefit, read this manual carefully before using the machine.

As a manufacturer, we are committed to provide you complete customer

satisfaction. If you have any questions, or find there are missing or damaged

parts, we guarantee you complete satisfaction through direct assistance from

our factory. To avoid unnecessary delays, please call our TOLL-FREE

customer service number. Our Customer Service Agents will provide

immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

3. Maximum weight capacity on the uprights: 200 lbs.

4. Maximum user’s weight: 250 lbs.

5. Maximum weight capacity on the leg developer: 100 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ

ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

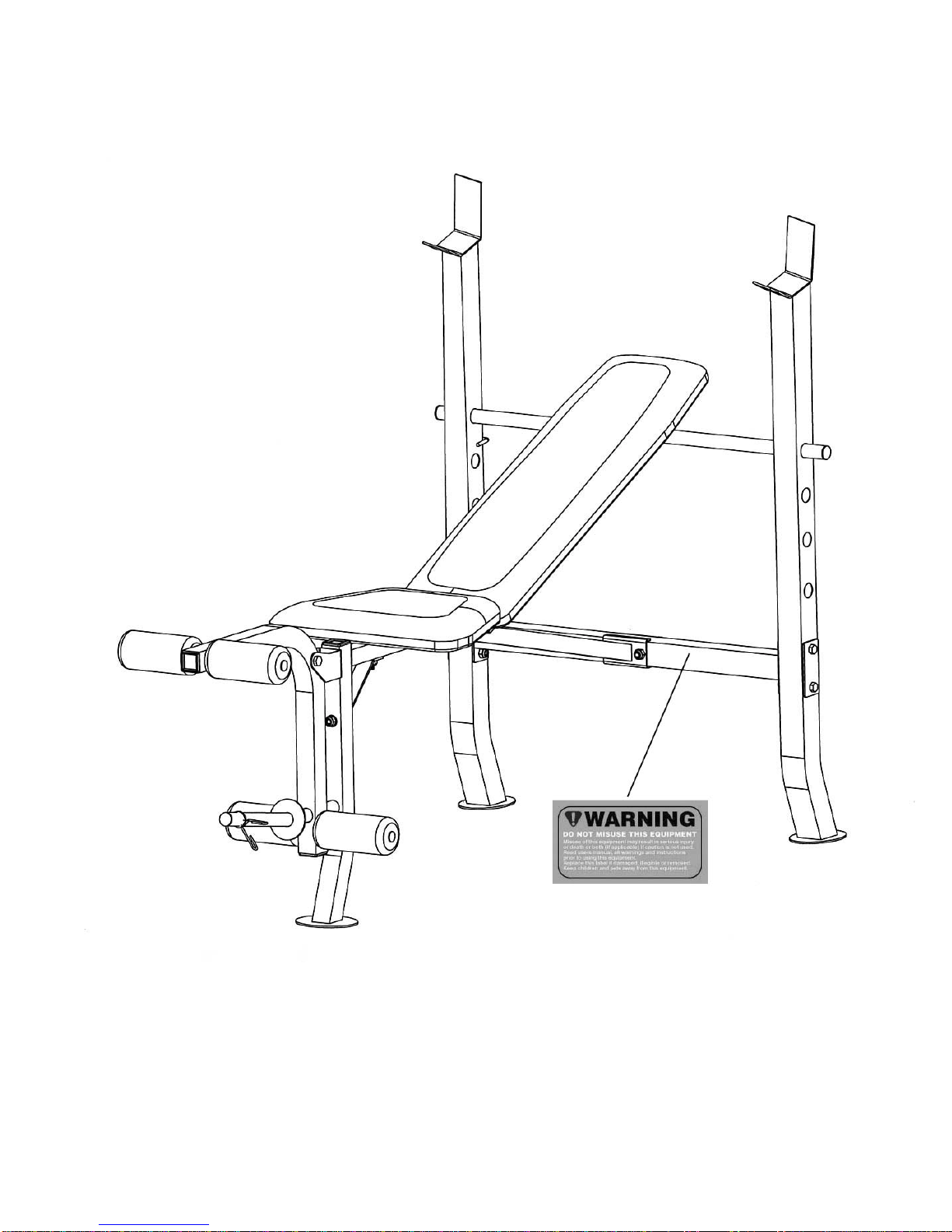

WRANING LABEL REPLACEMENT

The warning label shown here have been placed on the Cross Brace. If the label is missing or illegible,

please call customer service at 1-800-888-8899 for replacements. Apply the label in the location shown.

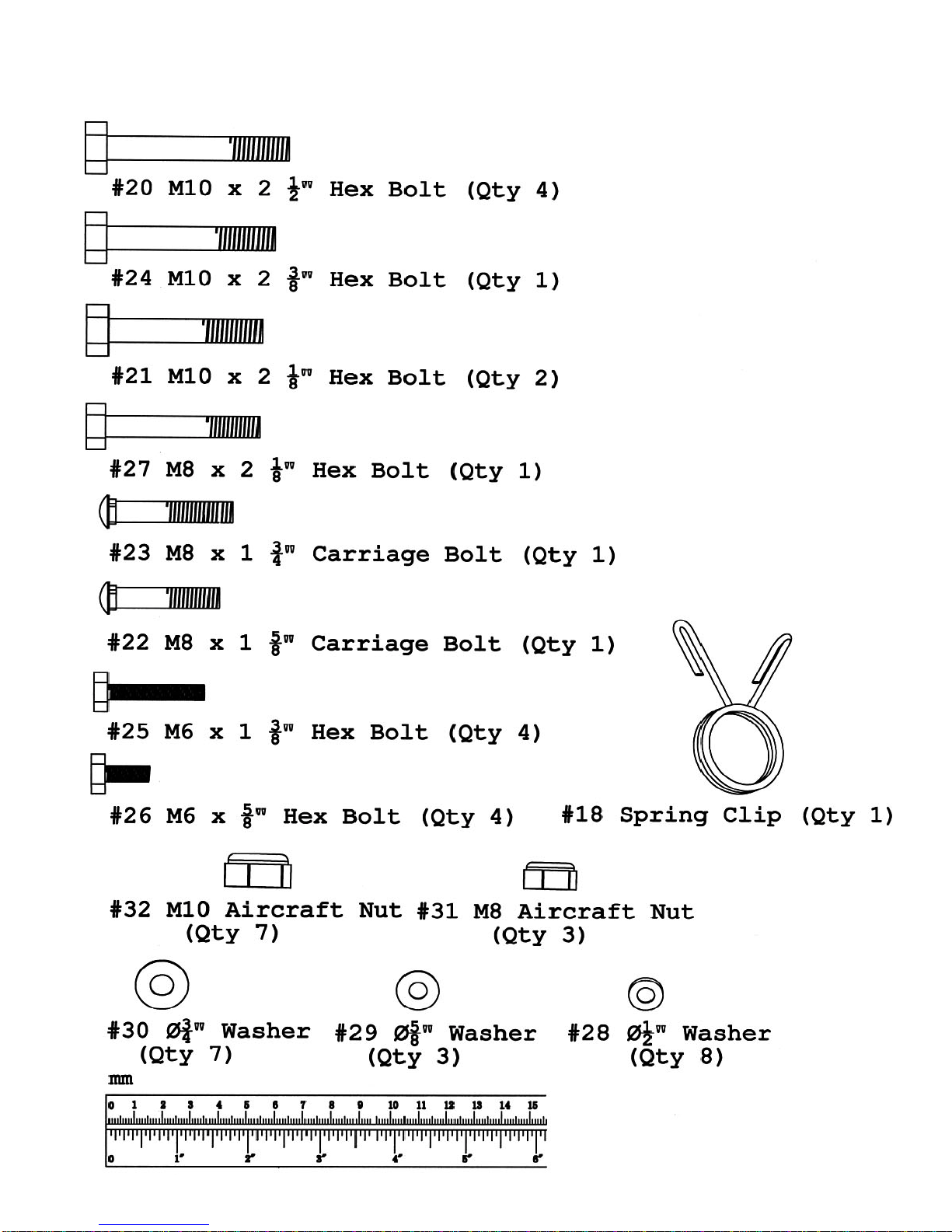

Hardware Pack

NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches.

NOTE: It is strongly recommended two or more people assembling this machine to

avoid possible injury.

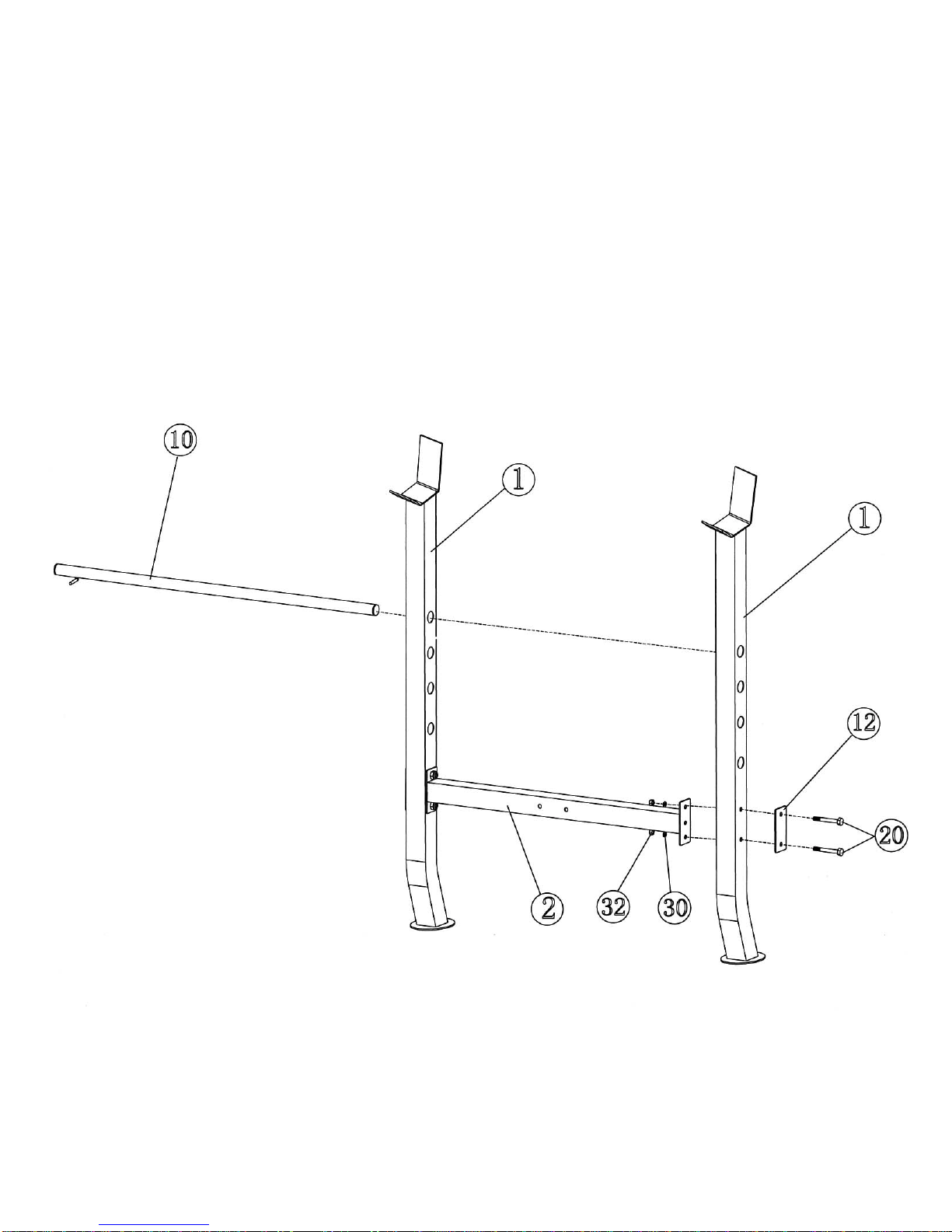

STEP 1 (See Diagram 1)

A.) Connect the two Upright Beams (#1) by a Cross Brace (#2) in the mid-span.

B.) Secure each end of Cross Brace to each Upright Beam with two M10 x 2 ½” Hex Bolts

(#20), one Bracket (#12), two Ø ¾” Washers (#30), and two M10 Aircraft Nuts (#32).

C.) Insert the Backrest Adjustment Bar (#10) through the selected holes on the Upright

Beams to obtain desired incline position. DIAGRAM 1

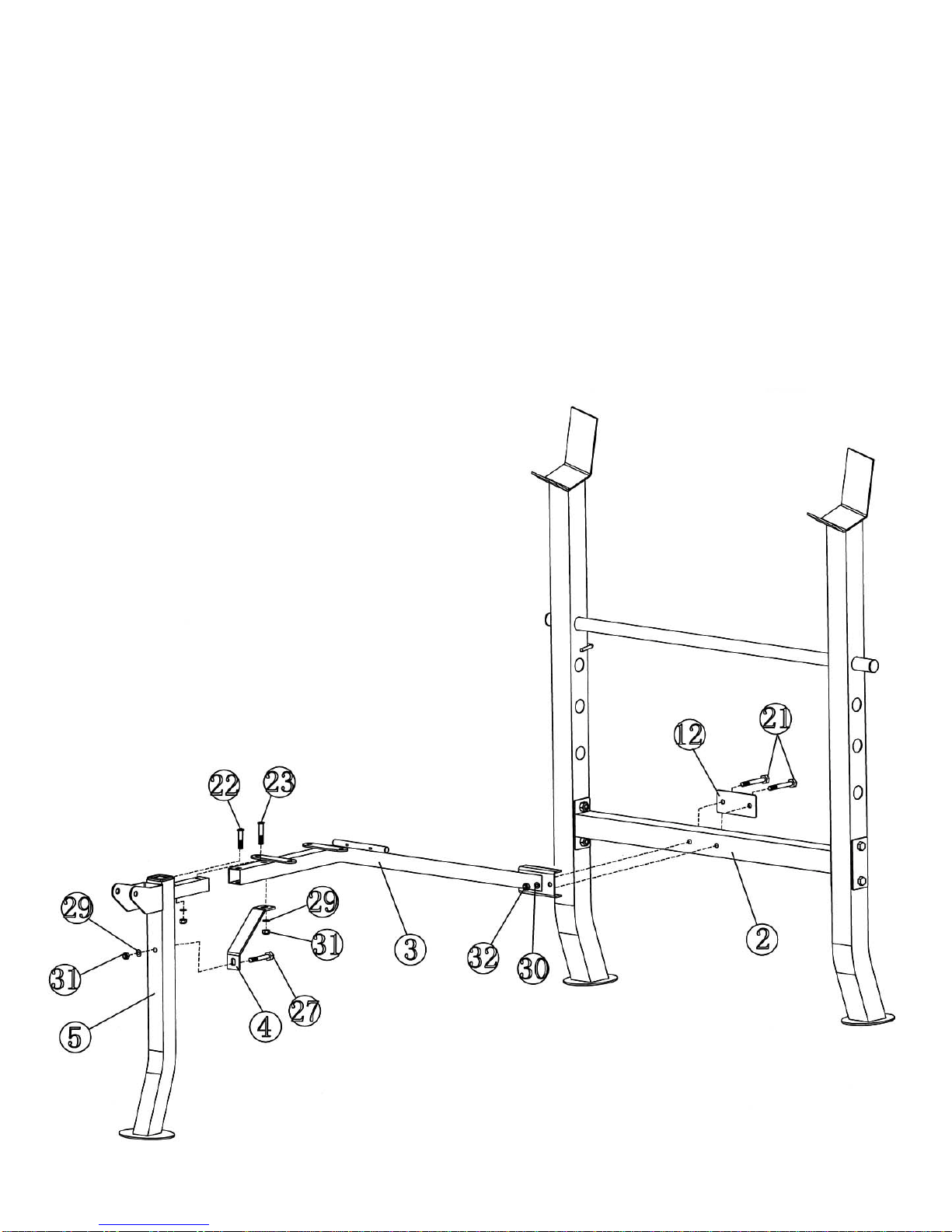

STEP 2 (See Diagram 2)

A.) Attach the Front Support (#5) to the Main Seat Support (#3). Secure it with one M8 x 1

5/8” Carriage Bolt (#22), Ø 5/8” Washer (#29), and M8 Aircraft Nut (#31). Do not tighten

the Nut and Bolt yet.

B.) Attach the other end of Main Seat Support to the Cross Brace (#2). Secure it with two

M10 x 2 1/8” Hex Bolts (#21), one Bracket (#12), two Ø ¾” Washers (#30), and two

M10 Aircraft Nuts (#32).

C.)Attach the Diagonal Support (#4) to the Main Seat Support. Secure it with one M8 x 1

¾” Carriage Bolt (#23), Ø 5/8” Washer (#29), and M8 Aircraft Nut (#31).

D.)Attach the other end of Diagonal Support to the Front Support. Secure it with one M8 x

2 1/8” Hex Bolt (#27), Ø 5/8” Washer (#29), and M8 Aircraft Nut (#31).

E.) Securely tighten all Nuts and Bolts. DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the side-holes on the two Backrest Supports (#7) to the pivot on the Main

Seat Support (#3). Place the other end of the Backrest Supports rest against the

Backrest Adjustment Bar (#10).

B.) Attach the Backrest Board (#9) to the Backrest Supports (#7). Secure it with four M6

x 1 3/8” Hex Bolts (#25) and Ø ½” Washers (#28).

C.)Place the Seat Pad (#8) onto the Main Seat Support. Secure it with four M6 x 5/8”

Hex Bolts (#26) and Ø ½” Washers (#28).

DIAGRAM 3

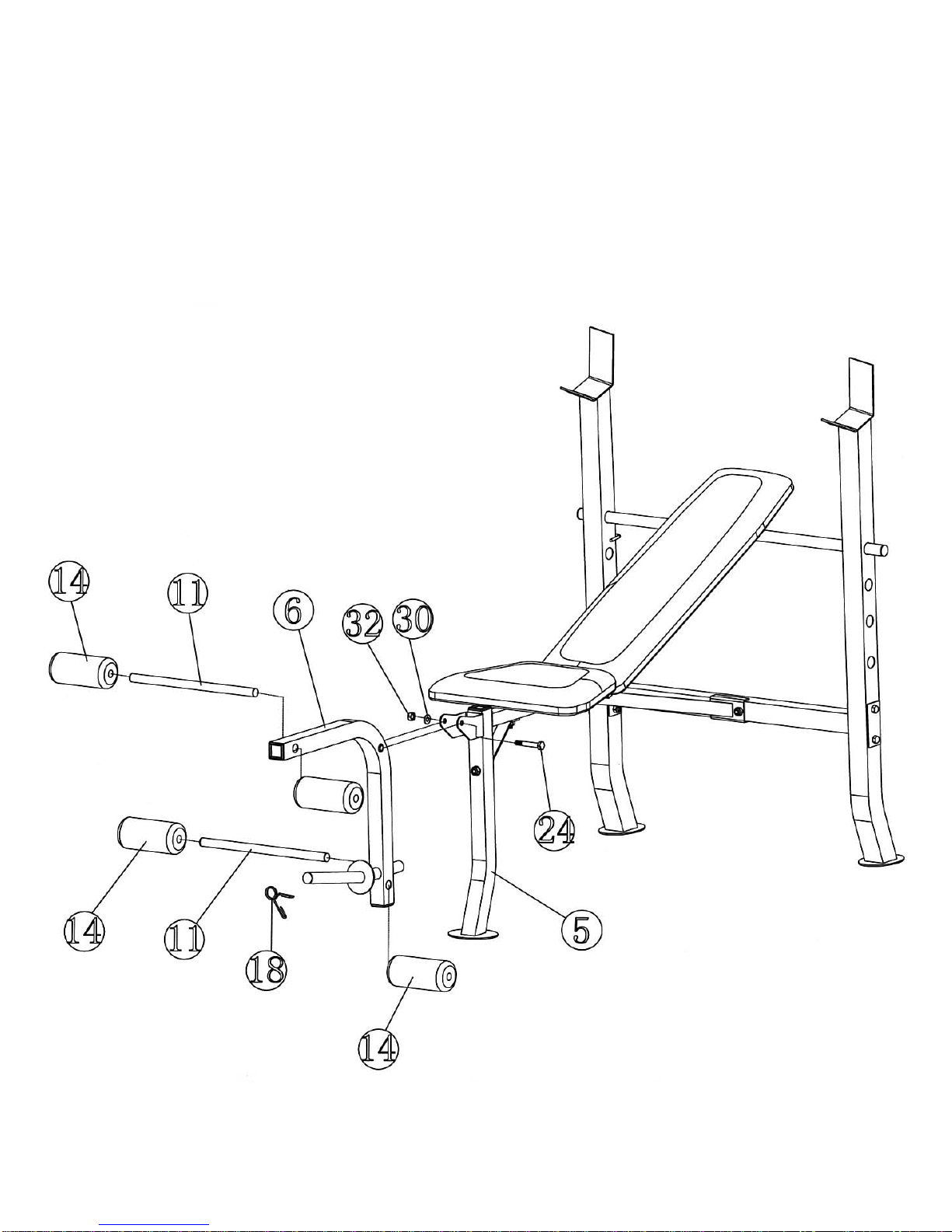

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#6) to the open bracket on the Front Support (#5).

Secure it with one M10 x 2 3/8” Hex Bolt (#24), Ø ¾” Washer (#30), and M10

Aircraft Nut (#32).

B.) Insert two Foam Tubes (#11) half way through the holes on the Leg Developer.

C.)Push four Foam Rolls (#14) onto the Foam Tubes.

DIAGRAM 4
